AEM Form Design Structure Issue

ArjunRam
Level 1
Level 1

HI All,

Can you please help me on how it can be done.

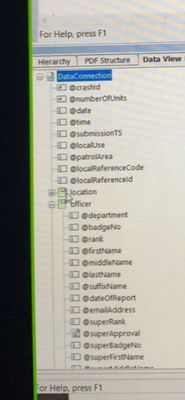

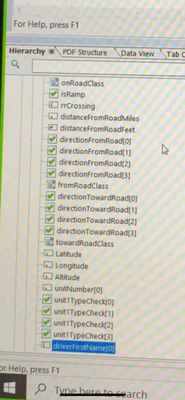

I want to structure below screenshot 1(as shown in hierarchy view) as screenshot 2 (as shown in data view mode).



Screenshot 1Screenshot 1Screenshot 2Screenshot 2

































Thank you

Adobe Livecycle AEM AEM Forms Designer
1 Accepted Solution
Kosta_Prokopiu1
Correct answer by
Employee
Employee

Hi @ArjunRam,



you have a flat form of fields and want to associate it with your data fields? That is data binding for you.

Do you know how to associate a data item with a field? Drag and Drop for example frm the data view or the Binding.


or




View solution in original post

4 Replies
Kosta_Prokopiu1
Correct answer by
Employee
Employee

Hi @ArjunRam,



you have a flat form of fields and want to associate it with your data fields? That is data binding for you.

Do you know how to associate a data item with a field? Drag and Drop for example frm the data view or the Binding.


or




View solution in original post

Mayank_Gandhi
Community Advisor
Community Advisor

@ArjunRam  I would like to add to what @Kosta_Prokopiu1 said. You have a form design with a flat hierarchy and you want to have a nested structure, this is not possible unless you create a similar structure in the hierarchy.



If you notice the schema in the binding tab gives you a good idea that what should be created as a subform. Let's assume you do the binding without subform as is then you will be able to get the data but the challenge will come in if the schema has further nested objects or there are repeatable sections. I cannot comment on how it would conform to the schema you can test it once. So based on my experience below are the  suggestion:



1. Bind the form with the schema as is and see if with little refactoring you can get it to work. Maybe some sub-forms would be required.(50-50 chance)

2. Long-term solution, redesign hierarchy as per schema.(100% efficient)











ArjunRam
Level 1
Level 1

@Kosta_Prokopiu1 @Mayank_Gandhi Thank you for you response.



I have already form designed and live in production.



So we cannot redesign, I have tried binding form without subform as is to scheme, I have few scenarios  which turnout to be blockers.



1. repeated section on form and since there are no subforms I am unable to bind to *.



2. There are two instances of object already on as [abc0], [abc1]. Then how to bind these things on schema. Because I do not have subform where I can mark as *.



Thank you





Kosta_Prokopiu1
Employee
Employee
If you cannot change the form then this will become very difficult. You cannot use single fields for repeating sections. You will have to modify the stucture to match your requirements. Even any binding changes will have to run through testing and QA - you might as well adapt your form to be properly in synch with your data. For the users it will be the same afterwards - if not even better 🙂
