coral-checkbox issue in Carousel

sunitac70336244

17-01-2019

Dear All,

I have a checkbox item called Add Button in my Carousel and the requirement is that when somebody will check the checkbox Add Button , then button text and button link will be visible.

So below is the cq.dialog

<addbutton

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/coral/foundation/form/checkbox"

     name="./includebutton"

     text="Add button (bottom)"

     value="{Boolean}true"/>

<buttontext

     jcr:primaryType="nt:unstructured"

     sling:resourceType="granite/ui/components/coral/foundation/form/textfield"

     fieldLabel="Button Text"

     name="./btntext"/>

     <link

     jcr:primaryType="nt:unstructured"

     sling:resourceType="granite/ui/components/foundation/form/pathbrowser"

     fieldLabel="Button Link"

     name="./link"

     rootPath="/content/Sunita"/>

Below is the HTL and JS for this requirement.

/************************* HTL ***********************/

<div data-sly-test="${item.includebutton}" class="hero-cta-landing">

<sly data-sly-test="${item.btnstyle}">

<a class="landing-marquee-btn btn btn-trp-primary ${item.btnstyle}" href="${item.link @ extension='html'}" target="${item.newWindow?'_blank':''}">${item.btntext}</a>

</sly>

<sly data-sly-test="${!item.btnstyle}">

<a class="landing-marquee-btn btn btn-trp-primary btn-trp-primary" href="${item.link @ extension='html'}" target="${item.newWindow?'_blank':''}">${item.btntext}</a>

</sly>

</div>

/************************* JS ***********************/

(function ($, $document) {

    $document.ready(function () {

        $document.on("dialog-ready", function() {



            if($("coral-checkbox[name='./includebutton'] :checked").length === 1){

            $("input[name='./btntext']").parent().show();

                $("input[name='./buttonLink']").parent().show();

             } else {

            $("input[name='./btntext']").parent().hide();

                $("input[name='./buttonLink']").parent().hide();

             }

            $("coral-checkbox[name='./includebutton']").on("click", function() {

            if($("coral-checkbox[name='./includebutton'] :checked").length === 1){

                      $("input[name='./btntext']").parent().show();

                    $("input[name='./buttonLink']").parent().show();

                 } else {

                $("input[name='./btntext']").parent().hide();

                    $("input[name='./buttonLink']").parent().hide();

                 }

            });

        });

});

}(jQuery, jQuery(document)));

The issue here is , when I am trying to check the Add button checkbox then automatically in every carousel item the btntext and buttonLink is coming ,

as shown in below figure.

You can observe in the last picture that in the 2nd item , though Add Button is not checked in , still the button text is coming.

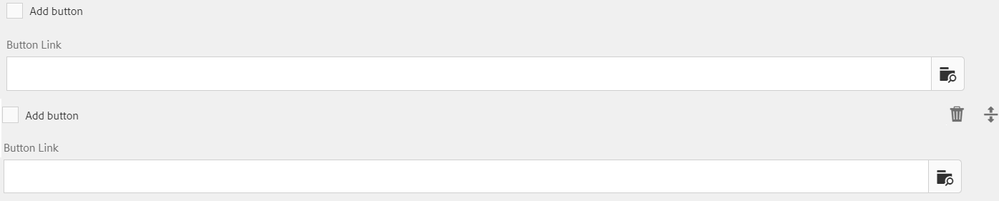

******************** BEFORE CHECKED IN ADD BUTTON****************************************


************** AFTER CHECKED IN ADD BUTTON****************************************


Please help me on this.

Thanks in advance

Replies

Highlighted

sunitac70336244

17-01-2019

Hi Donald,

No I am not modifying the AEM CORE Carousel component. Actually this carousel component was developed in AEM 6.0 and it is migrated to AEM 6.4

So now in the existing carousel Business want to add three more items called Add Button , button text and button link.

My code is working fine without carousel , but in the carousel when I am clicking on the Add Button checkbox then automatically in every item , it is coming.

Highlighted

Gaurav-Behl

MVP

17-01-2019

You are using jQuery named selector which is not appropriate to handle this use case. Below is an example with explanation. Assume these are the textboxes in carousel, one per carousel item

<input type="radio" name="./btntext" value="A">

<input type="radio" name="./btntext" value="B">

<input type="radio" name="./btntext" value="C">

Now when you use $("input[name='./btntext']"), it would select all the items with name './btntext' and not just a single element. You can check $("input[name='./btntext']").length in console to validate which would give you result as 3 and not 1

The solution is to use specific selectors or ids etc. to identify each unique element of carousel item 1, 2 & 3. There are various ways to achieve that.

E.g. https://api.jquery.com/multiple-attribute-selector/

HTH

Highlighted

sunitac70336244

22-01-2019

Dear Kautuk,

Thanks for the response and currently working what gaurav suggested. Once completed , i will inform everybody.

Highlighted

sunitac70336244

25-01-2019

Dear All,

I tried lots of option for showing the value of button text on click checkbox for multi field. But still I am facing the same issue.

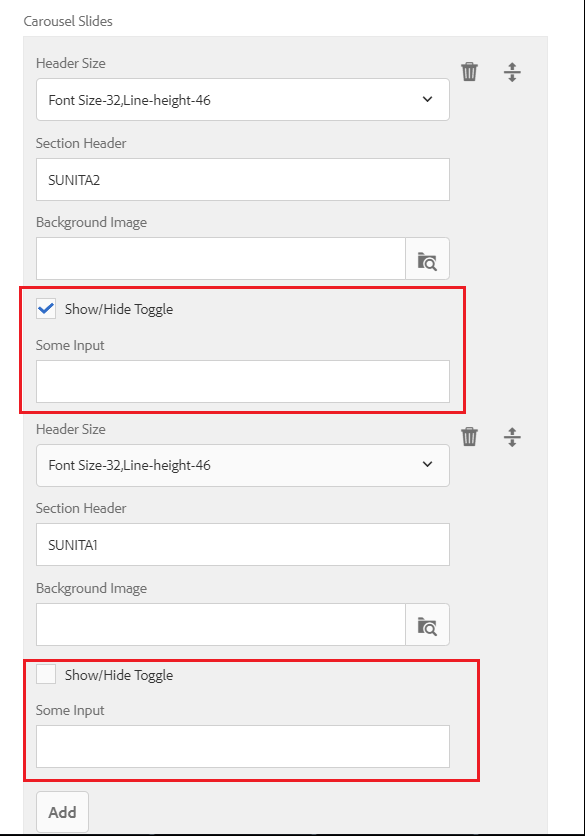

While I select the one checkbox then automatically second checkbox value is showing , as shown below.


Option-1

I changed my java script like below and still was not able to fix.

//For the Load purpose
$
("coral-checkbox[name='./includebutton']").each(function() {
  toogleDiv
($(this));
});

//For the Click purpose
$
("coral-checkbox[name='./includebutton']").on("click", function() {
  toogleDiv
($(this));
});

function toogleDiv(_this) {

var related_div = _this.next('div');


if ($(':checkbox', _this).is(":checked")) {
  related_div
.show();

} else {
  related_div
.hide();

}
}

The conntent.xml for dialog is below in Option-2

Option-2

I followed the steps mentioned in the below URL and no luck. I have pasted my content.xml for dialog and below JS file.

AEM 6 Touch UI Show/Hide Checkbox Component Extension - Extension to the standard checkbox component...

***************************** Content.xml for dialog*********************************************************

<?xml version="1.0" encoding="UTF-8"?>

<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"

    jcr:primaryType="nt:unstructured"

    jcr:title="Hero Poster Marquee"

    sling:resourceType="cq/gui/components/authoring/dialog"

    extraClientlibs="[trowecorp.landing.poster.carousel]"

    width="900px">

    <content

        jcr:primaryType="nt:unstructured"

        sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">

        <items jcr:primaryType="nt:unstructured">

            <column

                jcr:primaryType="nt:unstructured"

                sling:resourceType="granite/ui/components/coral/foundation/container">

                <items jcr:primaryType="nt:unstructured">

                    <carousel

                        jcr:primaryType="nt:unstructured"

                        sling:resourceType="granite/ui/components/coral/foundation/form/multifield"

                        composite="{Boolean}true"

                        fieldLabel="Carousel Slides">

                        <field

                            jcr:primaryType="nt:unstructured"

                            sling:resourceType="granite/ui/components/coral/foundation/container"

                            name="./NestedSlides">

                            <items jcr:primaryType="nt:unstructured">

                                <column

                                    jcr:primaryType="nt:unstructured"

                                    sling:resourceType="granite/ui/components/coral/foundation/container">

                                    <items jcr:primaryType="nt:unstructured">

                                        <headerSize

                                            jcr:primaryType="nt:unstructured"

                                            sling:resourceType="granite/ui/components/coral/foundation/form/select"

                                            fieldLabel="Header Size"

                                            name="./headerSize">

                                            <items jcr:primaryType="nt:unstructured">

                                                <font32

                                                    jcr:primaryType="nt:unstructured"

                                                    text="Font Size-32,Line-height-46"

                                                    value="hero-title32"/>

                                                <font45

                                                    jcr:primaryType="nt:unstructured"

                                                    defaultValue="true"

                                                    text="Font Size-45,Line-height-46"

                                                    value="hero-title45"/>

                                                <font50

                                                    jcr:primaryType="nt:unstructured"

                                                    defaultValue="true"

                                                    text="Font Size-50,Line-height-60"

                                                    value="hero-title50"/>

                                            </items>

                                        </headerSize>

                                        <header

                                            jcr:primaryType="nt:unstructured"

                                            sling:resourceType="granite/ui/components/coral/foundation/form/textfield"

                                            fieldLabel="Section Header"

                                            name="./title"

                                            useFixedInlineToolbar="{Boolean}true">

                                            <rtePlugins jcr:primaryType="nt:unstructured">

                                                <format

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*"/>

                                                <justify

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*"/>

                                                <lists

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*"/>

                                                <paraformat

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*"/>

                                                <links

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*"/>

                                                <image

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*"/>

                                                <findreplace

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*"/>

                                                <subsuperscript

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*"/>

                                                <spellcheck

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*"/>

                                                <misctools

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*">

                                                    <specialCharsConfig jcr:primaryType="nt:unstructured">

                                                        <chars jcr:primaryType="nt:unstructured">

                                                            <trademark

                                                                jcr:primaryType="nt:unstructured"

                                                                entity="&amp;#8482; &amp;nbsp;"/>

                                                            <copyright

                                                                jcr:primaryType="nt:unstructured"

                                                                entity="&amp;#169; &amp;nbsp;"/>

                                                            <registered

                                                                jcr:primaryType="nt:unstructured"

                                                                entity="&amp;#174; &amp;nbsp;"/>

                                                            <mdash

                                                                jcr:primaryType="nt:unstructured"

                                                                entity="&amp;#151; &amp;nbsp;"/>

                                                            <leftdoublequote

                                                                jcr:primaryType="nt:unstructured"

                                                                entity="&amp;#8220; &amp;nbsp;"/>

                                                            <rightdoublequote

                                                                jcr:primaryType="nt:unstructured"

                                                                entity="&amp;#8221; &amp;nbsp;"/>

                                                            <servicemark

                                                                jcr:primaryType="nt:unstructured"

                                                                entity="&amp;#8480; &amp;nbsp;"/>

                                                        </chars>

                                                    </specialCharsConfig>

                                                </misctools>

                                                <styles

                                                    jcr:primaryType="nt:unstructured"

                                                    features="*">

                                                    <styles jcr:primaryType="cq:WidgetCollection"/>

                                                </styles>

                                            </rtePlugins>

                                            <uiSettings jcr:primaryType="nt:unstructured">

                                                <cui jcr:primaryType="nt:unstructured">

                                                    <inline

                                                        jcr:primaryType="nt:unstructured"

                                                        toolbar="[format#bold,format#italic,format#underline,#justify,#lists,subsuperscript#subscript,subsuperscript#superscript,links#modifylink,links#unlink,links#anchor,#image,findreplace#find,findreplace#replace,spellcheck#checktext,misctools#specialchars,misctools#sourceedit,#styles,#paraformat]">

                                                        <popovers jcr:primaryType="nt:unstructured">

                                                            <justify

                                                                jcr:primaryType="nt:unstructured"

                                                                items="[justify#justifyleft,justify#justifycenter,justify#justifyright]"

                                                                ref="justify"/>

                                                            <lists

                                                                jcr:primaryType="nt:unstructured"

                                                                items="[lists#unordered,lists#ordered,lists#outdent,lists#indent]"

                                                                ref="lists"/>

                                                            <paraformat

                                                                jcr:primaryType="nt:unstructured"

                                                                items="paraformat:getFormats:paraformat-pulldown"

                                                                ref="paraformat"/>

                                                            <styles

                                                                jcr:primaryType="nt:unstructured"

                                                                items="styles:getStyles:styles-pulldown"

                                                                ref="styles"/>

                                                        </popovers>

                                                    </inline>

                                                </cui>

                                            </uiSettings>

                                        </header>

                                        <backgroundimage

                                            jcr:primaryType="nt:unstructured"

                                            sling:resourceType="granite/ui/components/coral/foundation/form/pathbrowser"

                                            fieldLabel="Background Image"

                                            name="./bgImage"

                                            rootPath="/content/dam/trowecorp"/>

                                        <toggle

                                            jcr:primaryType="nt:unstructured"

                                            sling:resourceType="granite/ui/components/foundation/form/checkbox"

                                            class="showhide"

                                            id="toggle"

                                            name="./toggle"

                                            showhide-target=".showhide-target"

                                            text="Show/Hide Toggle"

                                            value="true"/>

                                        <someContainer

                                            jcr:primaryType="nt:unstructured"

                                            sling:resourceType="granite/ui/components/foundation/container"

                                            class="showhide-target"

                                            showhide-target-value="true">

                                            <items jcr:primaryType="nt:unstructured">

                                                <someInput

                                                    jcr:primaryType="nt:unstructured"

                                                    sling:resourceType="granite/ui/components/foundation/form/textfield"

                                                    fieldLabel="Some Input"

                                                    name="./someInput"/>

                                            </items>

                                        </someContainer>

                                    </items>

                                </column>

                            </items>

                        </field>

                    </carousel>

                </items>

            </column>

        </items>

    </content>

</jcr:root>

and my java script for above dialog is below.

(function (document, $) {

  "use strict";

  // listen for dialog injection

  $(document).on("foundation-contentloaded", function (e) {

    $(".showhide").each(function () {

      showHide($(this));

    });

  });

  // listen for toggle change

  $(document).on("change", ".showhide", function (e) {

    showHide($(this));

  });

  // show/hide our target depending on toggle state

  function showHide(el) {

    var target = el.data("showhideTarget"),

      value = el.prop("checked") ? el.val() : "";

    // hide all targets by default

    $(target).not(".hide").addClass("hide");

    // show any targets with a matching target value

    $(target).filter("[data-showhide-target-value=\"" + value + "\"]").removeClass("hide");

  }

})(document, Granite.$);

Can you please help me on this. Thanks in advance.

Highlighted

Gaurav-Behl

MVP

25-01-2019

I don't see the recommendations being implemented in the code. The issue is with this code:

$("coral-checkbox[name='./includebutton']") will pick up multiple elements. You need to use ids like

$("#carousel_id1").click(function(e){ // do something});

$("#carousel_id2").click(function(e){ // do something});

$("#carousel_id3").click(function(e){ // do something});

I'll see if I can fix it later today and share it.

Highlighted

Gaurav-Behl

MVP

25-01-2019

Below is the code for option #2 because I didn't have the dialog.xml for option #1, I've removed other fields for testing purpose.

Javascript -------------------------------------------------------------

(function(document, $) {

    "use strict";

    $(document).on("foundation-contentloaded", function(e) {

        $(".cq-dialog-checkbox-showhide").each( function() {

            showHide($(this));

        });

    });

    $(document).on("change", ".cq-dialog-checkbox-showhide", function(e) {

   showHide($(this));

    });

    function showHide(el){

       var checked = el.prop('checked');

      if(checked) {

            $(el).parent().parent().siblings('.button-option-enable-showhide-target').first().removeClass("hidden"); // TODO: this selector can be optimized

        } else {

            $(el).parent().parent().siblings('.button-option-enable-showhide-target').first().addClass("hidden");

        }

   }

})(document,Granite.$);

dialog.xml -------------------------------------------------------------------------------------------------------------------------------------------------------

<?xml version="1.0" encoding="UTF-8"?>

<jcr:root xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" xmlns:sling="http://sling.apache.org/jcr/sling/1.0" jcr:primaryType="nt:unstructured" jcr:title="Hero Poster Marquee" sling:resourceType="cq/gui/components/authoring/dialog" extraClientlibs="[trowecorp.landing.poster.carousel]" width="900px">

   <content jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">

   <items jcr:primaryType="nt:unstructured">

   <column jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/container">

   <items jcr:primaryType="nt:unstructured">

   <carousel jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/form/multifield" composite="{Boolean}true" fieldLabel="Carousel Slides">

   <field jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/container" name="./NestedSlides">

   <items jcr:primaryType="nt:unstructured">

   <column jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/container">

   <items jcr:primaryType="nt:unstructured">

   <enable

   jcr:primaryType="nt:unstructured"

   sling:resourceType="granite/ui/components/foundation/form/checkbox"

   text="Enable"

   id="enable"

   value="true"

   name="./enable"

   class="cq-dialog-checkbox-showhide"

   cq-dialog-checkbox-showhide-target=".button-option-enable-showhide-target"/>

   <deleteEnable

   jcr:primaryType="nt:unstructured"

   sling:resourceType="granite/ui/components/foundation/form/hidden"

   name="./enable@Delete"

   value="true"/>

   <showHideContainer

   jcr:primaryType="nt:unstructured"

   sling:resourceType="granite/ui/components/foundation/container"

   class="hidden button-option-enable-showhide-target"

   showhidetargetvalue="true">

   <items jcr:primaryType="nt:unstructured">

   <someInput jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/foundation/form/textfield" fieldLabel="Some Input" name="./someInput" />

   </items>

   </showHideContainer>

   </items>

   </column>

   </items>

   </field>

   </carousel>

   </items>

   </column>

   </items>

   </content>

</jcr:root>


Highlighted

sunitac70336244

30-01-2019

Hi Gaurav,

Thanks for the changes. But still my enable checkbox is not coming any value , as shown below.


I have updated my package in below.

GitHub - sunita197881/sunitatest1 at checkbox-Multifield

Can you please share your package. Am I missing something ?
