Custom Method for default value in Campaign Schema

[dipendu_g]

Hello All,

I am on Adobe Campaign v8, and trying to use a custom method for the default attribute

===========
Schema Name - fIdGen
==============
<attribute label="FName" name="fname" type="string"/>
<attribute default="genId(@fname)" label="FId" name="fId" type="string"/>

<methods>
 <method library="abc:commonFunc.js" name="genId" static="true">
  <parameters>
    <param desc="fname" inout="in" name="fName" type="string"/>
    <param desc="fId" inout="out" name="fId" type="string"/>
  </parameters>
 </method>
</methods>

==========================
abc:commonFunc.js
==========================
function abc_fIdGen_genId(fName){
  return "AC101444";
}

The above when executed gives me the error

XTK-170016 You are not authorized to use SQL expressions. 'genId' cannot be processed. XTK-170006 Unable to parse expression 'genId(@fName)'

. I need to take the Input fname later and create a Id.

Please help me in the same

Regards,

DG

[_Manoj_Kumar_]

Hello @dipendu_g

Try changing the out parameter to something like this.

 <param desc="fId" inout="out" name="fId" type="string" xpathOut="/tmp/@tempFId"/>

Then change the default value of the attribute to:

<attribute default="[/tmp/@tempfId]" label="FId" name="fId" type="string"/>

[dganguly]

Hi @_Manoj_Kumar_ ,

I am getting the following error

Attribute 'xpathOut' unknown (see definition of element '/param' in schema 'Source schemas of entities (xtk:srcSchema)').

Regards,

DG

[_Manoj_Kumar_]

@dganguly

Try this:

 <param type="string" xpathOut="/tmp/@tempfId"/>

[dganguly]

Hi @_Manoj_Kumar_ ,

Same error, I see

Regards,

DG

[_Manoj_Kumar_]

Hello @dganguly

You will have to add that code in the input form to make it work.

How are you ingesting records in the schema via a workflow or inut form?

[dganguly]

Hi @_Manoj_Kumar_ ,

I am ingesting using a form.

But the code you gave, when I add in the schema, it throws that error.

I am trying to get the next unique number, and so wanted to get it generated while the data is inserted in the table,

if

Regards,

DG

[dganguly]

Hi All,

If somebody can help

@_Manoj_Kumar_ , @Adhiyan , @David__Garcia

Regards,
DG

[_Manoj_Kumar_]

Hello @dipendu_g

Here is another way to do it.

1. Do not define the default value in the schema attribute. Instead, set the default value while the input form submission.
2. In the input form, add a button to call the javascript function.

You can refer to this post for the code snippets: Solved: how to use javascript functions in input form - Adobe Experience League Community - 257268

[Parvesh_Parmar · Accepted solution]

Hello @dipendu_g ,

As I understood, you want, when someone enter the "fname" value in the input form then Unique "fId" will generate automatically when someone save the input form.

For this, I did the following test.

Schema: There you need to add following two fields and need to define a method:

<srcSchema _cs="Test01 (cus)" createdBy-id="0"
           entitySchema="xtk:srcSchema" img="xtk:schema.png" label="Test01"
           mappingType="sql" md5="5CA41EE99322B61D35A2210A9D7956BB" modifiedBy-id="0"
           name="test01" namespace="cus" xtkschema="xtk:srcSchema">

  <element autopk="true" label="Test01" name="test01">

    <attribute label="FName" name="fname" type="string"/>
    <attribute label="FId" name="fId" type="string"/>

  </element>

  <methods>
    <method library="cus:test01.js" name="genId" static="true">
      <parameters>
        <param desc="fname" inout="in" name="fname" type="string"/>
        <param desc="fId" inout="out" name="fId" type="string"/>
      </parameters>
    </method>
  </methods>
</srcSchema>

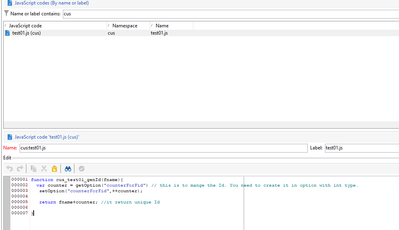

JavaScript  Library: You need to create a .js file under JavaScript code folder in admin.

function cus_test01_genId(fname){
  var counter = getOption("counterForFid") // this is to mange the Id. You need to create it in option with int type.
   setOption("counterForFid",++counter);

   return fname+counter; //it return unique Id

}

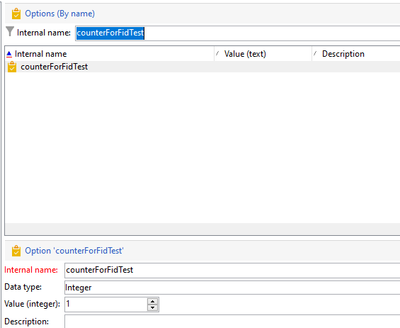

Option: To mange  a unique fId, you need counter. If someone can enter same fName the it will keep fid unique.

Input form:  There when someone enter the  value for "fname" field, it will pass to the function and it will return the unique fId based on fName. Note: There fname is passed to function via soap call and output of function is inserter to fId via xpathOut parameter.FId filed is read only, because this is id.

<form _cs="test01 (cus)"   entitySchema="xtk:form"
      img="xtk:form.png" label="test01"
      modifiedBy-id="3524" name="test01" namespace="cus" xtkschema="xtk:form">

  <input readOnly="true" xpath="@fId"/>
  <input xpath="@fname"/>

  <leave>
    <soapCall name="genId" service="cus:test01">
      <param exprIn="@fname" type="string"/>
      <param type="string" xpathOut="@fId"/>
    </soapCall>
  </leave>


</form>

Navigation hierarch: I believe you already created it. Just sharing if needed.

<navtree _cs="test01 (cus)"
         entitySchema="xtk:navtree" img="nl:folders.png" label="test01"
         md5="AE43085ADF6D10668FDC881DCD8DDB64" modifiedBy-id="3524" name="test01"
         namespace="cus" xtkschema="xtk:navtree">

  <model name="root">
    <model label="Administration" name="admin">

      <model label="Test01" name="cusTest01">


        <nodeModel img="nms:folder.png" label="Test01" name="nmsFolder">
          <view name="listdet" schema="cus:test01" type="listdet">
            <columns>
              <node xpath="@fname"/>
              <node xpath="@fId"/>

            </columns>
          </view>
        </nodeModel>

      </model>
    </model>
  </model>


</navtree>

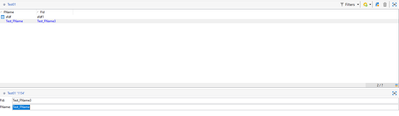

Final test: Enter Fname and save the value. Fid will be generated.

I hope it will help you.

Thanks,

Parvesh

[dganguly]

Hi @_Manoj_Kumar_  and @Parvesh_Parmar ,

Thanks both for the suggestion and @Parvesh_Parmar and detailing the solution for the Inputs forms so well.

Actually we need to call this from a WebForm, hence I initially tried with the default attribute along with a new SQL function.

The Code is based on current date, as FFYYDDMM001, FFYYDDMM002, etc for today, and next day again the counter starts with 001 ( FF is static piece)

Regards,

DG
