Hello,

From my testing I do not think this is possible but I thought I would ask the community...

I would like to display the {plannedCompletionDate} value the color "blue" IF the Task/Milestone is 100% complete...etc.

each column has a unique milestone ID

each row is a project

My text code...

displayname=Planned Completion Date of R1 Design Comp
listdelimiter=<div>
listmethod=nested(tasks).lists
type=iterate
valueexpression=IF({milestone}.{ID}="xxxxxxxxxxxxxxxxxxxxx",CONCAT({plannedCompletionDate}))
valueformat=HTML

[JustinRenteria2]

Unfortunately, you're correct, this is not possible. You cannot use conditional formatting on collections.

[MarkSa18]

uggh...that's what I thought

Thank you @JustinRenteria2

That was my best attempt at a workaround for matrix style report.

Thanks again.

Best,

Mark

[KristenS_WF]

Yeah, I find both the matrix reporting and the built-in milestone view underwhelming.  We rely on milestone reporting to give us an at-a-glance view on how different project populations are tracking.

Until WF can provide a better built-in solution, we've been exporting the raw WF milestone task data and using an MS Access tool to automate producing/formatting a crosstab query-based report in Excel.

[MarkSa18]

Hi @KristenS_WF

That's a work around I have not thought about. I'd like to hand off report to our client in an easy to read format (ie color coded) and WF just does not have the chops for it.

So you basically download to Excel and import in to MS Access?

I can't say I have created a cross tab query-based report before but I will look into it.

Thanks

Mark

[KristenS_WF · Accepted solution]

Correct.  Currently we have 4 Access queries for each report.

The first query just includes project-based fields that can be aggregated:

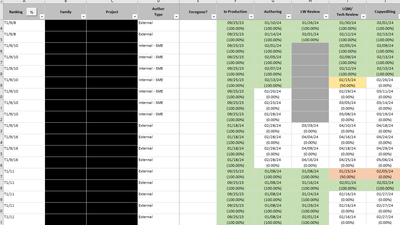

The second query includes the task-based fields that will form the heart of the crosstab; in it I created a custom field that includes both the task due date and completion percentage (on separate lines):

I then used this second query as the source for the actual crosstab query; I specified the milestone column headings in the order I want them to appear:

Finally I created a fourth query that joins the first query (with the grouped project info) and the crosstab query; the queries are joined using the project name:

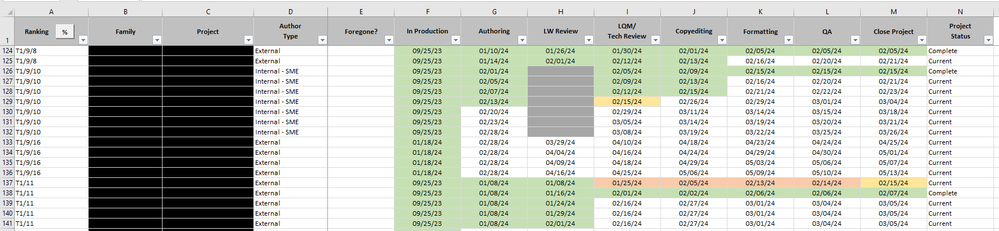

This last query is the one I export back to Excel.  The conditional formatting in the report is based off of the date and completion percentage (milestones that are 100% complete are green; ones that are less than 100% and are due today are yellow; ones that are less than 100% and were due in the past are red; incomplete future tasks have no formatting; if a milestone/cell is blank, it's gray).  I usually have the row widths set to only show the dates, but if I expand the row width, the percentage is also visible.

I've got coding in the Access tool that handles the import, export, and formatting of the Excel report.  Ideally I'd love to be able to do all this in WF, but this has been working for us in the interim.  Hopefully it will give you some ideas.

[MarkSa18]

Kristen, that's awesome...I will have to noodle on that a bit to see if I recreate the same report.

Thank you again for sharing with me.

Best,

Mark
