when I go to http://localhost-aem-dispatcher, Internal Server Error happens

Avatar

Level 4

Hello Everyone,

Now, I have configured dispatcher in aem in order to work cache in dispatcher.

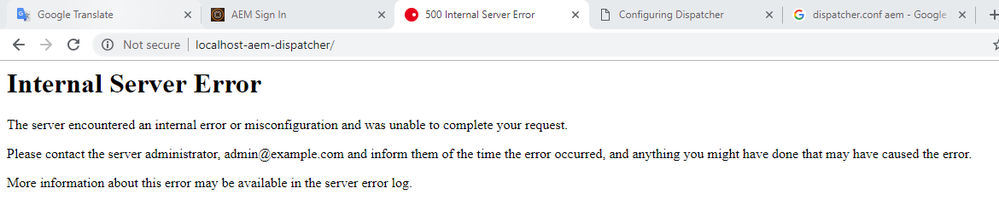

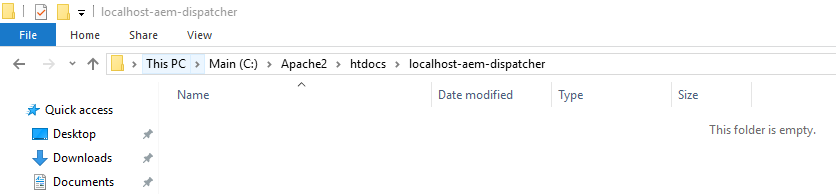

But when I go to http://localhost-aem-dispatcher, Internal Server Error happens and the folder(C:\Apache2\htdocs\localhost-aem-dispatcher) for caching is empty like that.



Can you help me fix the error? I have no idea why.

1.C:\Windows\System32\drivers\etc\hosts

127.0.0.1 localhost-aem-dispatcher

2.C:\Apache2\conf\dispatcher.any

# name of the dispatcher

/name "internet-server"

# Each farm configures a set of load balanced renders (i.e. remote servers)

/farms {

  # first farm entry (label is not important, just for your convenience)

  /website {

    /virtualhosts {

"localhost-aem-dispatcher"

    }

    /renders {

      /0001 {

        /hostname "127.0.0.1"

        /port "4503"

      }

    }

    /cache {

      /docroot "C:/Apache2/htdocs/localhost-aem-dispatcher"

      /enableTTL "1"

    }

  }

}

3.C:\Apache2\conf\extra\httpd-vhosts.conf

<VirtualHost localhost-aem-dispatcher:80>

    ServerName localhost-aem-dispatcher

    ServerAlias localhost-aem-dispatcher

    DocumentRoot "C:/Apache2/htdocs/localhost-aem-dispatcher"

    ErrorLog "logs/localhost-aem-dispatcher-error.log"

    CustomLog "logs/localhost-aem-dispatcher-access_log" common

    <Directory "C:/Apache2/htdocs/localhost-aem-dispatcher">

        <IfModule disp_apache2.c>

            SetHandler dispatcher-handler

            ModMimeUsePathInfo On

        </IfModule>

        Options FollowSymLinks

        AllowOverride None

        Require all granted

    </Directory>

</VirtualHost>

4.C:\Apache2\conf\httpd.conf

ServerRoot "c:/Apache2"

Listen 80

LoadModule dispatcher_module modules/disp_apache2.2.dll

<IfModule disp_apache2.c>

    # location of the configuration file. eg: 'conf/dispatcher.any'

    DispatcherConfig conf/dispatcher.any



    # location of the dispatcher log file. eg: 'logs/dispatcher.log'

    DispatcherLog    logs/dispatcher.log



    # log level for the dispatcher log, can be either specified

    # as a string or an integer (in parentheses)

    # error(0): Errors

    # warn(1): Warnings

    # info(2): Infos

    # debug(3): Debug

    # trace(4): Trace

    DispatcherLogLevel debug



    # if turned on, the dispatcher looks like a normal module

    DispatcherNoServerHeader Off



    # if turned on, request to / are not handled by the dispatcher

    # use the mod_alias then for the correct mapping

    DispatcherDeclineRoot Off



    # if turned on, the dispatcher uses the URL already processed

    # by handlers preceeding the dispatcher (i.e. mod_rewrite)

    # instead of the original one passed to the web server.

    DispatcherUseProcessedURL Off



    # if turned to 1, the dispatcher does not spool an error

    # response to the client (where the status code is greater

    # or equal than 400), but passes the status code to

    # Apache, which e.g. allows an ErrorDocument directive

    # to process such a status code.

    #

    # Additionally, one can specify the status code ranges that should

    # be left to web server to handle, e.g.

    #

    # DispatcherPassError 400-404,501

    DispatcherPassError 0

    #

    # DispatcherKeepAliveTimeout specifies the number of seconds a

    # connection to a backend should be kept alive. If not set or

    # set to zero, connections are not kept alive.

    #

    #DispatcherKeepAliveTimeout 60

</IfModule>

DocumentRoot "c:/Apache2/htdocs"

<Directory />

    <IfModule disp_apache2.c>

        ModMimeUsePathInfo On

        # enable dispatcher for ALL request. if this is too restrictive,

        # move it to another location

        SetHandler dispatcher-handler

    </IfModule>

    Options FollowSymLinks

    AllowOverride None

</Directory>

# Virtual hosts

Include conf/extra/httpd-vhosts.conf

7 Replies

Avatar

Level 4

I fixed Internal Server Error.

I changed my VirtualHost setting like that.

C:\Apache2\conf\extra\httpd-vhosts.conf

NameVirtualHost localhost-aem-dispatcher:80

<VirtualHost localhost-aem-dispatcher:80>

    ServerName localhost-aem-dispatcher

    ServerAlias localhost-aem-dispatcher

    DocumentRoot C:/Apache2/htdocs/localhost-aem-dispatcher

    ErrorLog C:/Apache2/logs/localhost-aem-dispatcher-error.log

    CustomLog C:/Apache2/logs/localhost-aem-dispatcher-access_log common

    <Directory C:/Apache2/htdocs/localhost-aem-dispatcher/>

       <IfModule disp_apache2.c>

           SetHandler dispatcher-handler

           ModMimeUsePathInfo On

       </IfModule>

       Options FollowSymLinks

       AllowOverride None

       # Apache httpd 2.2

       Order allow,deny

       Allow from all

       # Apache httpd 2.4

       # Require all granted

   </Directory>

</VirtualHost>

But I have still the problem that caching in dispatcher doesn't work.

Can you help me work the caching in dispatccher?

Avatar

Level 8

You must have that property then only the server will accept requests

Require all granted

Do you want any requirement to not accept requests from the particular IP address or domain name ? if  so then you can use below configurations

Require not ip 192.169.205.195

Require not host keysandstrokes.info

If want to disable requests from all users then you can use this

Require all denied

Avatar

Level 4

I think Require all granted supports in Apache 2.4 version only.

I think Require all granted don't support in Apache 2.2 version.

My Apache version is 2.2.

Avatar

Level 8

You need to use below one

Allow from all

Avatar

Level 4

I already used below one..

Allow from all

but caching in dispatcher doesn't work.

what should I add in /cache in dispatcher.any ?

Avatar

Level 4

I found the following informations below url.

"You cannot add the Require all granted line in Apache 2.2, or you’ll get a 500 Internal Server Error."

Updating Virtual Host Settings from Apache 2.2 to Apache 2.4

Avatar

Level 8

I request you please don't delete or modify the posts, it confuses people and it will people will loose the track
