SOLVED

Rich text editor plugins not visible on touch UI dialog in AEM 6.3

cqsapientu69896
Level 4
Level 4

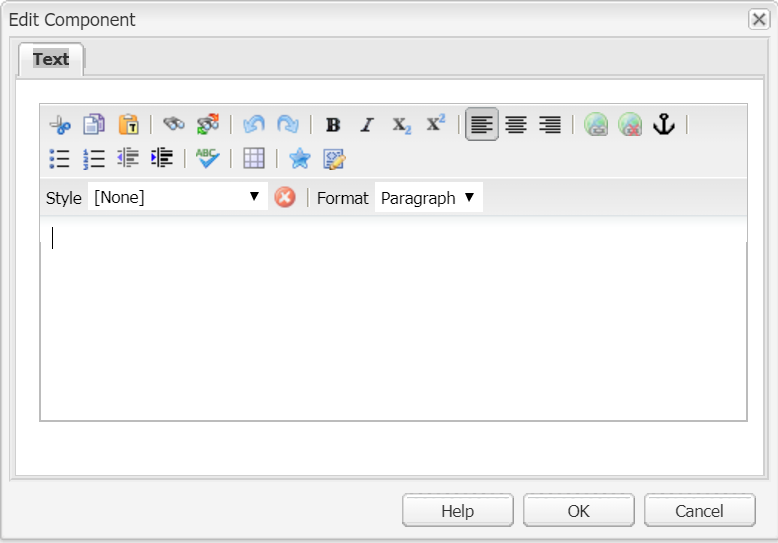

All the rich text plugins that are present in the classic UI dialog are not getting rendered in the touch UI dialog in AEM 6.3 .

I have added the rtePlugins node under text node and activated all plugins similar to the classic UI dialog, but all the plugins which are in classic UI do not render in touch ui dialog



I followed this link - Configuring Experience Manager Rich Text Editor Plugins in a Touch UI Component Dialog ; but even using the package in this link; all the plugins are not visible on the touch ui dialog.

how can I enable all rich text plugins of classic UI in touch UI dialog? Has anyone been successful in doing it ?

Please let me know.

1 Accepted Solution
Ratna_Kumar
Correct answer by
Community Advisor
Community Advisor

Hi,

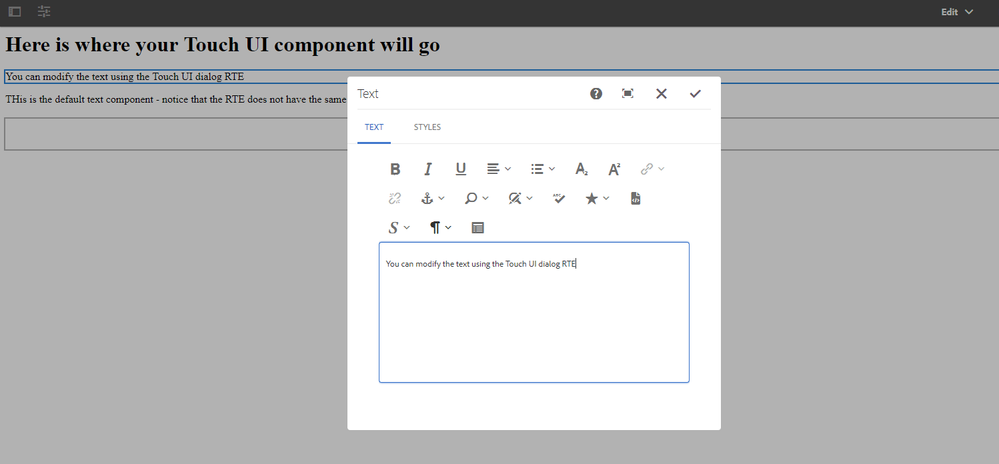

I re-tested just now with the HELPX article package. It works!! Please find the below screenshot.


smacdonald2008​ - Can you also please test in 6.3?

Also this thread also relates to same: https://forums.adobe.com/message/9812906#9812906

Thanks,

Ratna.

View solution in original post

15 Replies
Ratna_Kumar
Community Advisor
Community Advisor

Hi,

Configuring RTE plugins in Touch UI dialog is not same in Classic UI and Touch UI.

Check this HELPX article for configuring RTE plugins in Touch UI dialog: https://helpx.adobe.com/experience-manager/using/touchUI_RTE_configure.html

I tested the package in this article and see all.the plugins available!!

Hope this Helps!

~Ratna.

Ratna_Kumar
Correct answer by
Community Advisor
Community Advisor

Hi,

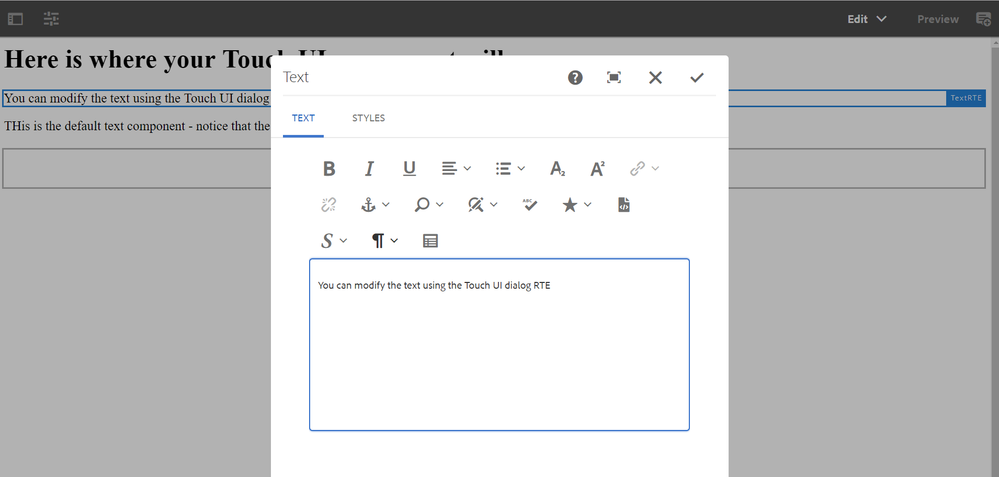

I re-tested just now with the HELPX article package. It works!! Please find the below screenshot.


smacdonald2008​ - Can you also please test in 6.3?

Also this thread also relates to same: https://forums.adobe.com/message/9812906#9812906

Thanks,

Ratna.

View solution in original post

Ratna_Kumar
Community Advisor
Community Advisor

Hi,

If still it is not working..I suggest you to deploy the HELPX Article package in new fresh instance and check the same.

Hope this helps!!

Thanks,

Ratna

smacdonald2008
Level 10
Level 10

This is for the Touch UI - not classic UI.

cqsapientu69896
Level 4
Level 4

Hi guys Ratna Kumar, smacdonald2008

Thanks for your response.

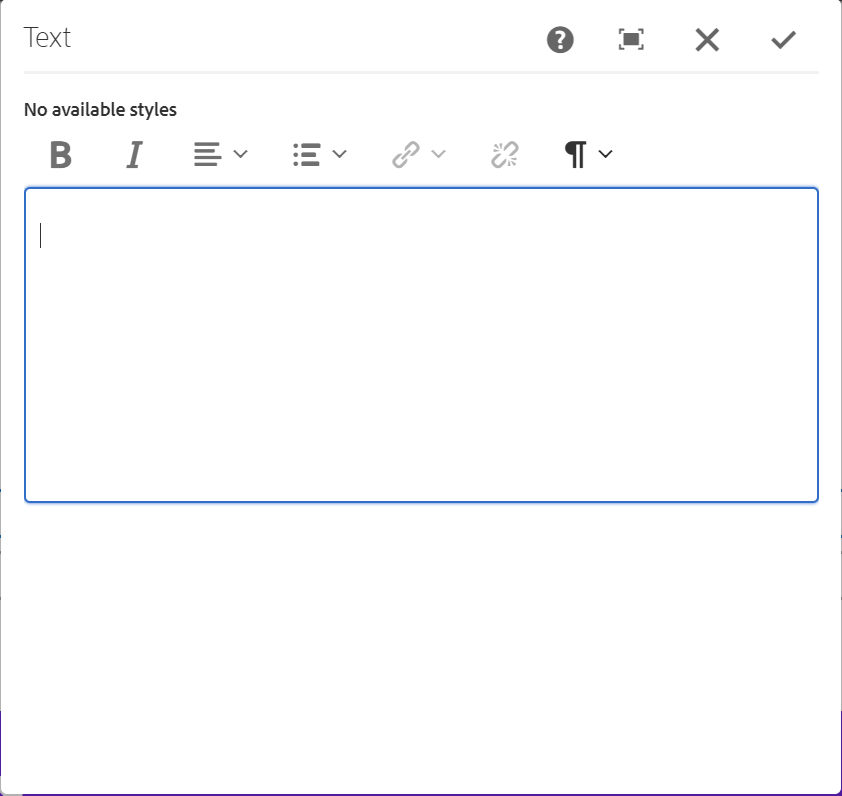

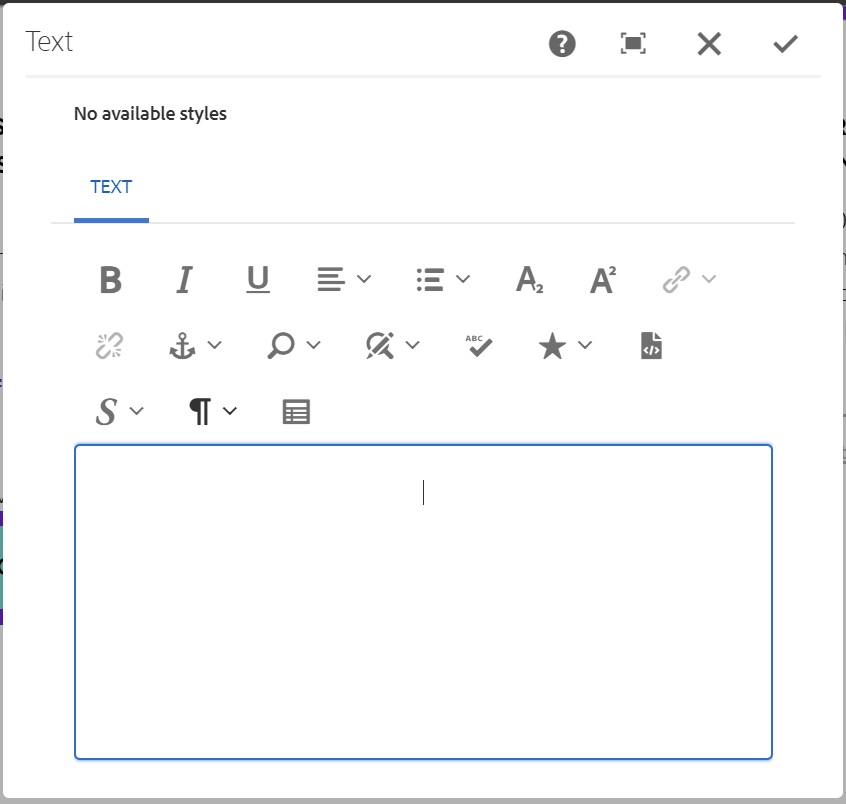

This is correct; the plugins are available in rich text editor on AEM 6.3. But the plugins do not show up until the touch ui dialog is clicked upon. Could you please let me know if this is a known issue with rich text editor's touch ui dialog ? Also, 'no available styles'

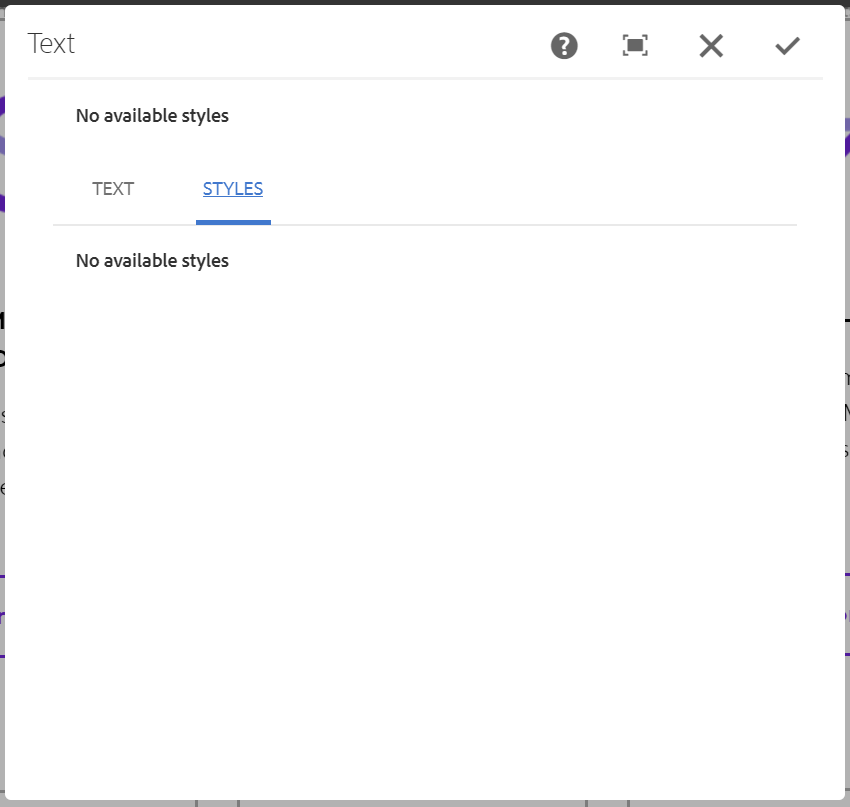

is displayed as no styles have been added. If the styles tab is deleted from the cq:dialog; 'no available styles'  is displayed above the text tab. Could you please let me know how can this message be removed completely? Would appreciate your response.


Thanks

Sean-McK
Level 4
Level 4

I have a fresh install of 6.3 and installed TestTouchRTE and it doesn't show up. Has anyone gotten this to work?

Sean-McK
Level 4
Level 4

yes i did....when I open dialog box, I see nothing. I see space above the text box but nothing. If I click inside, it doesn't pop up. if I max the dialog box it pops up but a lot of space inbetween. I am also getting a javascript error:

Uncaught TypeError: Cannot read property 'addClass' of null

    at instanceGenerator.construct [as _construct] (richtext.js:40615)

    at instanceGenerator.Class.prototype.construct (richtext.js:292)

    at new instanceGenerator (richtext.js:303)

    at instanceGenerator.createToolbar (richtext.js:42484)

    at instanceGenerator.addBackgroundToolbar (richtext.js:4931)

    at switchToolbar (all.js:2463)

    at HTMLDivElement.<anonymous> (all.js:2441)

    at Function.each (jquery.js:370)

    at jQuery.fn.init.each (jquery.js:137)

    at HTMLElement.<anonymous> (all.js:2438)

smacdonald2008
Level 10
Level 10

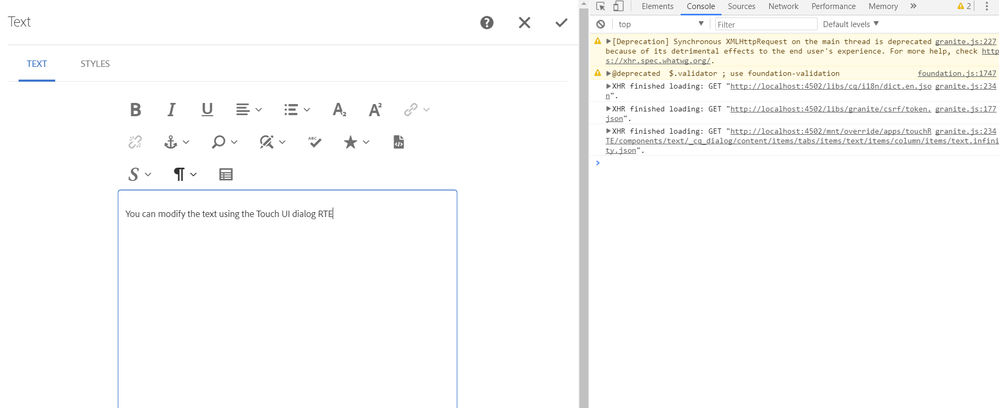

This is not reproducible for me. I get this... See there is error message in the Browser.


Can you try on a fresh instance - lets see if you can reproduce on a fresh instance and go from there.

Sean-McK
Level 4
Level 4

ok I tested it in IE and it worked, this is an issue with Chrome, and I am on Chrome 63.0.3239.84

smacdonald2008
Level 10
Level 10

I am using version 63.0.3239.84 (Official Build) (64-bit)

I recommend opening a support ticket so they can investigate. There is something weird going on. I cannot reproduce this nor other community members such as Ratna,

HernanF
Level 1
Level 1

Regarding the JS error:

Uncaught TypeError: Cannot read property 'addClass' of null

I have debugged it and finally was due to a missing uiSetting in my dialog xml file.

it must have a dialogFullScreen node under "uiSettings" node

<dialogFullScreen
   jcr:primaryType="nt:unstructured"
   toolbar="[format#bold,justify#justifyleft,justify#justifycenter,justify#justifyright,lists#unordered,lists#ordered,lists#outdent,lists#indent,links#modifylink,links#unlink,links#anchor]">

</dialogFullScreen>

I hope it helps someone else.
