graphiql doesnt work: "Cannot serve request to /content/graphiql/ in org.apache.sling.servlets.get.DefaultGetServlet"

[TB3dock]

I installed graphiql according to this article

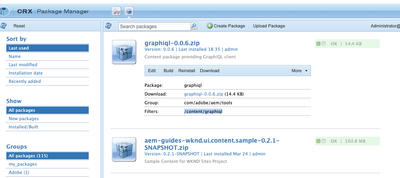

Here we can see the package is installed:

But when I go to the required url:

http://localhost:4502/content/graphiql.html

I get:

Forbidden

Cannot serve request to /content/graphiql/ in org.apache.sling.servlets.get.DefaultGetServlet

I am installing on a fresh instance of the AEM cloud SDK, with a clean install of the wknd site directly from git (which has grapql endpoint configured etc)

Any ideas? The tutorial has no additional configuration that I can see.

I also tried "reinstall"

Here is the complete output.

Request Progress:

      0 TIMER_START{Request Processing}
      4 COMMENT timer_end format is {<elapsed microseconds>,<timer name>} <optional message>
     21 LOG Method=GET, PathInfo=null
     27 TIMER_START{handleSecurity}
   1584 TIMER_END{1555,handleSecurity} authenticator org.apache.sling.auth.core.impl.SlingAuthenticator@5e5d7787 returns true
   1866 TIMER_START{ResourceResolution}
   1977 TIMER_END{109,ResourceResolution} URI=/content/graphiql.html resolves to Resource=JcrNodeResource, type=graphql/components/graphiql, superType=null, path=/content/graphiql
   1986 LOG Resource Path Info: SlingRequestPathInfo: path='/content/graphiql', selectorString='null', extension='html', suffix='null'
   1986 TIMER_START{ServletResolution}
   1989 TIMER_START{resolveServlet(/content/graphiql)}
   2008 TIMER_END{17,resolveServlet(/content/graphiql)} Using servlet org.apache.sling.servlets.get.DefaultGetServlet
   2011 TIMER_END{24,ServletResolution} URI=/content/graphiql.html handled by Servlet=org.apache.sling.servlets.get.DefaultGetServlet
   2017 LOG Applying Requestfilters
   2069 LOG Calling filter: com.adobe.granite.resourceresolverhelper.impl.ResourceResolverHelperImpl
   2085 LOG Calling filter: org.apache.sling.security.impl.ContentDispositionFilter
   2091 LOG Calling filter: com.adobe.granite.csrf.impl.CSRFFilter
   2100 LOG Calling filter: org.apache.sling.i18n.impl.I18NFilter
   2105 LOG Calling filter: com.adobe.granite.httpcache.impl.InnerCacheFilter
   2118 LOG Calling filter: org.apache.sling.rewriter.impl.RewriterFilter
   2124 LOG Calling filter: com.adobe.cq.history.impl.HistoryRequestFilter
   2405 LOG Calling filter: com.day.cq.wcm.core.impl.WCMRequestFilter
   2429 LOG Calling filter: com.adobe.cq.wcm.core.components.internal.servlets.CoreFormHandlingServlet
   2437 LOG Calling filter: com.adobe.granite.optout.impl.OptOutFilter
   2448 LOG Calling filter: com.day.cq.wcm.foundation.forms.impl.FormsHandlingServlet
   2458 LOG Calling filter: com.adobe.cq.wcm.core.extensions.amp.internal.AmpModeForwardFilter
   2664 LOG Calling filter: com.day.cq.dam.core.impl.servlet.DisableLegacyServletFilter
   2673 LOG Calling filter: org.apache.sling.engine.impl.debug.RequestProgressTrackerLogFilter
   2678 LOG Calling filter: com.day.cq.wcm.mobile.core.impl.redirect.RedirectFilter
   2685 LOG Calling filter: com.day.cq.wcm.core.impl.AuthoringUIModeServiceImpl
   2882 LOG Calling filter: com.adobe.granite.rest.assets.impl.AssetContentDispositionFilter
   2891 LOG Calling filter: com.adobe.granite.requests.logging.impl.RequestLoggerImpl
   2907 LOG Calling filter: com.adobe.granite.rest.impl.servlet.ApiResourceFilter
   2951 LOG Calling filter: com.day.cq.dam.core.impl.servlet.ActivityRecordHandler
   2969 LOG Calling filter: com.day.cq.dam.core.impl.assetlinkshare.AdhocAssetShareAuthHandler
   2978 LOG Calling filter: com.day.cq.wcm.core.impl.warp.TimeWarpFilter
   2993 LOG Applying Componentfilters
   2996 LOG Calling filter: com.day.cq.personalization.impl.TargetComponentFilter
   3001 LOG Calling filter: com.day.cq.wcm.core.impl.page.PageLockFilter
   3007 LOG Calling filter: com.day.cq.wcm.core.impl.WCMComponentFilter
   3149 LOG Calling filter: com.day.cq.wcm.core.impl.monitoring.PageComponentRequestFilter
   3154 LOG Calling filter: com.day.cq.wcm.core.impl.WCMDebugFilter
   3163 TIMER_START{org.apache.sling.servlets.get.DefaultGetServlet#0}
   3177 LOG No renderer for extension html
   3198 LOG Applying Error filters
   3200 LOG Calling filter: org.apache.sling.i18n.impl.I18NFilter
   3203 LOG Calling filter: org.apache.sling.rewriter.impl.RewriterFilter
   3212 TIMER_START{handleError:status=404}
   3241 TIMER_END{27,handleError:status=404} Using handler BundledScriptServlet (/libs/sling/servlet/errorhandler/404.jsp)
   5984 LOG Found processor for post processing ProcessorConfiguration: {contentTypes=[text/html], order=-1, active=true, valid=true, processErrorResponse=true, pipeline=(generator=Config(type=htmlparser, config={}), transformers=(Config(type=linkchecker, config={}), Config(type=mobile, config=JcrPropertyMap [node=Node[NodeDelegate{tree=/libs/cq/config/rewriter/default/transformer-mobile: { jcr:primaryType = nt:unstructured, component-optional = true}}], values={jcr:primaryType=nt:unstructured, component-optional=true}]), Config(type=mobiledebug, config=JcrPropertyMap [node=Node[NodeDelegate{tree=/libs/cq/config/rewriter/default/transformer-mobiledebug: { jcr:primaryType = nt:unstructured, component-optional = true}}], values={jcr:primaryType=nt:unstructured, component-optional=true}]), Config(type=contentsync, config=JcrPropertyMap [node=Node[NodeDelegate{tree=/libs/cq/config/rewriter/default/transformer-contentsync: { jcr:primaryType = nt:unstructured, component-optional = true}}], values={jcr:primaryType=nt:unstructured, component-optional=true}]), serializer=Config(type=htmlwriter, config={}))}
   6278 TIMER_END{6276,Request Processing} Dumping SlingRequestProgressTracker Entries

[dvelazdiaz]

Hi, did you find any solution for this? Thanks

[TB3dock]

Interestingly, the problem was cors.  I was using a chrome plugin, which, even though running on local host failed chrome cors check.

I switched to hitting the graphql endpoint from postman, and problem solved (for local host at least).

Due to he missing features and non-standard and poorly documented syntax in the AEM graphQL implementation, we abandoned it, and use servlets + queryBuilder instead.

Performance with queryBuild is not that great, even with low number of content items, so we are thinking of writing our own in memory content cache and our own query language.

[aanchal-sikka · Accepted solution]

The resolution is provided on following BLOG: https://medium.com/technotes4u/headless-delivery-using-aem-graphql-877e53b0223b

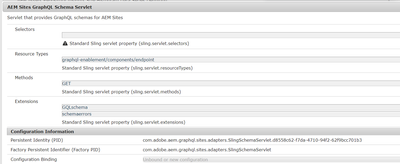

Validate that you have following configs:
