Local AEM SDK (AEMaaCS) not starting after adding AEM forms (Bundles are in Installed state)

  • January 27, 2024
  • 3 replies
  • 2719 views

Hi There,



I'm using a Mac and have the AEM SDK installed locally. However, after adding AEM forms, my AEM instance fails to start and throws an error.Here are the steps i did.



  1. 1. Downloaded the latest AEM SDK from the software distribution, along with Zulu OpenJDK 11.0.19 (JDK). Note - It's not Oracle Java, instead it's Zulu OpenJDK 11.0.19.

  2. 2. Successfully started AEM, and it was running smoothly.

  3. 3. Following Adobe documentation, stopped the server and added "aem-forms-addon-2023.09.11.00-231000.far" to the crx-quickstart/install directory. Created the "install" directory since it didn't exist. Referenced this page: https://experienceleague.adobe.com/docs/experience-manager-cloud-service/content/forms/setup-configure-migrate/setup-local-development-environment.html?lang=en#add-forms-archive-configure-users

  4. 4. While attempting to restart the server, encountered the following error. Using the command on Mac to start AEM. Despite the warning, the AEM doesn't start. Upon checking bundles, all the form bundles (around 39) are in the Installed state. The AEM was running fine before adding AEM forms.

  5. 5. It's all vanilla AEM SDK and forms add-on. I've not deployed my application yet.



18848-MAC author % java -Xmx4096m -agentlib:jdwp=transport=dt_socket,address=30305,server=y,suspend=n -jar aem-author-p4502.jar
Listening for transport dt_socket at address: 30305
Loading quickstart properties: default
Loading quickstart properties: instance
Low-memory action set to fork
Using 64bit VM settings, min.heap=1024MB, min permgen=256MB, default fork arguments=[-Xmx1024m, -XX:MaxPermSize=256m]
The JVM reports a heap size of 4096 MB, meets our expectation of 1024 MB +/- 20
Setting properties from filename '/Users/mohan.joshi/Documents/aemsdk/author/aem-author-p4502.jar'
Option '-quickstart.server.port' set to '4502' from filename aem-author-p4502.jar
Verbose option not active, closing stdin and redirecting stdout and stderr
Redirecting stdout to /Users/mohan.joshi/Documents/aemsdk/author/crx-quickstart/logs/stdout.log
Redirecting stderr to /Users/mohan.joshi/Documents/aemsdk/author/crx-quickstart/logs/stderr.log
Press CTRL-C to shutdown the Quickstart server...
WARNING: An illegal reflective access operation has occurred
WARNING: Illegal reflective access by org.apache.sling.commons.threads.impl.ThreadLocalCleaner (launchpad:resources/install/15/org.apache.sling.commons.threads-3.2.22.jar) to field java.lang.Thread.threadLocals
WARNING: Please consider reporting this to the maintainers of org.apache.sling.commons.threads.impl.ThreadLocalCleaner
WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operations
WARNING: All illegal access operations will be denied in a future release



This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by MohanJo1

Great news! It's up and running for me now. I just had to give my Mac a restart to get things working smoothly. Specifically, JDK 11.0.13 did the trick for me.

3 replies

TarunKumar
Community Advisor
TarunKumarCommunity Advisor
Community Advisor
January 28, 2024

Hi @mohanjo1 ,

Can you please try to follow below steps:

1. In your local create a fresh AEM instance.
2. Download the forms add-on package from software distribution. Make sure to download the package version similar to your AEM service pack though not mandatory.
3. Install the form add on package throuhg package manager in AEM
4. Now check in your AEM form console.

Thanks
Tarun

    M
    MohanJo1Author
    Level 3
    January 29, 2024

    Hi @tarunkumar - We can't install the package using the package manager as the zip contains a .far file. Attempting to install it results in a 'missing jcr:content' error. Just a friendly reminder, we're working on adding forms to AEM as a Cloud Service using the local AEM SDK.

      B_Sravan
      Community Advisor
      B_SravanCommunity Advisor
      Community Advisor
      January 29, 2024

      Hi @mohanjo1 ,

      I tried replicating the issue, but couldn't.
      AEM forms is installed successfully on my local.

      System Details :
      1. OS: Latest MAC OS
      2. Java: Zulu 11.0.13

      3. AEM Version: Latest AEM cloud SDK

      The command that I used to start up the instance: "java -jar AEM-author-p4502.jar"
      Like you, my instance is fresh without any code deployments and has created an "install" folder inside the crx-quickstart as mentioned in the document. My stderr.log doesn't show any errors and the instance has started instantly without any delay. All my bundles are active.

      The error that you posted above is not an error, that's a common warning that you get while starting up. Please check errors if any under crx-quickstart/logs/stderr.log and crx-quickstart/logs/stdout.log

      Regards,
      Sravan

        M
        MohanJo1Author
        Level 3
        January 29, 2024

        Hi @b_sravan - Could you pls share followings. Also, can you update the Zulu JDK version to 11.0.19 in your mac (I think this error is related to JDK version)

        1. Share your AEM SDK version or link

        2. Share the form zip version or the link. I was using this one - aem-forms-addon-2023.09.11.00-231000.far

          M
          MohanJo1Author
          Level 3
          January 30, 2024

          Hi @b_sravan - I'm still seeing error shown in below screenshot after doing same steps.



          Here are my versions-

          aem-sdk-2023.12.14538.20231205T165334Z-231200

          aem-forms-addon-2023.10.25.00-231100.far



          java --version

          openjdk 11.0.13 2021-10-19 LTS

          OpenJDK Runtime Environment Zulu11.52+13-CA (build 11.0.13+8-LTS)

          OpenJDK 64-Bit Server VM Zulu11.52+13-CA (build 11.0.13+8-LTS, mixed mode)

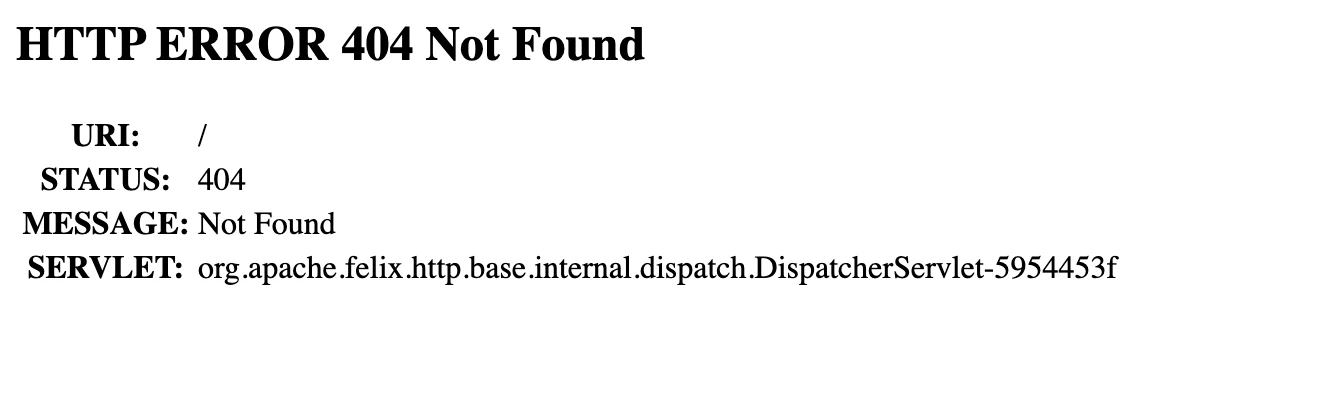

          below error while accessing localhost:4502 in browser





            kautuk_sahni
            Community Manager
            kautuk_sahniCommunity Manager
            Community Manager
            February 2, 2024

            @mohanjo1 Did you find the suggestions from users helpful? Please let us know if more information is required. Otherwise, please mark the answer as correct for posterity. If you have found out solution yourself, please share it with the community.

            Kautuk Sahni
            M
            MohanJo1AuthorAccepted solution
            Level 3
            February 2, 2024

            Great news! It's up and running for me now. I just had to give my Mac a restart to get things working smoothly. Specifically, JDK 11.0.13 did the trick for me.
