SOLVED

How to add custom fields in Content Fragment properties?

Avatar

Level 1

Hi
I need some assistance adding a custom property in content fragment page properties, I tried to copy the nodes from
/libs/dam/content/schemaeditors/forms/contentfragment/items/tabs/items/tab1/items/col1/items to  /apps/dam/content/schemaeditors/forms/contentfragment/items/tabs/items/tab1/items/col1/items

but it's not reflecting. I tried to add the new property directly to /libs/dam/content/schemaeditors/forms/contentfragment/items/tabs/items/tab1/items/col1/items,

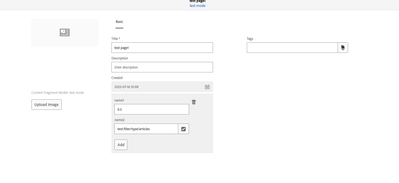

I can see the update;


but I can't save it.


Here's the error log:

16.07.2025 10:12:28.309 *ERROR* [[0:0:0:0:0:0:0:1] [1752675148287] POST /content/dam.html HTTP/1.1] org.apache.sling.servlets.post.impl.operations.ModifyOperation Unable to create resource named item0 in /content/dam/testfolder/en/regulatory-updates/test-page1/testProperty
16.07.2025 10:12:28.311 *ERROR* [[0:0:0:0:0:0:0:1] [1752675148287] POST /content/dam.html HTTP/1.1] org.apache.sling.servlets.post.impl.operations.ModifyOperation Exception during response processing.
org.apache.sling.api.resource.PersistenceException: Unable to create node at /content/dam/testfolder/en/regulatory-updates/test-page1/testProperty/item0
	at org.apache.sling.jcr.resource.internal.helper.jcr.JcrResourceProvider.create(JcrResourceProvider.java:480) [org.apache.sling.jcr.resource:3.0.18]
	at org.apache.sling.resourceresolver.impl.providers.stateful.AuthenticatedResourceProvider.create(AuthenticatedResourceProvider.java:194) [org.apache.sling.resourceresolver:1.10.0]
	at org.apache.sling.resourceresolver.impl.helper.ResourceResolverControl.create(ResourceResolverControl.java:431) [org.apache.sling.resourceresolver:1.10.0]
	at org.apache.sling.resourceresolver.impl.ResourceResolverImpl.create(ResourceResolverImpl.java:1007) [org.apache.sling.resourceresolver:1.10.0]
	at org.apache.sling.servlets.post.impl.operations.AbstractCreateOperation.deepGetOrCreateResource(AbstractCreateOperation.java:598) [org.apache.sling.servlets.post:2.3.26]
	at org.apache.sling.servlets.post.impl.operations.ModifyOperation.writeContent(ModifyOperation.java:358) [org.apache.sling.servlets.post:2.3.26]
	at org.apache.sling.servlets.post.impl.operations.ModifyOperation.doRun(ModifyOperation.java:93) [org.apache.sling.servlets.post:2.3.26]
	at org.apache.sling.servlets.post.impl.operations.AbstractPostOperation.run(AbstractPostOperation.java:99) [org.apache.sling.servlets.post:2.3.26]
	at org.apache.sling.servlets.post.impl.SlingPostServlet.doPost(SlingPostServlet.java:228) [org.apache.sling.servlets.post:2.3.26]
	at org.apache.sling.api.servlets.SlingAllMethodsServlet.mayService(SlingAllMethodsServlet.java:146) [org.apache.sling.api:2.27.2]
	at org.apache.sling.api.servlets.SlingSafeMethodsServlet.service(SlingSafeMethodsServlet.java:342) [org.apache.sling.api:2.27.2]
	at org.apache.sling.api.servlets.SlingSafeMethodsServlet.service(SlingSafeMethodsServlet.java:374) [org.apache.sling.api:2.27.2]
	at org.apache.sling.engine.impl.request.RequestData.service(RequestData.java:545) [org.apache.sling.engine:2.15.10]

Any suggestions would be great, thanks.

1 Accepted Solution

Avatar

Correct answer by
Level 4

Hi @HanLu1

Initially, it seemed like the custom multifield was being added to the **Content Fragment Model Editor* (`/libs/dam/content/schemaeditors/...`), but the actual requirement is to add it to the *Page Properties of a Content Fragment. For that, the changes need to be done in the metadata schema under `/conf/global/settings/dam/adminui-extension/metadataschema`, not the model editor path.



Go to AEM Author UI:



Navigate to: Tools → Assets → Metadata Schema



Edit or Create a Schema:



Edit the schema applied to your content fragment folder (e.g., dam/content/dam/testfolder)



Or create a new schema and assign it under folder properties



Add a Custom Multifield:

AEM Metadata Schema UI does not natively support complex multifields, but here's how you can extend it:

 Use Simple Fields (Supported)

Add regular Text, Tags, Dropdown, etc.

Map them to something like ./testProperty/name1 and ./testProperty/name2



Hope this helpful.



Regards,

Karishma.

View solution in original post

6 Replies

Avatar

Level 1

Here's the xml set up for the new property:

                                <testProperty
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
                                    composite="{Boolean}true">
                                    <field
                                        jcr:primaryType="nt:unstructured"
                                        jcr:title="TestProperty"
                                        sling:resourceType="granite/ui/components/coral/foundation/container"
                                        name="./testProperty">
                                        <items jcr:primaryType="nt:unstructured">
                                            <name1
                                                jcr:primaryType="nt:unstructured"
                                                sling:resourceType="granite/ui/components/foundation/form/textfield"
                                                fieldLabel="name1"
                                                name="./name1">
                                                <granite:data
                                                    jcr:primaryType="nt:unstructured"
                                                    metaType="text"/>
                                            </name1>
                                            <name2
                                                jcr:primaryType="nt:unstructured"
                                                sling:resourceType="cq/gui/components/coral/common/form/tagfield"
                                                fieldLabel="name2"
                                                name="./name2">
                                                <granite:data
                                                    jcr:primaryType="nt:unstructured"
                                                    metaType="text"/>
                                            </name2>
                                        </items>
                                    </field>
                                </testProperty>

Avatar

Community Advisor

Hi @HanLu1 ,

To add custom fields to Content Fragment properties, don’t modify /libs directly - instead, overlay the editor form under /apps/dam/content/schemaeditors/forms/contentfragment and make sure your custom field is properly defined under items/tabs/items/tab1/items/col1/items with correct sling:resourceType, name, and fieldLabel. The error you're getting (Unable to create node at) usually means you're missing permissions or trying to save a property where the path doesn't allow it (like adding nested nodes to a property). Also, ensure your field is not trying to create child nodes dynamically unless it's a multifield or complex widget. If it’s still not showing up, double-check that the form is properly overlaid, your node structure is valid, and you're editing the Content Fragment Model editor UI, not the asset metadata schema. If asked, the exact solution is: overlay the content fragment editor under /apps, define your custom field under tab1 -> col1, ensure it's not using a node structure that creates child items unless supported, and never modify /libs directly.

Hrishikesh Kagane

Avatar

Level 4

Hi @HanLu1

1.Create the Overlay Path

/apps/dam/content/schemaeditors/forms/contentfragment/items/tabs/items/tab1/items/col1/items/testProperty

Don't copy directly into /libs— AEM won't allow saving.

2.Use the below XML

<testProperty
    jcr:primaryType="nt:unstructured"
    sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
    composite="{Boolean}true"
    fieldLabel="Test Property"
    name="./testProperty">

    <field
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/coral/foundation/container">

        <items jcr:primaryType="nt:unstructured">
            <name1
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                fieldLabel="Name 1"
                name="./name1" />

            <name2
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/coral/foundation/form/tagfield"
                fieldLabel="Name 2"
                name="./name2" />
        </items>
    </field>
</testProperty>

Make sure:

  • testProperty: is the parent node (multifield).
  • field: is a child node under testProperty.
  • items: contains name1 (textfield) and name2 (tagfield).

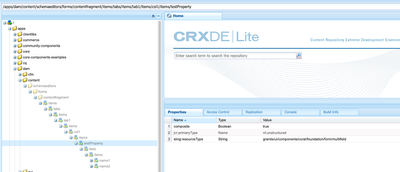

3.Node Structure seems to look like below

/apps
└── dam
    └── content
        └── schemaeditors
            └── forms
                └── contentfragment
                    └── items
                        └── tabs
                            └── items
                                └── tab1
                                    └── items
                                        └── col1
                                            └── items
                                                └── testProperty (Multifield)
                                                    └── field (Container)
                                                        └── items
                                                            ├── name1 (Textfield)
                                                            └── name2 (Tagfield)

4.Go to Metadata Editor to Test.

  1. Open AEM → Tools → Assets → Content Fragment Models
  2. Select the model .
  3. Open a Content Fragment using that model
  4. Click on the Properties tab
  5. You should see your new Test Property multifield with name1 and name2 input fields

Hope this helpful.



Regards,

Karishma.



Avatar

Level 1

Hi @Karishma_begumSh
I tried to overlay the node path under apps and update the xml structure, but I can't see the new property in content fragment page property.





Thank you

Avatar

Correct answer by
Level 4

Hi @HanLu1

Initially, it seemed like the custom multifield was being added to the **Content Fragment Model Editor* (`/libs/dam/content/schemaeditors/...`), but the actual requirement is to add it to the *Page Properties of a Content Fragment. For that, the changes need to be done in the metadata schema under `/conf/global/settings/dam/adminui-extension/metadataschema`, not the model editor path.



Go to AEM Author UI:



Navigate to: Tools → Assets → Metadata Schema



Edit or Create a Schema:



Edit the schema applied to your content fragment folder (e.g., dam/content/dam/testfolder)



Or create a new schema and assign it under folder properties



Add a Custom Multifield:

AEM Metadata Schema UI does not natively support complex multifields, but here's how you can extend it:

 Use Simple Fields (Supported)

Add regular Text, Tags, Dropdown, etc.

Map them to something like ./testProperty/name1 and ./testProperty/name2



Hope this helpful.



Regards,

Karishma.

Avatar

Administrator

@HanLu1 Did you find the suggestions helpful? If you need more information, please let us know. If a response resolved your issue, kindly mark it as correct to help others in the future. Alternatively, if you discovered a solution on your own, we'd appreciate it if you could share it with the community. Thank you!



Kautuk Sahni
