Adding the Multifield with dropdown and fragment path fields in OOB content fragment component

[kalyanchakravarthych]

Hi,

I need to create the multified with the drop down and fragment path fields in the OOB content fragment component. After doing this it is not showing the variations drop down. Please help with the steps and share the reference example that will be great for me.

Thanks & Regards,

Kalyan

[Madhur-Madan · Accepted solution]

Hi @kalyanchakravarthych ,
Below is an example of how you can define the dialog for this component to include a multifield with dropdown and fragment path fields
Dialog:

<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:sling="http://sling.apache.org/jcr/sling/1.0"
    jcr:primaryType="nt:unstructured"
    jcr:title="Content Fragment"
    sling:resourceType="cq/gui/components/authoring/dialog">
    <content
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/coral/foundation/container">
        <items jcr:primaryType="nt:unstructured">
            <multifield
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
                composite="{Boolean}true"
                fieldDescription="Click 'Add Field' to add new item."
                fieldLabel="Dropdown and Path">
                <field
                    jcr:primaryType="nt:unstructured"
                    sling:resourceType="granite/ui/components/coral/foundation/container"
                    name="./tabItems">
                    <items jcr:primaryType="nt:unstructured">
                        <list
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/foundation/form/select"
                            fieldDescription="Select the type of option required "
                            fieldLabel="Type"
                            name="./layoutType">
                            <items jcr:primaryType="nt:unstructured">
                                <option1
                                    jcr:primaryType="nt:unstructured"
                                    selected="{Boolean}false"
                                    text="Option1"
                                    value="option1"/>
                                <option2
                                    jcr:primaryType="nt:unstructured"
                                    text="Option2"
                                    value="option2"/>
                            </items>
                        </list>
                        <pathField
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/coral/foundation/form/pathfield"
                            emptyText="Select the path"
                            fieldLabel="Select Path"
                            name="./selectPath"
                            rootPath="/content/dam"/>
                    </items>
                </field>
            </multifield>
        </items>
    </content>
</jcr:root>

Expected Output:

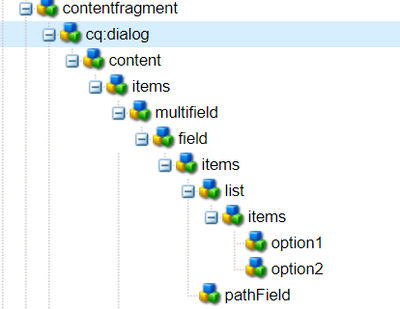

CRX Structure:

Thanks,
Madhur

[kalyanchakravarthych]

Hi @Madhur-Madan ,

In oob content fragment dropdown right as it is coming the values dynamically based on the content fragment variations created. This drop down is getting empty as it is not loading elements.html and variations.html similar to oob content fragment component. Please help me on the same in multifield and let me know how to render  the authored mutltifield data on the page

Thanks & Regards,

Kalyan

[kalyanchakravarthych]

Can anyone help me the above requirement.

[tushaar_srivastava]

Thanks @Madhur-Madan , I was also looking for the same solution.
