Fetch a parameter field/value

Forum|Forum|8 years ago
March 17, 2017
6 replies
8120 views

Hi,

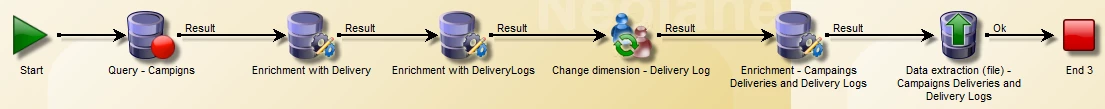

I have a built the following workflow to extract Campaigns, Delivery associated each Campaign, Delivery Logs of each of the Deliveries

Stage-1 : Query Campaign

This extracts all the Campaigns.

Output Fields: Campaign Id, Campaign Label

Stage-2 : Enrichment with Delivery

This extracts the Delivery associated with each of the Campaigns extracted in Stage-1.

Output Fields: Campaign Id, Campaign Label, Delivery Id, Delivery Label

Stage-3 : Enrichment with Delivery Logs

This extracts the Delivery Logs associated with each of the Delivery extracted in Stage-2.

Output Fields: Campaign Id, Campaign Label, Delivery Id, Delivery Label

Stage-4 : Change dimension - Delivery Log

This changes the target dimension to Delivery Logs.

Stage-5 : Enrichment – Campaigns Deliveries and Delivery Logs

This enrichment simply adds the Delivery Logs fields to output. In Stage-3, it simply joined to Delivery Logs but any of the Delivery Logs fields were not taken to output.

Output Fields: Campaign Id, Campaign Label, Delivery Id, Delivery Label, Delivery Log Event Date, Status, Recipient Id, Scv Id

Stage-6 : Data extraction

The output of the Stage-5 is written to the file.

Output Fields: Campaign Id, Campaign Label, Delivery Id, Delivery Label, Delivery Log Event Date, Status, Recipient Id, Scv Id

This is working fine.

Now I would like to pull the “Subject” (i.e., Email Subject) from the “Email header parameters” associated with the Delivery schema.

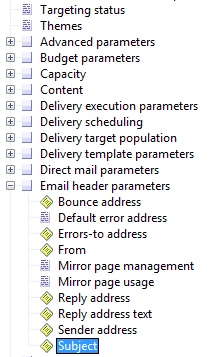

I can see the data item “Subject” and many more when browsed from the Source schema as shown below.

Browsed from the Source schema

But, I can’t see the data item “Subject” and many more when browsed from the Query or Enrich activity as shown below.

Browsed from the Query or Enrichment

Could you please advise.

Regards,

Mahantesh

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

Best answer by Florian_Courgey

Hi,

The subject is stored in the XML field mData which contains a lot of variables. You have to extract mData and get the subject via its XPath.

Workflow:

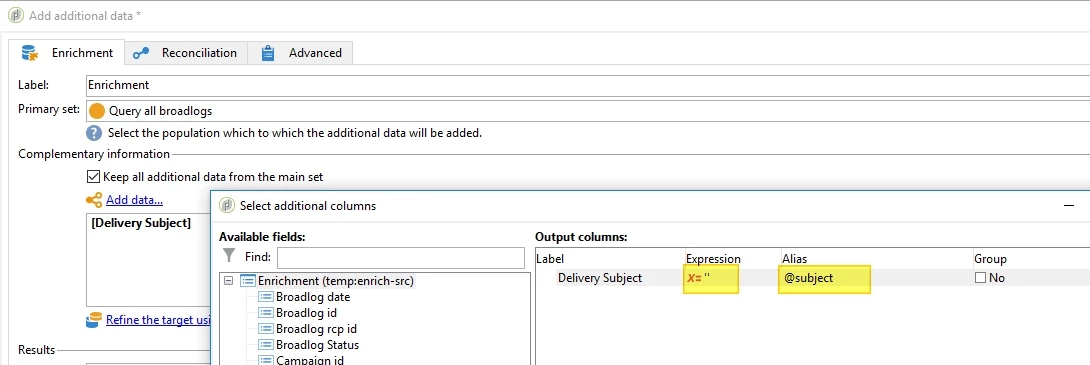

In your last Enrichment, create an empty column name @subject with '' as a value. This creates an SQL field named sSubject:

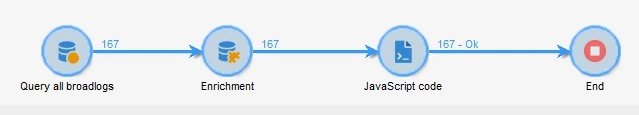

Add a Javascript activity between the Enrichment and the File Export, to fill in this new column:

// get data from previous transition
var query = xtk.queryDef.create({queryDef:{
  schema:vars.targetSchema, operation:"select",
  select:{node:[
    {expr:'@broadlogId'},
    {expr:'@deliveryId'},
  ]}
}});
var records = query.ExecuteQuery();
for each(var broadlog in records){
  var dataStr = sqlGetMemo("SELECT mData from nmsDelivery WHERE iDeliveryId="+broadlog.@deliveryId); // contains '<mailParameters mirrorPagePolicy="default" useDefaultErrorAddress="true"><subject><![CDA
  dataXml = DOMDocument.fromXMLString(dataStr);
  //var subject = dataXml.getElementsByTagName('mailParameters')[0].getValue('subject'); // equivalent to:
  var subject = dataXml.root.getValue('mailParameters/subject');
  if(subject){ // may be null
    var sql = "UPDATE "+vars.tableName+" SET "+
      "sSubject = '"+subject+"' "+
      "WHERE iId="+broadlog.@broadlogId+";";
    logInfo(sql);
    sqlExec(sql);
  }
}

Display the target now gives us the subject:

PS: for better perfomance, I guess you don't need all those Enrichments. Just one query on BroadLogRcp and get the fields you need (even the "linked" ones to Delivery and Campaign)

vraghav

Adobe Employee

Hi Mahantesh,

Subject is a computed XML field and at database level is stored in column named mdata.

Extracting it using the workflow menu items is not possible.

You can only do so using querydef.

Regards,

Vipul

M

MeMontyAuthor

Level 2

Hi Vipul,

Thanks for your response.

Could you please guide me, where (at what stage) & how can I achieve this in my workflow (explained in my initial post)?

Regards,

Mahantesh

nadeema90078524

Level 2

m

nadeema90078524

Level 2

I am creating a Cube on Tracking Log where email Subject is one such Dimension. How can i do that ? Do i need to use Query Def ?As its a Xml Type atribute.

Florian_CourgeyAccepted solution

Level 4

Hi,

The subject is stored in the XML field mData which contains a lot of variables. You have to extract mData and get the subject via its XPath.

Workflow:

In your last Enrichment, create an empty column name @subject with '' as a value. This creates an SQL field named sSubject:

Add a Javascript activity between the Enrichment and the File Export, to fill in this new column:

// get data from previous transition
var query = xtk.queryDef.create({queryDef:{
  schema:vars.targetSchema, operation:"select",
  select:{node:[
    {expr:'@broadlogId'},
    {expr:'@deliveryId'},
  ]}
}});
var records = query.ExecuteQuery();
for each(var broadlog in records){
  var dataStr = sqlGetMemo("SELECT mData from nmsDelivery WHERE iDeliveryId="+broadlog.@deliveryId); // contains '<mailParameters mirrorPagePolicy="default" useDefaultErrorAddress="true"><subject><![CDA
  dataXml = DOMDocument.fromXMLString(dataStr);
  //var subject = dataXml.getElementsByTagName('mailParameters')[0].getValue('subject'); // equivalent to:
  var subject = dataXml.root.getValue('mailParameters/subject');
  if(subject){ // may be null
    var sql = "UPDATE "+vars.tableName+" SET "+
      "sSubject = '"+subject+"' "+
      "WHERE iId="+broadlog.@broadlogId+";";
    logInfo(sql);
    sqlExec(sql);
  }
}

Display the target now gives us the subject:

PS: for better perfomance, I guess you don't need all those Enrichments. Just one query on BroadLogRcp and get the fields you need (even the "linked" ones to Delivery and Campaign)

C

CSLTGUPTAA

Level 2

Hi Florian, I am trying in the same way as you described, but my query is having one error :

S

SurabattulaSr

Level 6

Hi Vipul Raghav

I too have similar requirement, where instead of Subject I need to fetch Delivery Content. I tried to use the same way, but facing numerous errors

It is present under delivery/content/html/source. Can you please help me how can i achieve this using queryDef? i don't have any enrichment activity or anything else, i just want to see response in the JS for my further processing

Regards,

Sri Bhargav
