Combining data from two data schemas

  • March 16, 2018
  • 15 replies
  • 11000 views

Hi,

I am trying to query data from two data schemas and combine all records that exist in both but I'm struggling.

  • I have a query that looks at all profiles where the email address is not empty.
  • I have another query that looks at the address scheme where the address is not empty.

I then want to take both sets of data and to combine them to produce one set of data that consists of all profile email addresses who also exist within the address schema.

I have tried using an intersection activity but it falls over because the two types of inbound events are incompatible.

Can anyone advise on the best way to achieve this?

Many thanks,

Bob

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by florentlb

    Hi Bob,

    Sorry for answering so late.

    I've tried the following:

    In this workflow, I query all addresses (dimension AddressStatus) for which the address field is not empty (Query). Then, I add a reconciliation activity, where I only fill the Identification tab as follows:

    As you can see here:

    • I reconciliate the addresses from the Query with the Profiles schema, and specifically the email and address fields.
    • Unidentified source lines are ignored (so only identified records - which are found in both schemas - are kept).

    The data of the transition after the Identification is one the Profiles dimension and corresponds to email addresses that were found in the address schema.

    Would this work for you?

    Florent

    15 replies

    Show previous replies
    davidk21713691
    davidk21713691
    Level 3
    March 29, 2018

    Hi,

    You can use reconciliation or enrichment activity then you will need to do a split to keep profile reconciled.

    El_Loco
    El_LocoAuthor
    Level 5
    April 9, 2018

    Thanks David. I've tried adding a Reconciliation activity but I'm not sure I'm configuring it correctly.

    Do I bring both sets of data into the one reconciliation activity? If so do I then need to specify both dimensions in the 'List of relations with other dimensions' section?

    It's driving me crazy trying to get this to work so a big high five is awaiting anyone who can help me resolve this!

    Thanks,

    Bob

    davidk21713691
    davidk21713691
    Level 3
    April 9, 2018

    Hi Bob,

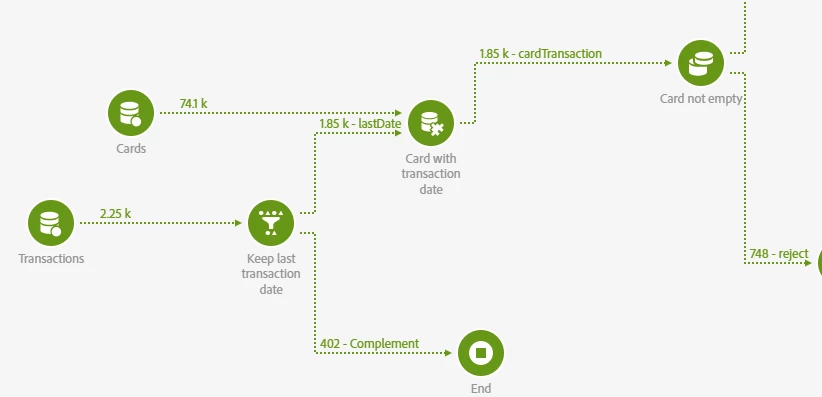

    You have to bring both transition to the one reconciliation activity. i'm my previous screenshot i want to keep users last transaction and retrieve their card information.

    - In properties tab, You have to select the primary set (the one you want to keep)

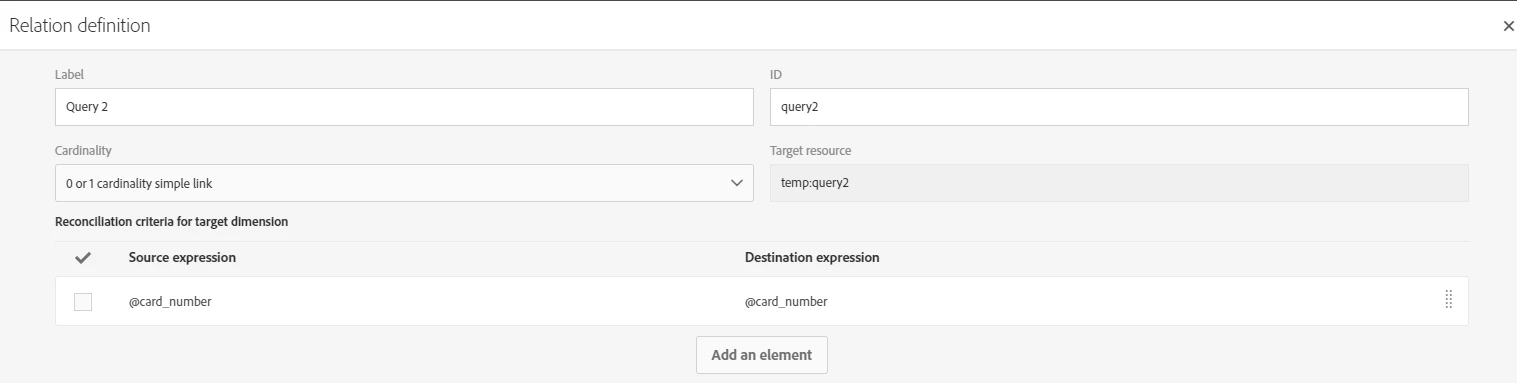

    - In advanced relations tab, you will define the reconciliation criteria

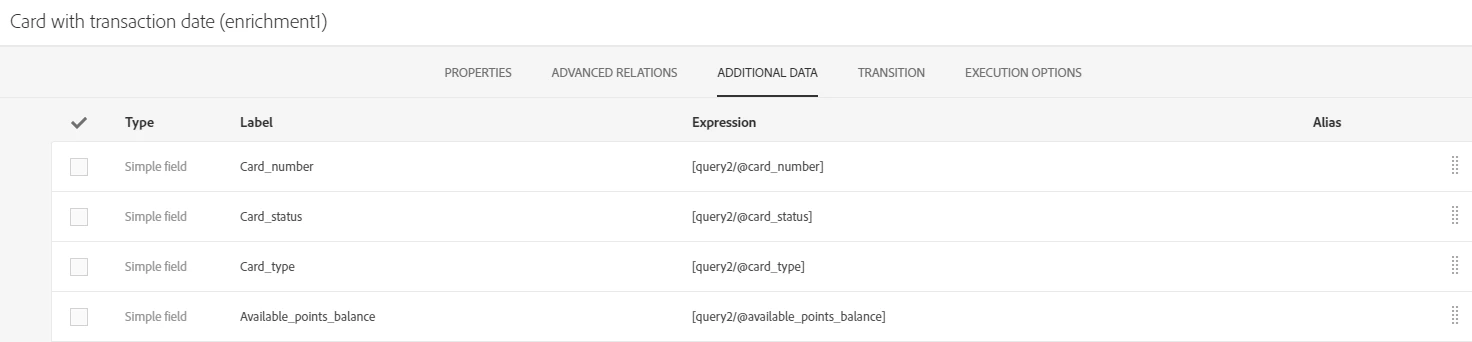

    - in additional data tab, you will define the variables you want to retrieve for the second set9in my case i retrieved card information).

    Hope that helps.

    Thanks

    David

      florentlb
      florentlbAccepted solution
      Level 10
      April 19, 2018

      Hi Bob,

      Sorry for answering so late.

      I've tried the following:

      In this workflow, I query all addresses (dimension AddressStatus) for which the address field is not empty (Query). Then, I add a reconciliation activity, where I only fill the Identification tab as follows:

      As you can see here:

      • I reconciliate the addresses from the Query with the Profiles schema, and specifically the email and address fields.
      • Unidentified source lines are ignored (so only identified records - which are found in both schemas - are kept).

      The data of the transition after the Identification is one the Profiles dimension and corresponds to email addresses that were found in the address schema.

      Would this work for you?

      Florent

        El_Loco
        El_LocoAuthor
        Level 5
        April 19, 2018

        Florent, you hero! Thank you very much, that has worked perfectly.

        I had actually just about managed to work out a way around it thanks to David (thank you David!), but my workflow included about 10 activities. This allows me to do it in only 2 and was staring me in the face the whole time.

        I appreciate all the help.
