JST-310001 Error while evaluating a JavaScript code, line 1: (void 0) is not a function.

Forum|Forum|2 years ago
April 6, 2023
2 replies
3441 views

when use postman via soap, it shows JST-310001 Error while evaluating a JavaScript code, line 1: (void 0) is not a function. here is my js code, is there any style error. function cus_smsApiService_SendSingleSms(userid,pwd,mobile,content,timestamp){ var USER_ID = userid; var PWD = pwd; var MOBILE = mobile; var CONTENT = content; var TIMESTAMP = timestamp; var API = 'http://112.91.147.37:9003/sms/v2/std/send_single'; var PARAMETERS= "userid="+USER_ID+"pwd="+PWD+"mobile="+MOBILE+"content="+CONTENT+"timestamp="+TIMESTAMP; var URL = API+"?"+PARAMETERS; var http = new HttpClientRequest(URL); http.method="GET"; http.execute(); var r = http.response; var responseJSON = JSON.parse(r.body); logInfo("JSON"+responseJSON); }

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

Best answer by david--garcia

I've replicated your solution and I got past the issue, the problem seems in the naming convention somewhere or in the SOAP call not including the correct headers SOAPaction headers, for testing I've named my assets as following

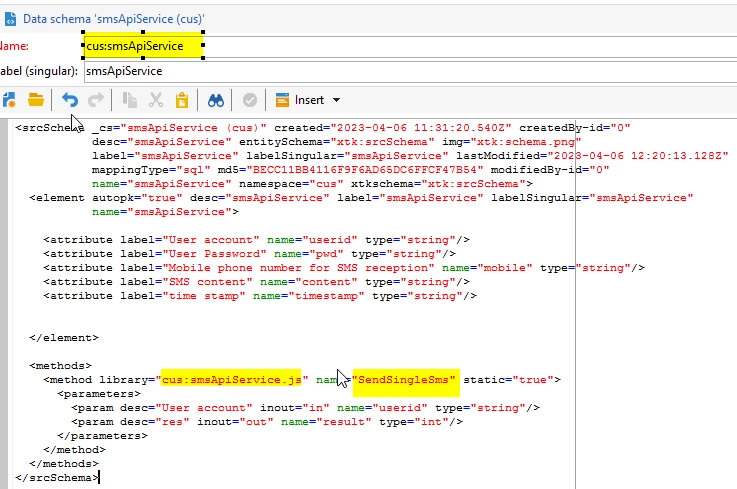

Schema: cus:smsApiService --> uppercase S for Service

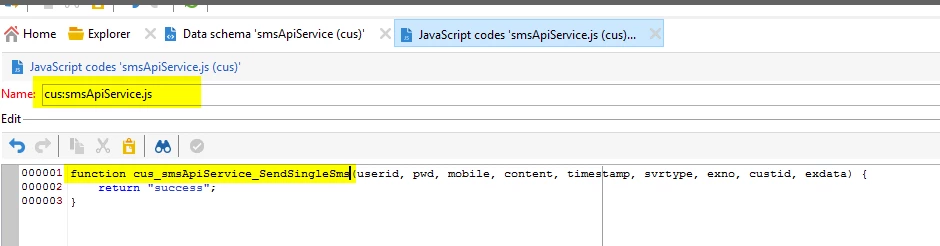

JS: cus:smsApiService.js

Method: SendSingleSms

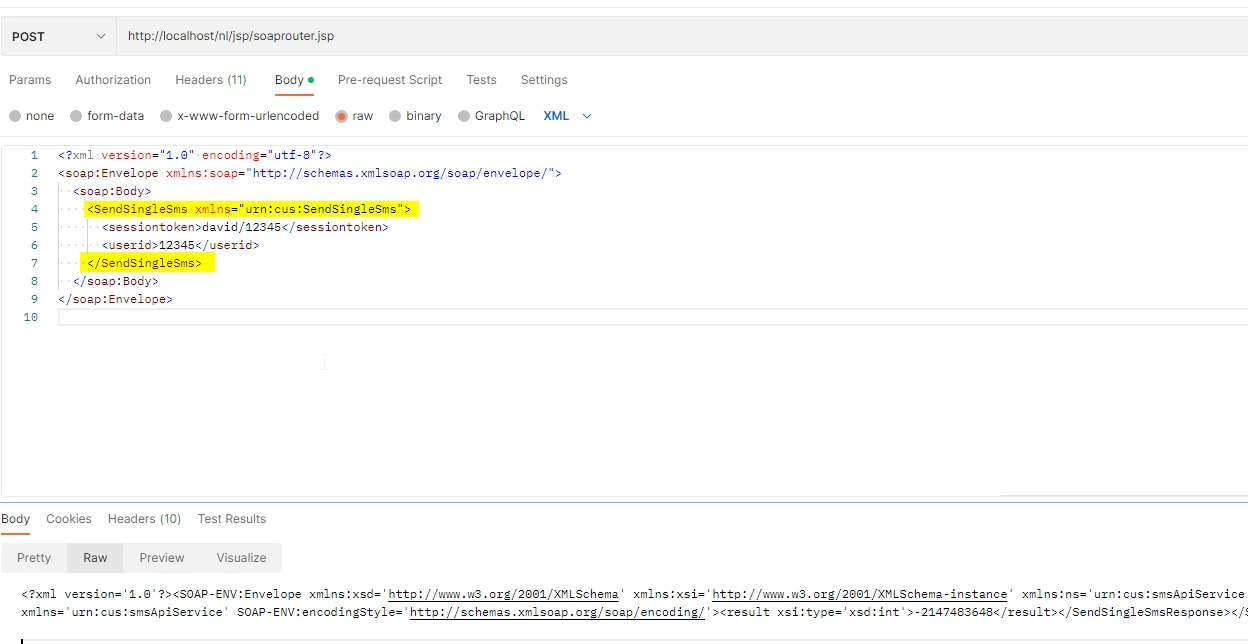

Payload

POST /nl/jsp/soaprouter.jsp HTTP/1.1
Host: localhost
Content-Type: text/xml; charset=utf-8
SOAPAction: cus:smsApiService#SendSingleSms
Content-Length: 303
<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
  <soap:Body>
    <SendSingleSms xmlns="urn:cus:SendSingleSms">
      <sessiontoken>david/12345</sessiontoken>
      <userid>12345</userid>
    </SendSingleSms>
  </soap:Body>
</soap:Envelope>

Make sure your are naming your function correctly

And firstly test it with just a simple string from your payload rather than a full request

SOAP request should be as follows

And it should include the SOAPAction header with value cus:smsApiService#SendSingleSms

Also check uppercase/lowercase in your schema/js code/function names, make sure it has the correct case.

Marcel_Szimonisz

Community Advisor

Hello @wankang ,

it looks like syntax error but i do not see any 🙂

have you set all correctly?

js library
cus:smsApiService schema methods and in arguments?

...
<methods>
      <method library="cus:smsApiServiceLibrary" name="SendSingleSMS" static="true">
           <!-- in out arguments-->
...

Maybe if the library is just created restart the server?

Marcel

wankangAuthor

Level 3

yes, i had set

js library
cus:smsApiService schema methods and in arguments

also i just restart, but still had same issue.plz find the below data.

the data schema：

the js code:

function SendSingleSms(userid,pwd,mobile,content,timestamp,svrtype,exno,custid,exdata){
var USER_ID = userid;
var PWD = pwd;
var MOBILE = mobile;
var CONTENT = content;
var TIMESTAMP = timestamp;
var API = 'http://112.91.147.37:9003/sms/v2/std/send_single';
var PARAMETERS= "userid="+USER_ID+"pwd="+PWD+"mobile="+MOBILE+"content="+CONTENT+"timestamp="+TIMESTAMP;
var URL = API+"?"+PARAMETERS;

var http = new HttpClientRequest(URL);
http.method="GET";
http.execute();
var r = http.response;
var responseJSON = JSON.parse(r.body);
logInfo("JSON"+responseJSON);
}

Marcel_Szimonisz

Community Advisor

Hello @wankang ,

you are missing bunch of inout="in" for some parameters.

Also the function is not returning anything, and i have no idea how to handle multiple out variables in your case.

I usually return dom document with all variables mapped to it.

Marcel

david--garciaAccepted solution

Level 10

I've replicated your solution and I got past the issue, the problem seems in the naming convention somewhere or in the SOAP call not including the correct headers SOAPaction headers, for testing I've named my assets as following

Schema: cus:smsApiService --> uppercase S for Service

JS: cus:smsApiService.js

Method: SendSingleSms

Payload

POST /nl/jsp/soaprouter.jsp HTTP/1.1
Host: localhost
Content-Type: text/xml; charset=utf-8
SOAPAction: cus:smsApiService#SendSingleSms
Content-Length: 303
<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
  <soap:Body>
    <SendSingleSms xmlns="urn:cus:SendSingleSms">
      <sessiontoken>david/12345</sessiontoken>
      <userid>12345</userid>
    </SendSingleSms>
  </soap:Body>
</soap:Envelope>

Make sure your are naming your function correctly

And firstly test it with just a simple string from your payload rather than a full request

SOAP request should be as follows

And it should include the SOAPAction header with value cus:smsApiService#SendSingleSms

Also check uppercase/lowercase in your schema/js code/function names, make sure it has the correct case.

RajeshBhat

Level 3

Hi @david--garcia ,

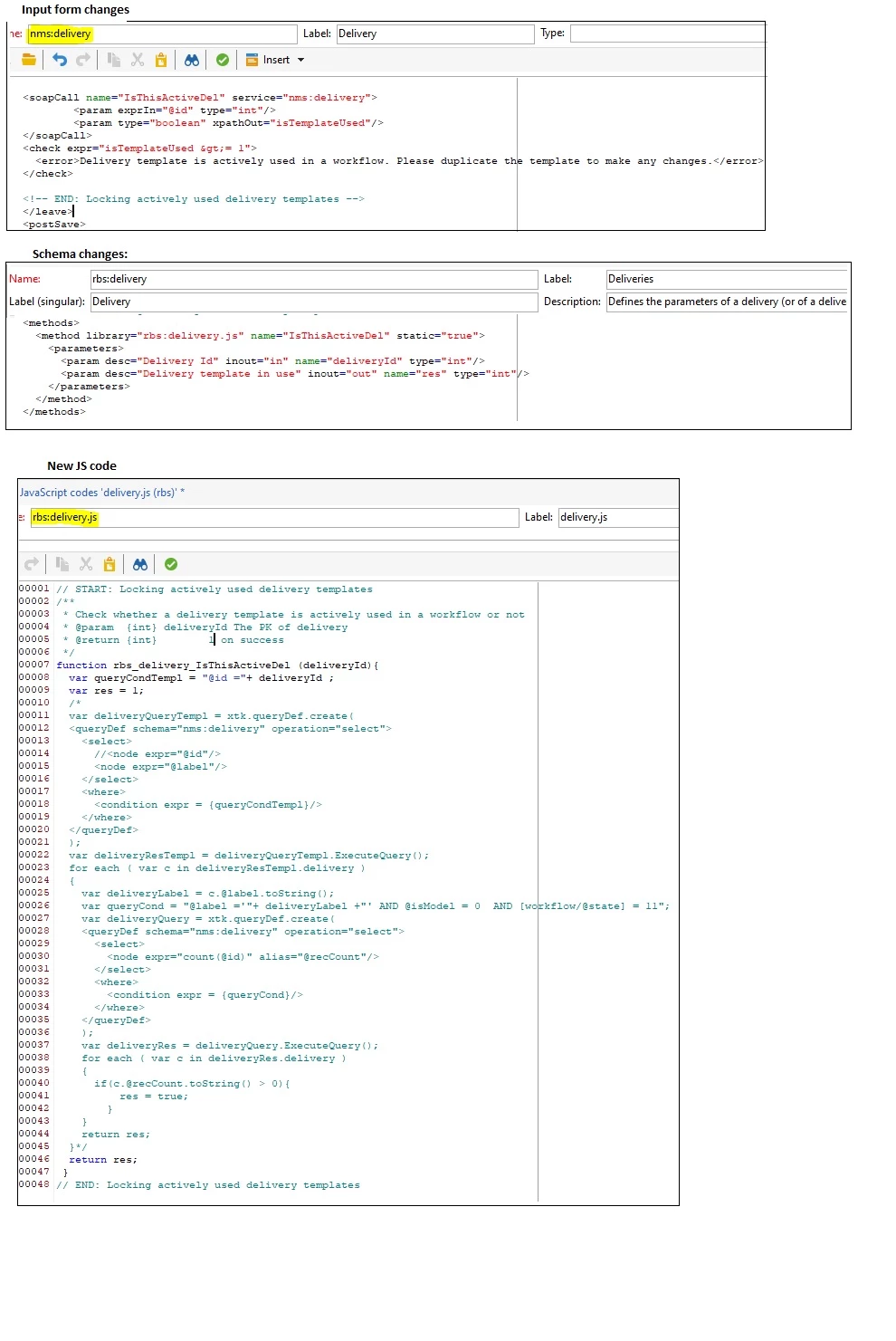

I followed your response and made changes to resolve the javascript error. But still keep getting the same error: "Error while evaluating a javascript code, line 1: void(0) is not a function". I'm attaching the complete details of the changes I have done on input form, schema and new js code file. Please let me know how to resolve this issue. Many thanks in advance!
