External system to integrate to ACC V7 for sending push notification

  • April 3, 2025
  • 1 reply
  • 668 views

Hi Community!

I have a use-case which I wanted to sparre with some of you about. We are looking into making an integration from an external system to ACC, to allow sending push notifications with dynamic content values such as title, sub title, text, and custom params. Also, the external system should be able to chose a target segment which will point to a pre-defined fitering or similar in ACC.

So I am looking at docs to figure out the best approach for this, but it is a bit overwhelming to be honest. I have looked at functions like "CreateFromModel" and "SubmitDelivery" but I simply lack some working examples or similar to solving this challenge. Also I am really interested in simply hearing feedback on the approach and possible suggestions to other ways of solving this use-case.

Thanks a bunch!

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by Manoj_Kumar

Hello @sorendp Here is what you can do.



1. Create a workflow starting with external signal activity. Then use query activity to select all subscribed user for a segment and use dynamic value in the condition like segment name qual to $(vars/@segment) and add your deliveries based on devices.



2. Create a JSSP page

<%@ page import="/nl/core/shared/nl.js" %> <% // Load required libraries loadLibrary("xtk:common.js"); loadLibrary("xtk:shared/json2.js"); // Initialize NL framework NL.require('nl/core/shared/xtk.js'); NL.server.reset() .require("nl/core/apis.js") .require('nl/core/queryDef.js') .require('/nl/core/jsspcontext.js'); // Initialize API with request and response objects NL.API.init(request, response, { authentication: false, jsonoutput: true }, function(jsspContext) { // Check if the request method is GET if (request.method.toLowerCase() == "get") { var apiKey = "MY_API_KEY_HERE"; // Add your API Key here var context = logonEscalation("api"); // Validate API key from request parameter if (apiKey == request.getParameter("apiKey")) { // Get segment code from request parameter with fallback to empty string var segmentCode = request.getParameter("segmentCode") ? request.getParameter("segmentCode") : ""; // Trigger workflow event if segment code is provided if (segmentCode != "") { xtk.workflow.PostEvent( "INTERNAL_NAME_OF_WORKFLOW_FROM_STEP_1", "signal", "", <variables segment={segmentCode}/> , false); } } else { // Authentication failed responseCode = 401; responseMessage = "Unauthorized"; response.sendError(401); } } else { // Invalid request method responseCode = 400; responseMessage = "Invalid method"; response.sendError(400); } }); %>





Now, from your external platform use the endpoint DOMAIN_HOST/NAMSPACE/PAHE_NAME/jssp?apiKey=API_KEY_HERE&segmentCode=SEGEMENT_CODE



This endpoint will use the segment code and trigger your workflow to select the audience for the segment and send them push.



1 reply

SushantTrimukheD
SushantTrimukheD
Level 4
April 3, 2025

Hi @sorendp ,

If I’m not mistaken, the external system will provide both the content for the push message and the targeting audience conditions or a list of audiences.

If that’s the case, you can send push notifications from Adobe Campaign as long as the users coming from the external system have a device ID in Adobe Campaign when they install the app, and all the app details are captured within Campaign.

Let me explain one automated approach we can use:

  1. We can pull the target audience from the SFTP or API into Campaign.

  2. Then, we reconcile this audience with the AppSubscription schema using the key fields.

  3. You can also get the content within the same file, including the personalization fields.
    Or If the push message is the same for all users, you can get the message from a separate file and load it into the data loading system. Then, create fields like Title, Message, etc., and use these fields directly in the push message delivery, such as targetData.title and targetData.message.

If this is not the approach is what you’re looking for, could you provide more details so we can assist you further?

Thanks,
Sushant Trimukhe

S
SorenDPAuthor
Level 4
April 3, 2025

Hi @sushanttrimukhed

Thanks for the reply!

I am most keen on avoiding an ftp in this proces. Im looking for an automated solution where the push notification is created, and executed via an external system. (For now, let's just say Postman for POC purposes).

So a few more details:



An example use-case: An editor is writing an article about some football news (not related to ACC. Entirely different system). The editor publishes this article on a free news website. the editor wants to send a push notification to recipients who are interested in football and encourage them to read the article. This segment is a behavioural segment that exists in ACC V7 already.

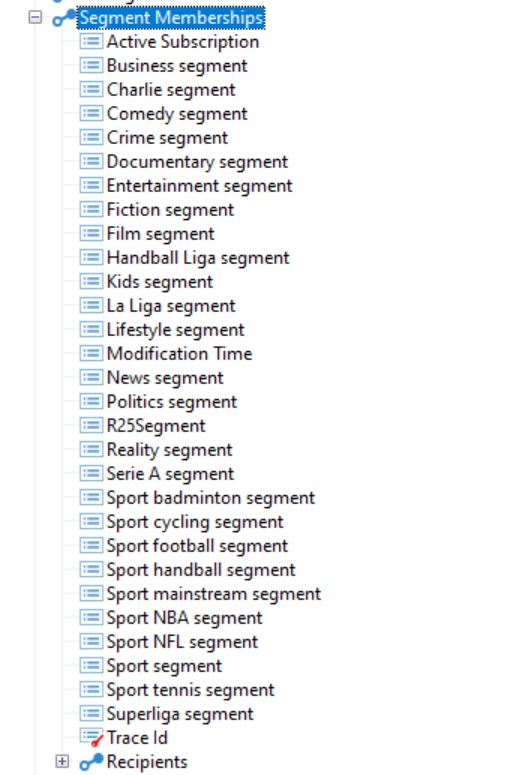

So in Campaign I have a push delivery template. I am also able to query the database for recipients who belongs to a football segment because I have that data stored in a 1:n relationship table with X amount of segments (true/false).


So I am thinking about a use-case where the system the editor is using is simply asking the ACC Api's to send the push template with some specified target details. I.E: "Sport football = true" and then some dynamic content for the notification itself.

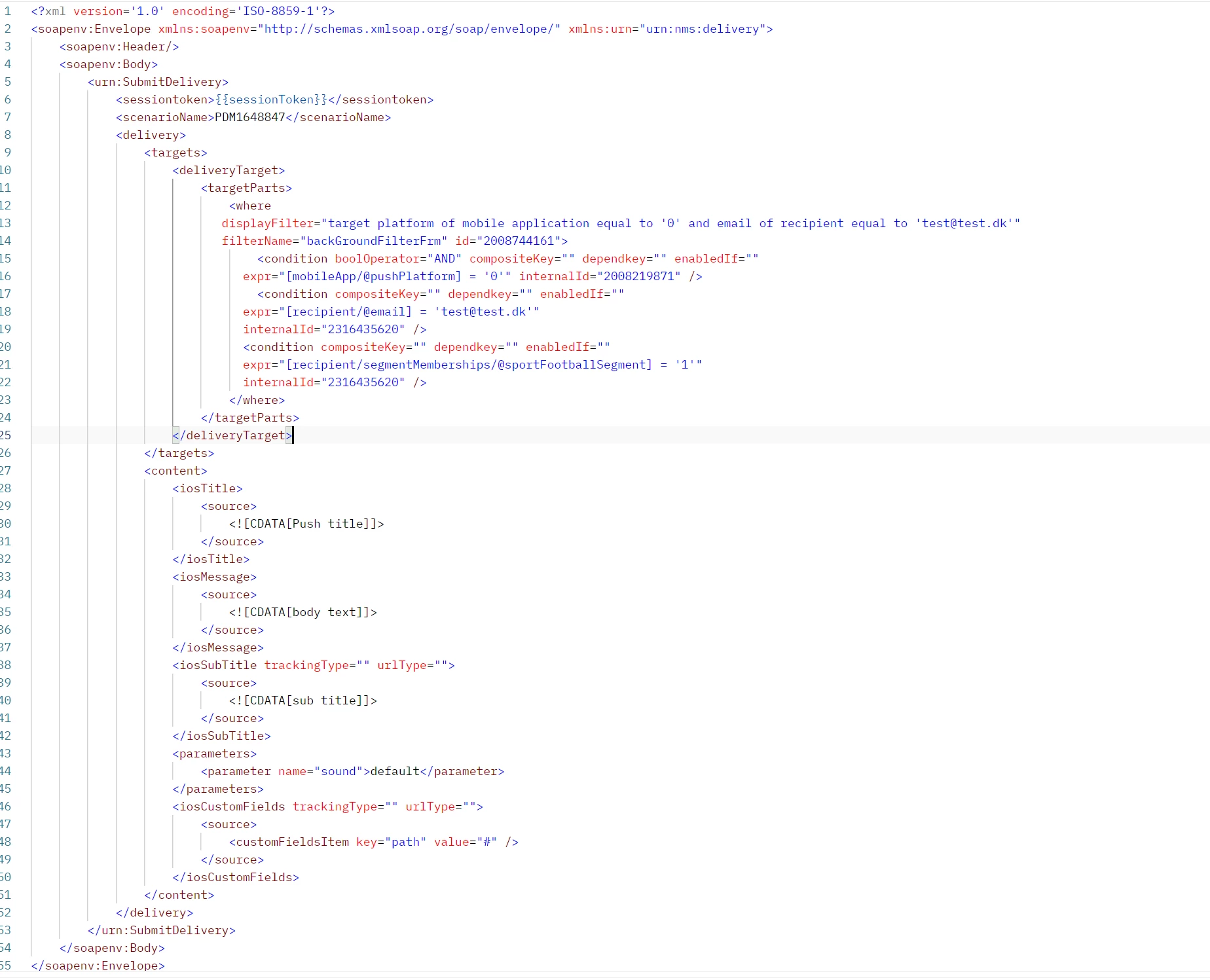

Postman:


So currently I am not able to make the API call work, and I am also not sure if this is an optimal path to take to solve this use-case.

Hope that clarifies a bit!







Manoj_Kumar
Community Advisor
Manoj_KumarCommunity AdvisorAccepted solution
Community Advisor
April 7, 2025

Hello @sorendp Here is what you can do.



1. Create a workflow starting with external signal activity. Then use query activity to select all subscribed user for a segment and use dynamic value in the condition like segment name qual to $(vars/@segment) and add your deliveries based on devices.



2. Create a JSSP page

<%@ page import="/nl/core/shared/nl.js" %> <% // Load required libraries loadLibrary("xtk:common.js"); loadLibrary("xtk:shared/json2.js"); // Initialize NL framework NL.require('nl/core/shared/xtk.js'); NL.server.reset() .require("nl/core/apis.js") .require('nl/core/queryDef.js') .require('/nl/core/jsspcontext.js'); // Initialize API with request and response objects NL.API.init(request, response, { authentication: false, jsonoutput: true }, function(jsspContext) { // Check if the request method is GET if (request.method.toLowerCase() == "get") { var apiKey = "MY_API_KEY_HERE"; // Add your API Key here var context = logonEscalation("api"); // Validate API key from request parameter if (apiKey == request.getParameter("apiKey")) { // Get segment code from request parameter with fallback to empty string var segmentCode = request.getParameter("segmentCode") ? request.getParameter("segmentCode") : ""; // Trigger workflow event if segment code is provided if (segmentCode != "") { xtk.workflow.PostEvent( "INTERNAL_NAME_OF_WORKFLOW_FROM_STEP_1", "signal", "", <variables segment={segmentCode}/> , false); } } else { // Authentication failed responseCode = 401; responseMessage = "Unauthorized"; response.sendError(401); } } else { // Invalid request method responseCode = 400; responseMessage = "Invalid method"; response.sendError(400); } }); %>





Now, from your external platform use the endpoint DOMAIN_HOST/NAMSPACE/PAHE_NAME/jssp?apiKey=API_KEY_HERE&segmentCode=SEGEMENT_CODE



This endpoint will use the segment code and trigger your workflow to select the audience for the segment and send them push.



Manoj  | https://themartech.pro
