Add custom elements or attributes in search using customizing the searlizationconfig.html

  • June 11, 2024
  • 2 replies
  • 1427 views

Hi I have customized my asset UI search by following the below document and added custom attributes to the dita search.  Can some provide any document that contains detail steps to configure and test this?

https://experienceleague.adobe.com/en/docs/experience-manager-guides/using/install-guide/on-prem-ig/aem-asset-search/conf-dita-search#id197AHI0035Z



Thanks

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by nitshar

@nitshar , Is there any way we can do with out using prolog element ?


yes,



use the rules in serialization.config file as highlighted below :



<ruleset filetypes="xml dita">
  <!-- Element rules -->
  <rule xpath="//*[contains(@class, 'topic/topic')]/*[contains(@class, 'topic/prolog')]//*[not(*)]" text="yes" attributeset="all-attrs" />

<!-- Attribute rules -->
<rule xpath="//*[contains(@class, 'topic/topic')]/*[contains(@class, 'topic/prolog')]//*/@*[local-name() != 'class']" />
<!-- MORE rules -->
<rule xpath="//*[contains(@class, 'topic/topic')]/shortdesc" text="yes" />
<rule xpath="//*[contains(@class, 'topic/topic')]/taskbody/context/p" text="yes" />
<rule xpath="//*[contains(@class, 'topic/topic')]/conbody/p" text="yes" />
<rule xpath="//*[contains(@class, 'topic/topic')]/title" text="yes" />
<rule xpath="//*[contains(@class, 'topic/topic')]/taskbody/steps/step/cmd" text="yes" />
<rule xpath="//*[contains(@class, 'topic/topic')]/conbody/fig/title" text="yes" />
<rule xpath="//*[contains(@class, 'topic/topic')]/taskbody/steps/step/info/fig/title" text="yes" />
</ruleset>

<ruleset filetypes="ditamap">
<rule xpath="//*[contains(@class, 'map/map')]/title" text="yes" />
</ruleset>

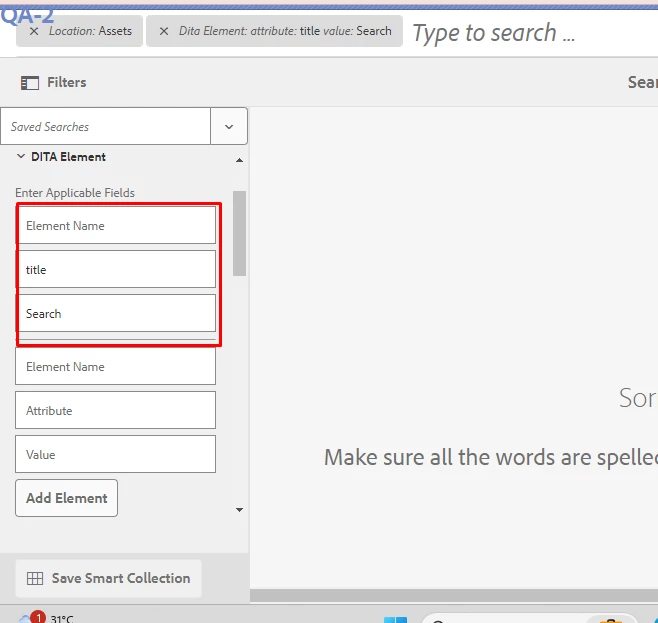

once data is indexed, the filter can be used on topic title, or on shortdesc text or on other created rules.



Example :

if following is the topic title tag ...

<title>TestSearch</title>





title  as Element Name

TestSearch as Value






2 replies

B
Beaula123Author
Level 4
June 12, 2024

Hello,



Can any one suggest, how the DITA Element will work in the Asset UI search?



    N
    Adobe Employee
    nitsharAdobe Employee
    Adobe Employee
    June 13, 2024

    Hi ,



    Following are the steps to use DITA Element Search



    1. navigate to URL <server>/crx/de, overlay the /libs/fmdita/config folder to /apps. Once this is done, copy the serializationconfig.xml file from /libs/fmdita/config/ and paste it to  /apps/fmdita/config

    2. With Admin user, Navigate to Tools -> Search Forms. Check the checkbox for Assets Admin Search Rail and click on Edit. On the right scroll down and search for DITA Element Predicate. Drag and drop this to the left side of the screen. Save the changes

    3. For the non admin users to perform search, navigate to <Server_URL>/useradmin. Now search for the group. Go to Permissions tab. Navigate to /conf/globa/settings/dam. Give Read permission on dam for the group. This will enable the non admin users to perform DITA ELEMENT search

    4. Navigate to <Server_URL>/system/console/configMgr. Here search for Component com.adobe.fmdita.config.ConfigManager. Check the checkbox for Enable DITA Metadata Extraction. Save the changes. If any changes are done on the serializationconfig.xml file (mentioned in step 1), you need to again open and save the com.adobe.fmdita.config.ConfigManager  [URL : <Server_URL>/system/console/configMgr]

    5. Now to serialize the existing data, navigate to Tools -> XML Documentation -> DITA Metadata Extraction.
        a. To select a file, choose the option ‘Select a file’ and browse to select the desired file.
        b. To select a folder, choose the option ‘Select Folder(s)’. You can choose multiple folders using the browse option and adding each folder using the ‘Add’ button

    6. You can serialize the desired content by clicking Start. Serialization would be done based on the rules set in the serializationconfig.xml file.

    7. Below are some sample rules for DITA-TOPICS and DITAMAPS:

    <ruleset filetypes="xml dita">
      <!-- Element rules -->
      <rule xpath="//*[contains(@class, 'topic/topic')]/*[contains(@class, 'topic/prolog')]//*[not(*)]" text="yes" attributeset="all-attrs" />

    <!-- Attribute rules -->
    <rule xpath="//*[contains(@class, 'topic/topic')]/*[contains(@class, 'topic/prolog')]//*/@*[local-name() != 'class']" />
    <!-- MORE rules -->
    <rule xpath="//*[contains(@class, 'topic/topic')]/shortdesc" text="yes" />
    <rule xpath="//*[contains(@class, 'topic/topic')]/taskbody/context/p" text="yes" />
    <rule xpath="//*[contains(@class, 'topic/topic')]/conbody/p" text="yes" />
    <rule xpath="//*[contains(@class, 'topic/topic')]/title" text="yes" />
    <rule xpath="//*[contains(@class, 'topic/topic')]/taskbody/steps/step/cmd" text="yes" />
    <rule xpath="//*[contains(@class, 'topic/topic')]/conbody/fig/title" text="yes" />
    <rule xpath="//*[contains(@class, 'topic/topic')]/taskbody/steps/step/info/fig/title" text="yes" />
    </ruleset>

    <ruleset filetypes="ditamap">
    <rule xpath="//*[contains(@class, 'map/map')]/title" text="yes" />
    </ruleset>

    8. You can now perform search on the DITA element
      B
      Beaula123Author
      Level 4
      June 13, 2024

      Thank you @nitshar ,

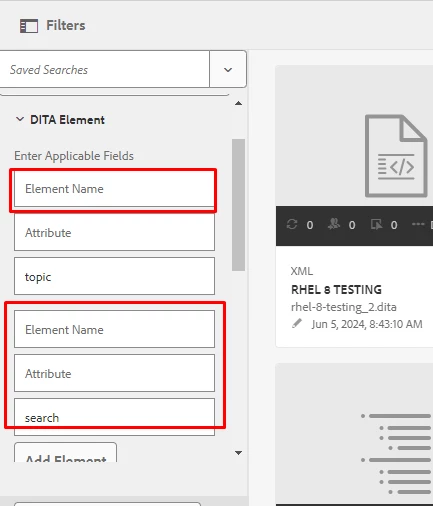

      This is very helpful. I followed the steps and configured the DITA Element search. But I am not getting any search results, if I do the search. Can you please suggest, what are the Element Name and Attribute?





        N
        Adobe Employee
        nitsharAdobe Employee
        Adobe Employee
        June 13, 2024

        Hi,



        Prolog (metadata) elements, is required on the assets for this filter to work.



        Example :

        <topic id="GUID-2d5c9e47-065b-4048-be9f-9f742b2d032d">
        <title>new</title>
        <prolog>
        <author type="test_author"> DITA Authors </author>
        <metadata>
        <audience experiencelevel="expert" type="programmer"></audience>
        <category>Green</category>
        </metadata>
        </prolog>

        <body>
        <p> test content </p>
        </body>
        </topic>



        Now, once the content is serialize, DITA Element filter can be used using prolog metadata:

        Example :

        audience as Element Name

        experiencelevel as Attribute

        expert as Value
