SOLVED

RTE Color Picker Not working

Avatar

Level 2

Hi,

I have upgraded application from AEM 6.4.2 to AEM 6.4.8.2 SP and after the upgrade In the RTE color picker feature is not working and getting the dialog like below




I have referred this blog - http://experience-aem.blogspot.com/2018/05/aem-64-touch-ui-rte-rich-text-editor-color-picker-plugin....  and implemented the RTE color picker feature in aem 6.4.2.
Could you please suggest with solution for this issue ?



1 Accepted Solution

Avatar

Correct answer by
Employee

@vivianseba Try adding below check before calling function addDialogTemplate() in color-picker.js;

if (document.location.pathname.indexOf("/editor.html/") > -1) {
        addDialogTemplate();
    }

View solution in original post

0 Replies

Avatar

Level 2

Hi Vanegi,
I have implemented the RTE color picker with this aem 6.4 link --> http://experience-aem.blogspot.com/2018/05/aem-64-touch-ui-rte-rich-text-editor-color-picker-plugin....
Should i need to implement like your mentioned link --> http://experience-aem.blogspot.com/2017/06/aem-63-touch-ui-rte-rich-text-editor-color-picker-plugin-...
Please suggest?

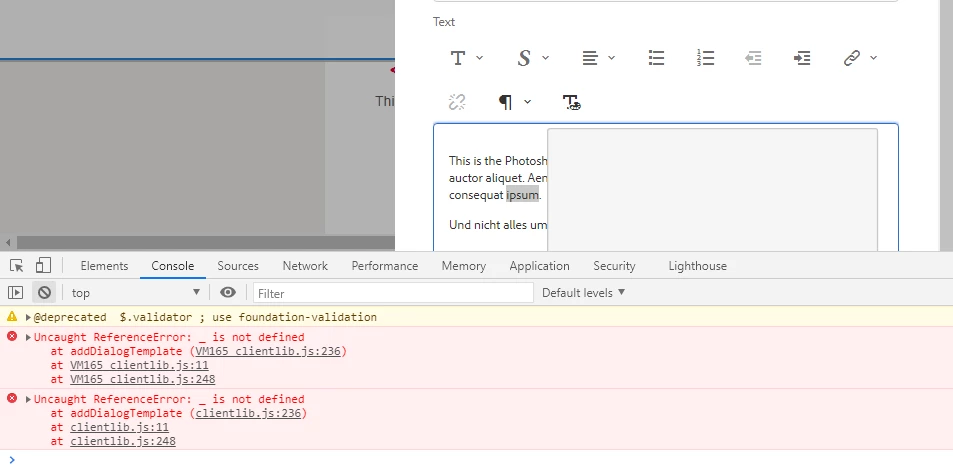

After the migration from 6.4.2 to 6.4.8.2 SP i am getting the below error message in the console while selecting the color picker.




Avatar

Correct answer by
Employee

@vivianseba Try adding below check before calling function addDialogTemplate() in color-picker.js;

if (document.location.pathname.indexOf("/editor.html/") > -1) {
        addDialogTemplate();
    }

Avatar

Level 2

Hi,
I have added the above mentioned code in color-picker.js file and it's not working.



Avatar

Employee

Is there any console error you are getting ? Can you cross check if popover dialog url is correct in color-picker.js Check this constant value PICKER_URL.

Avatar

Level 2

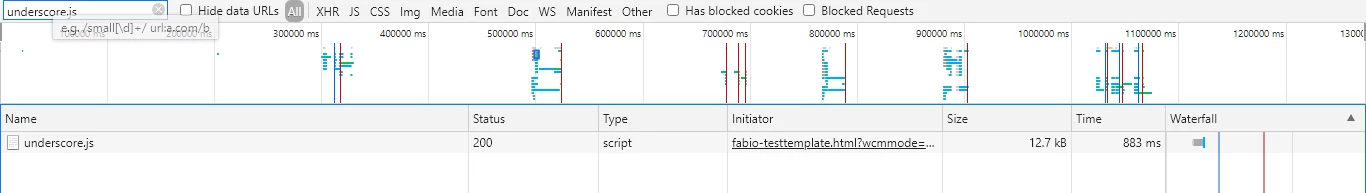

Yes i am getting the below console error and PICKER_URL path is correctly configured.



After adding your below code snippet above mentioned error was fixed

if (document.location.pathname.indexOf("/editor.html/") > -1) {
        addDialogTemplate();
    }
But now i am getting some other error in console now


Could you help me with the fix for this issue ?





Avatar

Level 2

Thank you Arun for sharing the link and I have implemented RTE color picker as suggested,Then
I have checked the color picker by clicking the icon and the i am getting the empty dialog screen with the below mentioned console error.
AEM version:6.4.8.2



Could you please help me to fix this issue ?





Avatar

Community Advisor
It could be issue with AEM version, can you try in other version of AEM may be in 6.5?

Avatar

Level 1

If you are still facing the issue,



Create underscore.js and handlebars.js files in color picker component's client libs and add them to js.txt before component.js name. It appears aem 6.4.8.2 is not loading the required dependencies so we had to add them into component client libs.

Avatar

Administrator
@pkrish61 Thank you for sharing the answer with community. Please keep this wonderful community work Going. AEM community needs SMEs like you. Thank you.

Avatar

Level 4

We too faced this same issue with SP 6.5.10. It was working with SP 6.5.8. To fix it permanently we did below changes.

  1. Removed underscore dependency
  2. Removed all occurrences of _. from color-picker.js
  3. Added below functions in color-picker.js
isEmpty = function(item) {
        console.log('item = ',item);
        if(!item) {
            return true;
        }
        var len;
        if(item.length || item.length === 0){
        	len = item.length;
        } else {
        	if(typeof item === 'object') {
        		len = Object.keys(item).length;
        	}
        }
        return len === 0;
	}

    isUndefined = function(item) {
    	if(item === undefined) {
    		return true;
    	} else {
    		return false;
    	}
    }

    defer = function(item) {
    	setTimeout(() => {item()})
    }

Reference: Please check comment from HonorSpren on this blog from @arunpatidar

https://aemlab.blogspot.com/2019/07/aem-rte-custom-plugins-1.html



Avatar

Level 2





Try changing dependency from underscore to lodash.underscore. This worked for me.
