Pathbrowser and fileupload not working first time inside coral multifield ?

Forum|Forum|8 years ago
September 19, 2017
3 replies
9178 views

Having a component with following cq:dialog.

After clicking add button in multi-filed, as expected i am getting Pathbrowser and fileupload field which is not working. if i close the dialog and open again both fields are started working (i can able to browse file and upload image).

1, Is it a bug ? or am i missing anything here ?

2, Pathbrowser or fileupload which is best to use for images ?

I understand the difference that in Pathbrowser we can restrict user to specific path, but user will not have image preview (am i correct ?)

<?xml version="1.0" encoding="UTF-8"?>

<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"

jcr:primaryType="nt:unstructured"

jcr:title="Product Banner"

sling:resourceType="cq/gui/components/authoring/dialog">

<content

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/container">

<layout

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/layouts/tabs"

type="nav"/>

<tab1

jcr:primaryType="nt:unstructured"

jcr:title="Left Banner Box"

sling:resourceType="granite/ui/components/foundation/container">

<layout

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns"/>

<columns

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/container">

<title

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/form/textfield"

fieldLabel="Title"

name="./title"/>

<description

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/form/textarea"

fieldLabel="Description"

name="./description"/>

<linktext

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/form/textfield"

fieldDescription=" Link Text"

fieldLabel="Link Text"

name="./linktext"/>

<linkurl

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/form/pathbrowser"

fieldDescription="Link URL"

fieldLabel="Link URL"

name="./linkurl"/>

</items>

</columns>

</items>

</tab1>

<tab2

jcr:primaryType="nt:unstructured"

jcr:title="Product Box List"

sling:resourceType="granite/ui/components/foundation/section">

<layout

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/layouts/fixedcolumns"

margin="{Boolean}false"/>

<column

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/container">

<list

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/coral/foundation/form/multifield"

composite="{Boolean}true"

fieldDescription="Click + to add a new list item"

fieldLabel="Product List"

name="./list">

<field

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/coral/foundation/container"

name="./items">

<image

jcr:primaryType="nt:unstructured"

sling:resourceType="cq/gui/components/authoring/dialog/fileupload"

autoStart="{Boolean}false"

class="cq-droptarget"

fieldLabel="Product Image"

fileNameParameter="./fileName"

fileReferenceParameter="./fileReference"

mimeTypes="[image]"

multiple="{Boolean}false"

name="./file"

title="Upload Image Asset"

uploadUrl="${suffix.path}"

useHTML5="{Boolean}true"/>

<title

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/form/textfield"

fieldLabel="Product Title"

name="./productTitle"/>

<description

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/form/textarea"

fieldLabel="Description"

name="./description"/>

<linktext

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/foundation/form/textfield"

fieldDescription=" Link Text"

fieldLabel="Link Text"

name="./linktext"/>

<linkurl

jcr:primaryType="nt:unstructured"

sling:resourceType="granite/ui/components/coral/foundation/form/pathbrowser"

fieldDescription="Link URL"

fieldLabel="Link URL"

name="./linkurl"/>

</items>

</field>

</list>

</items>

</column>

</items>

</tab2>

</items>

</content>

</jcr:root>

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

Manjunath_DJ

Level 2

Hi

Can you check console errors when dialog is breaking/not opening and try adding listener after edit so page refresh happens.

Console error could help to know whats breaking in the java script .

Check the below links for Touch multi field Dialog

Adobe Experience Manager Help | Creating an AEM 6.2 HTML Template Language component that uses a Multi-Field dialog

V

viswacAuthor

Level 2

Hi

There is no problem in opening dialog. Dialog works perfectly, problem only in multi-field.

There no error related to this issue in the console.

Manjunath_DJ

Level 2

Hi

I have implemented multi field as per the blog it works perfectly fine. can you go thru blog once upload demo package and try it

Which version of AEM are you using?

benoitl54314939

I have the same issue.

Fileupload or pathbrowser are not working in the multifield. Pathfield is ok.

It's rendered properly but when dragging an asset on the fileupload nothing happens.

If I move my fileupload node outside of the multifield it works.

I'm running aem 6.3 with sp2.

V

viswacAuthor

Level 2

Exactly

smacdonald2008

Level 10

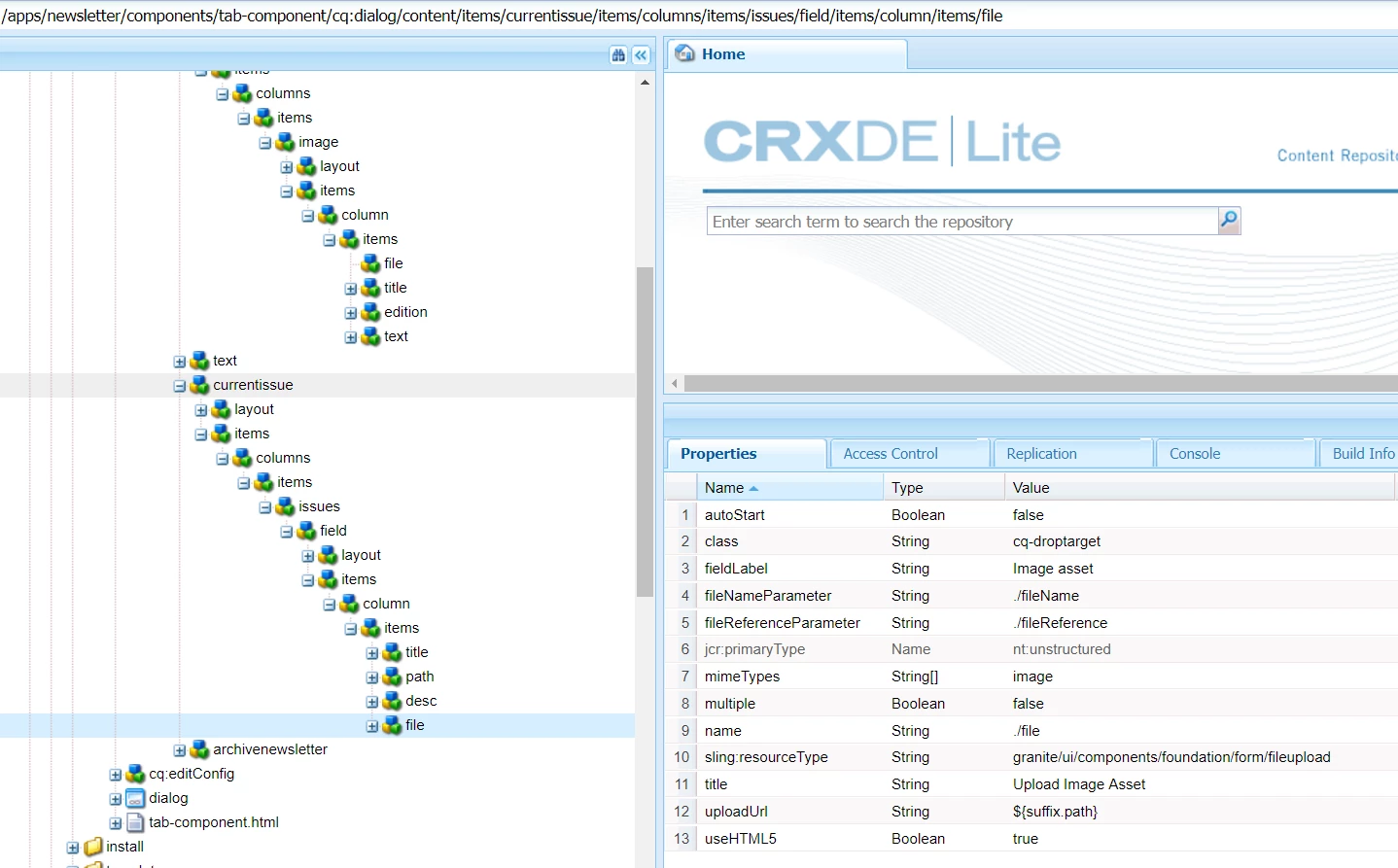

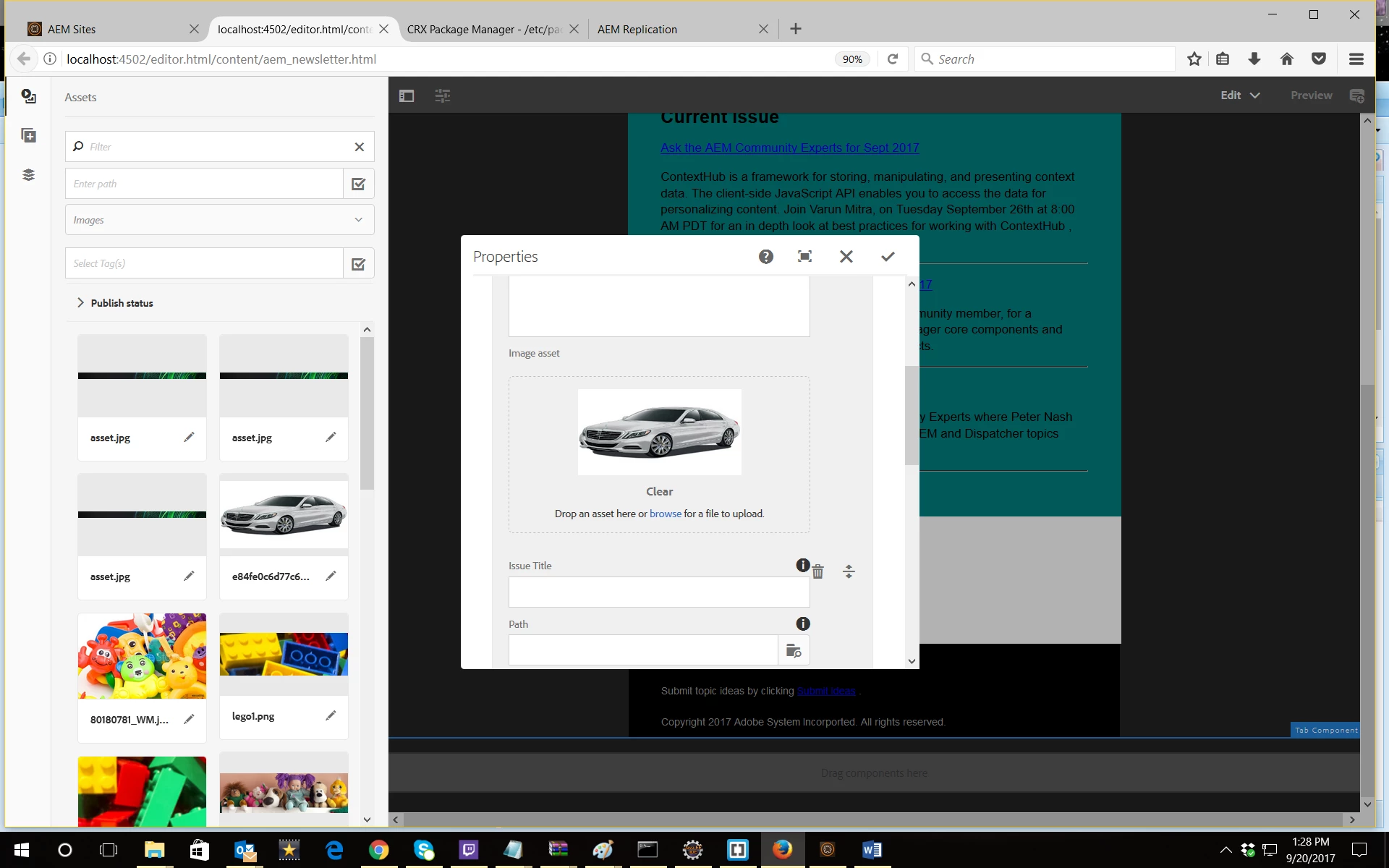

Just tried adding a file upload to a MF 6.3 dialog and it works:

As you can see - we can drag an image onto it.

You can try this too. Load the package from this artilce on 6.3:

Scott's Digital Community: Creating an Adobe Experience Manager Newsletter HTL component

Copy the file node and paste under the MF dialog. Open the example page and open the dialog - you will see the FIleUpload and you can drag images onto it. Now - you would need to change the Java code to make it render in the page - but the file upload does work in a MF.

V

viswacAuthor

Level 2

Thanks, i will try this. I have few questions.

1, if multi-field has more number of fields, it will become hard to author(lot to scroll). How to solve this ?

2, Is there an option to put separator(line) after each field-set in multi-field ?

3, Is multi-field good approach to add more records dynamically into the page by author ?

4, I have a path-field inside multi-field and author can enter external url (http:.//something.com) or choose an aem page. Problem is i have to check if it's external or internal and if it internal, i need to add ".html" ? (by default i am getting like "/content/myapp/myhome" and it's not working without adding .html)

If i need to add ".html" how to do that in js use api ?

     var contactLinkResource = resource.getChild(CONST.CONTACT_LINKS);
     var items = contactLinkResource.listChildren();
     // i need to loop here and get item.purl and check if external or internal based on that add ".html"?
     // I can do this java, but how to do this js use api ?
