SOLVED

out of the box clientlibs

sreedobe
Level 4
Level 4

Is there a way to know when creating a page, editing page properties ... what are all clientlibs categories used.

I have overlaid thumbnail in page dialog and would like to add all necessary clientlib categories in extraClientLibs property to get upload , select image work in thumbnail.



Thanks,

Sri

1 Accepted Solution
BrianKasingli
Correct answer by
Community Advisor
Community Advisor

There's no out of the box solution, so you would need to create a custom solution.

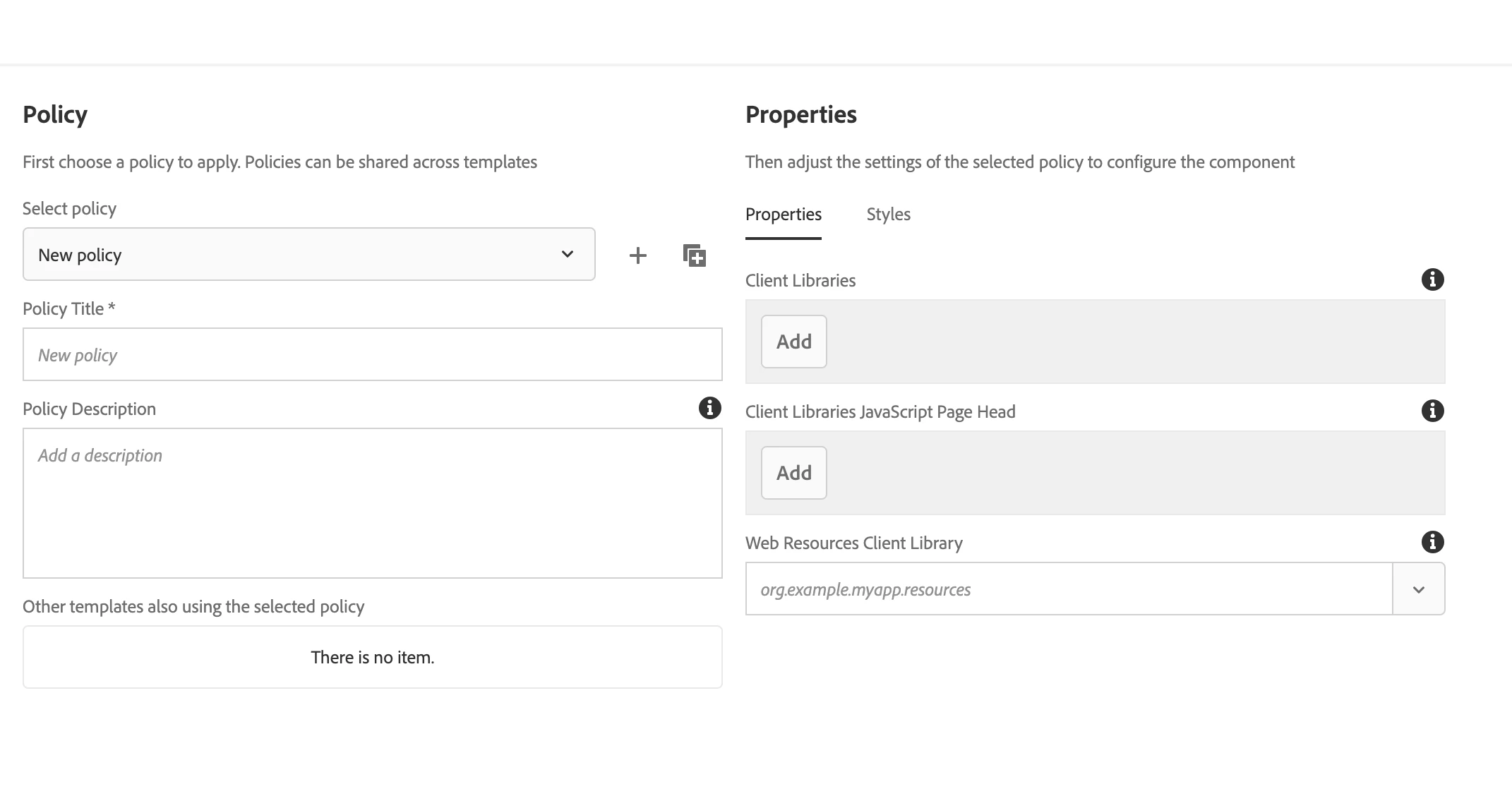

Client Libraries and Web Resources Client Library are defined from the editable template's page policy. Once configured, the page policies are stored in the /conf folder, where your page will be cq:template will be referencing. With the reference, you will be able to access the absolute path of the page policies, where you can access the Client Libraries and Web Resources Client Library set values.

For displaying values to the page, one way you can achieve this is by creating a custom data source (so your configurations can be viewed from a drop-down; this is for view only).

I hope this helps,

Brian.

Screenshot 2020-08-10 at 22.55.58.png

View solution in original post

5 Replies
BrianKasingli
Correct answer by
Community Advisor
Community Advisor

There's no out of the box solution, so you would need to create a custom solution.

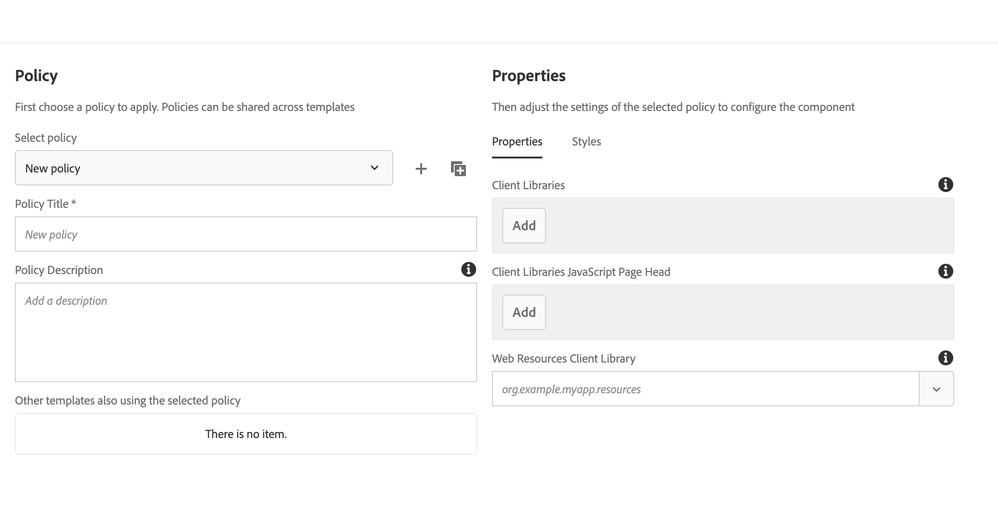

Client Libraries and Web Resources Client Library are defined from the editable template's page policy. Once configured, the page policies are stored in the /conf folder, where your page will be cq:template will be referencing. With the reference, you will be able to access the absolute path of the page policies, where you can access the Client Libraries and Web Resources Client Library set values.

For displaying values to the page, one way you can achieve this is by creating a custom data source (so your configurations can be viewed from a drop-down; this is for view only).

I hope this helps,

Brian.

Screenshot 2020-08-10 at 22.55.58.png

View solution in original post

sreedobe
Level 4
Level 4

I am looking to override thumbnail of page properties, I was able to override other tabs such as basic, but not thumbnail.

That was the reason I am asking about out of the box clientlibs that I can inlcude as extraClientlibs.



@BrianKasingli

Shashi_Mulugu
Community Advisor
Community Advisor

@sreedobe I understand that you are trying to overlay/override Page Properties tabs. But can you please elaborate the use case, because ideally, we dont overlay entire tabs/fields. We will just extend or add new tabs to it.



https://docs.adobe.com/content/help/en/experience-manager-learn/sites/developing/page-properties-tec...



Also see the Core components implementation, where they will just extend OOTB tabs with social media tab "/apps/core/wcm/components/page/v2/page/cq:dialog"





sreedobe
Level 4
Level 4

@Shashi_Mulugu



Use Case: Article Template

                  basic tab -> new field "article date" (required)

                                ->  existing field "tags" , make it required

                 thumbnail -> display it while creating page using template , "not" by clicking page properties once page created.

                                  -> make this required

In "article page" component dialog:

          I have pointed both basic, thumbnails to new "tabs/basic", "tabs/thumbnail" section. I was able to achieve basic tab but not thumbnail. It displays thumbnail tab on selecting "article template" to create page , but select image etc buttons do not work.



dialog xml





<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:granite="http://www.adobe.com/jcr/granite/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" xmlns:sling="http://sling.apache.org/jcr/sling/1.0" jcr:primaryType="nt:unstructured" jcr:title="Page" sling:resourceType="cq/gui/components/authoring/dialog" extraClientlibs="[cq.common.wcm,core.wcm.components.page.v2.editor,cq.wcm.msm.properties,granite.contexthub.configuration,cq.siteadmin.admin.properties]" helpPath="https://www.adobe.com/go/aem_cmp_page_v2" mode="edit" trackingFeature="core-components:page:v2">
   <content granite:class="cq-dialog-content-page" jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/container">
      <items jcr:primaryType="nt:unstructured">
         <tabs granite:class="cq-siteadmin-admin-properties-tabs" jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/tabs" size="L">
            <items jcr:primaryType="nt:unstructured">
               <basic jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/include" path="/apps/testapp/components/structure/article-page/tabs/basic" />
               <thumbnail jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/include" path="/apps/testapp/components/structure/article-page/tabs/thumbnail" />
            </items>
         </tabs>
      </items>
   </content>
</jcr:root>



thumbnail tab xml

<?xml version="1.0" encoding="UTF-8"?>
<jcr:root
    xmlns:sling="http://sling.apache.org/jcr/sling/1.0"
    xmlns:granite="http://www.adobe.com/jcr/granite/1.0"
    xmlns:cq="http://www.day.com/jcr/cq/1.0"
    xmlns:jcr="http://www.jcp.org/jcr/1.0"
    xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    cq:showOnCreate="{Boolean}true"
    jcr:primaryType="nt:unstructured"
    jcr:title="Thumbnail"
    sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
    <items jcr:primaryType="nt:unstructured">
        <column
            jcr:primaryType="nt:unstructured"
            sling:resourceType="granite/ui/components/coral/foundation/container">
            <items jcr:primaryType="nt:unstructured">
                <thumbnail
                    jcr:primaryType="nt:unstructured"
                    sling:resourceType="cq/gui/components/common/wcm/pagethumbnail"
                    page="${empty param.item ? requestPathInfo.suffix : param.item}"
                    quiet="{Boolean}true">
                    <upload
                        granite:class="cq-wcm-fileupload"
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/fileupload"
                        async="{Boolean}true"
                        autoStart="{Boolean}false"
                        multiple="{Boolean}false"
                        name="./image/file.sftmp"
                        sizeLimit="100000000"
                        text="Upload Image"
                        uploadUrl="will_be_replaced">
                        <granite:data
                            jcr:primaryType="nt:unstructured"
                            cq-msm-lockable="./image"/>
                    </upload>
                    <assetpicker
                        granite:class="js-browse-activator"
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/button"
                        text="Select Image">
                        <granite:data
                            jcr:primaryType="nt:unstructured"
                            cq-msm-lockable="./image"/>
                    </assetpicker>
                    <preview
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="cq/gui/components/siteadmin/admin/pagepreview"/>
                </thumbnail>
            </items>
        </column>
    </items>
</jcr:root>
