Level 2

Issue with Coral 3 Nested Multifield in AEM 6.5 where the dialog scrolls automatically to bottom when add new item is clicked.

Forum|Forum|1 year ago
July 30, 2024
3 replies
1755 views

The issue is with the Coral 3 nested multi field in AEM 6.5 where the dialog scrolls automatically to the bottom when we add a new item. It becomes more complex if data is being added more by the author.

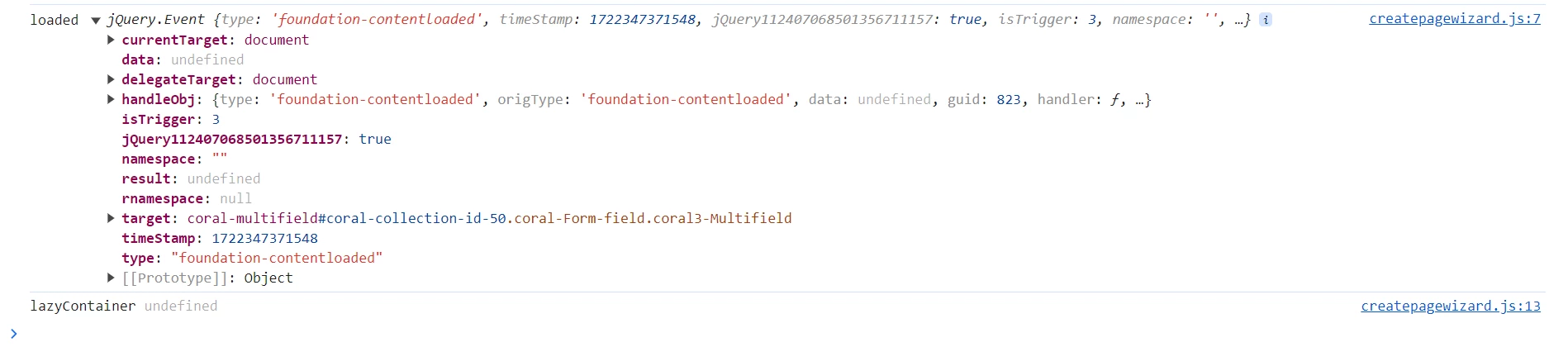

While checking at the console I was getting a jquery event being generated from createpagewizard.js. when ever we click on the add button and the scroll to the bottom behaviour triggers.

Is this an expected behaviour or do we have any working solution to restrict this scroll bottom ?

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

EstebanBustamante

Community Advisor and Adobe Champion

Hi,

I don't see that behavior in AEM6.5.16. The "Add" button is at the bottom of the multifield, when you click on the "Add" button, the scroll keeps whenever it stays. Below is the config I am using


<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:primaryType="nt:unstructured"
    jcr:title="Properties"
    sling:resourceType="cq/gui/components/authoring/dialog">
    <content
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
        <items jcr:primaryType="nt:unstructured">
            <column
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/coral/foundation/container">
                <items jcr:primaryType="nt:unstructured">
                    <multifield
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
                        composite="{Boolean}true"
                        fieldLabel="Add Items">
                        <field
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/coral/foundation/container"
                            name="./items">
                            <items jcr:primaryType="nt:unstructured">
                                <column
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/coral/foundation/container">
                                    <items jcr:primaryType="nt:unstructured">
                                        <name
                                            jcr:primaryType="nt:unstructured"
                                            sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                                            fieldLabel="Name"
                                            name="./name"/>
                                        <jobTitle
                                            jcr:primaryType="nt:unstructured"
                                            sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                                            fieldLabel="Job Title"
                                            name="./jobTitle"/>
                                    </items>
                                </column>
                            </items>
                        </field>
                    </multifield>
                </items>
            </column>
        </items>
    </content>
</jcr:root>

Hope this helps

Esteban Bustamante

akashkriz005Author

Level 2

Thanks for the info @estebanbustamante . Yes as you mentioned its working fine when simple multifield is implemented. The issue still persist in nested multifields. Giving a sample code below on which I have tried out.

<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:primaryType="nt:unstructured"
    jcr:title="Properties"
    sling:resourceType="cq/gui/components/authoring/dialog">
    <content
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
        <layout
            jcr:primaryType="nt:unstructured"
            sling:resourceType="granite/ui/components/foundation/layouts/tabs"
            type="nav"/>
        <items jcr:primaryType="nt:unstructured">
            <column
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/coral/foundation/container">
                <items jcr:primaryType="nt:unstructured">
                    <multifield
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
                        composite="{Boolean}true"
                        fieldLabel="Add Items">
                        <field
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/coral/foundation/container"
                            name="./items">
                            <items jcr:primaryType="nt:unstructured">
                                <column
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/coral/foundation/container">
                                    <items jcr:primaryType="nt:unstructured">
                                        <name
                                            jcr:primaryType="nt:unstructured"
                                            sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                                            fieldLabel="Name"
                                            name="./name"/>
                                        <jobTitle
                                            jcr:primaryType="nt:unstructured"
                                            sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                                            fieldLabel="Job Title"
                                            name="./jobTitle"/>
                                        <secondMF
                                            jcr:primaryType="nt:unstructured"
                                            sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
                                            composite="{Boolean}true"
                                            fieldLabel="Sub Section Feilds">
                                            <field
                                                jcr:primaryType="nt:unstructured"
                                                jcr:title="Click to Expand"
                                                sling:resourceType="granite/ui/components/foundation/container"
                                                name="./secondMF">
                                                <layout
                                                    jcr:primaryType="nt:unstructured"
                                                    sling:resourceType="granite/ui/components/foundation/layouts/collapsible"/>
                                                <items jcr:primaryType="nt:unstructured">
                                                    <thirdleveltitle
                                                        jcr:primaryType="nt:unstructured"
                                                        sling:resourceType="granite/ui/components/foundation/form/textfield"
                                                        fieldLabel="Second Level Title"
                                                        name="./thirdLevelTitle"
                                                        required="{Boolean}true"/>
                                                    <thirdlevelicontype
                                                        jcr:primaryType="nt:unstructured"
                                                        sling:resourceType="granite/ui/components/coral/foundation/form/select"
                                                        fieldLabel="Level Type"
                                                        name="./thirdlevelType"
                                                        required="{Boolean}true">
                                                        <items jcr:primaryType="nt:unstructured">
                                                            <option1
                                                                jcr:primaryType="nt:unstructured"
                                                                text="option1"
                                                                value="option1"/>
                                                            <option2
                                                                jcr:primaryType="nt:unstructured"
                                                                text="option2"
                                                                value="option2"/>
                                                            <option3
                                                                jcr:primaryType="nt:unstructured"
                                                                text="option3"
                                                                value="option3"/>
                                                        </items>
                                                    </thirdlevelicontype>
                                                    <thirdpagePath
                                                        jcr:primaryType="nt:unstructured"
                                                        sling:resourceType="granite/ui/components/coral/foundation/form/pathfield"
                                                        fieldLabel="Page Path"
                                                        name="./thirdpagePath"
                                                        rootPath=""/>
                                                </items>
                                            </field>
                                        </secondMF>
                                    </items>
                                </column>
                            </items>
                        </field>
                    </multifield>
                </items>
            </column>
        </items>
    </content>
</jcr:root>

If the data grows and in the first section if the author wants to add back the data , it will go down.

Can you please check on this one ?

EstebanBustamante

Community Advisor and Adobe Champion

@akashkriz005 Thanks for clarifying. Unfortunately, this is a bug that Adobe is supposed to fix in the future. Please check this thread: AEM Upgrade 6.5.17 Issue with Nested Multi-Field Authoring Focus.

You could still use some JavaScript as a workaround to address the issue in the meantime, but be cautious to check and remove it once the original fix or another AEM upgrade is implemented on your end.

Esteban Bustamante

kautuk_sahni

Community Manager

@akashkriz005 Did you find the suggestions from users helpful? Please let us know if you require more information. Otherwise, please mark the answer as correct for posterity. If you've discovered a solution yourself, we would appreciate it if you could share it with the community. Thank you!

Kautuk Sahni

charlie_yc

Level 2

I recently encountered a similar issue.

After some investigation, I found that the problem was caused by Coral 3's Nested Multifield — when clicking the Add button, it triggers a duplicate focus event, which causes the page to scroll to the wrong position.

To fix this, I chose to override the native _onAddItemClick method, which successfully resolved the scrolling issue.

Below is the code I used. Please note that this script must be loaded after the categories coralui3 library is fully loaded.

Hope this helps!

(function () {
    'use strict';
    Coral.Multifield.prototype._onAddItemClick = function (event) {

        var parent = event.target.closest("coral-multifield");
        if (parent && parent === this) {
            event.stopPropagation();

            this.items.add(new Coral.Multifield.Item);
            this.trigger("change");
            this._trackEvent("click", "add item button", event);

            var addBtn = event.target;
            var items = this.items.getAll();
            var setsize = items.length;
            var itemToFocus = items[setsize - 1];

            window.requestAnimationFrame(function () {
                var focusableItem = itemToFocus.querySelector(Coral.commons.TABBABLE_ELEMENT_SELECTOR);
                if (focusableItem.hasAttribute("disabled"))
                    addBtn.focus();
                else
                    focusableItem.focus()
            });
        }
    };
}());
