Installing AWS S3 Connector in AEM 6.5.0 - dependencies error

  • May 25, 2020
  • 3 svar
  • 12364 visningar

I’m following the installation guide for the Amazon S3 Data Store:

https://docs.adobe.com/content/help/en/experience-manager-65/deploying/deploying/data-store-config.html#amazon-s-data-store



The first step is to unpack my AEM 6.5.0 quickstart jar file.

Then I configure the S3 files as described in the installation guide.

I’m using 1.10.10 version of the S3 connector we can see at this repo:

https://repo.adobe.com/nexus/content/groups/public/com/adobe/granite/com.adobe.granite.oak.s3connector/



When the instance is started I can see this error at error.log file:

25.05.2020 16:57:31.772 *ERROR* [FelixDispatchQueue] org.apache.jackrabbit.oak-blob-cloud FrameworkEvent ERROR (org.osgi.framework.BundleException: Unable to resolve org.apache.jackrabbit.oak-blob-cloud [589](R 589.0): missing requirement [org.apache.jackrabbit.oak-blob-cloud [589](R 589.0)] osgi.wiring.package; (&(osgi.wiring.package=org.apache.jackrabbit.oak.commons)(version>=1.6.0)(!(version>=2.0.0))) Unresolved requirements: [[org.apache.jackrabbit.oak-blob-cloud [589](R 589.0)] osgi.wiring.package; (&(osgi.wiring.package=org.apache.jackrabbit.oak.commons)(version>=1.6.0)(!(version>=2.0.0)))])

org.osgi.framework.BundleException: Unable to resolve org.apache.jackrabbit.oak-blob-cloud [589](R 589.0): missing requirement [org.apache.jackrabbit.oak-blob-cloud [589](R 589.0)] osgi.wiring.package; (&(osgi.wiring.package=org.apache.jackrabbit.oak.commons)(version>=1.6.0)(!(version>=2.0.0))) Unresolved requirements: [[org.apache.jackrabbit.oak-blob-cloud [589](R 589.0)] osgi.wiring.package; (&(osgi.wiring.package=org.apache.jackrabbit.oak.commons)(version>=1.6.0)(!(version>=2.0.0)))]

                at org.apache.felix.framework.Felix.resolveBundleRevision(Felix.java:4368)

                at org.apache.felix.framework.Felix.startBundle(Felix.java:2281)

                at org.apache.felix.framework.Felix.setActiveStartLevel(Felix.java:1539)

                at org.apache.felix.framework.FrameworkStartLevelImpl.run(FrameworkStartLevelImpl.java:308)

                at java.lang.Thread.run(Thread.java:748)

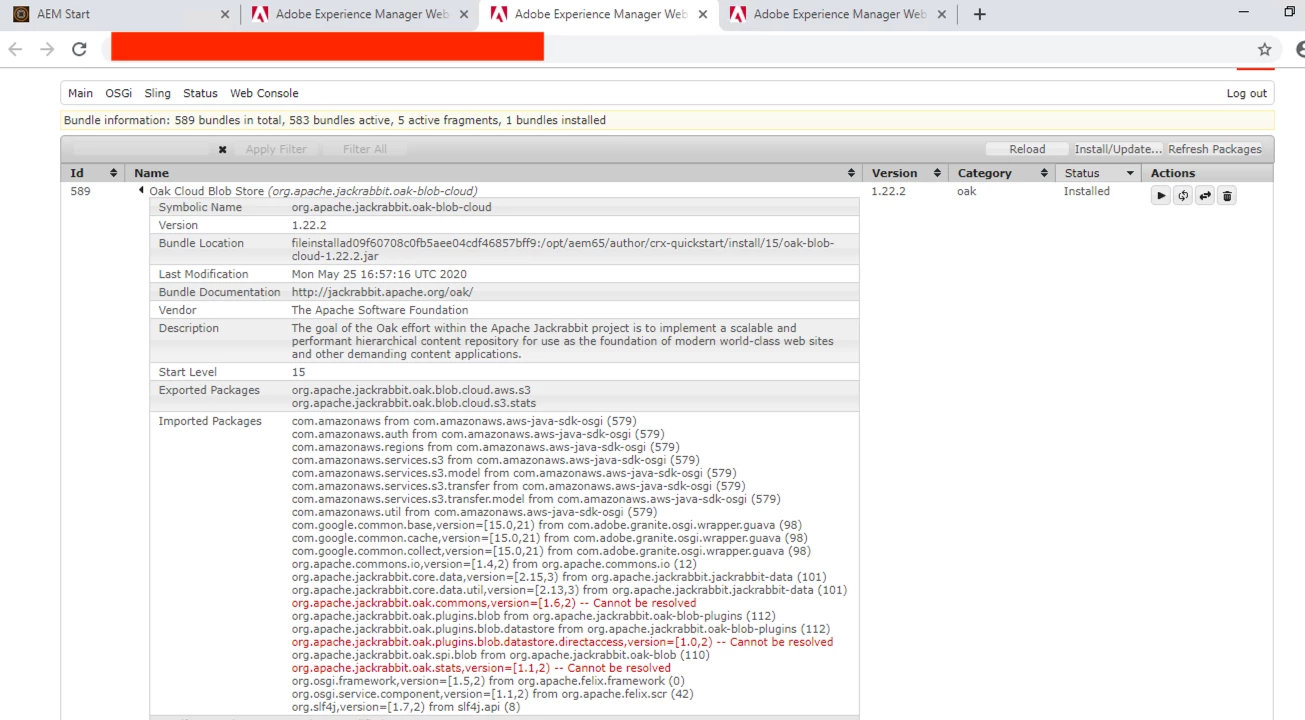

That can be visible at Felix Console:

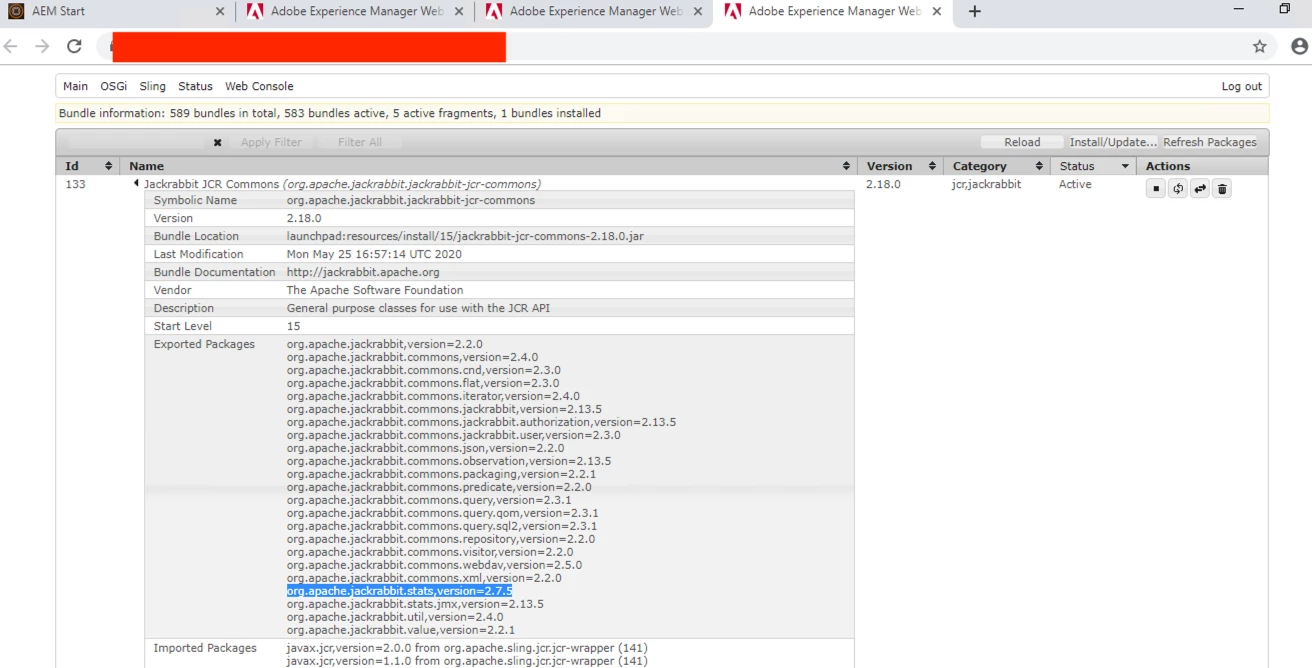

But one dependency it cannot resolve is clearly installed and activated:

And if I try to refresh dependencies it does nothing…



So my question is if the versions that I’m using are compatible.

I mean, I’m trying to install the connector com.adobe.granite.oak.s3connector version 1.10.10 over an AEM 6.5.0 instance.

Is it correct?



Thank you.

Regards,



Det här ämnet har stängts för svar.
Bästa svar av vish.dhaliwal

Hello Alex,

S3 connector 1.10.10 is not compatible with 6.5.4. I could reproduce the issue in my local instance as well. I have confirmed 1.10.0 works flawlessly.

https://repo.adobe.com/nexus/content/groups/public/com/adobe/granite/com.adobe.granite.oak.s3connector/1.10.0/

3 svar

H
Adobe Employee
Hamid1350Adobe Employee
Adobe Employee
May 25, 2020

From the same referenced document:

Additionally, you also need to download and install the latest AEM service pack as listed on the AEM 6.5 Release Notes page.



Have you installed the service pack ?

    alex_p_c_
    alex_p_c_Skribent
    Level 2
    May 26, 2020

    I've deleted crx-quickstart directory.

    I've included AEM 6.5.4.0 Service Pack into the install folder and I've launched AEM again.

    The result is the same, the s3 connector cannot be activated.









    Thank you.

    Regards.



    L
    Adobe Employee
    leoberliantAdobe Employee
    Adobe Employee
    May 26, 2020

    You should use S3 connector of ver 1.6.x

    https://repo.adobe.com/nexus/content/groups/public/com/adobe/granite/com.adobe.granite.oak.s3connector/1.6.4/

      alex_p_c_
      alex_p_c_Skribent
      Level 2
      May 26, 2020

      Why do you recommend this version?



      I've tried it and there is an error:

      26.05.2020 15:18:37.144 *ERROR* [FelixStartLevel] org.apache.jackrabbit.oak-blob-cloud bundle org.apache.jackrabbit.oak-blob-cloud:1.6.15 (589)[org.apache.jackrabbit.oak.plugins.blob.datastore.S3DataStore(265)] : The activate method has thrown an exception (java.lang.NoSuchFieldError: JR2_CACHING)
      java.lang.NoSuchFieldError: JR2_CACHING
      at org.apache.jackrabbit.oak.blob.cloud.s3.AbstractS3DataStoreService.createDataStore(AbstractS3DataStoreService.java:48) [org.apache.jackrabbit.oak-blob-cloud:1.6.15]
      at org.apache.jackrabbit.oak.plugins.blob.datastore.AbstractDataStoreService.activate(AbstractDataStoreService.java:78) [org.apache.jackrabbit.oak-blob-plugins:1.10.2]
      at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
      at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
      at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
      at java.lang.reflect.Method.invoke(Method.java:498)
      at org.apache.felix.scr.impl.inject.methods.BaseMethod.invokeMethod(BaseMethod.java:228) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.inject.methods.BaseMethod.access$500(BaseMethod.java:41) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.inject.methods.BaseMethod$Resolved.invoke(BaseMethod.java:664) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.inject.methods.BaseMethod.invoke(BaseMethod.java:510) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.inject.methods.ActivateMethod.invoke(ActivateMethod.java:317) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.inject.methods.ActivateMethod.invoke(ActivateMethod.java:307) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.manager.SingleComponentManager.createImplementationObject(SingleComponentManager.java:340) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.manager.SingleComponentManager.createComponent(SingleComponentManager.java:114) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.manager.SingleComponentManager.getService(SingleComponentManager.java:982) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.manager.SingleComponentManager.getServiceInternal(SingleComponentManager.java:955) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.manager.AbstractComponentManager.activateInternal(AbstractComponentManager.java:765) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.manager.AbstractComponentManager.enableInternal(AbstractComponentManager.java:666) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.manager.AbstractComponentManager.enable(AbstractComponentManager.java:432) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.manager.ConfigurableComponentHolder.enableComponents(ConfigurableComponentHolder.java:665) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.BundleComponentActivator.initialEnable(BundleComponentActivator.java:338) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.Activator.loadComponents(Activator.java:382) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.Activator.access$200(Activator.java:49) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.Activator$ScrExtension.start(Activator.java:264) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.AbstractExtender.createExtension(AbstractExtender.java:196) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.AbstractExtender.modifiedBundle(AbstractExtender.java:169) [org.apache.felix.scr:2.1.16]
      at org.apache.felix.scr.impl.AbstractExtender.modifiedBundle(AbstractExtender.java:49) [org.apache.felix.scr:2.1.16]
      at org.osgi.util.tracker.BundleTracker$Tracked.customizerModified(BundleTracker.java:488)
      at org.osgi.util.tracker.BundleTracker$Tracked.customizerModified(BundleTracker.java:420)
      at org.osgi.util.tracker.AbstractTracked.track(AbstractTracked.java:232)
      at org.osgi.util.tracker.BundleTracker$Tracked.bundleChanged(BundleTracker.java:450)
      at org.apache.felix.framework.EventDispatcher.invokeBundleListenerCallback(EventDispatcher.java:915)
      at org.apache.felix.framework.EventDispatcher.fireEventImmediately(EventDispatcher.java:834)
      at org.apache.felix.framework.EventDispatcher.fireBundleEvent(EventDispatcher.java:516)
      at org.apache.felix.framework.Felix.fireBundleEvent(Felix.java:4817)
      at org.apache.felix.framework.Felix.startBundle(Felix.java:2336)
      at org.apache.felix.framework.Felix.setActiveStartLevel(Felix.java:1539)
      at org.apache.felix.framework.FrameworkStartLevelImpl.run(FrameworkStartLevelImpl.java:308)
      at java.lang.Thread.run(Thread.java:748)
      26.05.2020 15:18:37.145 *WARN* [FelixStartLevel] com.day.crx.sling.server.impl.jmx.SecureContentRepositoryAccess Denied reference from bundle 'org.apache.jackrabbit.oak-blob-cloud'.

      V
      Adobe Employee
      vish.dhaliwalAdobe EmployeeSvar
      Adobe Employee
      May 26, 2020

      Hello Alex,

      S3 connector 1.10.10 is not compatible with 6.5.4. I could reproduce the issue in my local instance as well. I have confirmed 1.10.0 works flawlessly.

      https://repo.adobe.com/nexus/content/groups/public/com/adobe/granite/com.adobe.granite.oak.s3connector/1.10.0/

        alex_p_c_
        alex_p_c_Skribent
        Level 2
        May 26, 2020

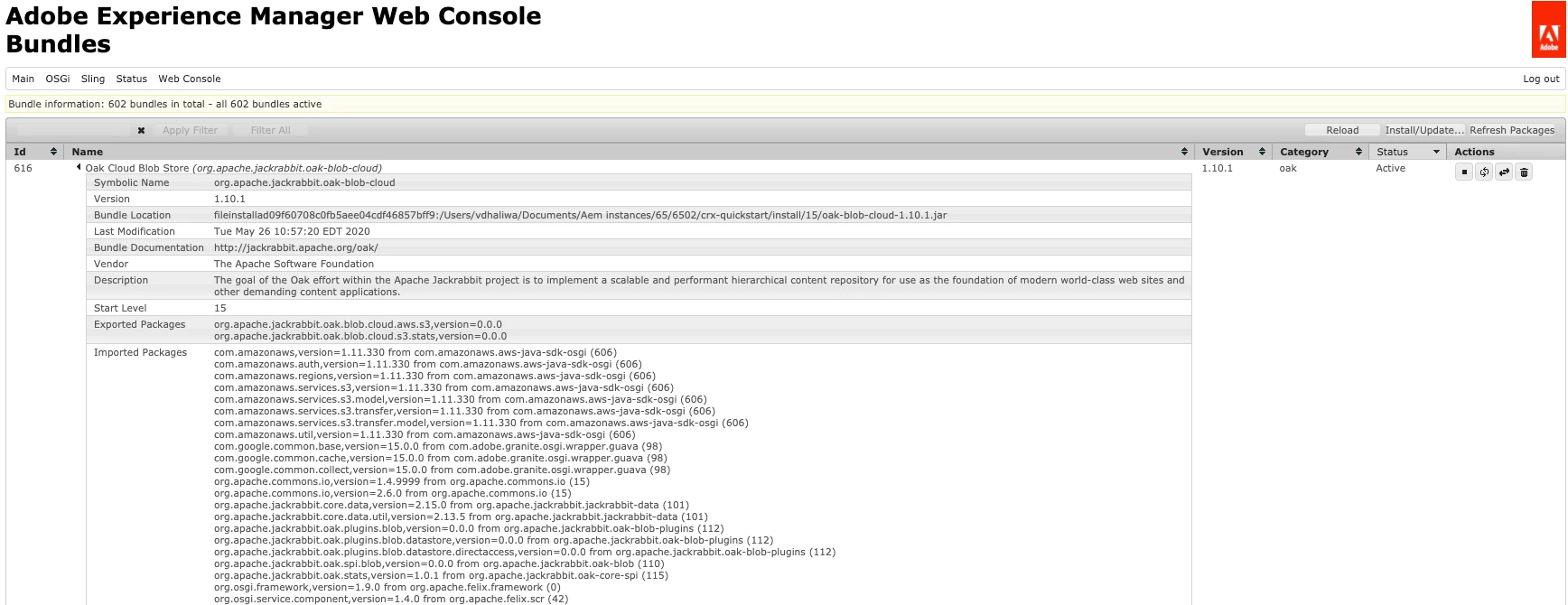

        With 1.10.0 there is an activation but with errors also.



        At error.log I can see this message:

        25.05.2020 16:33:20.670 *INFO* [FelixStartLevel] org.apache.jackrabbit.oak-blob-cloud Service [org.apache.jackrabbit.oak.blob.cloud.s3.S3DataStore,815, [org.apache.jackrabbit.oak.spi.blob.BlobStore, org.apache.jackrabbit.oak.spi.blob.GarbageCollectableBlobStore, org.apache.jackrabbit.oak.api.blob.BlobAccessProvider]] ServiceEvent REGISTERED
        25.05.2020 16:33:20.671 *ERROR* [FelixStartLevel] org.apache.aries.jmx.whiteboard.MBeanHolder register: Failure registering MBean org.apache.jackrabbit.oak.plugins.blob.BlobStoreStats@445351d
        javax.management.InstanceAlreadyExistsException: org.apache.jackrabbit.oak:name=DataStoreBlobStore,type=BlobStoreStats
        at com.sun.jmx.mbeanserver.Repository.addMBean(Repository.java:437)



        Thank you.

        Regards,
