How to customize OOTB Experience Fragment component

  • February 29, 2024
  • 2 replies
  • 2099 views

Hi,

I got a requirement to modify OOTB Experience Fragment component (not core component) to open it's picker on custom path. It means, by default this component opens picker box with /content/experience-fragments path, however I want to open this picker from /content/experience-fragments/brands path, so content author can select XF from this location only.



Basically, I'm looking for a way to initialize this root parameter with custom path but I'm not able to figure out which library to extends or overlay.



Thanks.

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by arunpatidar

Actually OOTB component is already used in many pages. So, I have to implement this feature in already used component as well.

Thanks.


Hi @prithwi
One way is to write a clientlibs with category cq.dialog.authoring and based on your path(site), you can update the rootPath using javascript.

Example of dialog ready event : https://experienceleaguecommunities.adobe.com/t5/adobe-experience-manager/foundation-contentloaded-and-dialog-ready-event-listers-fired/m-p/417063

2 replies

Imran__Khan
Community Advisor
Imran__KhanCommunity Advisor
Community Advisor
February 29, 2024

@prithwi

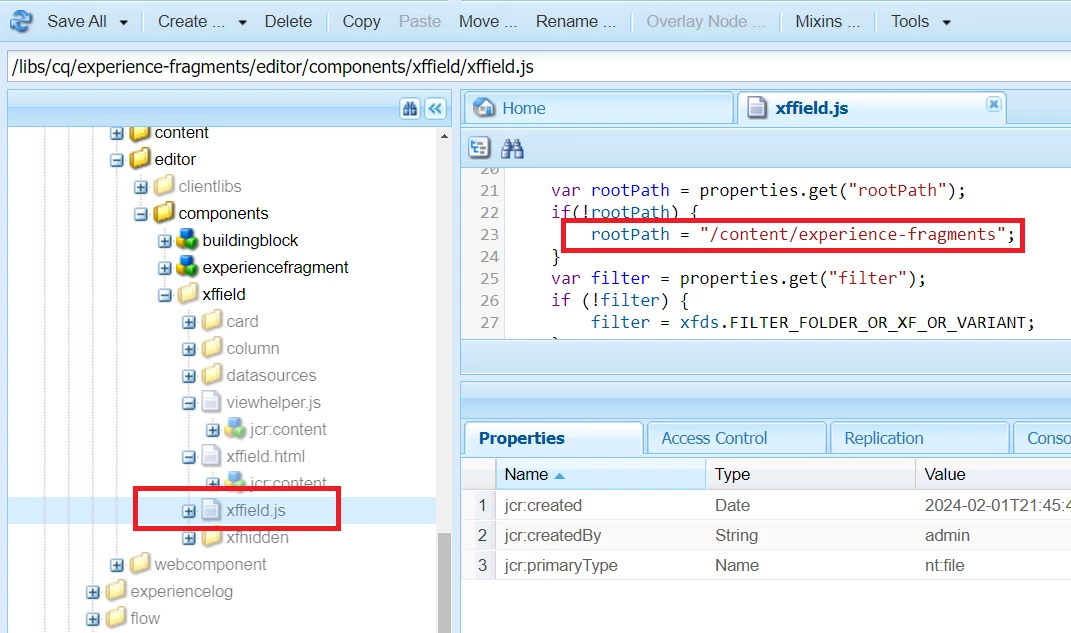

The root path is defined under below file

/libs/cq/experience-fragments/editor/components/xffield/xffield.js --> Line 23

xffield folder is in blur color which means it is not allow to overlay this file



After making manual change in libs file



    P
    prithwiAuthor
    Level 2
    March 1, 2024

    Thanks @imran__khan for looking into this. As you said this libs path is protected so we can't overlay it. Is there a way to hook granite foundation registry to achieve this? I was looking into below documentation but not sure if this can be used to achieve my requirement.

    https://developer.adobe.com/experience-manager/reference-materials/6-5/granite-ui/api/jcr_root/libs/granite/ui/components/coral/foundation/clientlibs/foundation/js/autocomplete/index.html

    Any suggestion would be appreciated.



    Thanks.

      Imran__Khan
      Community Advisor
      Imran__KhanCommunity Advisor
      Community Advisor
      March 1, 2024

      I don't know it will help as you don't want to overlay core component. But, overlay dialog is the only way and the recommended process and add rootPath property to /content or whichever path we wish.
      Note: I looked into the OOTB library and it is not going to work to update path and it will create various issues while performing operations like copy, move, etc. Expeience fragment is tightly coupled to /content/experience-fragments folder.

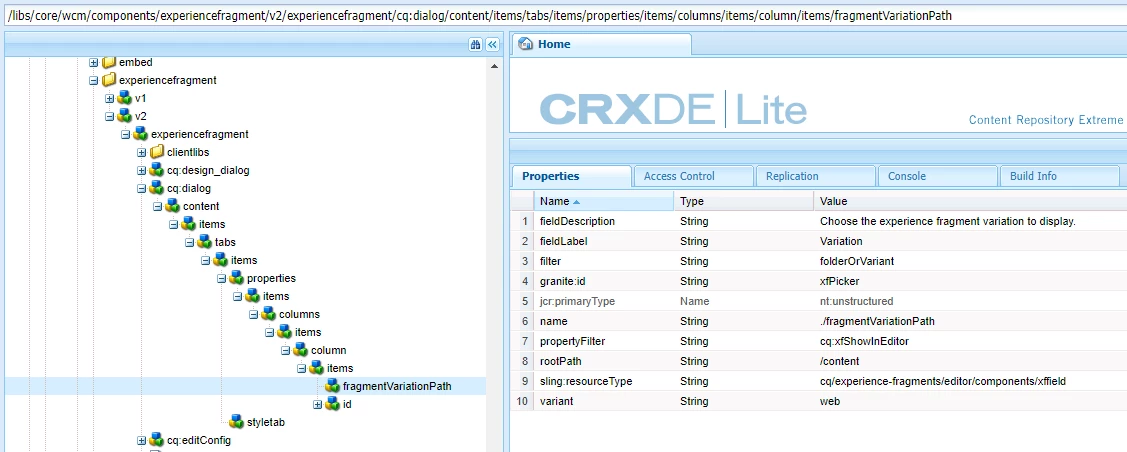

      /libs/core/wcm/components/experiencefragment/v2/experiencefragment
      Node: /libs/core/wcm/components/experiencefragment/v2/experiencefragment/cq:dialog/content/items/tabs/items/properties/items/columns/items/column/items/fragmentVariationPath



        Mahedi_Sabuj
        Community Advisor
        Mahedi_SabujCommunity Advisor
        Community Advisor
        March 1, 2024

        You need to overlay the experiencefragment _cq_dialog in your project and include the rootPath="/content/experience-fragments/brands" property within the fragmentVariationPath node.

        <fragmentVariationPath jcr:primaryType="nt:unstructured" sling:resourceType="cq/experience-fragments/editor/components/xffield" granite:id="xfPicker" name="./fragmentVariationPath" fieldLabel="Variation" filter="folderOrVariant" propertyFilter="cq:xfShowInEditor" variant="web" rootPath="/content/experience-fragments/brands" fieldDescription="Choose the experience fragment variation to display."/>



        Mahedi Sabuj
          Imran__Khan
          Community Advisor
          Imran__KhanCommunity Advisor
          Community Advisor
          March 1, 2024

          @mahedi_sabuj As mentioned by @prithwi, he don't want to overlay anything from core components.

            arunpatidar
            Community Advisor
            arunpatidarCommunity AdvisorAccepted solution
            Community Advisor
            March 1, 2024

            Actually OOTB component is already used in many pages. So, I have to implement this feature in already used component as well.

            Thanks.


            Hi @prithwi
            One way is to write a clientlibs with category cq.dialog.authoring and based on your path(site), you can update the rootPath using javascript.

            Example of dialog ready event : https://experienceleaguecommunities.adobe.com/t5/adobe-experience-manager/foundation-contentloaded-and-dialog-ready-event-listers-fired/m-p/417063

            Arun Patidar
