Experience Fragment Blank page

  • June 24, 2019
  • 6 replies
  • 12045 views

Hi All,

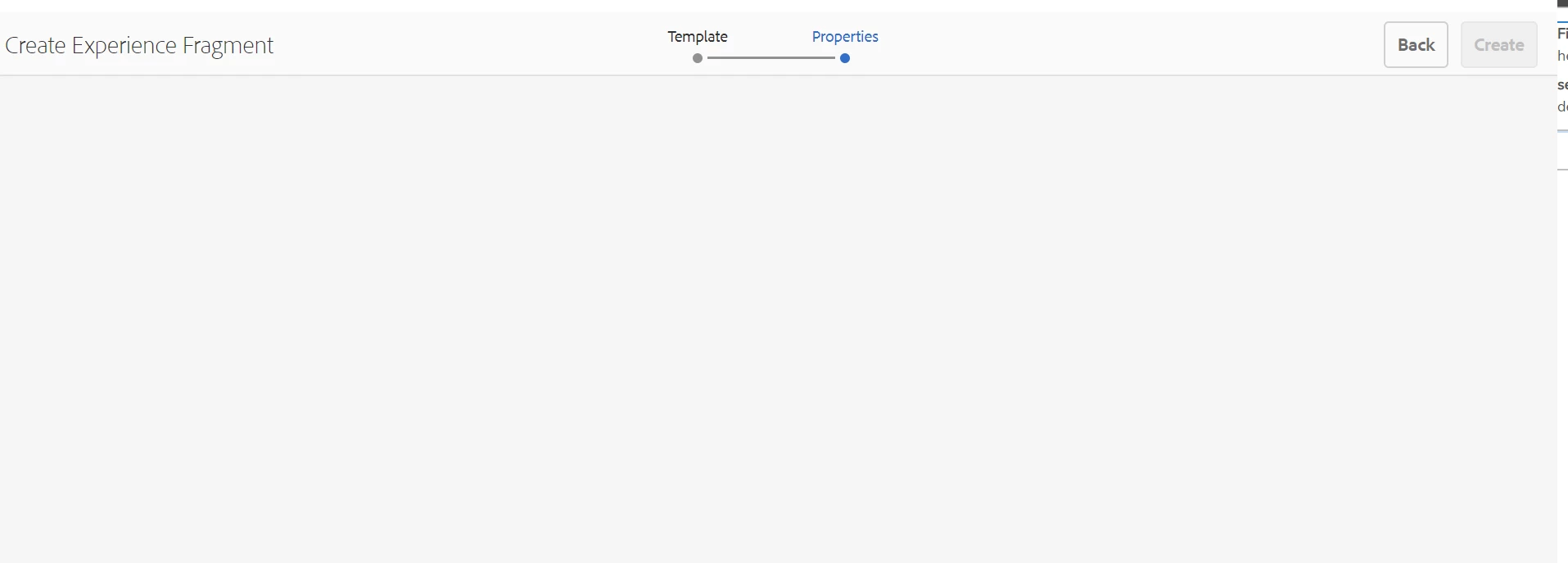

I am creating Experience fragment first time in AEM6.4 as per the instruction in this link (Experience Fragments ) but when I am creating Experience fragment I am not getting fields to enter the values, I am getting blank page like below screen shot:

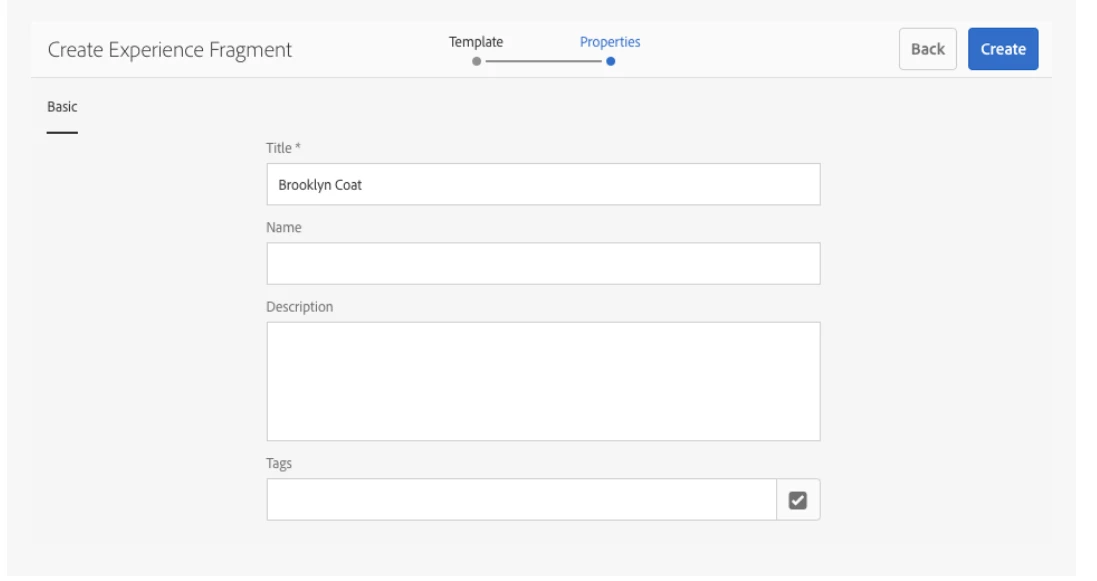

it should be like second screen shot, is there anything extra do I need to add here, Please suggest:

It's working fine in AEM6.3, only issue in AEM6.4.

Regards,

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

    6 replies

    Bharath_valse
    Bharath_valse
    Level 4
    June 24, 2019

    varuns46785756

    Couple of things you could try:

    - Make sure to check  XF related overlays under /apps. Disable the overlays(by renaming the overlay folder) and check again. eventually fix the overlay by comparing the /libs file

    - Try clearing browser cache and retry again

    - Any browser console errors or backend error in the logs?

      varuns46785756
      varuns46785756Author
      Level 5
      June 24, 2019

      Hi Bharath,

      I don't have any overlays under /app and even no console error.Same thing is working in AEM6.3 but not in AEM6.4.

      Do I need to install any other package.I have installed SP6.4.2 and acs-commons-3.16.1

      Bharath_valse
      Bharath_valse
      Level 4
      June 25, 2019

      The properties within the wizard is derived from below path

      /libs/cq/experience-fragments/components/experiencefragment/cq:dialog/content/items/tabs/items/basic/items/column_1/items

      make sure these properties exists in the above path. If they exist, make sure to check  XF templates /libs/cq/experience-fragments/components/experiencefragment/template have no overlays

      Also you could try Rebuilding Clientlibs

      Goto http://localhost:4502/libs/granite/ui/content/dumplibs.rebuild.html

      Click on "Invalidate Caches"

      Click on "Rebuild Libraries", this might take ~10mins to complete. please wait till the browser loads completely

      If its your local instance, please rebuild you instance. XF should work with 6.4 without any service packs.

      arunpatidar
      Community Advisor
      arunpatidarCommunity Advisor
      Community Advisor
      June 25, 2019

      Hi,

      Are you using OOTB templates or did you created your own templates for XF.

      Make sure you the template's sling:resourceType point to the correct page component.

      The issues seems with missing resource or other super resources which part of XF template

      Arun Patidar
      H
      Adobe Employee
      Hamid1350Adobe Employee
      Adobe Employee
      June 25, 2019

      You may wanna ensure you have the proper user permissions to perform this task.
      http://host:port/useradmin

      varuns46785756
      varuns46785756Author
      Level 5
      June 25, 2019

      Hi All,

      Thanks for all the suggestions.

      @Bharath: I have create new local AEM6.4 instance and its working fine now, without doing or installing anything.I am not sure what is the wrong with my previous AEM instance. Now I have created XF by using default weretail template and using the same on my page.

      XF on auhtor: http://localhost:4502/content/experience-fragments/kop/tos/master.html

      XF on publish: http://localhost:4503/content/experience-fragments/kop/tos/master.html

      Page name;

      author: http://localhost:4502/content/we-retail/language-masters/en/tos.html

      publish http://localhost:4503/content/we-retail/language-masters/en/tos.html

      Now I need to share the content( image and text) of this page with third party website and there website is running on different technology not on AEM. How can I share the content with them.

      Regards,

        Bharath_valse
        Bharath_valse
        Level 4
        June 25, 2019

        Please go through document [1] which might be helpful for exposing XF

        [1]

        Adobe Experience Manager Help | Understanding Content Fragments and Experience Fragments in AEM

        varuns46785756
        varuns46785756Author
        Level 5
        June 25, 2019

        I have tried and converting the XF in json format but what about the use of  "plain"  in master.plain.html".

        Can I use this to share the content with different web applications.When I am using "plain" parameter in publish url: http://localhost:4503/content/experience-fragments/kop/tos/master.plain.html

        I am getting below error:

        1

        Cannot serve request to /content/experience-fragments/kop/tos/master.plain.html on this server

        ApacheSling/2.6 (jetty/9.3.22.v20171030, Java HotSpot(TM) 64-Bit Server VM 1.8.0_211, Windows 10 10.0 amd64)
        Regards,
        varuns46785756
        varuns46785756Author
        Level 5
        June 26, 2019

        Hi All,

        Please suggest on the below error while using  " plain " in URL in publish getting the error only in publish instance:

        1

        Cannot serve request to /content/experience-fragments/kop/tos/master.plain.html on this server

        ApacheSling/2.6 (jetty/9.3.22.v20171030, Java HotSpot(TM) 64-Bit Server VM 1.8.0_211, Windows 10 10.0 amd64)
