Could not Install Package from AEM 5.6.1 to AEM 6.3

  • July 31, 2017
  • 11 replies
  • 2827 views

Q1:    I'm trying to install a "redirect" page component package from AEM 5.6.1 to AEM 6.3 through package manager. Getting an error

"javax.jcr.nodetype.ConstraintViolationException: OakConstraint0021: /apps/******/components/page/redirect/dialog/items/tabs/items/leftNav/items/leftNavURL/items/link/component-a/component-a.jsp/jcr:content[[nt:resource]]: Mandatory property jcr:data not found in a new node"

Q2:  Another non-container component named "component-a" is linked under dialog item "leftNavUrl".under redirect page component. Is it possible to do so in 6.3.

link under leftNavURL which is causing the exception.

<link

                                    jcr:primaryType="cq:Widget"

                                    fieldDescription="Select file from the Content Finder or enter complete URL."

                                    itemId="webURL"

                                    name="./directLink"

                                    xtype="pathfield">

                                    <template-a

                                        cq:isContainer="{Boolean}false"

                                        jcr:description="Component A"

                                        jcr:primaryType="cq:Component"

                                        jcr:title="Component A"

                                        sling:resourceSuperType="foundation/components/page">

                                        <dialog

                                            jcr:primaryType="cq:Dialog"

                                            height="400"

                                            stateful="false"

                                            xtype="dialog">

                                            <items jcr:primaryType="cq:WidgetCollection">

                                                <tabs jcr:primaryType="cq:TabPanel">

                                                    <items jcr:primaryType="cq:WidgetCollection">

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by VeenaVikraman

    I removed the error causing node and installed the package and it is installed now properly. I am investigating on what would be the expected node structure for that the one which is causing issue .

    CT1012 Can you please paste a screenshot of the node structure for template-a.jsp ​here ?

    11 replies

    smacdonald2008
    smacdonald2008
    Level 10
    August 1, 2017

    Deploying a component in 5.6 to 6.3 may not work due to the changes in the JCR.

    Can you please make a small package that contains this dialog. You component logic does not need to be there - put placeholder code. Then put the package on Google drive so community can attempt to deploy to AEM 6.3 and see if fixes can be made.

    VeenaVikraman
    Community Advisor
    VeenaVikramanCommunity Advisor
    Community Advisor
    August 2, 2017

    Yes , Please share a sample code as scott explained. May be we can figure out the fix .

    CT1012
    CT1012Author
    Level 4
    August 2, 2017

    Please access the following link Sample-component.zip - Google Drive

    VeenaVikraman
    Community Advisor
    VeenaVikramanCommunity Advisor
    Community Advisor
    August 2, 2017

    I am looking into it now ..

    smacdonald2008
    smacdonald2008
    Level 10
    August 2, 2017

    I am seeing the error too - looking deeper into this,

    VeenaVikraman
    Community Advisor
    VeenaVikramanCommunity AdvisorAccepted solution
    Community Advisor
    August 2, 2017

    I removed the error causing node and installed the package and it is installed now properly. I am investigating on what would be the expected node structure for that the one which is causing issue .

    CT1012 Can you please paste a screenshot of the node structure for template-a.jsp ​here ?

      smacdonald2008
      smacdonald2008
      Level 10
      August 2, 2017

      AN FYI--- it works on 6.1 not 6.2 or 6.3. Remove the node as suggested by Veena.

      You can use a tool like WinRaw:

        VeenaVikraman
        Community Advisor
        VeenaVikramanCommunity Advisor
        Community Advisor
        August 2, 2017

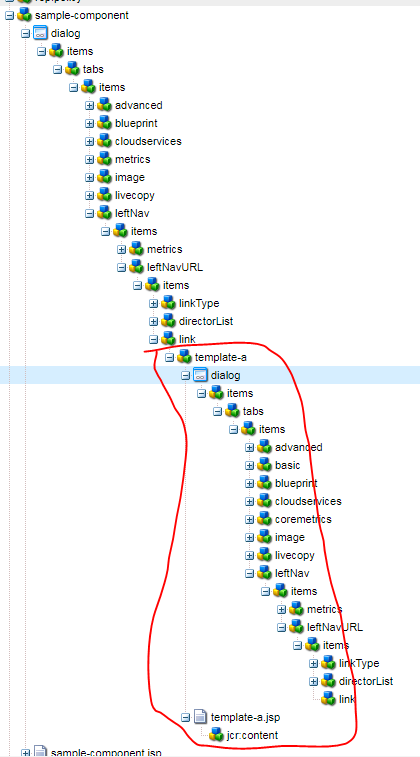

        CT1012​

             Do you think the node structure you packaged and installing is correct ? do you think someone might have accidentally dragged and dropped a component inside your dialog node. Because what I see here in your node structure doesn't make sense to me

        Because what I see here just makes me believe this was a total mistake in your node structure

          CT1012
          CT1012Author
          Level 4
          August 3, 2017

          Since it is a part of upgrade, no other developer is familiar with reasons and structures developed in 5.6.1. Initially i thought it was a mistake and installed it in AEM 6.3 without that error causing node.

          For my future development concern just want to clear the air around this error, posted the same here to know the reason if anyone can clear the exception(unknown to me).

          Appreciate your efforts veena and macdonald. Thank you

          CT1012
          CT1012Author
          Level 4
          August 3, 2017

          I believe the same. Will keep you posted if i find any authoring errors after installing the modified component.
