Compilation issues due to inter Dependency between bundles

In a Java project that is created by a Maven Archetype project, it cleaner to try and put Interfaces and implementation classes in the same bundle. In this manner - you do not run into these issues.

The ideal way is to follow maven multi-module archetype.

If you want to proceed with your custom way, then you need to make sure the imports and exports for each bundle are tightened up. e.g. If interface A is in bundle A then only bundle A should export A and it should not be exported by either bundle B or bundle C to avoid transitive exports and ambiguities. You may need to block it explicitly in individual pom.xml of B & C.

Now we are keeping the interface and implementation in the same bundle, but still the compilation issue exists.

I can see how to export packages, could you please guide me in how to explicitly block certain packages in the pom.xml

Thanks,

Selva

To deny a package, use   !<package_name>

Hi,

I tried blocking specific package from Bundle B, but still the compilation issue is not resolved. Create a sample bundles and added the interfaces and classes as mentioned in my above comments and uploaded in https://github.com/selvendrancq/10917778-AEM_Community_Compilation_Issues_Bundle_Dependency.git.

Could you please take a look at it and let me know if I am missing anything.

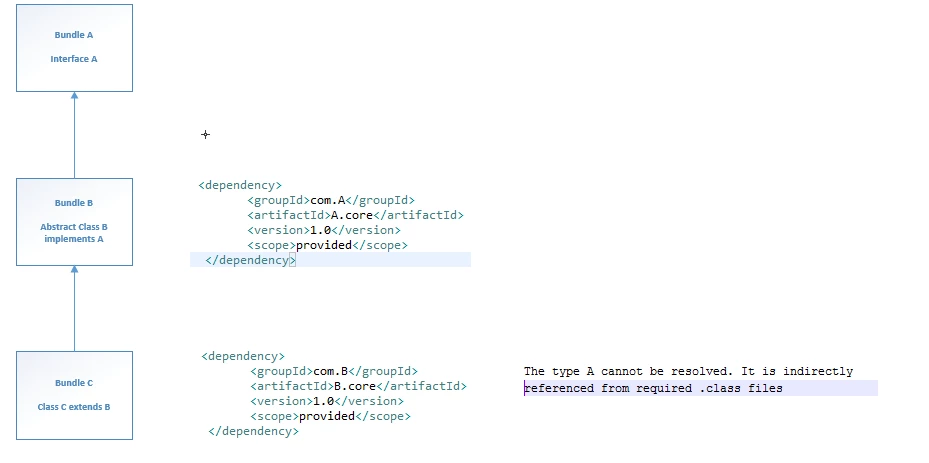

Below is the screenshot of the issue which I am getting while compiling Class C

Thanks,

Selva

I'm unable to locate the reactor project in the shared code. How do you build the projects? Is there any parent project that controls/orders these bundles?

In addition to that, I don't see the <configuration> section for maven-bundle-plugin as recommended above.

E.g.

<plugin>

   <groupId>org.apache.felix</groupId>

   <artifactId>maven-bundle-plugin</artifactId>

   <extensions>true</extensions>

  <configuration>

   <instructions>

   <Export-Package>org.foo.myproject.api</Export-Package>

   <Private-Package>org.foo.myproject.*</Private-Package>

   <Bundle-Activator>org.foo.myproject.impl1.Activator</Bundle-Activator>

   </instructions>

   </configuration>

  </plugin>

Hi Gaurav,

Attached projects are not real time projects. I have created those to replicate the same scenario. I am building each core independently.

Regarding Export-Package,I have tried with the changes in Bundle B and Bundle C pom.xml as shown below and the same is merged to gitHub.

<plugin>

    <groupId>org.apache.felix</groupId>

    <artifactId>maven-bundle-plugin</artifactId>

    <extensions>true</extensions>

  <configuration>

    <instructions>

    <Export-Package>!com.bundleA.services.*</Export-Package>

    </instructions>

    </configuration>

  </plugin>

Checked in MANIFEST file of Bundle B, and there is no export package. It is present only in Bundle A. Could you please check and let me know on how to resolve this issue.

Bundle A MANIFEST:

Bundle B MANIFEST:

Thanks,

Selva
