AEM components and layoout not visible in editor

  • May 3, 2021
  • 4 replies
  • 14824 views

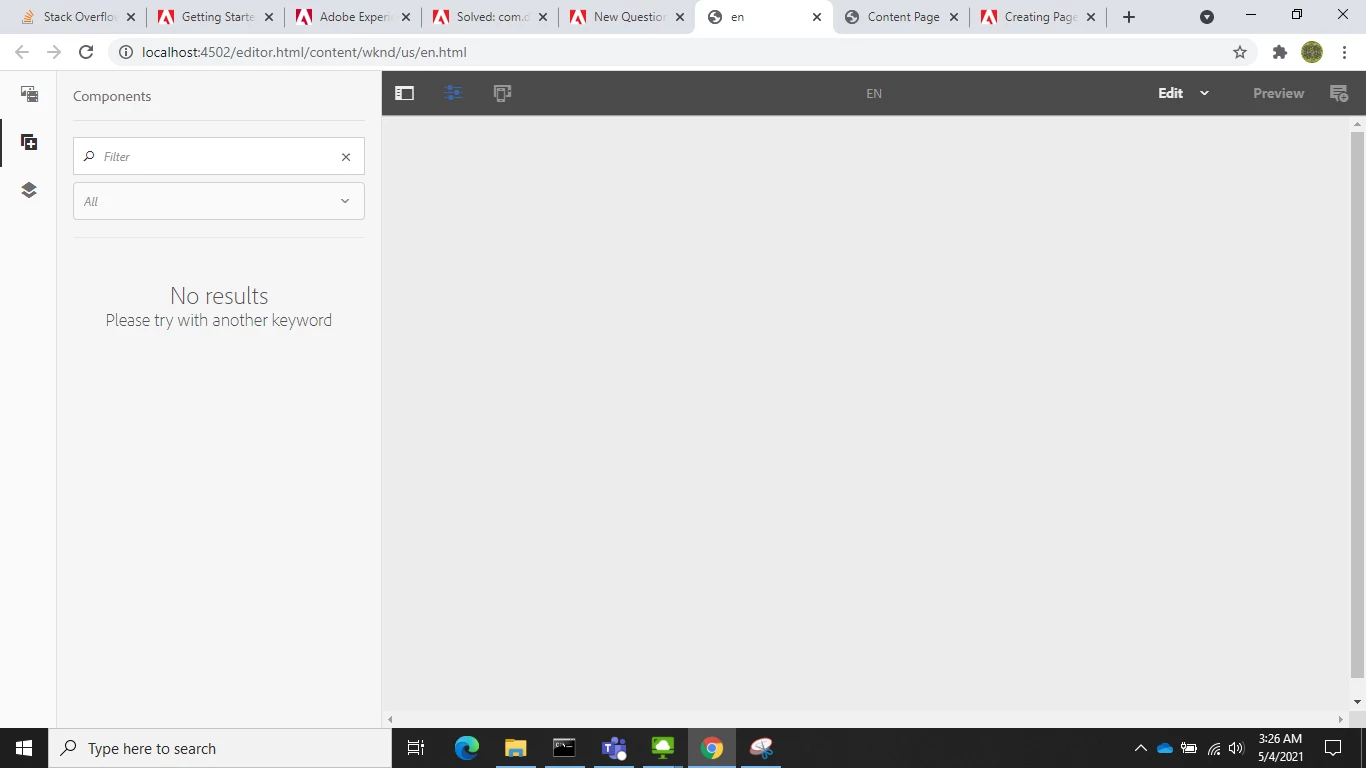

I installed a new AEM local instance AEM_6.5_Quickstart.jar. I started following wknd tutorial and created a project using maven archetype command given in project setup page of tutorial. I was able to create and install the project on my local instance however when i create first page as in tutorial and click on edit i dont see any layout container or components available in side rail.

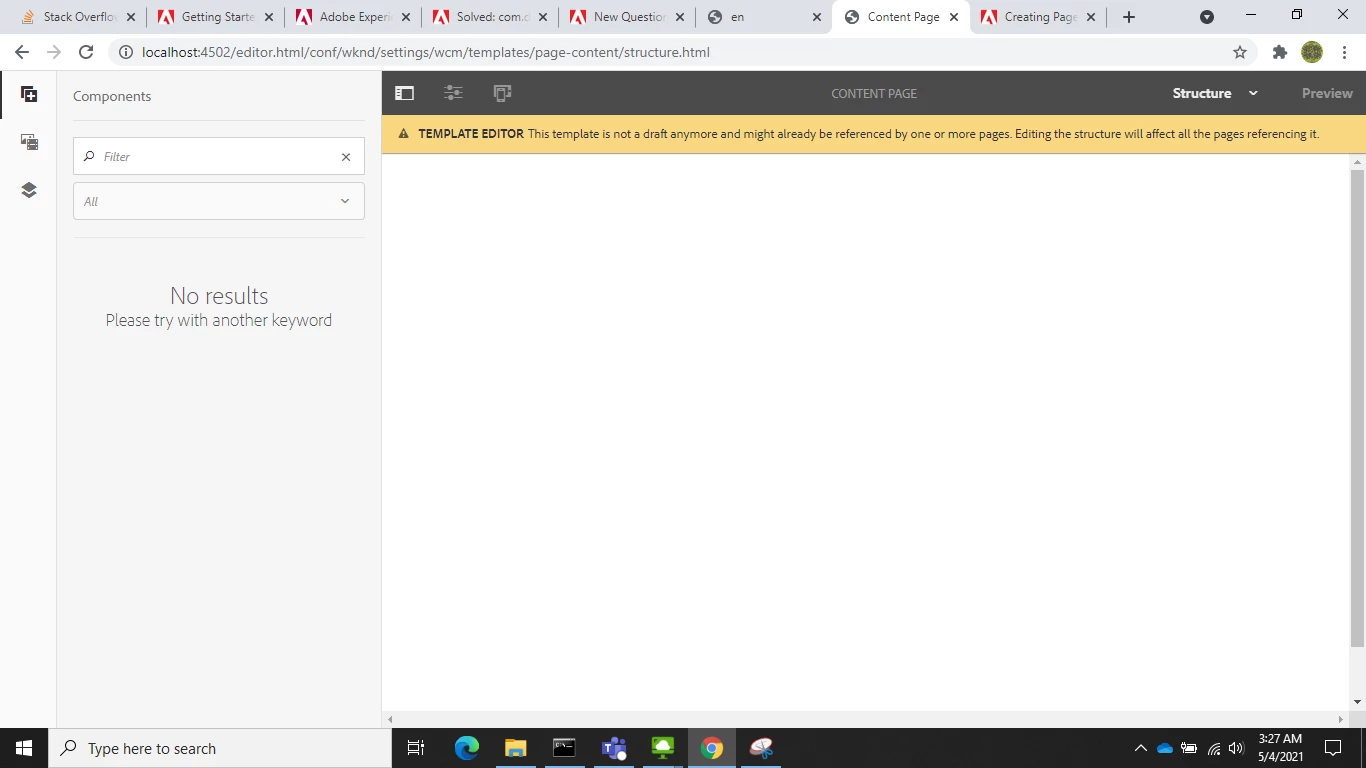

Tried to check the template but same issue there as well

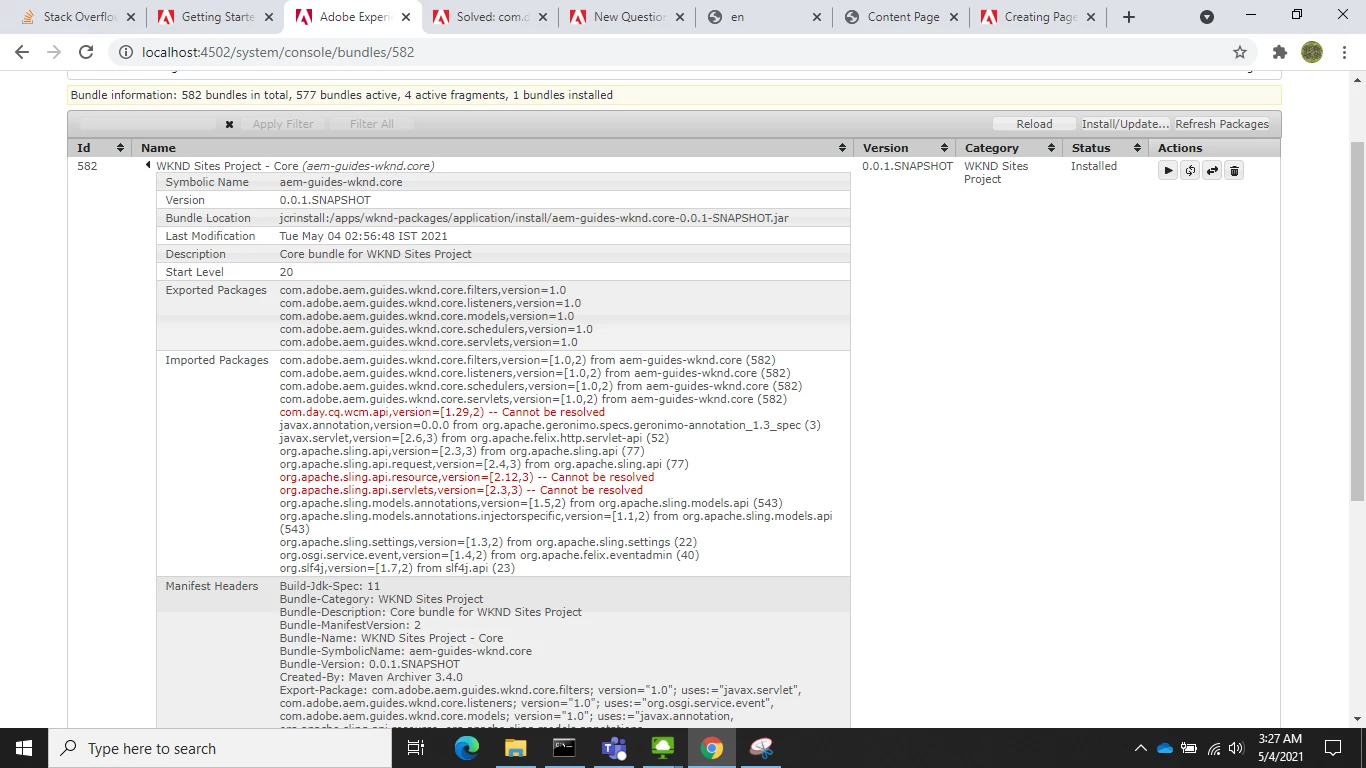

This is what i see in the console some dependencies are causing this issue?

Please help i am unable to progress with the tutorial. Was facing below two challenges as well in other system

1st -java - AEM jar not starting - Stack Overflow

  2 -java - Unable to drag drop components on AEM new page - Stack Overflow



This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by Vijayalakshmi_S

Hi @shivam_s,

I suggest to check the Technical Requirements page for AEM. In particular, JVM - https://experienceleague.adobe.com/docs/experience-manager-65/deploying/introduction/technical-requirements.html?lang=en#supported-platforms

Considering this, bring the AEM instance up with all bundles active in http://localhost:4502/system/console/bundles

+ no errors in error.log file ->  try accessing we-retail (sample content) site pages and can also try creating sample page within we-retail to test components (drag and drop)

If you have no issues so far, then work on WKND project - You can checkout the source code from this GitHub location - https://github.com/adobe/aem-guides-wknd -> Build/Install in your local. (As you are dealing with few other related issues, I suggest to resolve that and then work on WKND project)

4 replies

Pawan-Gupta
Pawan-Gupta
Level 8
May 3, 2021

couple of thing to be done initially



1. in osgi console check list of installed bundles (not started and not fragments) and try to start them based on IDs assigned

2. monitor the error.log for error while starting the bundle first and then will rendering the page. it will give you clue about what's happening

3. check the project package from /crx/packmgr/index.jsp and reinstall it again

4. restart the server again and check for the log for any error

(if still issue, fresh install rather debugging)



    S
    Shivam_SAuthor
    Level 2
    May 3, 2021

    @pawan-gupta

    I tried to stop the local instance and delete the crx-quickstart and restart..i create the project and install it again and every time i ge the same problem no components and no layout container. I checked the log when i click on edit after selecting a page and this is the error i could see.



    04.05.2021 03:53:29.413 *WARN* [0:0:0:0:0:0:0:1 [1620080609229] GET /editor.html/content/wknd/us/en.html HTTP/1.1] org.apache.sling.caconfig.resource.impl.def.DefaultConfigurationResourceResolvingStrategy Ignoring reference to /conf/wknd/settings from /conf/wknd/settings - Probably misconfigured as it ends with '/settings'
    04.05.2021 03:53:29.424 *WARN* [0:0:0:0:0:0:0:1 [1620080609229] GET /editor.html/content/wknd/us/en.html HTTP/1.1] org.apache.sling.caconfig.resource.impl.def.DefaultConfigurationResourceResolvingStrategy Ignoring reference to /conf/wknd/settings from /conf/wknd/settings - Probably misconfigured as it ends with '/settings'

    04.05.2021 03:53:29.653 *ERROR* [0:0:0:0:0:0:0:1 [1620080609628] GET /content/wknd/us/en.html HTTP/1.1] org.apache.sling.servlets.get.impl.DefaultGetServlet No renderer for extension html, cannot render resource JcrNodeResource, type=wknd/components/container, superType=null, path=/conf/wknd/settings/wcm/templates/page-content/structure/jcr:content/root



    package manager shows the installed packages for wknd project all,content,config,apps. Tried restarting the jar and these are the only warnings i could see in error.log and no errors were present for restart.



    04.05.2021 04:03:27.807 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/social/commons/components/hbs/comments/clientlibs specified dependencies that could not be resolved: cq.social.mention
    04.05.2021 04:03:27.808 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /apps/wknd/clientlibs/clientlib-base specified embedded that could not be resolved: core.wcm.components.commons.datalayer.v1,core.wcm.components.pdfviewer.v1,core.wcm.components.accordion.v1
    04.05.2021 04:03:27.808 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/social/commons/components/hbs/featuredcontent/clientlibs specified dependencies that could not be resolved: cq.social.author.commons.hbs.featuredtopic
    04.05.2021 04:03:27.811 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/cq/gui/components/authoring/editors/clientlibs/sites/page specified embedded that could not be resolved: cq.authoring.editor.plugin.mobile,cq.authoring.editor.plugin.dps,cq.authoring.editor.plugin.manuscript
    04.05.2021 04:03:27.811 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/cq/gui/components/authoring/editors/clientlibs/sites/template specified embedded that could not be resolved: cq.authoring.editor.sites.template.hook
    04.05.2021 04:03:27.813 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/fd/expeditor/clientlibs/main specified dependencies that could not be resolved: aem.fdm.services
    04.05.2021 04:03:27.814 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/dam/gui/components/admin/idsprint/templates/addtemplatewizardpage/clientlibs/addtemplate specified dependencies that could not be resolved: granite.ui.coral.formbuilder,granite.ui.coral.notifications
    04.05.2021 04:03:27.814 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/dam/gui/components/admin/idsprint/templates/edittemplatewizardpage/clientlibs/editbrochure specified dependencies that could not be resolved: granite.ui.coral.formbuilder,granite.ui.coral.notifications
    04.05.2021 04:03:27.814 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/dam/gui/components/admin/idsprint/templates/mergetemplate/brochureassemble specified dependencies that could not be resolved: granite.ui.coral.formbuilder,granite.ui.coral.notifications
    04.05.2021 04:03:27.814 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/dam/gui/components/s7dam/common/crop/smartcrop specified dependencies that could not be resolved: granite.ui.coral.foundation.admin
    04.05.2021 04:03:27.814 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/dam/gui/components/s7dam/shoppablevideo/clientlibs/shoppablevideo specified dependencies that could not be resolved: granite.ui.coral.foundation.admin
    04.05.2021 04:03:27.814 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/dam/gui/components/s7dam/smartcropedit/clientlibs/smartcropcard specified dependencies that could not be resolved: granite.ui.coral.foundation.admin
    04.05.2021 04:03:27.814 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/dam/gui/components/s7dam/smartcropedit/clientlibs/smartcropedit specified dependencies that could not be resolved: granite.ui.coral.foundation.admin
    04.05.2021 04:03:27.816 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/fd/af/authoring/editors/clientlibs/form specified embedded that could not be resolved: cq.authoring.editor.plugin.mobile,cq.authoring.editor.plugin.dps,cq.authoring.editor.plugin.manuscript
    04.05.2021 04:03:27.816 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/fd/af/authoring/editors/clientlibs/template specified dependencies that could not be resolved: cq.authoring.editor.sites.template.hook
    04.05.2021 04:03:27.818 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/screens/dcc/components/clientlibs specified dependencies that could not be resolved: cq.screens.dcc.validation
    04.05.2021 04:03:27.818 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] com.adobe.granite.ui.clientlibs.impl.LibraryCacheImpl Library /libs/social/enablement/components/clientlibs/assets specified embedded that could not be resolved: dam.search.smartcollection.infopanel,dam.search.samrtcollection.toolbar.dialogs,dam.admin.search.predicates
    04.05.2021 04:03:27.992 *WARN* [0:0:0:0:0:0:0:1 [1620081205595] GET /aem/start.html HTTP/1.1] org.apache.sling.commons.compiler.impl.EclipseJavaCompiler Using unsupported java version '11', assuming latest supported version '9'



      SureshDhulipudi
      Community Advisor
      SureshDhulipudiCommunity Advisor
      Community Advisor
      May 4, 2021

      Please find the dependencies in your pom.xml

      1- what version of wknd tutorial you are installing

      2- Go to your http://localhost:4502/system/console/depfinder

      and enter the org.apache.sling.api.resource and click on Find



      Package version should match to the entry in your pom.xml



      <dependency>

      <artifactId>org.apache.sling.api</artifactId>

      <version>2.22.0</version>

      <groupId>org.apache.sling</groupId>

      <scope>provided</scope>

      </dependency>



        S
        Shivam_SAuthor
        Level 2
        May 4, 2021

        Hello @sureshdhulipudi  i am installing from this link: https://github.com/adobe/aem-guides-wknd.

        I checked the dependency for the org.apache.sling.api.resource and found the version as

        When i search in parent pom.xml there is no such dependency present



        Vijayalakshmi_S
        Vijayalakshmi_SAccepted solution
        Level 10
        May 4, 2021

        Hi @shivam_s,

        I suggest to check the Technical Requirements page for AEM. In particular, JVM - https://experienceleague.adobe.com/docs/experience-manager-65/deploying/introduction/technical-requirements.html?lang=en#supported-platforms

        Considering this, bring the AEM instance up with all bundles active in http://localhost:4502/system/console/bundles

        + no errors in error.log file ->  try accessing we-retail (sample content) site pages and can also try creating sample page within we-retail to test components (drag and drop)

        If you have no issues so far, then work on WKND project - You can checkout the source code from this GitHub location - https://github.com/adobe/aem-guides-wknd -> Build/Install in your local. (As you are dealing with few other related issues, I suggest to resolve that and then work on WKND project)

          S
          Shivam_SAuthor
          Level 2
          May 4, 2021

          Hi @vijayalakshmi_s I am able to edit/drag drop components on we.retail site without any issues. I just read in the description of github repo you shared and tried the maven command with option -Pclassic for AEM 6.x.x version and that seems to have fixed the problem now.
