AEM 6.3 Multifield not able to support boolean type resource

Forum|Forum|7 years ago
March 20, 2018
7 replies
4614 views

There seems to be an issue with the multifield from both '/libs/granite/ui/components/foundation/form/multifield' and also from '/libs/granite/ui/components/coral/foundation/form/multifield' in handling boolean types.

If I use a 'switch' or a 'checkbox' inside the multifield then the value it takes is always true. I tried with different variations but it doesn't work at all.

Attached images of implementation.

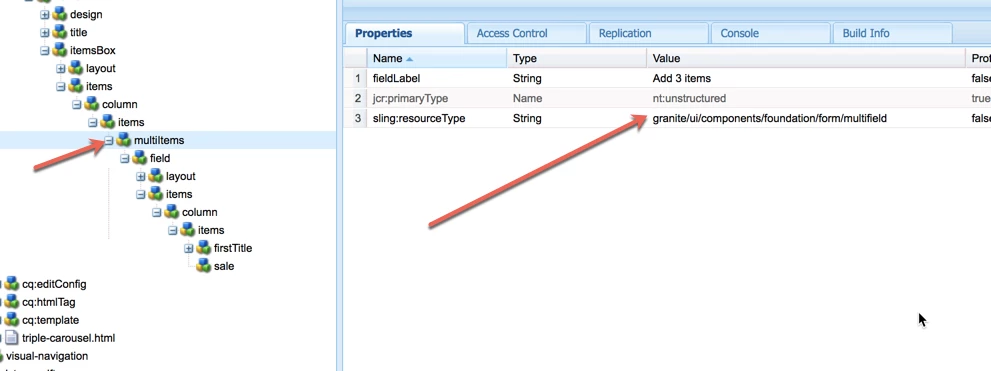

Added the multifield.

Added the boolean type switch

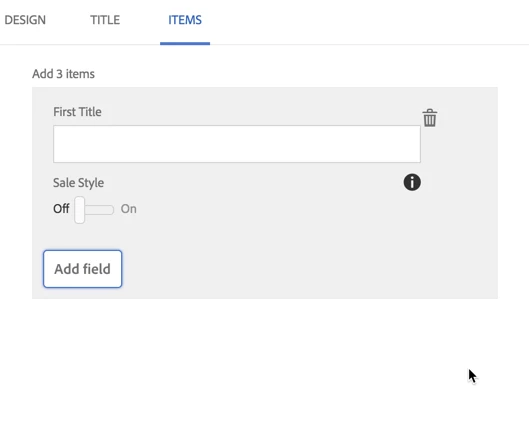

This is the dialog.

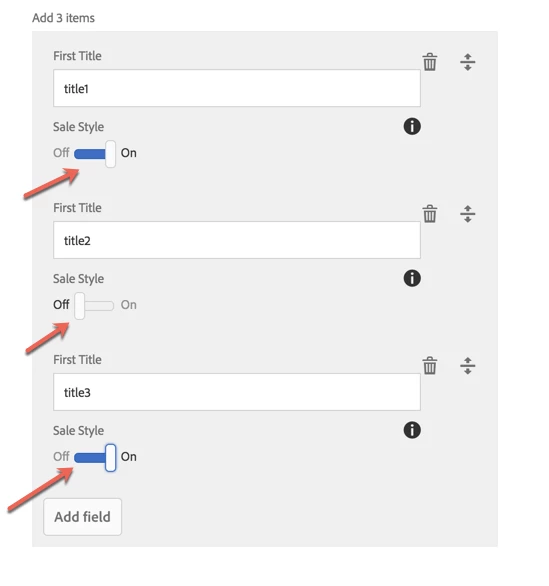

Adding values to the dialog. 1st is true, 2nd false and 3rd is true.

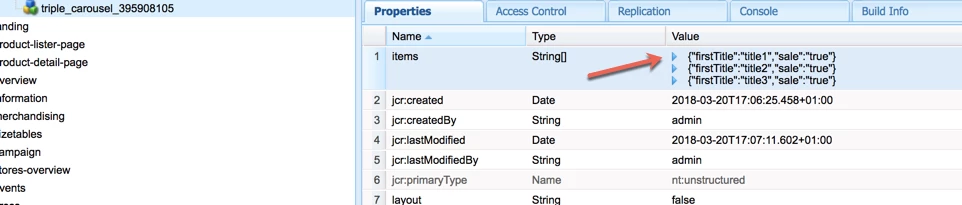

It stores everything as true :/

Any idea what could be causing this ?

smacdonald2008 kautuksahni or anyone who have already faced it or know the fix ?

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

Best answer by Vijayalakshmi_S

Hi,

I got to see the component dialog structure from other thread - Custom Multifield is not working In AEM 6.3 and noticed two things

property named "eaem-multifield" is added to fieldset node. (could you please let me know the significance of this. is there any JS associated to it)
only multifield resource is of CoralUI3 based (granite/ui/components/coral/foundation/form/multifield), rest all are CoralUI2 based.

For Coral UI2 multifield, we need "acs-commons-nested" property on fieldset.

For Coral UI3 multifield, we don't need anything of that sort, it simply works as is.

Screenshots I produced in my previous reply is from two separate components, one with CoralUI2 resources completely(all of the fields included as part of multifield) and other with CoralUI3 completely

Given that I am unable to reproduce your issue and could see above differences alone, am sharing package for your reference. I suggest you to try the same and see if that helps.

https://github.com/viji13/aemlearnings/tree/master/Multifield

Vijayalakshmi_S

Level 10

Hi,

Can you try to add a property named "value" to the switch or checkbox resource with some custom value (say, value=checktick) so that when we tick the checkbox or turn on the switch, the value mentioned here will be set.(rather than true)

Screenshot for reference:

Coral UI 2 Resource:

when we turn on the switch, value(=switch, mentioned above) is set. if not, empty string.

Coral UI 3 Resource:

when switch is turned on : first multifield item ("value" that we mentioned is saved)

When switch is not turned on : (second multifield item)

T

timmy-mathewAuthor

Level 2

Hi Vijis31358935,

I tried setting a custom value but still no luck it sets the custom value to all of them regardless of turned on or off.

Also with the coral/foundation I tried

smacdonald2008

Level 10

We are covering granite/coral resource types in this doc -- soon to be released: Scott's Digital Community: Building Experience Manager Component using Granite/Coral Resource Types

smacdonald2008

Level 10

Short answer - when reading checkboxes via slng models - the data type is a String:

@Inject @Optional

public String show;

When its not checked - its a null.

//If checkbox is unchecked

if (show == null)

heroTextBean.setShow("off");

else

heroTextBean.setShow(show);

Vijayalakshmi_SAccepted solution

Level 10

Hi,

I got to see the component dialog structure from other thread - Custom Multifield is not working In AEM 6.3 and noticed two things

property named "eaem-multifield" is added to fieldset node. (could you please let me know the significance of this. is there any JS associated to it)
only multifield resource is of CoralUI3 based (granite/ui/components/coral/foundation/form/multifield), rest all are CoralUI2 based.

For Coral UI2 multifield, we need "acs-commons-nested" property on fieldset.

For Coral UI3 multifield, we don't need anything of that sort, it simply works as is.

Screenshots I produced in my previous reply is from two separate components, one with CoralUI2 resources completely(all of the fields included as part of multifield) and other with CoralUI3 completely

Given that I am unable to reproduce your issue and could see above differences alone, am sharing package for your reference. I suggest you to try the same and see if that helps.

https://github.com/viji13/aemlearnings/tree/master/Multifield

T

timmy-mathewAuthor

Level 2

Hi smacdonald2008, here its mainly the problem with the way dialog stores the data into the JCR. Reading the values from JCR is not a problem for me.

T

timmy-mathewAuthor

Level 2

Thanks vijis31358935, indeed the issue was because of the property eaem-multifield. I changed it with acs-commons-nested and it works fine for me
