Message Center WSDL

  • December 23, 2017
  • 9 replies
  • 6892 views

I am running a minimal set up just to start testing message center scenarios. I wanted to start testing soap messages using SOAP UI, howeve, I am not able to find the WSDL file to kick things off.

I am using what the doc mentions, but I keep getting access denied messages or handshake faliure in the SOAP UI.

To generate a WSDL file, you must enter the following URL from a Web browser:

https://<server>/nl/jsp/schemawsdl.jsp?schema=<schema>

With:

<server>: the Adobe Campaign application server (nlserver web)

<schema>: schema identification key (namespace:schema_name)

found here: Web service calls

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by davidl14970702

I involved Adobe support and they notified me the execution instance is hosted and not set up. That would makes as to why my event calls aren't working. The endpoint is not set up. Thank you for your help.

9 replies

vraghav
Adobe Employee
vraghavAdobe Employee
Adobe Employee
December 23, 2017

Can you please inbox me the URL you are trying to connect to, the complete URL.

Also can yo try with http instead of https?

vraghav
Adobe Employee
vraghavAdobe Employee
Adobe Employee
December 26, 2017

Hi David,

Thank you for sharing the instance URLs with me. I was able to reproduce the issue you were facing after re-installing SOAPUI on my machine. Error received in the log was

ERROR:Exception in request: javax.net.ssl.SSLProtocolException: handshake alert:  unrecognized_name

It is a problem with SOAPUI configuration and you can resolve it by following the steps outlined here.

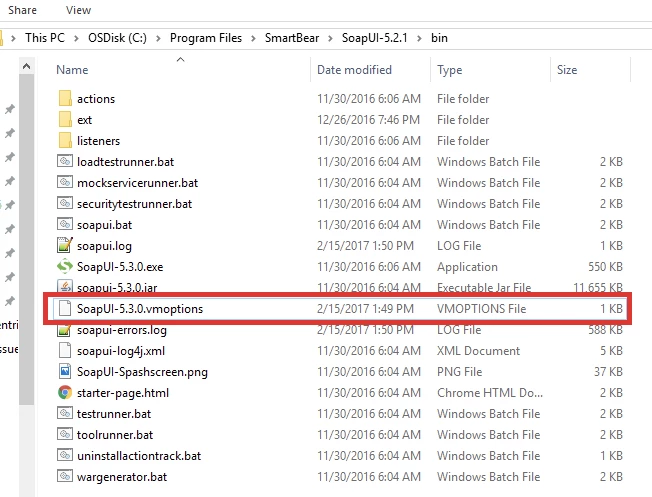

  • Go to bin folder inside installation folder of SOAPUI. For me it was C:\Program Files\SmartBear\SoapUI-5.2.1\bin. If you have installed the 32bit version of the software, please check for it under Program Files(x86) folder.
  • There should be a file named SoapUI-5.3.0.vmoptions. It might be different if the version of SOAP UI is different but the name should have vmoptions.

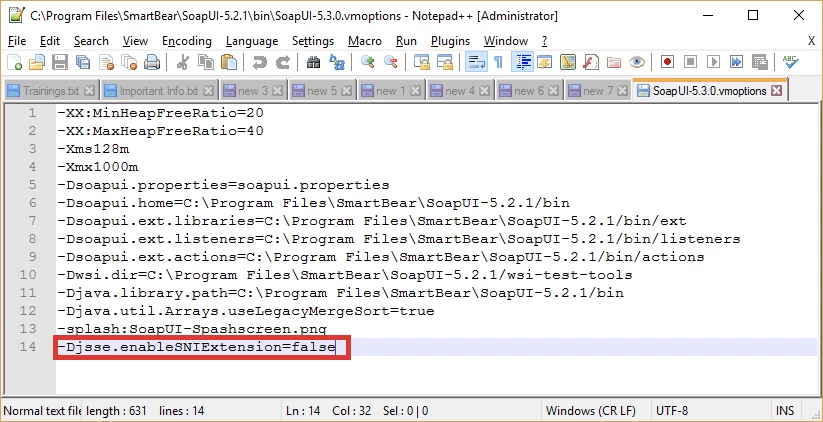

  • Add the following line inside this file and save it. It might ask you to login as administrator before making this change.
    -Djsse.enableSNIExtension=false



  • Once done, close SOAPUI and re-open it. Try firing a soap call and hopefully handshake error should not come. This helped resolve issue from my machine.

Please try this out and let me know the outcome.

Regards,
Vipul

    davidl14970702
    davidl14970702Author
    Level 4
    December 26, 2017

    I was able to make the update in SOAP UI. It did not fix the connection. I am still getting this once I enter the URL in the WSDL call ...

    Error loading [https://<myserver>/nl/jsp/schemawsdl.jsp?schema=nms:rtEvent]: java.lang.Exception: Failed to load url; https://<myserver>/nl/jsp/schemawsdl.jsp?schema=nms:rtEvent, 0

    Another odd thing is that even when I test that URL and put it into the browser I get access denied. WEB-530009 Access denied.

    vraghav
    Adobe Employee
    vraghavAdobe Employee
    Adobe Employee
    December 26, 2017

    Hi David,

    This error means that there is no schema nms:rtEvent. You will get this schema if you have the Execution instance package installed on your instance.

    This package is installed on Message Center instances which are provisioned separately and if your organisation has bought the licence for it.

    I'd suggest try on schema nms:recipient and xtk:session.

    Regards,
    Vipul

    davidl14970702
    davidl14970702Author
    Level 4
    December 26, 2017

    I've checked "installed packages" under the configuration node. and Message center looks installed. I am still getting this error from SOAP UI,

    Error loading [http://<myserver>/nl/jsp/schemawsdl.jsp?schema=xtk:queryDef]: org.apache.xmlbeans.XmlException: org.apache.xmlbeans.XmlException: error: Unexpected element: CDATA

    Same or similar errors on nms:recipient and xtk:session

    davidl14970702
    davidl14970702Author
    Level 4
    December 31, 2017

    I found out my localhost was not set correctly. on Windows 7 the ISUR ( machine user)needs to security permissions. Here is a link to that problem. asp classic - ASP pages in IIS using Localhost 401.3 Error do not have permission - Stack Overflow .

    I don't understand how SOAPUI sends a call to 127.0.0.1/nl/jsp/soaprouter.jsp  when that doesn't exist in on localhost? How is a minimal set up achieved?

    florentlb
    florentlb
    Level 10
    January 15, 2018

    Hi David,

    I do not know the answer to you last questions. By any chance, were you able to fix your problem?

    Florent

    davidl14970702
    davidl14970702AuthorAccepted solution
    Level 4
    January 15, 2018

    I involved Adobe support and they notified me the execution instance is hosted and not set up. That would makes as to why my event calls aren't working. The endpoint is not set up. Thank you for your help.

    Adhiyan
    Adobe Employee
    AdhiyanAdobe Employee
    Adobe Employee
    January 15, 2018

    Hi David,

    This is to clarify your question :" I don't understand how SOAPUI sends a call to 127.0.0.1/nl/jsp/soaprouter.jsp  when that doesn't exist in on localhost? How is a minimal set up achieved?"

    This is how is works :

    1>. The SOAP call is received by the Apache server in Adobe Campaign. This Apache server sees your IP address as in

    2>. Apache server after receiving the call transfer to the campaign nlserver web process. for Web process Apache acts as the local address or 127.0.0.1 since they are installed in the same installation directory on the server hence you see the request to be formed like that .

    Regards,

    Adhiyan
