It always show us error "Circular dependency on schama extension 'cus:address'" when we were saving an editing schema

  • February 20, 2017
  • 8 replies
  • 4730 views

 It always show us error "Circular dependency on schama extension 'cus:address'" when we w ere saving an editing schema.Whether you choose 'Create a table in the data template' or ' Extend the data in the table using an extension schema', it will prompt such a mistake :

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by vraghav

    Error message is trying to convey that the schema extension cus:Address is exhibiting circular dependancy.

    In other words, a schema extension should be extending someother schema but in your case it is trying to extend itself.

    Can you please add screenshot for cus:address schema definition to help us pin point on the problem.

    8 replies

    vraghav
    Adobe Employee
    vraghavAdobe EmployeeAccepted solution
    Adobe Employee
    February 20, 2017

    Error message is trying to convey that the schema extension cus:Address is exhibiting circular dependancy.

    In other words, a schema extension should be extending someother schema but in your case it is trying to extend itself.

    Can you please add screenshot for cus:address schema definition to help us pin point on the problem.

      wud82646422
      wud82646422Author
      Level 2
      February 20, 2017

      Thanks very much. As you said, we did find the cause of the error in the schema cus: address。

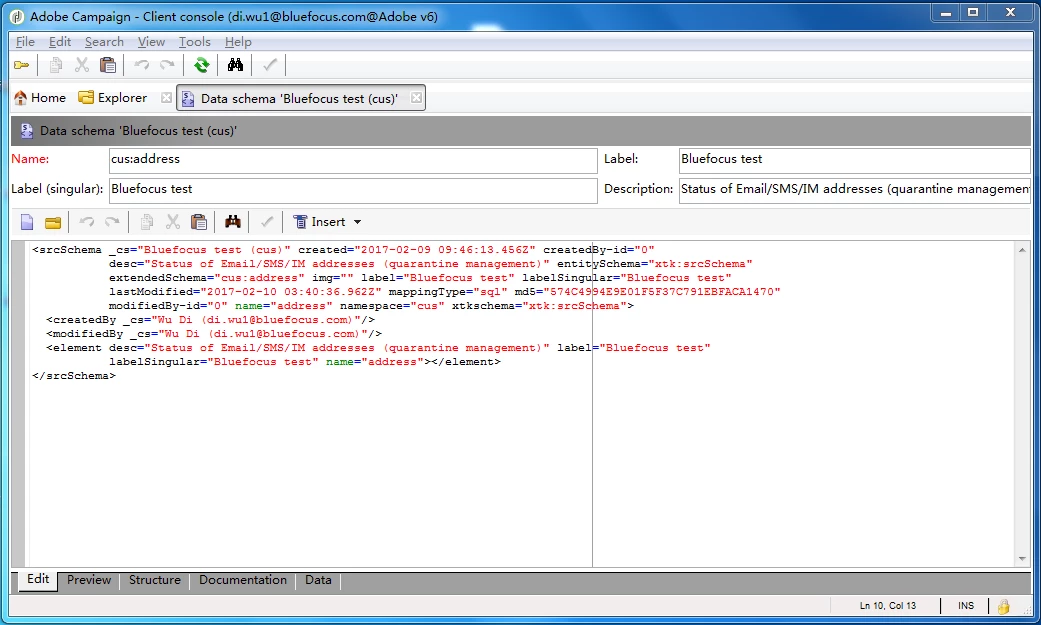

      The snapshot of cus:address:

        vraghav
        Adobe Employee
        vraghavAdobe Employee
        Adobe Employee
        February 20, 2017

        wud82646422 wrote...

        Thanks very much. As you said, we did find the cause of the error in the schema cus: address。

        The snapshot of cus:address:



        Glad to know that this has been resolved.

        For other readers, the name of schema extension was cus:address and the schema it was trying to extend was also cus:address, thus causing the circular dependency. Schema being extended is maintained in attribute extendedSchema of root node.

        Regards,

        Vipul

          abhishekb249864
          abhishekb249864
          March 27, 2017

          Hi Vipul,

          I'm getting the same error with the circular dependency but I'm not sure how to avoid this. I used the wizard to extend the schema to create the schema extension, so wondering whether it is sufficient to just change the value for extendedSchema.

          vraghav
          Adobe Employee
          vraghavAdobe Employee
          Adobe Employee
          March 28, 2017

          Hi Abhishek,

          Editing the extendedSchema attribute should do the trick. You need to identify which schema is causing it.

          Regards,

          Vipul

          abhishekb249864
          abhishekb249864
          March 28, 2017

          Thanks Vipul. Based on the instructions on this user doc I used a different namespace to extend a schema I created. I used a different namespace but same name.

          https://docs.campaign.adobe.com/doc/AC6.1/en/CFG_Editing_schemas_Extending_a_schema.html

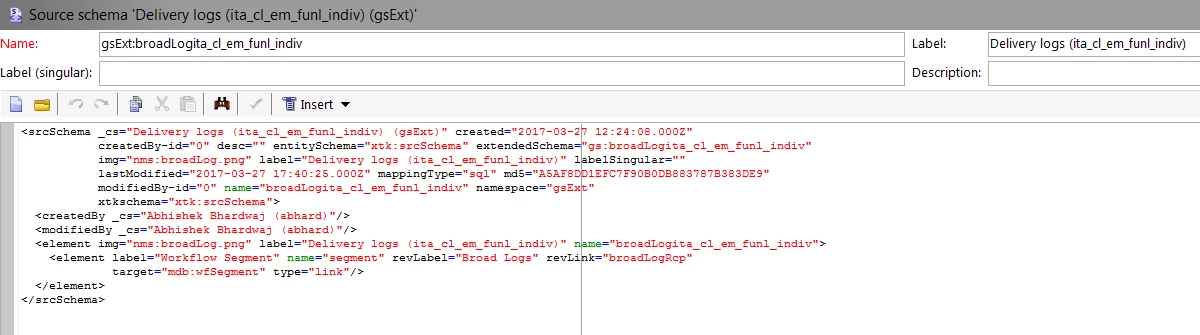

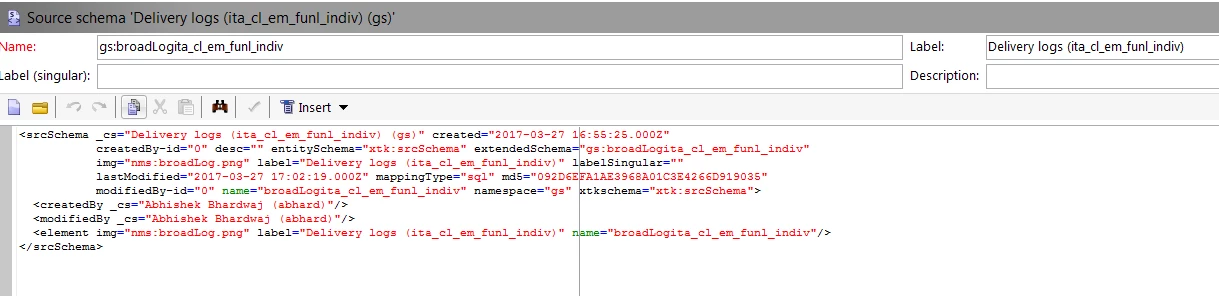

          I've attached a couple of screenshots. The second one (starting with gsExt) is the extension which is giving the error. Do we have to use a different value for extendedSchema even if it has a different namespace?

          -Abhishek

          vraghav
          Adobe Employee
          vraghavAdobe Employee
          Adobe Employee
          March 28, 2017

          Hi Abhishek,

          The first one other that gsExt, does that also exist in your instance? If yes, the error is originating from it as it is suffering from circular dependancy.

          abhishekb249864
          abhishekb249864
          March 28, 2017

          Yes it does. The non-gsExt one is a Delivery Logs data schema created when target mapping was done on a new table. Is it recommended that I just modify that one since it isn't a core data schema instead of creating an extension and modifying the extension?

          We had an Adobe architect create custom target mapping and Delivery Logs for us last year and I was following similar steps.

          Thanks again for your answers.
