Soap Task in Technical Workflow

Forum|Forum|2 years ago
December 4, 2023
2 replies
1435 views

hi

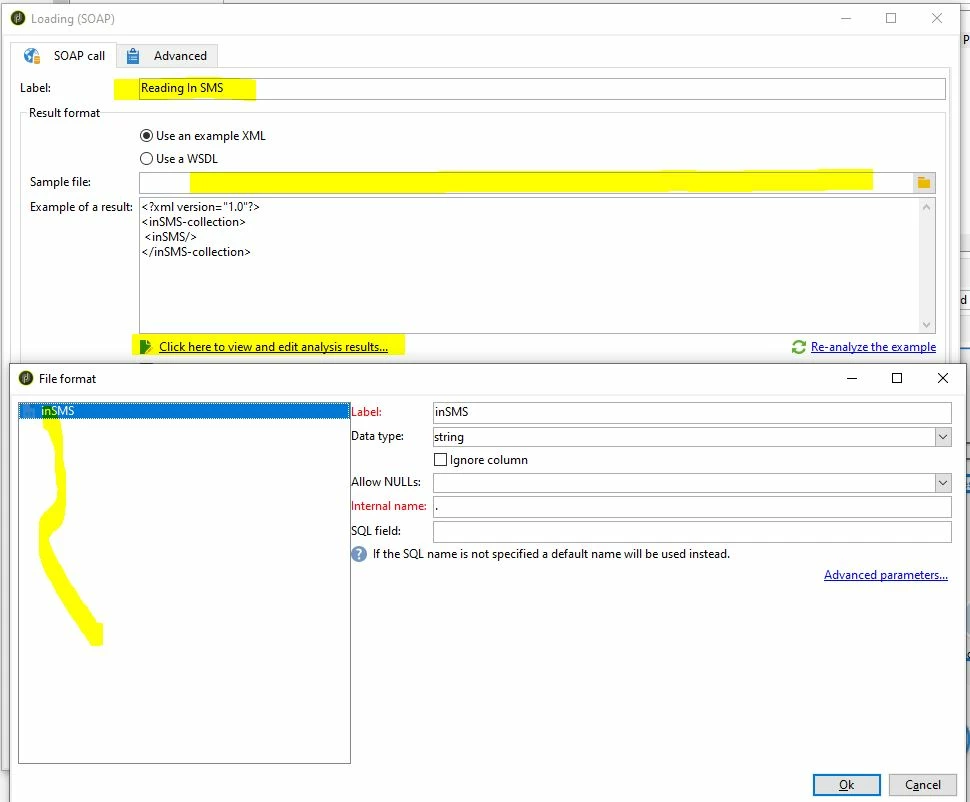

I am trying to add a SOAP Call in Technical workflow to bring in the message responses that are stored in Message Center ( execution instance) inSMS schema to Marketing Instance . For somehow I am not able to get the WSDL for nms:inSMS schema is that not available?. Also any idea or documentation how to provide a sample file with column mapping ( if the WSLD is not available). I am referring to this step in task:

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

Best answer by ravitejagundu

Hi @vendimb15716755 ,

Yes, I do not have an idea of this activity. However, I have downloaded the WSDL for inSMS schema and tried to load in SOAP UI instead of this Data Loading (SOAP) activity. But the same issue I also faced. Hence suggested trying it with the queryDef method.

Thanks,

Raviteja Gundu.

PatrickLittel

New Member

I was able to get the WSDL:

<types>

<s:schema elementFormDefault="qualified" targetNamespace="urn:nms:inSMS">

<s:complexType name="Element">

<s:sequence>

<s:any processContents="lax"/>

</s:sequence>

</s:complexType>

</s:schema>

</types>

<soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/>

</binding>

<soap:address location="https://<your_server_location>/nl/jsp/soaprouter.jsp"/>

</port>

</service>

</definitions>

ravitejagundu

Level 3

Hi @vendimb15716755 ,

We can get the WSDL from the server.

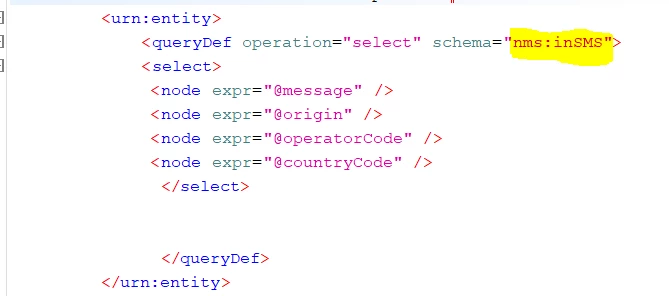

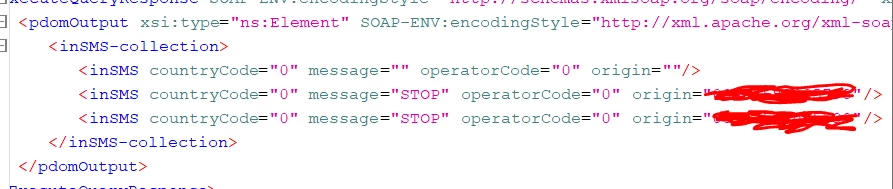

Can you please try an alternate way to get the details of nms:InSMS using ExecuteQuery in queryDefMethods as below?

Thanks,

Raviteja Gundu.

V

vendimb15716755Author

Level 4

hi Raviteja

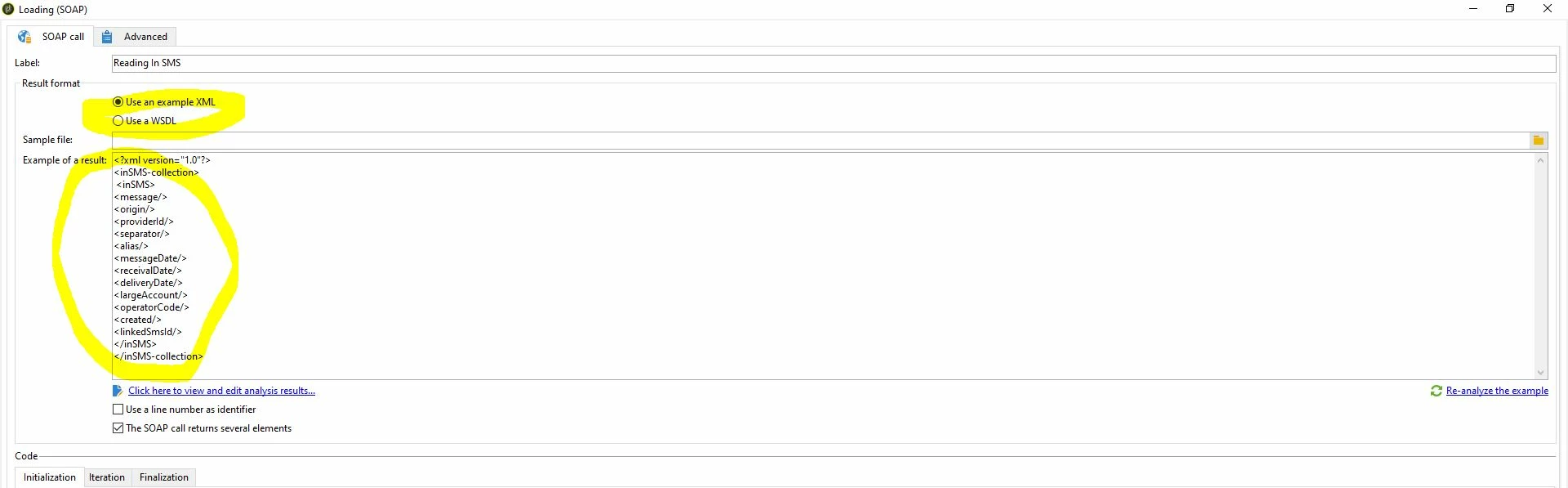

What I am trying to accomplish is to get the LOAD Soap task in the Technical workflow. I am trying to read from SMS Schema and yes I am using the queryDef. I am formatting results and its expecting the fields to be loaded via file or use the WSDL. the WSDL is not available when I try using the query string. not sure if you are familiar with this task but How I can get inSMS schema fields into this so they are correct?
