Enumerations in Xml

4 replies
1026 views
Translate All

How can I create an enumeration that if I pass the value 1 is equal to Yes and if I pass the value 2 is equal to No, all this in XML code.

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

ParthaSarathyAccepted solution

Community Advisor

In Schema, with the above mentioned enum structure, try the same by replacing the enum attribute as below (defining type as byte)

 <enumeration basetype="byte" name="myEnum">
    <value label="Yes" name="yes" value="1"/>
    <value label="No" name="no" value="2"/>
  </enumeration>

<attribute enum="myEnum" label="My Enum" name="abcd" type="byte"/>

~ ParthaSarathy S~ Click here to join ADOBE CAMPAIGN USER GROUP for Quarterly In-person | Hybrid | Virtual Meetups

ParthaSarathy

Community Advisor

Hi @alnavarg , You can try this in schema

  <enumeration basetype="byte" name="myEnum">
    <value label="Yes" name="yes" value="1"/>
    <value label="No" name="no" value="2"/>
  </enumeration>

Translate

~ ParthaSarathy S~ Click here to join ADOBE CAMPAIGN USER GROUP for Quarterly In-person | Hybrid | Virtual Meetups

alnavargAuthor

Level 4

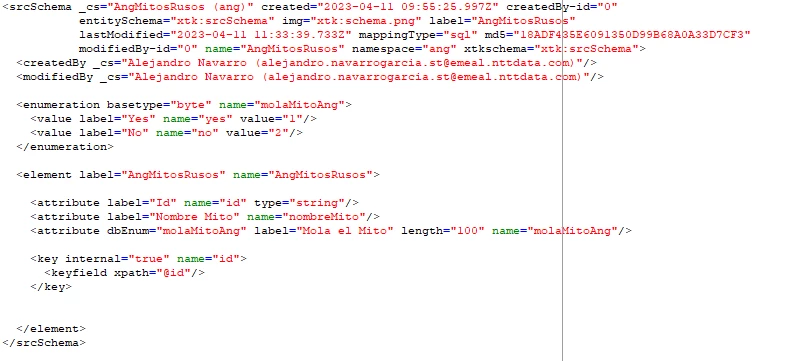

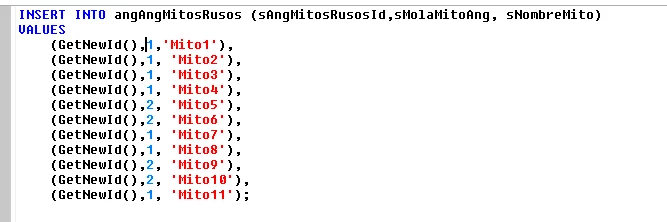

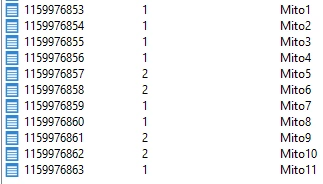

This does not work I have the code like this then I pass a Sql Code activity with that code and it fills it is 1 and 2 and I want Yes and no but passing it 1 and 2.

Translate

ParthaSarathy

Accepted solution

Community Advisor

In Schema, with the above mentioned enum structure, try the same by replacing the enum attribute as below (defining type as byte)

 <enumeration basetype="byte" name="myEnum">
    <value label="Yes" name="yes" value="1"/>
    <value label="No" name="no" value="2"/>
  </enumeration>

<attribute enum="myEnum" label="My Enum" name="abcd" type="byte"/>

Translate

~ ParthaSarathy S~ Click here to join ADOBE CAMPAIGN USER GROUP for Quarterly In-person | Hybrid | Virtual Meetups
