Use of Carousels in Adobe Journey Optimiser In-App Channel

Forum|Forum|4 days ago
February 2, 2026
3 replies
51 views

Has anyone used Carousels in Adobe Journey optimizer InApp Configuration? the requirements are to display multiple images under one In-App message content.

Let me know if there are any feedback or findings across this.

Thanks

Prate

Best answer by PrateekWa1

@Manoj_Kumar thank you. have you done this in past? any example that could please help support this? we are looking to this now.

Manoj_Kumar

Community Advisor

Hi @PrateekWa1 You can use the Custom message layout and use HTML to display a carousel in IAM.

Manoj | https://themartech.pro

PrateekWa1AuthorAccepted solution

Level 2

@Manoj_Kumar thank you. have you done this in past? any example that could please help support this? we are looking to this now.

Manoj_Kumar

Community Advisor

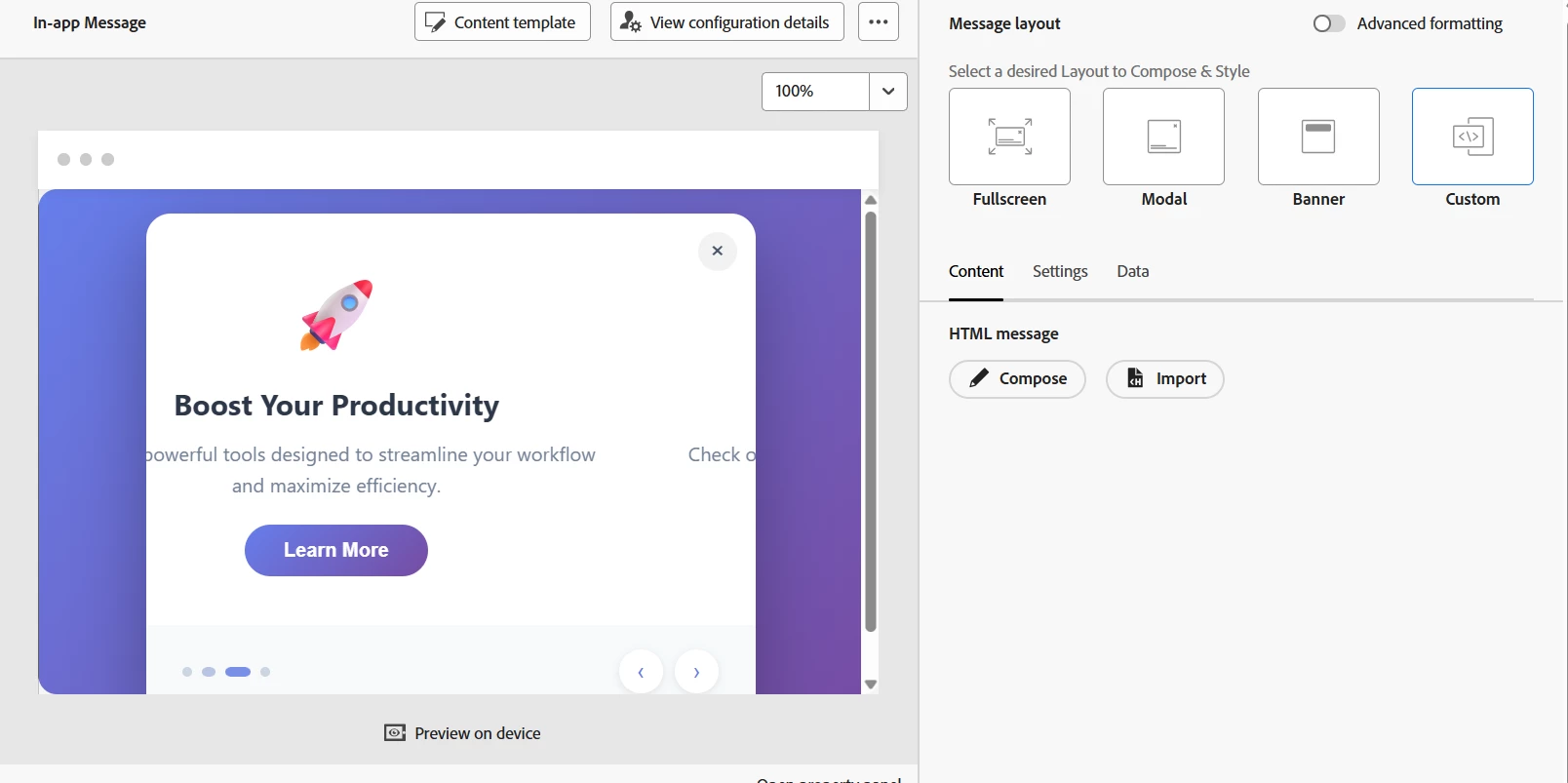

@PrateekWa1 Here is a sample code you can use to create an IAM.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>In-App Message Carousel</title>
    <style>
        * {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
        }

        body {
            font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, Oxygen, Ubuntu, Cantarell, sans-serif;
            background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
            min-height: 100vh;
            display: flex;
            align-items: center;
            justify-content: center;
            padding: 20px;
        }

        .carousel-container {
            max-width: 500px;
            width: 100%;
            background: white;
            border-radius: 20px;
            box-shadow: 0 20px 60px rgba(0, 0, 0, 0.3);
            overflow: hidden;
            position: relative;
        }

        .carousel-wrapper {
            position: relative;
            overflow: hidden;
        }

        .carousel-slides {
            display: flex;
            transition: transform 0.5s ease-in-out;
        }

        .carousel-slide {
            min-width: 100%;
            padding: 40px 30px;
            display: flex;
            flex-direction: column;
            align-items: center;
            text-align: center;
        }

        .slide-icon {
            font-size: 60px;
            margin-bottom: 20px;
        }

        .slide-title {
            font-size: 24px;
            font-weight: 700;
            color: #2d3748;
            margin-bottom: 12px;
        }

        .slide-description {
            font-size: 16px;
            color: #718096;
            line-height: 1.6;
            margin-bottom: 20px;
        }

        .slide-cta {
            background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
            color: white;
            border: none;
            padding: 12px 32px;
            border-radius: 25px;
            font-size: 16px;
            font-weight: 600;
            cursor: pointer;
            transition: transform 0.2s, box-shadow 0.2s;
        }

        .slide-cta:hover {
            transform: translateY(-2px);
            box-shadow: 0 8px 20px rgba(102, 126, 234, 0.4);
        }

        .slide-cta:active {
            transform: translateY(0);
        }

        .carousel-controls {
            display: flex;
            justify-content: space-between;
            align-items: center;
            padding: 20px 30px;
            background: #f7fafc;
        }

        .carousel-dots {
            display: flex;
            gap: 8px;
        }

        .dot {
            width: 8px;
            height: 8px;
            border-radius: 50%;
            background: #cbd5e0;
            cursor: pointer;
            transition: all 0.3s;
        }

        .dot.active {
            background: #667eea;
            width: 24px;
            border-radius: 4px;
        }

        .carousel-nav {
            display: flex;
            gap: 10px;
        }

        .nav-btn {
            width: 36px;
            height: 36px;
            border-radius: 50%;
            border: none;
            background: white;
            color: #667eea;
            font-size: 18px;
            cursor: pointer;
            display: flex;
            align-items: center;
            justify-content: center;
            transition: all 0.2s;
            box-shadow: 0 2px 8px rgba(0, 0, 0, 0.1);
        }

        .nav-btn:hover {
            background: #667eea;
            color: white;
            transform: scale(1.1);
        }

        .nav-btn:disabled {
            opacity: 0.3;
            cursor: not-allowed;
        }

        .nav-btn:disabled:hover {
            background: white;
            color: #667eea;
            transform: scale(1);
        }

        .close-btn {
            position: absolute;
            top: 15px;
            right: 15px;
            width: 32px;
            height: 32px;
            border-radius: 50%;
            border: none;
            background: rgba(0, 0, 0, 0.05);
            color: #4a5568;
            font-size: 20px;
            cursor: pointer;
            display: flex;
            align-items: center;
            justify-content: center;
            transition: all 0.2s;
            z-index: 10;
        }

        .close-btn:hover {
            background: rgba(0, 0, 0, 0.1);
            transform: rotate(90deg);
        }
    </style>
</head>
<body>
    <div class="carousel-container">
        <button class="close-btn" onclick="closeCarousel()">×</button>

        <div class="carousel-wrapper">
            <div class="carousel-slides" id="carouselSlides">
                <!-- Slide 1 -->
                <div class="carousel-slide">
                    <div class="slide-icon">🎉</div>
                    <h2 class="slide-title">Welcome to Our App!</h2>
                    <p class="slide-description">Discover amazing features that will help you get more done in less time.</p>
                    <button class="slide-cta" onclick="handleCTA(0)">Get Started</button>
                </div>

                <!-- Slide 2 -->
                <div class="carousel-slide">
                    <div class="slide-icon">🚀</div>
                    <h2 class="slide-title">Boost Your Productivity</h2>
                    <p class="slide-description">Unlock powerful tools designed to streamline your workflow and maximize efficiency.</p>
                    <button class="slide-cta" onclick="handleCTA(1)">Learn More</button>
                </div>

                <!-- Slide 3 -->
                <div class="carousel-slide">
                    <div class="slide-icon">✨</div>
                    <h2 class="slide-title">New Features Available</h2>
                    <p class="slide-description">Check out our latest updates and improvements crafted just for you.</p>
                    <button class="slide-cta" onclick="handleCTA(2)">Explore Now</button>
                </div>

                <!-- Slide 4 -->
                <div class="carousel-slide">
                    <div class="slide-icon">💎</div>
                    <h2 class="slide-title">Upgrade to Premium</h2>
                    <p class="slide-description">Get access to exclusive features and take your experience to the next level.</p>
                    <button class="slide-cta" onclick="handleCTA(3)">Upgrade</button>
                </div>
            </div>
        </div>

        <div class="carousel-controls">
            <div class="carousel-dots" id="carouselDots"></div>
            <div class="carousel-nav">
                <button class="nav-btn" id="prevBtn" onclick="previousSlide()">‹</button>
                <button class="nav-btn" id="nextBtn" onclick="nextSlide()">›</button>
            </div>
        </div>
    </div>

    <script>
        let currentSlide = 0;
        const slides = document.querySelectorAll('.carousel-slide');
        const slidesContainer = document.getElementById('carouselSlides');
        const dotsContainer = document.getElementById('carouselDots');
        const totalSlides = slides.length;
        let autoPlayInterval;

        // Create dots
        function createDots() {
            for (let i = 0; i < totalSlides; i++) {
                const dot = document.createElement('div');
                dot.classList.add('dot');
                if (i === 0) dot.classList.add('active');
                dot.addEventListener('click', () => goToSlide(i));
                dotsContainer.appendChild(dot);
            }
        }

        // Update slide position
        function updateSlide() {
            slidesContainer.style.transform = `translateX(-${currentSlide * 100}%)`;

            // Update dots
            const dots = document.querySelectorAll('.dot');
            dots.forEach((dot, index) => {
                dot.classList.toggle('active', index === currentSlide);
            });

            // Update nav buttons
            document.getElementById('prevBtn').disabled = currentSlide === 0;
            document.getElementById('nextBtn').disabled = currentSlide === totalSlides - 1;
        }

        // Go to specific slide
        function goToSlide(index) {
            currentSlide = index;
            updateSlide();
            resetAutoPlay();
        }

        // Next slide
        function nextSlide() {
            if (currentSlide < totalSlides - 1) {
                currentSlide++;
                updateSlide();
                resetAutoPlay();
            }
        }

        // Previous slide
        function previousSlide() {
            if (currentSlide > 0) {
                currentSlide--;
                updateSlide();
                resetAutoPlay();
            }
        }

        // Auto play
        function startAutoPlay() {
            autoPlayInterval = setInterval(() => {
                if (currentSlide < totalSlides - 1) {
                    nextSlide();
                } else {
                    currentSlide = 0;
                    updateSlide();
                }
            }, 5000); // Change slide every 5 seconds
        }

        function resetAutoPlay() {
            clearInterval(autoPlayInterval);
            startAutoPlay();
        }

        // Handle CTA clicks
        function handleCTA(slideIndex) {
            console.log(`CTA clicked on slide ${slideIndex + 1}`);
            alert(`Action triggered for slide ${slideIndex + 1}`);
            // Add your custom logic here
        }

        // Close carousel
        function closeCarousel() {
            console.log('Carousel closed');
            document.querySelector('.carousel-container').style.display = 'none';
            // Add your custom close logic here
        }

        // Keyboard navigation
        document.addEventListener('keydown', (e) => {
            if (e.key === 'ArrowLeft') previousSlide();
            if (e.key === 'ArrowRight') nextSlide();
            if (e.key === 'Escape') closeCarousel();
        });

        // Touch swipe support
        let touchStartX = 0;
        let touchEndX = 0;

        slidesContainer.addEventListener('touchstart', (e) => {
            touchStartX = e.changedTouches[0].screenX;
        });

        slidesContainer.addEventListener('touchend', (e) => {
            touchEndX = e.changedTouches[0].screenX;
            handleSwipe();
        });

        function handleSwipe() {
            if (touchEndX < touchStartX - 50) nextSlide();
            if (touchEndX > touchStartX + 50) previousSlide();
        }

        // Initialize
        createDots();
        updateSlide();
        startAutoPlay();
    </script>
</body>
</html>

Manoj | https://themartech.pro

giriprasathb

Level 2

Hi @PrateekWa1,As of now,Adobe Journey Optimizer (AJO) In-App Messaging does not support a native carousel component in the standard configuration. The available templates allow only a single image per message.

If multiple images are required within a single In-App experience, the recommended approach is to pass multiple image assets in the payload and implement the carousel rendering on the mobile app side using the AEP Mobile SDK.

At this time, there is no out-of-the-box carousel option available in the AJO In-App visual editor.

Thanks,
Giriprasath B

PrateekWa1Author

Level 2

Okay, we can try this. Thanks for the input, really appreciated.

Pulkit_Jain_

Adobe Employee

@PrateekWa1

In‑App templates do not include a Carousel component currently but you can implement a carousel by using a Full‑screen Custom template i.e you can upload HTML/CSS that includes your own carousel behavior with multiple images- fully controlled by the app via HTML.
