Web SDK - Link-click interactions not being captured when using recommended event-grouping setting

  • February 20, 2025
  • 1 reply
  • 1398 views

Hi. I'm dealing with conflicting information on how to include the `web.webInteraction` object to capture internal link clicks in page-view events using the Web SDK extension.



Details:

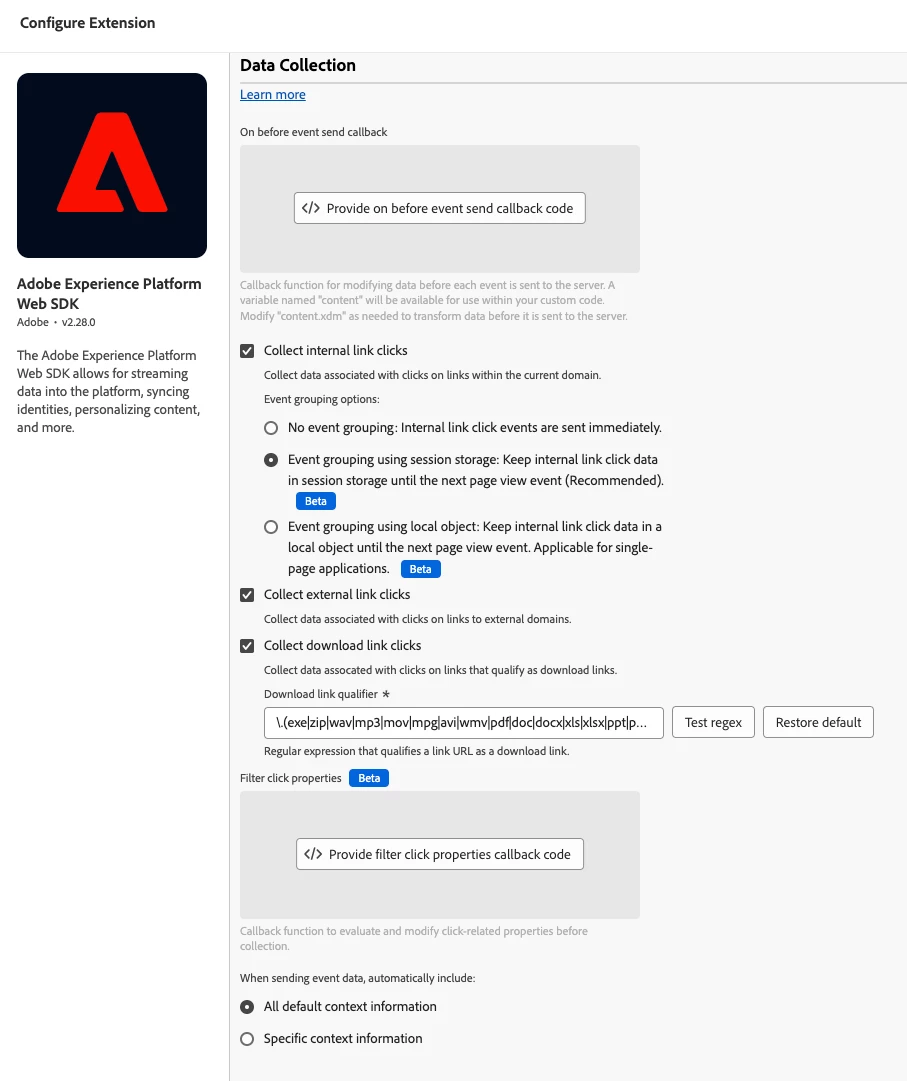

  • In the extension config I've selected all internal link tracking options, as well as the "event grouping using session storage" option to group page views and link clicks as single events.

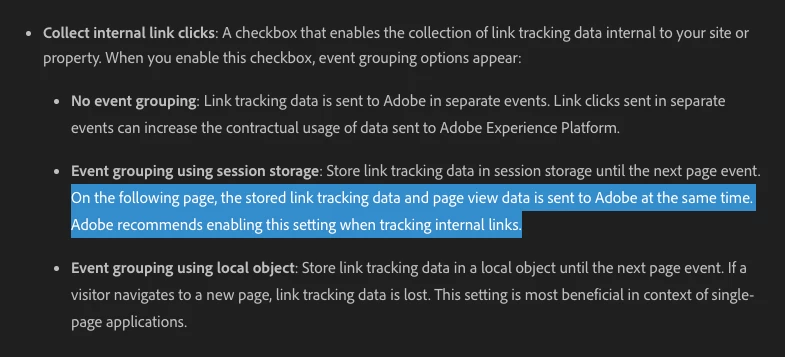

  • The official documentation seems to suggest that this is all that's required for page-view events to include the `webInteraction` object alongside the other auto-collected objects under `web` (the latter of which are being successfully auto-captured under my current ruleset)

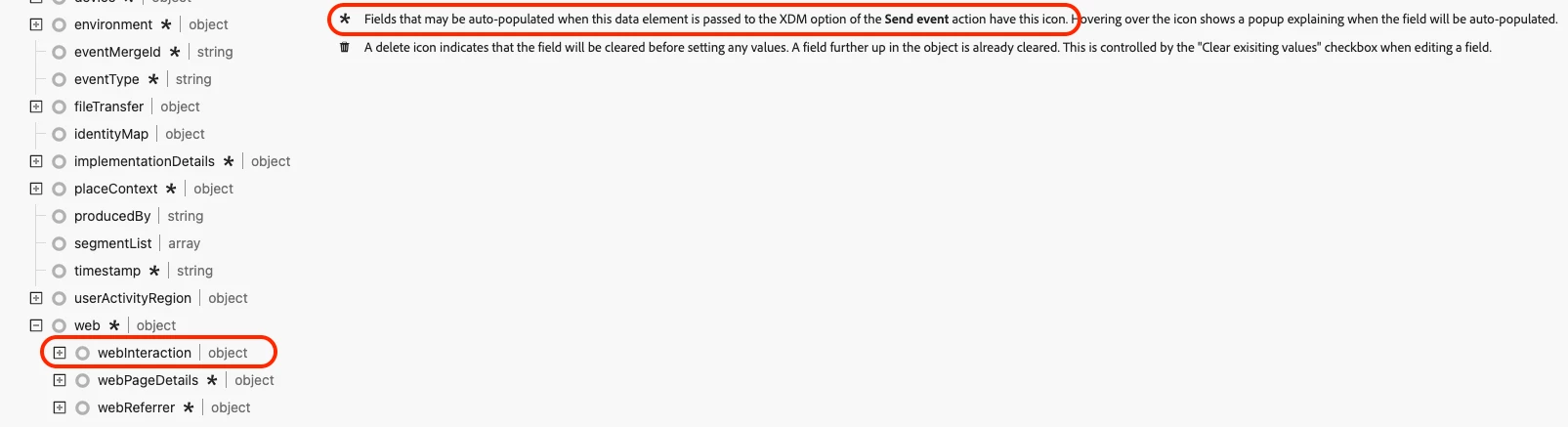

  • However, I get conflicting messaging when exploring the "Update Variable" action in the UI. This seems to be telling me that `webInteraction` is NOT automatically mapped, and apparently needs explicit mapping logic instead?

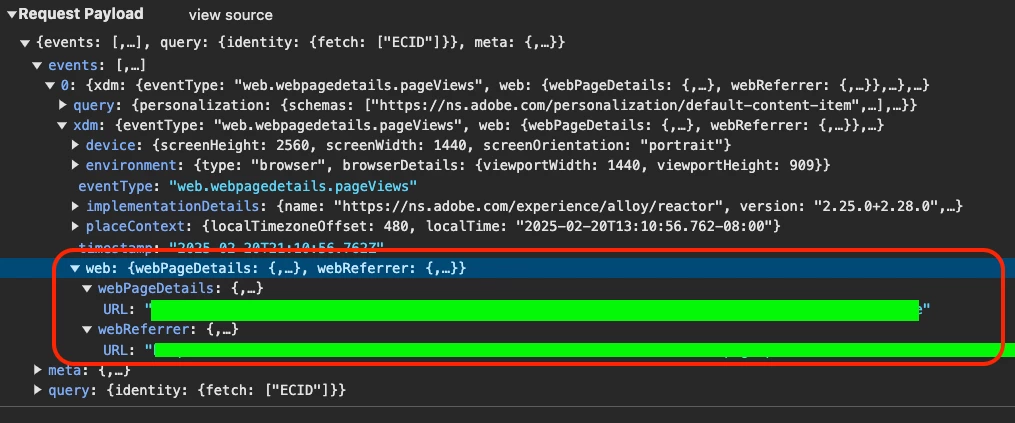

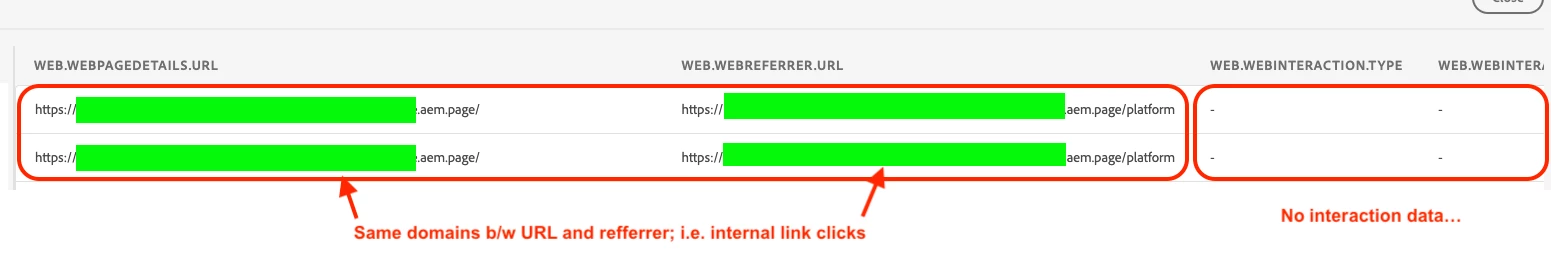

  • Under the current setup, `webInteraction` is not being included in the payload or resulting dataset rows:



  • Using console logs I can confirm that the link-click variables are accessible via the "filter click properties" callback, but these are ultimately not making it to the sendEvent command:

Considering the issues, am I misinterpreting what the documentation is saying? Do I actually need to explicitly map `webInteraction` using Update Variable? Where & how should I be trying to pull these values from?

Best answer by bjoern__koth

Hi @peterno8

yeah it's a bit special that one and the documentation not very clear what will release the information.

hope this thread helps, we discussed it a while back, including our own findings as well as support feedback.



https://experienceleaguecommunities.adobe.com/t5/adobe-experience-platform/eventgroupingenabled-web-sdk-activity-map/m-p/705222


You will ultimately see it in the contextdata of the succeeding page view if all is properly set up.

1 reply

bjoern__koth
Community Advisor and Adobe Champion
bjoern__kothCommunity Advisor and Adobe ChampionAccepted solution
Community Advisor and Adobe Champion
February 21, 2025

Hi @peterno8

yeah it's a bit special that one and the documentation not very clear what will release the information.

hope this thread helps, we discussed it a while back, including our own findings as well as support feedback.



https://experienceleaguecommunities.adobe.com/t5/adobe-experience-platform/eventgroupingenabled-web-sdk-activity-map/m-p/705222


You will ultimately see it in the contextdata of the succeeding page view if all is properly set up.

Cheers from Switzerland!
PeterNo8Author
February 21, 2025

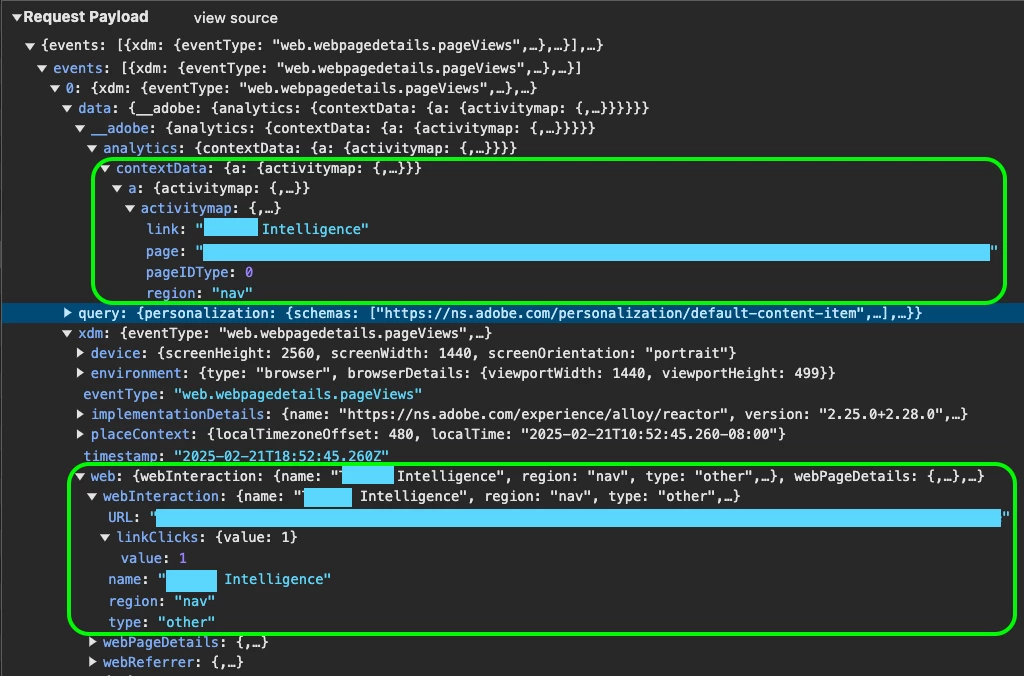

@bjoern__koth Thanks so much! Quite the rabbit hole but I managed to narrow down my particular issue from your thread posts. I just needed to explicitly map the page name and  view-count integer in the xdm object before sending the event.



In case anyone else stumbles on this thread and are using CJA rather than AA like myself: I wasn't sure if I'd need to do more manipulation to pull those values out of the returned contextData object, but it looks like they're auto-included under the right fields in the xdm object as well. Nice.

bjoern__koth
Community Advisor and Adobe Champion
Community Advisor and Adobe Champion
February 21, 2025

You're welcome, glad it worked for you!



Bear in mind that this approach will only store the last activity map interaction on the page before the navigation happened. If you have a website that opens/closes menus, scrolls up or down on mouse click, this may lead to lost calls.
as far as I know, right now, you cannot enable or disable this feature as needed through the activity map filter click callback or similar. Maybe in a future version
