Level 2

Solved

Issues with custom columns in listview for AEM 6.3 on /aem/products.html/

Forum|Forum|7 years ago
January 30, 2018
15 replies
8690 views

We intend to add some more columns in list view in AEM 6.3 on /aem/products.html/etc/commerce/products page.

.Issues with custom columns in listview for AEM 6.2 The above changes work on site.html but for the products.html no changes work. Seems like it is using different template/path which I am unable to find.

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

Best answer by SuperGrover_MZD

So, Commerce is setup a little different from sites. I would look at overlaying some items for the list view

/libs/commerce/gui/content/collections/products/jcr:content/views/list/columns

and the tables are driven from

/libs/commerce/gui/components/admin/products/childrow/childrow.jsp

Hopefully, that gets you started. It seems like there is an issue with how commerce is setup that won't allow the table to be sortable even though it can be enabled for the list view columns.

Show previous replies

S

SuperGrover_MZD

Level 2

So, I'm not sure about that, please share if you figure out a way to make that work.

It looks like you have already tried to approach provided here: Customizing the Consoles. It doesn't look there is a GitHub link (like it says), but this is a pretty good example of doing that for sites. GitHub - Adobe-Marketing-Cloud/aem-sites-extension-listview-columns: Sample package for AEM 6 Sites extension. Add custo…

arunpatidar

Community Advisor

Hi,

You need to overlay the code for customisation.

AEM 6.3 Assets List View Custom Column

Arun Patidar

N

niranjankglobal

Hi Luke,

I took the reference from Experiencing Adobe Experience Manager - Day CQ: AEM 62 - Add Asset Count Column to List View, Show Asset Count in Card V… And developed something as below snippet:

(function ($, $document) {

"use strict";

var firstLoad = true,

COOKIE_AEM_ASSETS_LIST_VIEW_COLUMNS = "aem.assets.listview.columns",

EAEM_ASSETS_COUNT = "eaemAssetsCount",

AUTO_PUBLISH= "auto-publish",

AUTO_UNPUBLISH= "auto-unpublish",

AUTO_ARCHIVEDATE= "auto-archiveDate",

LAYOUT_LIST_VIEW = "list",

DIRECTORY = "directory",

FOUNDATION_CONTENT_LOADED = "foundation-contentloaded",

SEL_DAM_ADMIN_CHILD_PAGES = ".cq-damadmin-admin-childpages",

LIST_CELL_HTML = '<td is="coral-td" class="coral-Table-cell coral-Table-cell--left" alignment="column">' +

'<coral-td-label class="coral-Table-cellLabel">ASSET_COUNT</coral-td-label>' +

'</td>',

LISTAUTOPUBLISH_CELL_HTML = '<td is="coral-td" class="coral-Table-cell coral-Table-cell--left" alignment="column">' +

'<coral-td-label class="coral-Table-cellLabel">' + '<time datetime=""></time>AUTO_PUBLISH_STATUS' + '</coral-td-label>' +

'</td>',

LISTSTATUS_CELL_HTML = '<td is="coral-td" class="coral-Table-cell coral-Table-cell--left" alignment="column">' +

'<coral-td-label class="coral-Table-cellLabel">SECURED_STATUS</coral-td-label>' +

'</td>';

$document.on(FOUNDATION_CONTENT_LOADED, SEL_DAM_ADMIN_CHILD_PAGES, columnList);

$document.on("cui-contentloaded", function (e) {

if(!firstLoad){

return;

}

var $childPages = $(e.currentTarget).find(SEL_DAM_ADMIN_CHILD_PAGES);

if(_.isEmpty($childPages)){

return;

}

firstLoad = false;

$childPages.trigger(FOUNDATION_CONTENT_LOADED);

});

function columnList(e) {

var cookies = document.cookie.split(";"), tokens, isAssetCount = false, isAutoPublish= false, isAutoUnPublish=false, isAutoArchive=false, isRequired=false, isSecure=false ;

_.each(cookies, function(cookie){

tokens = cookie.split("=");

if(tokens[0].trim() !== COOKIE_AEM_ASSETS_LIST_VIEW_COLUMNS){

return;

}

// isAssetCount=tokens[1].trim().indexOf(EAEM_ASSETS_COUNT) > 0;

isAutoPublish=tokens[1].trim().indexOf(AUTO_PUBLISH) > 0;

isAutoUnPublish=tokens[1].trim().indexOf(AUTO_UNPUBLISH) > 0;

isAutoArchive=tokens[1].trim().indexOf(AUTO_ARCHIVEDATE) > 0;

isRequired=tokens[1].trim().indexOf(REQUIRED_FIELDS_MISSING) > 0;

isSecure=tokens[1].trim().indexOf(SECURED) > 0;

});

if(!e.currentTarget ){

return;

}

var $currentTarget = $(e.currentTarget),

foundationLayout = $currentTarget.data("foundation-layout");

if(_.isEmpty(foundationLayout)){

return;

}

var layoutId = foundationLayout.layoutId;

var path = $currentTarget.data("foundation-collection-id");

$.ajax(path + ".4.json").done(function(data){

// $(".foundation-collection-item").each(function(index, item){

var list =data;

getData(list);

// });

});

//********************** Add for columnlists **************

function getData(list){

$(".foundation-collection-item").each(function(index, item){

var dataArray = [];

var dataObj = {} ;

_.each(list, function(value, key, list){

if(_.isObject(value)){

if(value["jcr:primaryType"] == "dam:Asset") {

if(value['jcr:content']){

dataObj.offTime = value['jcr:content']["offTime"];

dataObj.onTime = value['jcr:content']['onTime'];

dataObj.archiveDate = value['jcr:content']['metadata'] && value['jcr:content']['metadata']['msft:archiveDate'];

dataArray.push(dataObj);

// console.log("array:"+dataArray[1].onTime);

}

});

if(layoutId == LAYOUT_LIST_VIEW){

if(isAutoPublish ){

if ((dataObj.onTime) != undefined){

$(item).append(LISTAUTOPUBLISH_CELL_HTML.replace("AUTO_PUBLISH_STATUS", dataObj.onTime));

}

else

$(item).append(LISTAUTOPUBLISH_CELL_HTML.replace("AUTO_PUBLISH_STATUS", "Not Published"));

}

console.log("array:"+dataObj.onTime);

if(isAutoUnPublish ){

if (dataObj.offTime != undefined){

$(item).append(LISTAUTOPUBLISH_CELL_HTML.replace("AUTO_PUBLISH_STATUS", dataObj.offTime));

}

else

$(item).append(LISTAUTOPUBLISH_CELL_HTML.replace("AUTO_PUBLISH_STATUS", "Not Published"));

}

if(isAutoArchive ){

if (dataObj.archiveDate != undefined){

$(item).append(LISTAUTOPUBLISH_CELL_HTML.replace("AUTO_PUBLISH_STATUS", dataArray[0].archiveDate));

}

else

$(item).append(LISTAUTOPUBLISH_CELL_HTML.replace("AUTO_PUBLISH_STATUS", "Not Archived"));

}

else

return;

}

});

}

})(jQuery, jQuery(document));

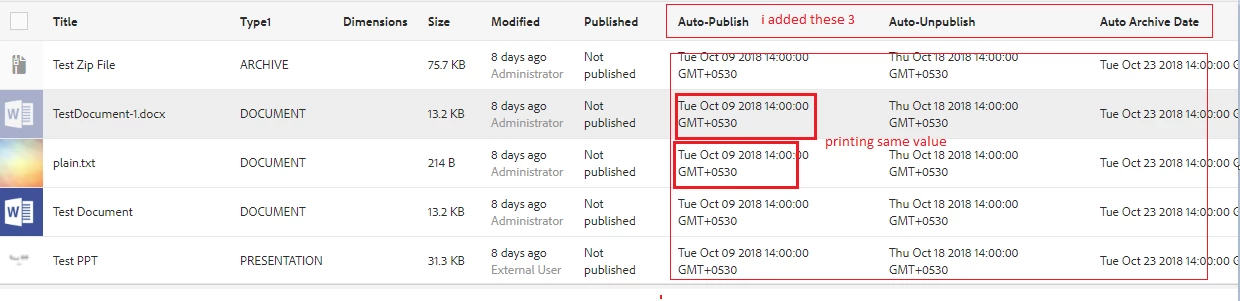

Result: result is also coming but, i am not able to print the next line result in next line , it that works, then its going to work, absolutely fine:

Thanks,

Niranjan

Thanks Arun.

Below code using javascript, is functional and tested. It avoids the scenario of overlaying concept, which is generally not preferred because of newer version issue.
Prerequisite:

1. One should have the servlet ready to give required json response of the properties of asset node/or jcr:content/or metadata

2. overlay the node from libs: /libs/dam/gui/content/commons/availablecolumns in apps

3. create/add required node under this overlayed node under apps (Note: If someone does not want ,newly added columns to appear as default, please do make "default" property as "false". So, when one select,columns from Listview-> view settings" ,it will appear on the page. )

4. Take reference from Experiencing Adobe Experience Manager - Day CQ: AEM 62 - Add Asset Count Column to List View, Show Asset Count in Card V…

5. Now code below:

(function($, $document) {

"use strict";

var firstLoad = true,

isAutoPublish = false,

isAutoUnPublish = false,

list,

parsedData,

dataArray,

dataObj,

layoutId,

path,

$currentTarget,

foundationLayout,

itemPath,

itemName,

itemsProcessedAry = [],

COOKIE_AEM_ASSETS_LIST_VIEW_COLUMNS = "aem.assets.listview.columns",

AUTO_PUBLISH = "auto-publish",

AUTO_UNPUBLISH = "auto-unpublish",

LAYOUT_LIST_VIEW = "list",

//if we just keept this as "foundation-contentloaded, then it created issue with drag-drop functionality

FOUNDATION_CONTENT_LOADED = "foundation-contentloaded-test",

SEL_DAM_ADMIN_CHILD_PAGES = ".cq-damadmin-admin-childpages",

LISTSTATUS_CELL_HTML = '<td is="coral-td" class="coral-Table-cell coral-Table-cell--left" alignment="column">' + '<coral-td-label class="coral-Table-cellLabel">LISTFIELD</coral-td-label>' + '</td>';

function useCookie() {

var cookies = document.cookie.split(";"),

i,

tokens;

$.each(cookies, function(i, cookie) {

tokens = cookie.split("=");

if (tokens[0].trim() !== COOKIE_AEM_ASSETS_LIST_VIEW_COLUMNS) {

return;

}

isAutoPublish = tokens[1].trim().indexOf(AUTO_PUBLISH) > 0;

isAutoUnPublish = tokens[1].trim().indexOf(AUTO_UNPUBLISH) > 0;

isAutoArchive = tokens[1].trim().indexOf(AUTO_ARCHIVEDATE) > 0;

isRequired = tokens[1].trim().indexOf(REQUIRED_FIELDS_MISSING) > 0;

isSecure = tokens[1].trim().indexOf(SECURED) > 0;

});

}

$document.on("cui-contentloaded", function(e) {

var $childPages = $(e.currentTarget).find(SEL_DAM_ADMIN_CHILD_PAGES);

if ($.isEmptyObject($childPages)) {

return;

}

if (firstLoad) {

useCookie();

firstLoad = false;

}

$childPages.trigger(FOUNDATION_CONTENT_LOADED);

});

function columnList(e) {

var i;

function getItemNameFromPath(itemPath) {

if (!itemPath || (itemPath.indexOf("/") === -1)) {

return "";

}

return itemPath.substr(itemPath.lastIndexOf("/") + 1);

}

function getData(list) {

if (layoutId === LAYOUT_LIST_VIEW) {

$(".foundation-collection-item")

.each(

function(index, item) {

itemsProcessedAry = [];

itemPath = $(item).data("foundation-collection-item-id");

itemName = getItemNameFromPath(itemPath);

if (list) {

for (i = 0; i < list.length; i++) {

dataArray = [];

dataObj = {};

dataObj.onTime = list[i].onTime;

dataObj.offTime = list[i].offTime;

dataObj.assetname = list[i].assetname;

dataObj.jcrPrimaryType = list[i]["jcr:primaryType"];

dataArray.push(dataObj);

if (itemName === list[i].assetname && !itemsProcessedAry.includes(itemName)) {

itemsProcessedAry.push(itemName);

//auto-publish

if (isAutoPublish) {

if ((dataObj.onTime) === undefined || dataObj.onTime === "novalue") {

$(item)

.append(

LISTSTATUS_CELL_HTML

.replace(

"LISTFIELD",

""));

} else {

$(item)

.append(

LISTSTATUS_CELL_HTML

.replace(

"LISTFIELD",

dataObj.onTime));

}

//auto-unpublish

if (isAutoUnPublish) {

if (dataObj.offTime === undefined || dataObj.offTime === "novalue") {

$(item)

.append(

LISTSTATUS_CELL_HTML

.replace(

"LISTFIELD",

"")); //if undefined value, keep the field blank

} else {

$(item)

.append(

LISTSTATUS_CELL_HTML

.replace(

"LISTFIELD",

dataObj.offTime));

}

});

}

if (!e.currentTarget) {

return;

}

$currentTarget = $(e.currentTarget); foundationLayout = $currentTarget.data("foundation-layout");

if ($.isEmptyObject(foundationLayout)) {

return;

}

layoutId = foundationLayout.layoutId;

path = $currentTarget.data("foundation-collection-id");

$.ajax({

url: "/bin/test/listview.json",

type: "GET",

async: false,

data: {

resourcepath: path // this "resourcepath" must be taken as "request.getParameter(resourcepath)" in the servlet

},

success: function(data, textStatus, jqXHR) {

if (typeof data === 'object') {

parsedData = JSON.parse(JSON.stringify(data));

} else {

parsedData = JSON.parse(data);

}

getData(parsedData.propertyList);

},

error: function(jqXhr, textStatus, errorMessage) {}

});

}

$document.on(FOUNDATION_CONTENT_LOADED, SEL_DAM_ADMIN_CHILD_PAGES,

columnList);

}(jQuery, jQuery(document)));

Hope this would help all !!!

Thanks,

Niranjan
