Configure cq:xfVariantType in experience fragment.

  • June 20, 2018
  • 5 replies
  • 5059 views

Hi All,

We are creating experience fragments in our project and when we are trying to add components in the variants created, we are not getting any components though we have allowed all the components in the template. The only difference between the we-retail template and our template is that in our template, we don't have cq:xfVariantType.

Can you please help me to understand where exactly i need top set this property while creating experience fragment template or template type or experience fragment variant ?

Also it will be helpful if you let me know what is the significance of this property.

Thanks and Regards,

Gajanan

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by arunpatidar

    Hi,

    I am able to add component in variant without cq:xfVariantType.

    This property doesn't make any difference , it looks it is a custom property and getting used for custom purpose.

    This property is added in template initial (e.g. /conf/we-retail/settings/wcm/templates/experience-fragment-web-variation/initial/jcr:content) after creating template.

    What I did, I copied /conf/we-retail/settings/wcm/templates/experience-fragment-web-variation template and created new /conf/we-retail/settings/wcm/templates/experience-fragment-variation and removed cq:xfVariantType from new template's initial  /conf/we-retail/settings/wcm/templates/experience-fragment-variation/initial/jcr:content

    Then I created XF using this new template and added content in master and variant

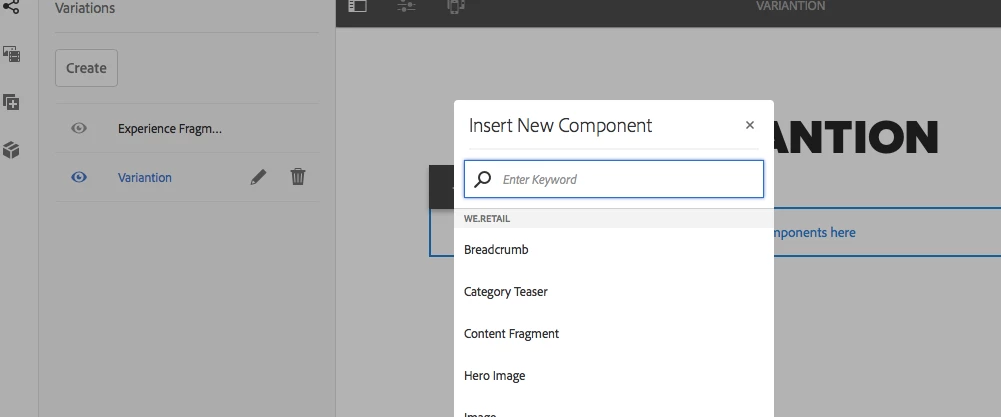

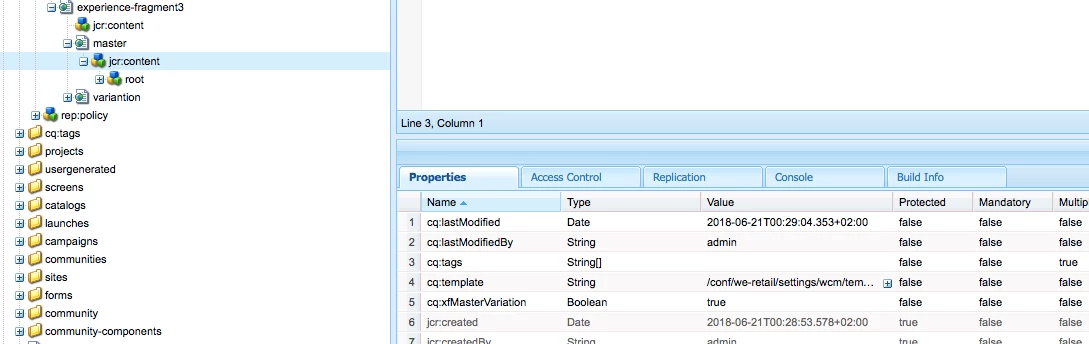

    Below is the screenshot of XF without cq:xfVariantType and Insert component dialog for variation.

    BUT Make sure when you create variant choose correct template for variant. I chose same template for both master and variation.

    Thanks

    Arun

    5 replies

    smacdonald2008
    smacdonald2008
    Level 10
    June 20, 2018

    Refer to the docs here - Experience Fragments

    There is no mention of this in the docs.

    arunpatidar
    Community Advisor
    arunpatidarCommunity AdvisorAccepted solution
    Community Advisor
    June 20, 2018

    Hi,

    I am able to add component in variant without cq:xfVariantType.

    This property doesn't make any difference , it looks it is a custom property and getting used for custom purpose.

    This property is added in template initial (e.g. /conf/we-retail/settings/wcm/templates/experience-fragment-web-variation/initial/jcr:content) after creating template.

    What I did, I copied /conf/we-retail/settings/wcm/templates/experience-fragment-web-variation template and created new /conf/we-retail/settings/wcm/templates/experience-fragment-variation and removed cq:xfVariantType from new template's initial  /conf/we-retail/settings/wcm/templates/experience-fragment-variation/initial/jcr:content

    Then I created XF using this new template and added content in master and variant

    Below is the screenshot of XF without cq:xfVariantType and Insert component dialog for variation.

    BUT Make sure when you create variant choose correct template for variant. I chose same template for both master and variation.

    Thanks

    Arun

    Arun Patidar
    rupalig70586203
    rupalig70586203
    Level 2
    September 21, 2018

    Hi,

    We need property cq:xfVariantType with value web on intial page jcr:content node of the template to allow an author to select the variation of your XF on the page.

    If you dont add this property then you will not be able to select your Xf master variation path on the content page and you need to add it manually for ex. /master.

      V
      VaibhavChavan
      October 23, 2020
      I have already added cq:xfVariantType but I didn't find my varients.so I used /master option.
      M
      mihirm64625024
      September 18, 2019

      Yes, this property seems to be required for the experience fragments to work properly. Without this property the experience fragment selection doesn't show the variant you have to type in the variation manually. Also, as I was using the newest experience fragment component (from WCM core), I ran into an issue wherein if this property is not present the experience fragment component doesn't even show the experience fragment (when configured on template).

      So, I think the issue here is that this property seems to be needed but, it's not clear where this property should be configured. I think setting this on initial content behind the scene by going to CRXDE is not the ideal way. Template editors need to be able to set this property when creating the template from an experience fragment template type. For now, I am getting around by adding this property to the template behind the scenes.

      arunpatidar
      Community Advisor
      arunpatidarCommunity Advisor
      Community Advisor
      September 18, 2019

      Please check

      https://forums.adobe.com/thread/2652661

      Arun Patidar
