ColorField issue in dialog AEM 6.5

  • January 17, 2025
  • 3 replies
  • 957 views

Hi Everyone,

    I am using colorfield in my custom component dialog. In 6.5 version the color palette field looks different compare to sdk version, is there any reason? I need UI looks like sdk version which looks better.

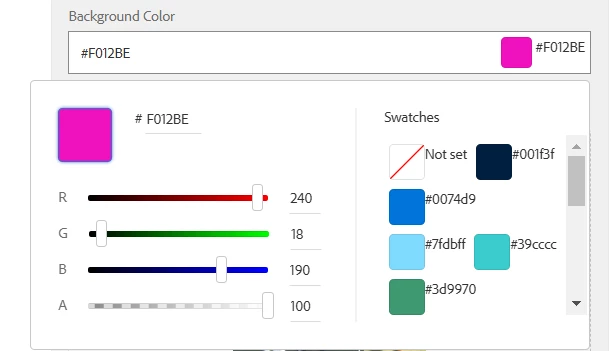

AEM SDK:



AEM 6.5:



resourceType:

granite/ui/components/coral/foundation/form/colorfield
Best answer by AmitVishwakarma

To match the ColorField UI from AEM SDK version in AEM 6.5:

  1. Override Styles: Add custom CSS to adjust the ColorField appearance to match the SDK version.
  2. Use Granite UI version: Try using the older granite/ui/components/coral/foundation/form/colorpicker resourceType if possible.
  3. Coral UI Customization: Explore Coral UI customization options to modify the default appearance in AEM 6.5.

Custom CSS is the quickest approach if you're aiming for a visual match.

3 replies

kapil_rajoria
Community Advisor
kapil_rajoriaCommunity Advisor
Community Advisor
January 17, 2025

Hi @jooca, please check if the granite.ui version is same for both of them by going to:
http://localhost:4502/system/console/bundles and search granite.ui
Check the version for com.adobe.granite.ui.clientlibs

The colorfield in AEM SDK one is looking fine.

Also, please make sure you are using the latest AEM service package.

    J
    joocaAuthor
    Level 2
    January 17, 2025

    it looks like granite.ui versions are different in 6.5 & sdk.
    6.5 - 1.0.92.CQ650-B0006

    sdk - 1.1.20

    MukeshYadav_
    Community Advisor
    MukeshYadav_Community Advisor
    Community Advisor
    January 17, 2025

    Hi @jooca ,

    You are right, colorfield has different look & feel in AEM cloud sdk and 6.x.

    However in general we use swatch variant to discourage author to use any random color selection.

    You may use swatch variant & set other properties with a minor css code to maintain look similar to could.

    For ex



    <picker jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/form/colorfield" name="./color" showDefaultColors="{Boolean}false" showProperties="{Boolean}false" showSwatches="{Boolean}true" variant="swatch"> <items jcr:primaryType="nt:unstructured"> <empty jcr:primaryType="nt:unstructured" name="No Color" value=""/> <grey jcr:primaryType="nt:unstructured" name="Grey" value="#474747"/> <orange jcr:primaryType="nt:unstructured" name="Orange" value="#d04a02"/> <red jcr:primaryType="nt:unstructured" name="Red" value="#e0301e"/> </items> </picker>



    You can put below css to hide hex color code which can be redundant if color are easily distinguishable

    .coral3-ColorInput--swatch label {
        display: none;
    }



    Thanks

      AmitVishwakarma
      Community Advisor
      AmitVishwakarmaCommunity AdvisorAccepted solution
      Community Advisor
      January 19, 2025

      To match the ColorField UI from AEM SDK version in AEM 6.5:

      1. Override Styles: Add custom CSS to adjust the ColorField appearance to match the SDK version.
      2. Use Granite UI version: Try using the older granite/ui/components/coral/foundation/form/colorpicker resourceType if possible.
      3. Coral UI Customization: Explore Coral UI customization options to modify the default appearance in AEM 6.5.

      Custom CSS is the quickest approach if you're aiming for a visual match.
