Cannot install Magento AEM Connector package - ConstraintViolationException

  • January 17, 2019
  • 5 replies
  • 7713 views

While installing the package on AEM 6.4 (build is fine), the following error shows up:

Full error:

[ERROR] Request failed: org.apache.jackrabbit.vault.packaging.PackageException: javax.jcr.nodetype.ConstraintViolationException: OakConstraint0025: /apps/commerce/gui/content/catalogs/importblueprintswizard/importers[[nt:folder]]: Unexpected child node magento found in a new node (500)

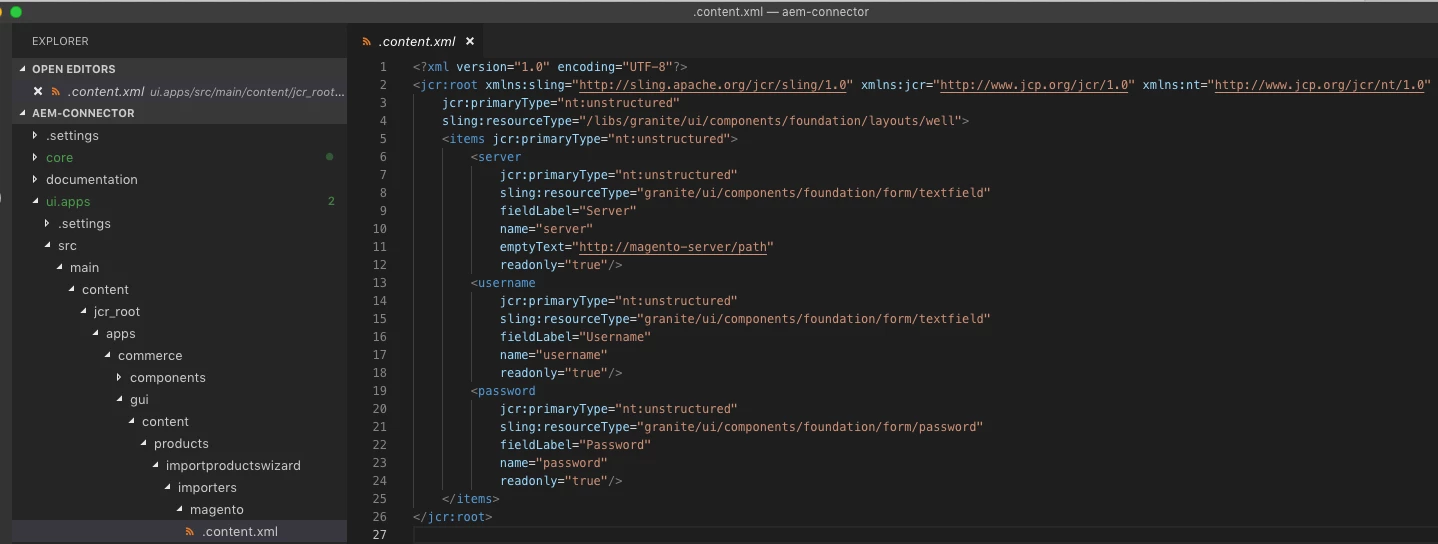

Code snapshot:

I changed  sling:resourceType="/libs/granite/ui/components/foundation/layouts/well"  from sling:resourceType="/granite/ui/components/foundation/well"

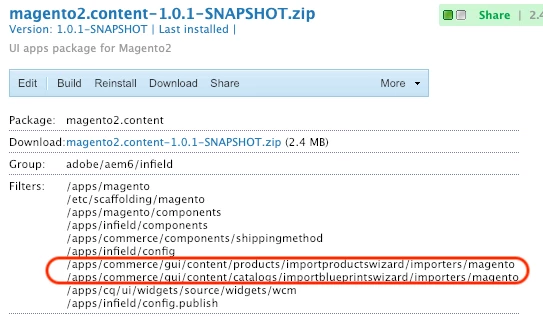

The package has contents as below:

Related to this AEM 6.3 - Magento Connector Issue  (also tried as suggested but did not resolve)

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by

Thanks gauravb10066713​

I was able to fix this. So the updated was to change jcr:primaryType="sling:Orderedfolder" instead of jcr:primaryType="nt:unstructured".

Fixes:

1. Replace jcr:primaryType="nt:unstructured" with jcr:primaryType="sling:Orderedfolder" for jcr:root (line 3) for both the below files:

  • .content.xml file under /magento2-aem-connector-master 2/aem-connector/ui.apps/src/main/content/jcr_root/apps/commerce/gui/content/catalogs/importblueprintswizard/importers/magento/
  • .content.xml file under /magento2-aem-connector-master 2/aem-connector/ui.apps/src/main/content/jcr_root/apps/commerce/gui/content/products/importproductswizard/importers/magento/

2. Rebuild and install the package 'mvn clean install -PautoInstallPackage'

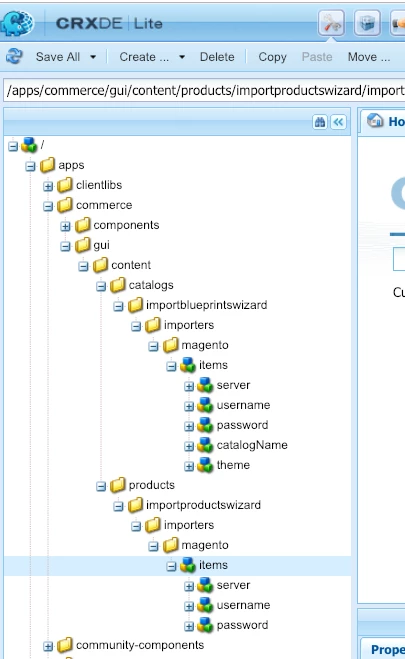

Check the repository.. nodes should have installed correctly:

5 replies

Gaurav-Behl
Gaurav-Behl
January 17, 2019

OakConstraint0025

Mandatory child node X not included in a new node

OakConstraint0025: /apps/commerce/gui/content/catalogs/importblueprintswizard/importers[[nt:folder]]: Unexpected child node magento found in a new node (500)

Try to create the folder - importers first may be manually, save it and then install the package or magneto node configuration and see if it works

smacdonald2008
smacdonald2008
January 17, 2019

Try that suggestion made by  Gaurav Behl. Let us know the outcome.

A
Anonymous
Accepted solution
January 17, 2019

Thanks gauravb10066713​

I was able to fix this. So the updated was to change jcr:primaryType="sling:Orderedfolder" instead of jcr:primaryType="nt:unstructured".

Fixes:

1. Replace jcr:primaryType="nt:unstructured" with jcr:primaryType="sling:Orderedfolder" for jcr:root (line 3) for both the below files:

  • .content.xml file under /magento2-aem-connector-master 2/aem-connector/ui.apps/src/main/content/jcr_root/apps/commerce/gui/content/catalogs/importblueprintswizard/importers/magento/
  • .content.xml file under /magento2-aem-connector-master 2/aem-connector/ui.apps/src/main/content/jcr_root/apps/commerce/gui/content/products/importproductswizard/importers/magento/

2. Rebuild and install the package 'mvn clean install -PautoInstallPackage'

Check the repository.. nodes should have installed correctly:

P
padmanabhang315
February 1, 2019

Hi Surenderakonathala,

                 Thanks for your post.Kindly change the

                                   jcr:primaryType="sling:Orderedfolder  to jcr:primaryType="sling:OrderedFolder ..now it will work,  Kindly share the step by step to integrate AEM6.4 with Magento2.3  Because there is no document ,your post going to save the time and it will helpful for aem developers.

Thank  you verymuch

Padmanabhan

sainathr3599094
sainathr3599094
April 8, 2019

Hi All,

I'm facing a problem to import product list from Magento to AEM. The error that I get during the import process is captured in the first screenshot. As you can see console log errors in the screenshot I do get the same errors when I import catalogs from Magento to AEM 6.4, however, the catalogs got imported, see the second screenshot

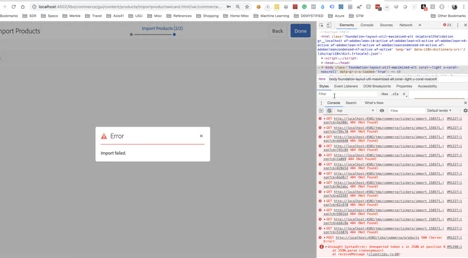

First screenshot:

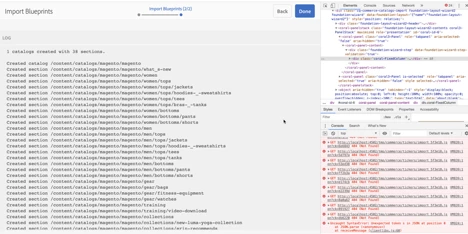

Second screenshot:

Can somebody help how to resolve this issue.


Secondly, how can we import the we.retail sample catalog to Magento. Any instructions will be helpful.
