AEM 6.3 - using parsys in htl files

  • July 12, 2017
  • 25 replies
  • 23198 views

[Thread Edited By Adobe]

/*Don’t forget to meet and greet your fellow peers virtually by telling them about yourself here.

Go ahead and to it now: https://adobe.ly/3eDnB4v */



Actual Post:

Hi All,



I am working with a HTL template and wanted to add some parsys components so we can make changes from the front end interface. Adding images, specifically.



My question is in regards to parsys resources. I have these tags in my html.

   <div class="logo" style="height:100px;">

           <sly data-sly-resource="${ @ resourceType='wcm/foundation/components/parsys'}"></sly>

   </div>



The problem is that from the front end editor these show as very tiny lines, and its impossible to click them. And if I click them and add an image to them, I have to refresh my browser because the changes aren't reflected in my current session. I don't see any errors in the console log.





Is there something I need to do to make these bigger? Viewing the source shows them having a class as container is-disabled. Could that be my issue? I can add a new component to the ones I can click, but clicking them is the hard part. If you also have any ideas for why I may have to refresh the browser for any changes to show up. (I.E, I add a new image but the option to configure it does not show up until I refresh the page)





<div data-type="Editable" data-path="/content/vhhomecare/Home/jcr:content/left-par" tabindex="0" draggable="false" class="cq-Overlay cq-Overlay--component cq-Overlay--container is-disabled" title="Paragraph System - HTL [Root]" style="top: 224px; left: 8px; width: 1887px; height: 37px;"><span title="Paragraph System - HTL [Root]" class="cq-Overlay--component-name">Paragraph System - HTL [Root]</span><div data-type="Editable" data-path="/content/vhhomecare/Home/jcr:content/left-par/*" tabindex="0" draggable="false" data-text="Drag components here" title="Paragraph System - HTL [Root]" class="cq-Overlay cq-Overlay--component cq-droptarget cq-Overlay--placeholder is-selected is-active" style="top: 0px; left: 0px; width: 1887px; height: 0px;"></div>





Let me know what you guys think or if I'm even doing this the right way, thanks for your help.



-Brendan





    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by brendanf9753525

    Hi Zeeshank,

    Thanks for your responses, I was able to figure out my problem! I needed to add an image as one of the allowed components in the design tab before I could click them in the edit tab. It had no allowed components so it wasn't clickable.

    They are still very small and every time I add a component to a parsys, I need to refresh the browser to get it to update. Any ideas why this would be happening?

    Not the worst, but at least I can add things again!

    Thanks

    Brendan

    25 replies

    Show previous replies
    zeeshanKhan0786
    zeeshanKhan0786
    Level 5
    July 12, 2017

    can you share the HomePage.jsp and is HomePage is a page component.Correct the name of HomePage.html and add <div data-sly-include="body.html"></div> in HomePage.html

      brendanf9753525
      brendanf9753525Author
      Level 4
      July 12, 2017

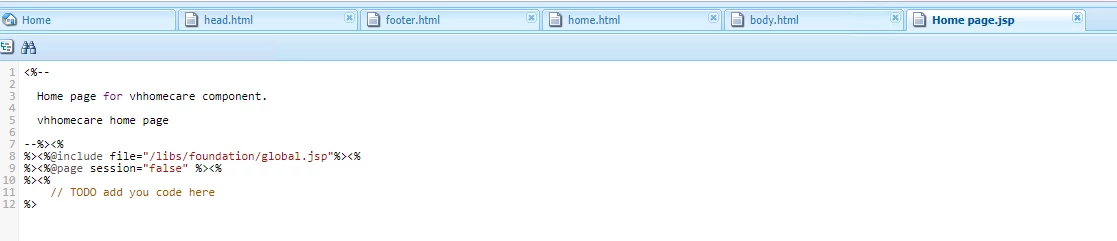

      Sure - HomePage.jsp

      And I'll make a HomePage.html

      This was able to load everything but I got the same issue of the UI not refreshing when I try to add something to the page. :/

      Brendan

        zeeshanKhan0786
        zeeshanKhan0786
        Level 5
        July 12, 2017

        can you paste the page screenshot with or wothout component.

          Feike_Visser1
          Adobe Employee
          Feike_Visser1Adobe Employee
          Adobe Employee
          July 13, 2017

          Also make sure to install CFP1 / 6.3.0.1

          It has this fix for this parsys:

          • The HTL based Paragraph System component (/libs/wcm/foundation/components/parsys) should be adapted to the new component wrapper behavior. NPR-16980; Hotfix for CQ-4206620, CQ-4206621
            brendanf9753525
            brendanf9753525Author
            Level 4
            July 13, 2017

            Hi Feike,

            Thanks for the suggestion, I installed that hotfix and see the same issue (not refreshing when I add/delete/change a component in parsys). My changes update okay but they do not reflect until I refresh the page. Do you have any other ideas for what could be causing this?

            Thanks

            Brendan

              brendanf9753525
              brendanf9753525Author
              Level 4
              July 13, 2017

              Hey Zeeshank,

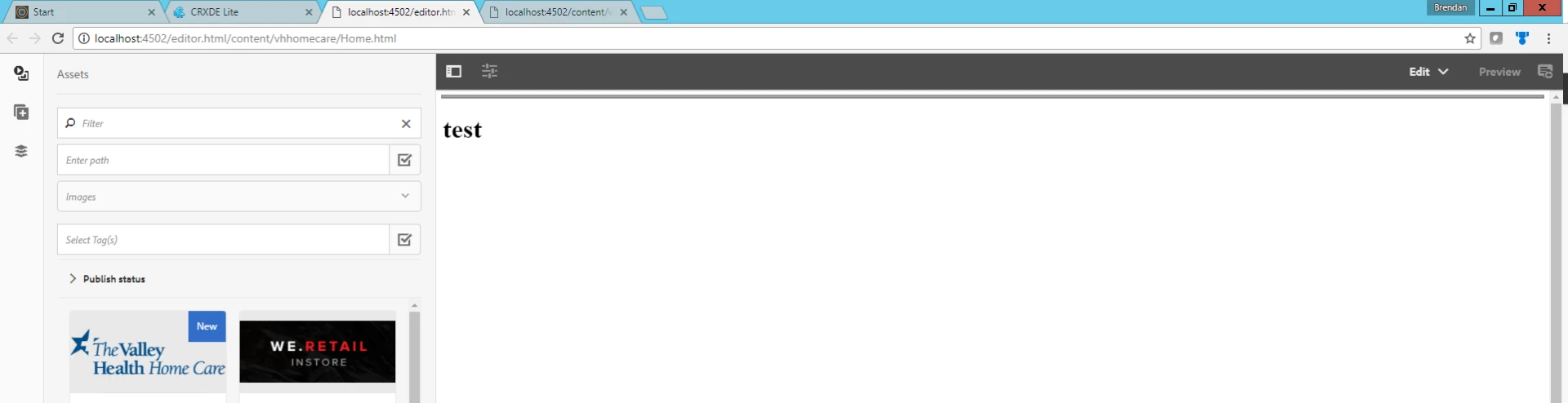

              Here is the page with the component. I can add an image

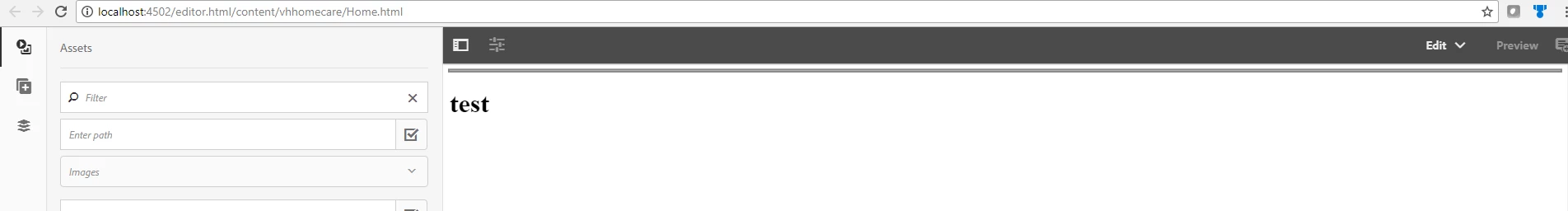

              After adding the image it looks like this until I refresh my browser

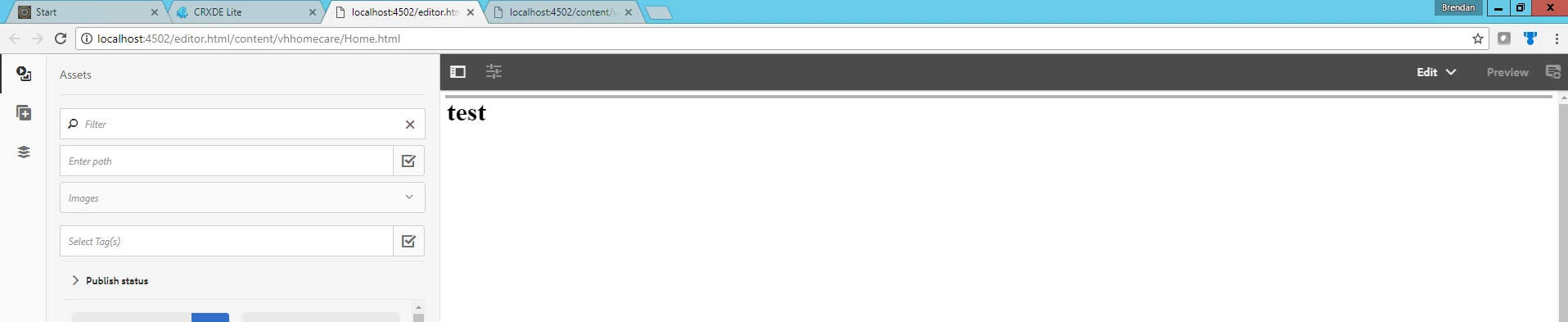

              Then refreshing it looks like this

              And with no components added and none allowed  in design mode it looks like this

              Here is the page screenshot in preview mode

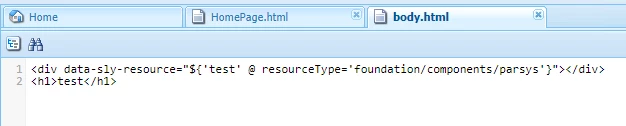

              Body.html screenshot

              Let me know what you think and I appreciate the time

              Brendan

                zeeshanKhan0786
                zeeshanKhan0786
                Level 5
                July 13, 2017

                Can you remove all ClientLib(css and js) loaded into the page and clear the browser cache and then reload the page.

                  brendanf9753525
                  brendanf9753525Author
                  Level 4
                  July 13, 2017

                  Hey Zeeshank,

                  It's removed. I didn't have any lucky with that, it looks like it is an internal library that is giving me the issue.

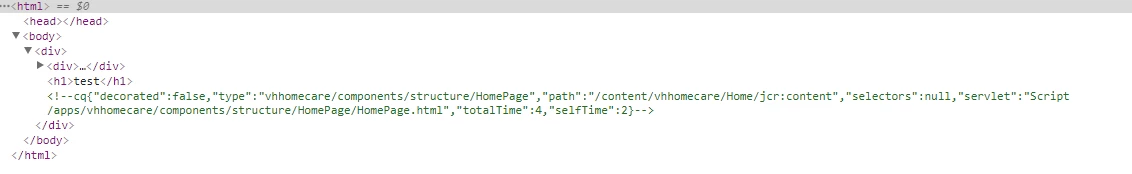

                  If I view the page outside of the editor it's HTML looks like this

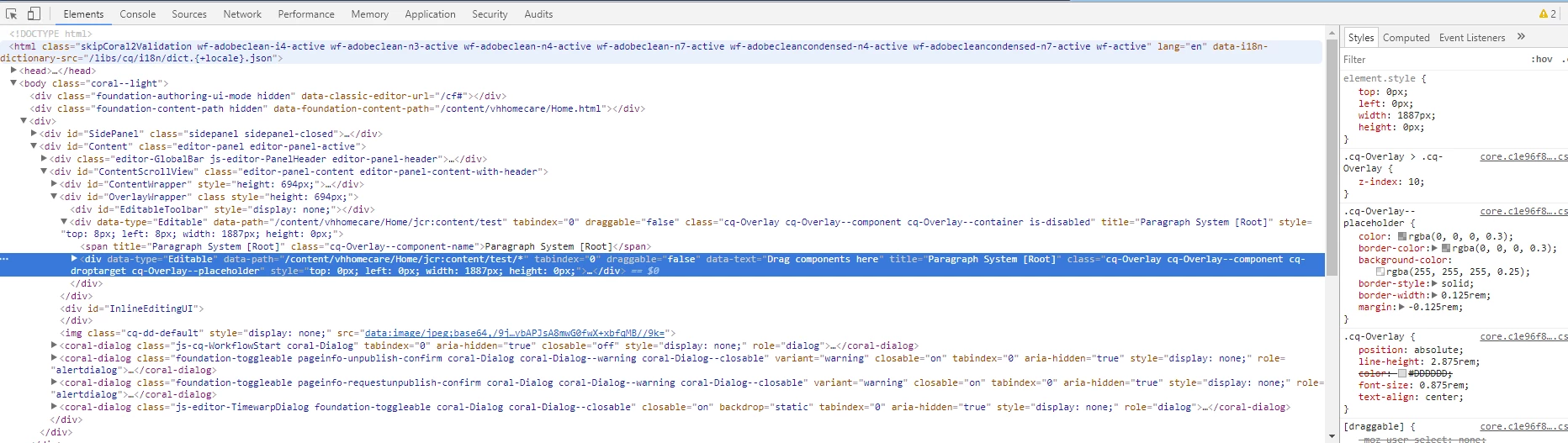

                  Inside the editor, specifically where the parsys is, it looks like this. You can see the height:0 px on the sidebar indicating why it is basically hidden, showing in the style=""

                    KbdNoOni
                    KbdNoOni
                    September 21, 2017

                    I've just had the same problem (0 height parsys) and it was fixed by the inclusion of the line: <div data-sly-include="head.html"></div>

                    With the following code I had a 0 height parsys:

                    <h4>Hello world! 3</h4>

                    <div data-sly-resource="${@path='par', resourceType='foundation/components/parsys'}"></div>

                    With the following code I had a 46px height parsys:

                    <h4>Hello world! 3</h4>

                    <div data-sly-include="head.html"></div>

                    <div data-sly-resource="${@path='par', resourceType='foundation/components/parsys'}"></div>

                      M
                      manasip9
                      Level 1
                      November 3, 2017

                      The parsys itself is just super tiny and unclickable. I had also faced the same issue and I figured out that:

                      we need to initialize the Experience Manager authoring UI by including the following code:

                      <!--/* Initializes the Experience Manager authoring UI */-->

                      <sly data-sly-include="/libs/wcm/core/components/init/init.jsp" data-sly-unwrap/>

                      Once you do this parsys comes like this:
