OOB HTML5 plugin is removing the p/div elements which is authored with class attributes

  • February 14, 2023
  • 1 svar
  • 605 visningar

Hi,

OOB HTML5 plugin is removing the authored elements (p, div etc)  when the class attribute is defined for that element. Instead if p/div elements, <span class="undefined_element" is enclosed between the authored text

Ex: add class/outputclass for p and div tags (<p class="p_test" otherprops="test" outputclass="telephone">507-123-1234</p><div class="divElement"> I am in div section</div>). Run the preset generation for the OOB HTML5 .



Authored p/div elements are stripping off in the generated html files, instead of authored content <span class="undefined_element"> is getting added if the class attributed is authored

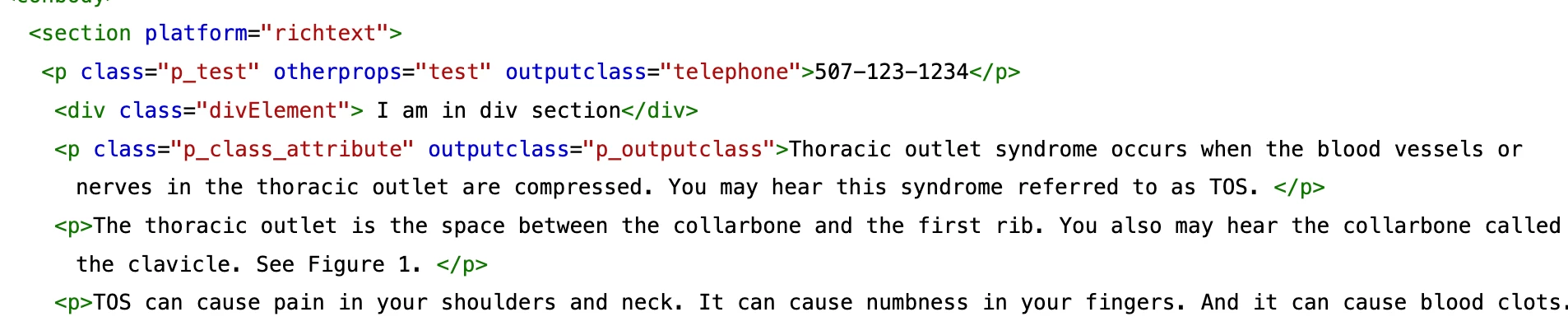

Below is the screenshot of the sample dita content

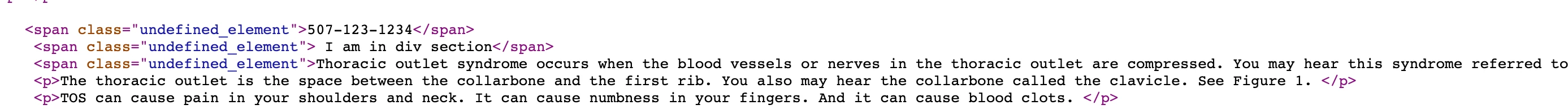

Generated HTML output without HTML5 customizations

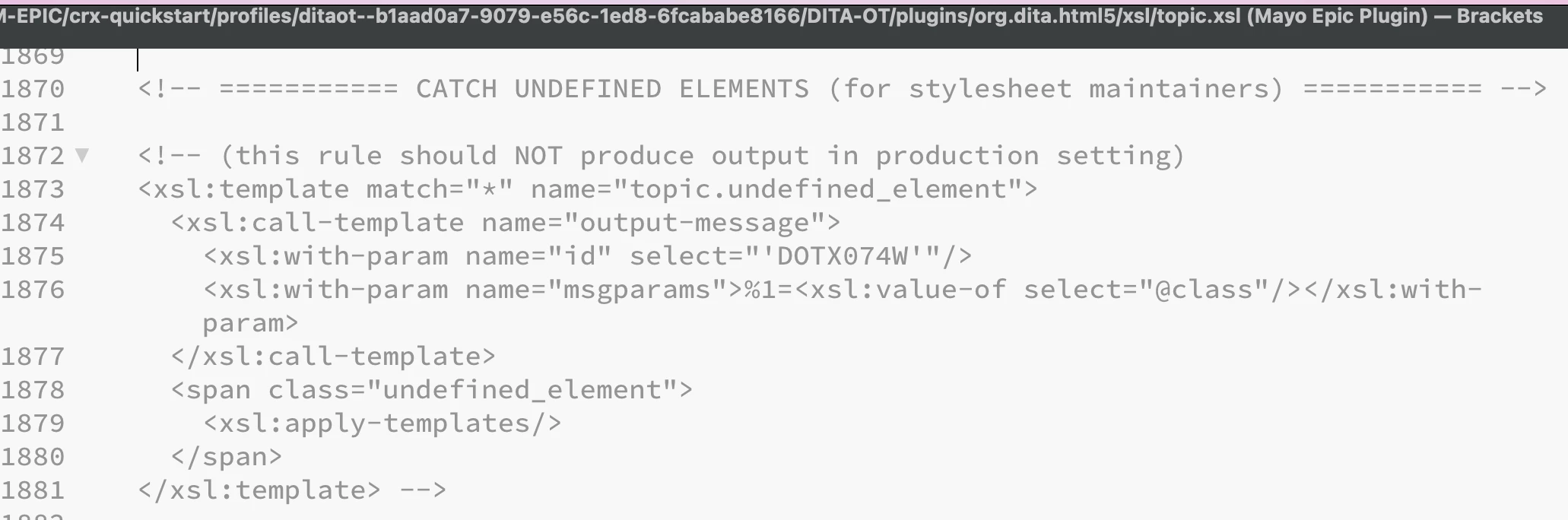

OOB Plugin Customizations: Commented below code block in the topic.xsl.

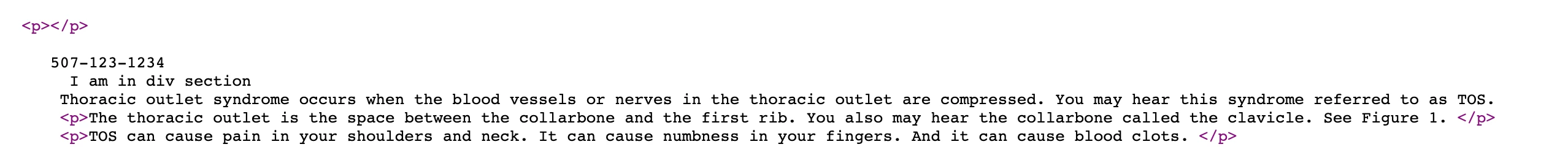

Below is the screenshot of generated HTML5 page after OOB Customization.



P/Div tags got stripped off in generated html5.

Could anyone guide me in retaining the same extact content along with the div/p elements with class attributes that are authored in the dita.

We are using latest version of fmdita -

com.adobe.fmdita.uuid-6.5-sp-4.1.3.2.zip

Thanks,

Swapna

Det här ämnet har stängts för svar.
Bästa svar av SwapnaNa

Issue is solved after authoring the content with outputclass instead of class. HTML5 plugin converts the outputclass to class in generated html. Note: Don't author class for any elements.

Ex: <p outputclass="telephone">507-123-1234</p>

1 svar

SwapnaNaSkribentSvar
Level 2
February 17, 2023

Issue is solved after authoring the content with outputclass instead of class. HTML5 plugin converts the outputclass to class in generated html. Note: Don't author class for any elements.

Ex: <p outputclass="telephone">507-123-1234</p>
