Fail to create a form with core components basing on xsd schemas | Community
Skip to main content
I
IharIvanovAxamit
Level 2
November 17, 2023

Fail to create a form with core components basing on xsd schemas

  • November 17, 2023
  • 1 reply
  • 937 views

Hello community. I hope you are doing well. I will I have faced an issue while creating a form basing on an xsd schema. We use core components (and a template with the core page component).

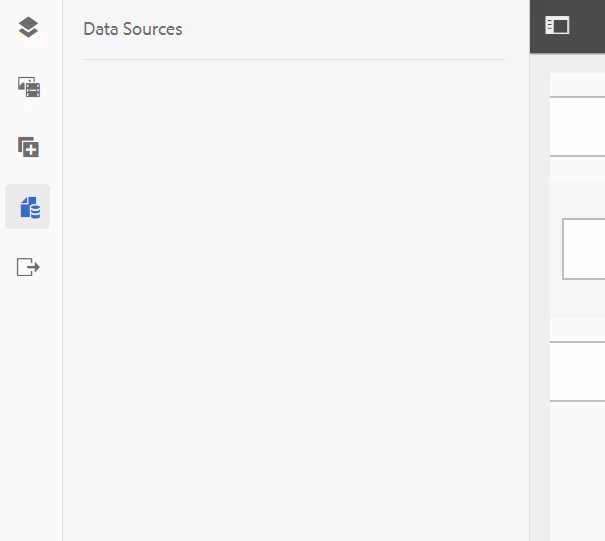

Although the schema is valid, Data Source is emty after creating a form.

If use the same schema for creating a form with OOTB  components, everything is ok.
I have found follow in a log file:



com.adobe.aemds.guide.service.impl.GuideModelImporterImpl Error in reading JSON Schema from path/content/dam/formsanddocuments/schemas/schema.xsd/jcr:content/renditions/original
com.adobe.aemds.guide.service.GuideException: Error in reading JSON Schema from URI
at com.adobe.aemds.guide.service.impl.GuideModelImporterImpl.importFromJSONUri(GuideModelImporterImpl.java:713) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.aemds.guide.service.impl.GuideModelImporterImpl.importFromJSONUri(GuideModelImporterImpl.java:686) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.aemds.guide.service.impl.GuideModelImporterImpl.importFromJSONSchema(GuideModelImporterImpl.java:647) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.aemds.guide.service.impl.GuideModelImporterImpl.importFromJSONSchema(GuideModelImporterImpl.java:598) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.aemds.guide.service.impl.GuideModelImporterImpl.createFormJsonFromJsonSchema(GuideModelImporterImpl.java:1523) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.aemds.guide.service.impl.GuideModelImporterImpl.createFormJsonFromSchema(GuideModelImporterImpl.java:1458) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.aemds.guide.service.impl.FormJsonDataSchema$1.call(FormJsonDataSchema.java:89) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.aemds.guide.service.impl.FormJsonDataSchema$1.call(FormJsonDataSchema.java:82) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.granite.resourceresolverhelper.impl.ResourceResolverHelperImpl.callWith(ResourceResolverHelperImpl.java:65) [com.adobe.granite.resourceresolverhelper:1.0.4]
at com.adobe.aemds.guide.service.impl.FormJsonDataSchema.getJsonFromSchema(FormJsonDataSchema.java:82) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.aemds.guide.service.impl.FormDataSchemaOperation.serve(FormDataSchemaOperation.java:75) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at com.adobe.aemds.guide.internal.impl.servlet.FormContainerCoreServlet.doGet(FormContainerCoreServlet.java:40) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
at javax.servlet.http.HttpServlet.service(HttpServlet.java:655) [org.apache.felix.http.servlet-api:1.2.0]
at javax.servlet.http.HttpServlet.service(HttpServlet.java:764) [org.apache.felix.http.servlet-api:1.2.0]
at org.apache.felix.http.base.internal.handler.ServletHandler.handle(ServletHandler.java:127) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.dispatch.InvocationChain.doFilter(InvocationChain.java:86) [org.apache.felix.http.jetty:4.2.12]
at com.adobe.granite.license.impl.LicenseCheckFilter.doFilter(LicenseCheckFilter.java:308) [com.adobe.granite.license:1.2.10]
at org.apache.felix.http.base.internal.handler.FilterHandler.handle(FilterHandler.java:149) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.dispatch.InvocationChain.doFilter(InvocationChain.java:81) [org.apache.felix.http.jetty:4.2.12]
at org.apache.sling.i18n.impl.I18NFilter.doFilter(I18NFilter.java:131) [org.apache.sling.i18n:2.6.2]
at org.apache.felix.http.base.internal.handler.FilterHandler.handle(FilterHandler.java:149) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.dispatch.InvocationChain.doFilter(InvocationChain.java:81) [org.apache.felix.http.jetty:4.2.12]
at org.apache.sling.engine.impl.log.RequestLoggerFilter.doFilter(RequestLoggerFilter.java:73) [org.apache.sling.engine:2.7.10.B0004]
at org.apache.felix.http.base.internal.handler.FilterHandler.handle(FilterHandler.java:149) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.dispatch.InvocationChain.doFilter(InvocationChain.java:81) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.dispatch.Dispatcher$1.doFilter(Dispatcher.java:152) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.whiteboard.WhiteboardManager$2.doFilter(WhiteboardManager.java:1000) [org.apache.felix.http.jetty:4.2.12]
at com.adobe.granite.auth.oauth.impl.OAuthCallbackFilter.doFilter(OAuthCallbackFilter.java:78) [com.adobe.granite.auth.oauth:1.10.8]
at org.apache.felix.http.base.internal.handler.PreprocessorHandler.handle(PreprocessorHandler.java:137) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.whiteboard.WhiteboardManager$2.doFilter(WhiteboardManager.java:1006) [org.apache.felix.http.jetty:4.2.12]
at org.apache.sling.security.impl.ReferrerFilter.doFilter(ReferrerFilter.java:326) [org.apache.sling.security:1.1.16]
at org.apache.felix.http.base.internal.handler.PreprocessorHandler.handle(PreprocessorHandler.java:137) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.whiteboard.WhiteboardManager$2.doFilter(WhiteboardManager.java:1006) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.sslfilter.internal.SslFilter.doFilter(SslFilter.java:97) [org.apache.felix.http.sslfilter:1.2.6]
at org.apache.felix.http.base.internal.handler.PreprocessorHandler.handle(PreprocessorHandler.java:137) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.whiteboard.WhiteboardManager$2.doFilter(WhiteboardManager.java:1006) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.whiteboard.WhiteboardManager.invokePreprocessors(WhiteboardManager.java:1010) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.dispatch.Dispatcher.dispatch(Dispatcher.java:94) [org.apache.felix.http.jetty:4.2.12]
at org.apache.felix.http.base.internal.dispatch.DispatcherServlet.service(DispatcherServlet.java:49) [org.apache.felix.http.jetty:4.2.12]
at javax.servlet.http.HttpServlet.service(HttpServlet.java:764) [org.apache.felix.http.servlet-api:1.2.0]
at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:799) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:554) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:233) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:1624) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:233) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1440) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:188) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:505) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:1594) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:186) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1355) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:141) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.handler.ContextHandlerCollection.handle(ContextHandlerCollection.java:191) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:127) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.Server.handle(Server.java:516) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.HttpChannel.lambda$handle$1(HttpChannel.java:487) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.HttpChannel.dispatch(HttpChannel.java:732) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:479) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:277) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:311) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:105) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.io.ChannelEndPoint$1.run(ChannelEndPoint.java:104) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.runTask(EatWhatYouKill.java:338) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.doProduce(EatWhatYouKill.java:315) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.tryProduce(EatWhatYouKill.java:173) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.run(EatWhatYouKill.java:131) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.util.thread.ReservedThreadExecutor$ReservedThread.run(ReservedThreadExecutor.java:409) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:883) [org.apache.felix.http.jetty:4.2.12]
at org.eclipse.jetty.util.thread.QueuedThreadPool$Runner.run(QueuedThreadPool.java:1034) [org.apache.felix.http.jetty:4.2.12]
at java.base/java.lang.Thread.run(Thread.java:834)
Caused by: com.github.fge.jsonschema.core.exceptions.ProcessingException: fatal: content at URI "crx:/content/dam/formsanddocuments/schemas/schema.xsd#" is not valid JSON
    level: "fatal"
    uri: "crx:/content/dam/formsanddocuments/schemas/schema.xsd#"
    parsingMessage: "Unexpected character ('<' (code 60)): expected a valid value (JSON String, Number, Array, Object or token 'null', 'true' or 'false')"

at com.github.fge.jsonschema.core.load.URIManager.getContent(URIManager.java:110) [com.adobe.cq.json-schema-parser:4.0.158]
at com.github.fge.jsonschema.core.load.SchemaLoader$1.load(SchemaLoader.java:115) [com.adobe.cq.json-schema-parser:4.0.158]
at com.github.fge.jsonschema.core.load.SchemaLoader$1.load(SchemaLoader.java:109) [com.adobe.cq.json-schema-parser:4.0.158]
at com.google.common.cache.LocalCache$LoadingValueReference.loadFuture(LocalCache.java:3524)
at com.google.common.cache.LocalCache$Segment.loadSync(LocalCache.java:2317)
at com.google.common.cache.LocalCache$Segment.lockedGetOrLoad(LocalCache.java:2280)
at com.google.common.cache.LocalCache$Segment.get(LocalCache.java:2195)
at com.google.common.cache.LocalCache.get(LocalCache.java:3934)
at com.google.common.cache.LocalCache.getOrLoad(LocalCache.java:3938)
at com.google.common.cache.LocalCache$LocalLoadingCache.get(LocalCache.java:4821)
at com.github.fge.jsonschema.core.load.SchemaLoader.get(SchemaLoader.java:172) [com.adobe.cq.json-schema-parser:4.0.158]
at com.adobe.cq.jsonschema.parser.impl.JsonSchemaParserValidator.<init>(JsonSchemaParserValidator.java:154) [com.adobe.cq.json-schema-parser:4.0.158]
at com.adobe.cq.jsonschema.parser.impl.JsonSchemaParserValidatorImpl.getResolvedObject(JsonSchemaParserValidatorImpl.java:98) [com.adobe.cq.json-schema-parser:4.0.158]
at com.adobe.cq.jsonschema.parser.impl.JsonSchemaParserValidatorImpl.getResolvedObject(JsonSchemaParserValidatorImpl.java:34) [com.adobe.cq.json-schema-parser:4.0.158]
at com.adobe.aemds.guide.service.impl.GuideModelImporterImpl.importFromJSONUri(GuideModelImporterImpl.java:705) [com.adobe.aemds.guide.aemds-guide-core-impl:6.0.596]
... 69 common frames omitted

Do you have any ideas why XSD file is parsed as a json one?
This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

1 reply

Vijay_Katoch
Community Advisor
Vijay_KatochCommunity Advisor
Community Advisor
November 20, 2023

From the logs seems like your schema is not valid, are you using json or xsd file? Need to check your schema.


Caused by: com.github.fge.jsonschema.core.exceptions.ProcessingException: fatal: content at URI "crx:/content/dam/formsanddocuments/schemas/schema.xsd#" is not valid JSON
    level: "fatal"
    uri: "crx:/content/dam/formsanddocuments/schemas/schema.xsd#"
    parsingMessage: "Unexpected character ('<' (code 60)): expected a valid value (JSON String, Number, Array, Object or token 'null', 'true' or 'false')"
    I
    IharIvanovAxamitAuthor
    Level 2
    November 20, 2023

    Hello @vijay_katoch We use an xsd file. But I have no ideas why it is parsed as a json file. Example of the test schema:

    <?xml version="1.0" encoding="utf-8" ?>
    <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" targetNamespace="https://adobe.com/sample.xsd"
                        xmlns="https://adobe.com/sample.xsd"
               attributeFormDefault="unqualified" elementFormDefault="qualified">

        <xs:element name="sample" type="SampleType"/>

    <xs:complexType name="SampleType">
    <xs:sequence>
    <xs:element name="leaderName" type="xs:string" default="Enter Name"/>
    </xs:sequence>
    </xs:complexType>
    </xs:schema>



      Vijay_Katoch
      Community Advisor
      Vijay_KatochCommunity Advisor
      Community Advisor
      November 20, 2023

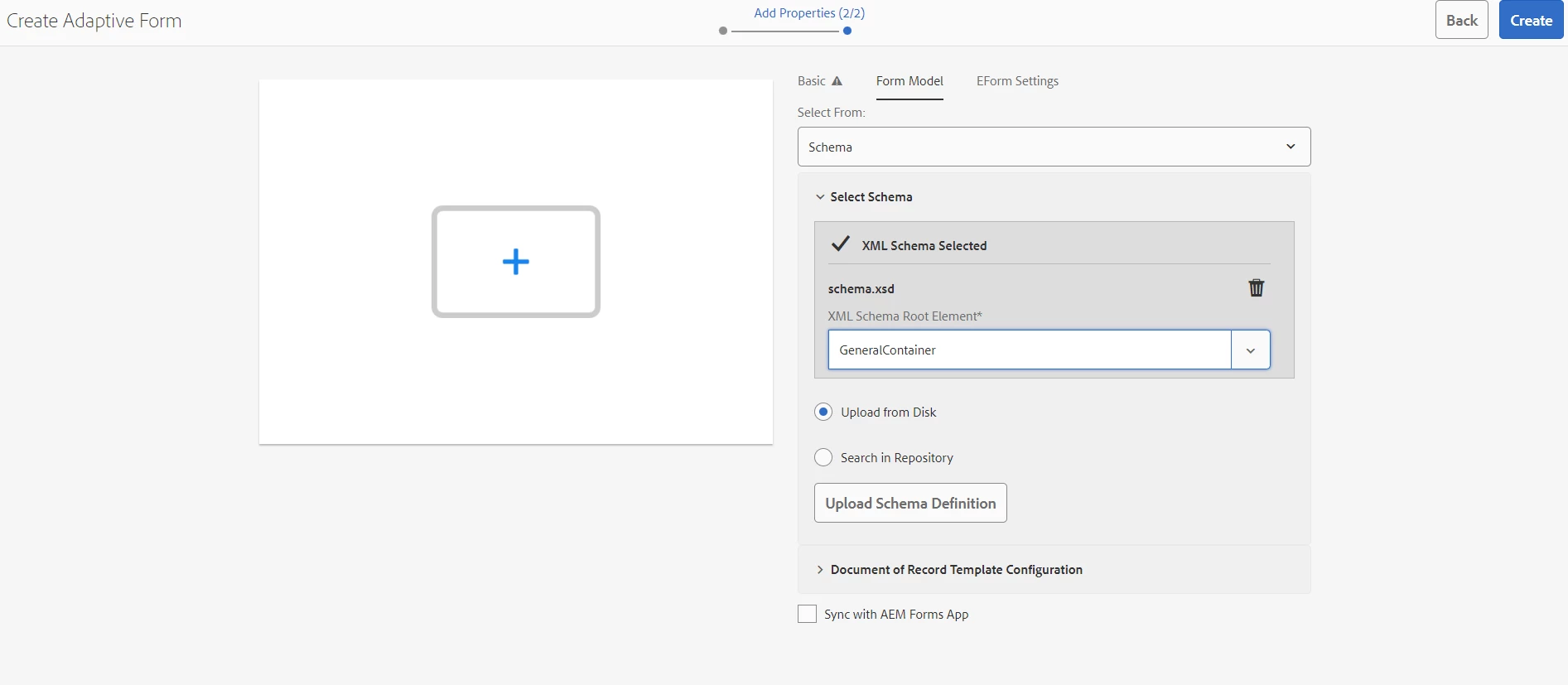

      Please select the Root element correctly while uploading the schema or the schema you are using in your form.
