AEM Assets References Update Programmatically

  • July 11, 2022
  • 2 replies
  • 4058 views

Hi All,



We have a use-case where we are exposing AEM DAM to an internal 3rd party app.

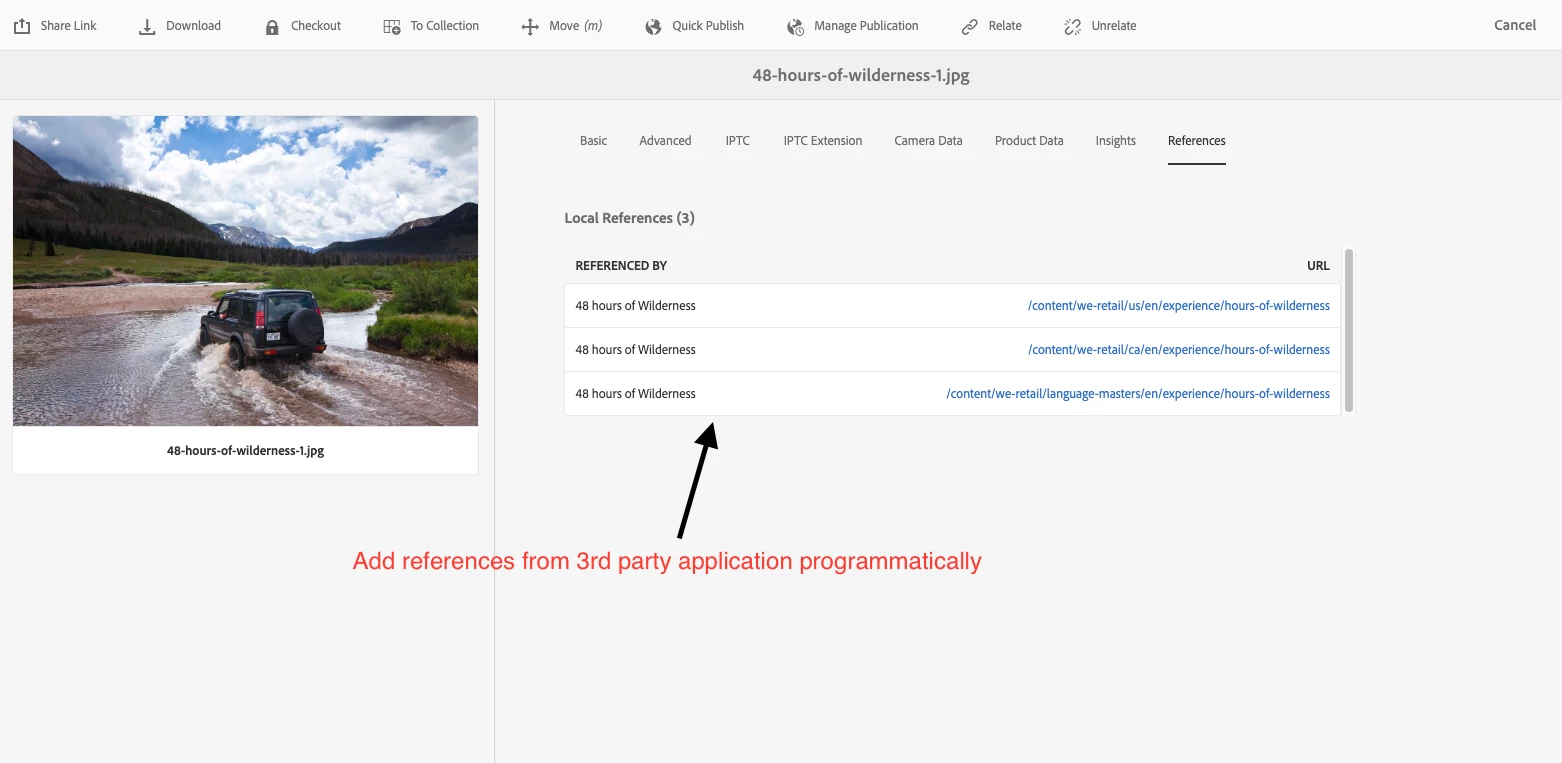

We want to track if assets in AEM are being used/referenced in the 3rd party application. Is there any way we can programmatically update Asset references in AEM? I have already looked into Asset Manager API and could not find a way.

We were thinking to expose an endpoint from AEM which would hit by third part app. It would add references programmatically in AEM.



Thanks









    Best answer by Aditya_Chabuku

    Hi @beast42 , We implemented a similar scenario once.

    Follow these steps & you should be achieving this

    • Storing External Resources under Asset
      • Create a Listener to record every time an asset is being called from a 3rd party API.
      • Capture that URL along with the Title of that call.
      • Store this information under a custom node in that particular asset.
    • Displaying saved External Resources
      • Create a data source under /libs/dam/remoteassets/content/allreferences
      • add a custom data source java class as sling:resourceType
        sling:resourceType
        String
        <your custom java servlet with ResourceType>
      • This Servlet will give go & get all external resources you have stored under your custom node.
      • Now, populate them under References tab, for that refer this Internal references JSP /libs/dam/remoteassets/content/allreferences/datasource

    This is one of many approaches, but can be easily done.



    ~Aditya.Ch



    2 replies

    SantoshSai
    Community Advisor
    SantoshSaiCommunity Advisor
    Community Advisor
    July 12, 2022

    Hi @beast42 ,

    There are two aspects considering your scenario

    1. Rendering references in Reference tab of Asset

      DAM Asset References in AEM are shown based on Query ie. finding where all it has been used and accordingly prepares table and shown in Reference tab.

      Below are reference.html and Reference.Java responsible for the same

      /libs/dam/remoteassets/components/references/reference/reference.html
      /libs/dam/remoteassets/components/references/reference/Reference.java
      You can override it, to have your asset reference listed in this table of Reference tab.

    2. Finding references of Asset

      How can you find reference of asset whether it has been used by 3rd party?
      There can be multiple ways but one I have in my mind is - You can get some String/Boolean value from 3rd party agent and use that for listing in above Reference tab.

    Additionally just for your reference - You can also find references of asset programatically - sharing code snippet below

    String Pagepath = "/content/we-retail/en"; //This would be your page path
Resource r = resourceResolver.getResource(Pagepath+"/"+JcrConstants.JCR_CONTENT);
Node n = r.adaptTo(Node.class);
AssetReferenceSearch ref = new AssetReferenceSearch(n,DamConstants.MOUNTPOINT_ASSETS,resourceResolver);

Map<String,Asset> allref = new HashMap<String,Asset>();
allref.putAll(ref.search());
for (Map.Entry<String, Asset> entry : allref.entrySet()) {
      String val = entry.getKey();
      out.println(val+"<br>"); // Path of all Asset ref in page
      Asset asset = entry.getValue();
   }

    Hope that helps!

    Regards,

    Santosh

    Santosh Sai
      B
      beast42Author
      Level 3
      July 14, 2022

      Thanks @santoshsai . We'll explore this approach further.

        Aditya_Chabuku
        Community Advisor
        Aditya_ChabukuCommunity AdvisorAccepted solution
        Community Advisor
        July 12, 2022

        Hi @beast42 , We implemented a similar scenario once.

        Follow these steps & you should be achieving this

        • Storing External Resources under Asset
          • Create a Listener to record every time an asset is being called from a 3rd party API.
          • Capture that URL along with the Title of that call.
          • Store this information under a custom node in that particular asset.
        • Displaying saved External Resources
          • Create a data source under /libs/dam/remoteassets/content/allreferences
          • add a custom data source java class as sling:resourceType
            sling:resourceType
            String
            <your custom java servlet with ResourceType>
          • This Servlet will give go & get all external resources you have stored under your custom node.
          • Now, populate them under References tab, for that refer this Internal references JSP /libs/dam/remoteassets/content/allreferences/datasource

        This is one of many approaches, but can be easily done.



        ~Aditya.Ch



        Thanks,Aditya Chabuku
          B
          beast42Author
          Level 3
          July 14, 2022

          Thanks @aditya_chabuku  . We'll explore this approach further.
