Community Advisor

Solved

Format is distorted in Outlook

Forum|Forum|1 month ago
January 21, 2026
7 replies
219 views

HI Peers,

I am facing an issue with email display in Outlook.

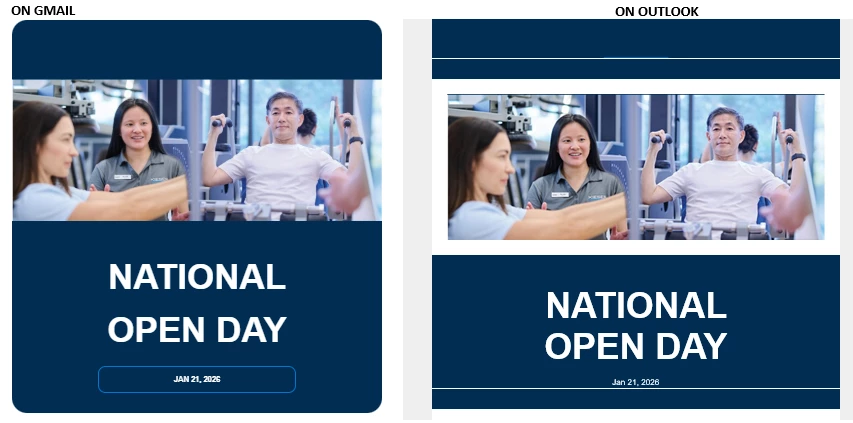

I have an email template developed from html for New email editor & when i send the test content in outlook the css is not rendered correctly where as in Gmail its displayed correctly.

Any suggestion/solution will be appreciated.

Best answer by Jasbirka

Hi @uditmathur - The code you shared has all the styles directly added to the button tag, which isn't supported by Outlook clients. The button below is still working better, so you can follow that same approach.

CLICK HERE TO STAY UPDATED WITH CLINIC NEWS

Disha_Goyal6

Community Advisor

Hi @uditmathur , please share the screenshot of the setting and please check the padding in style section.

uditmathur

Author

Community Advisor

HI @Disha_Goyal6 ,

Setting in outlook?

This is the PADDING

<table width="800" cellpadding="0" cellspacing="0" border="0" bgcolor="#ffffff" style="width:800px;">

K

KayNg1

Level 1

From my understanding, the CTA button should have set width and height values, and the border styles should be removed.

SanfordWhiteman

Level 10

Please give us the full HTML (using the Embed Code option or perhaps a link to an external Gist/etc.).

Tiny snippets aren’t useful unless you’re 100.00% sure there aren’t other styles affecting the output.

uditmathur

Author

Community Advisor


<!DOCTYPE html>
<html data-source-chatid="2bcf426b-a0c0-4424-9092-8fec77349c34"><head><meta charset="utf-8"><!--[if gte mso 9]><style acrite-mso-css="true">.image-container div {  display: block;}.structure__table td {  padding: 0;  border: none;}.button-container {  border: none !important;  padding: 0 !important;  margin: 0 !important;  line-height: normal !important;}.acr-structure {  margin: 0 !important;}.acr-component, .acr-tmp-component {  margin: 0 !important;  border: none !important;}.acr-fragment {  margin: 0 !important;  border: none !important;}.colspan1, .colspan2, .colspan3, .colspan4, .colspan33, .colspan66 {  box-sizing: border-box !important;}.divider-mso-hidden {  border: none !important;}</style><![endif]--><style data-name="default" type="text/css">.acr-dark-img{display:none;}</style><style data-name="media-custom-prefers-color-scheme-dark" type="text/css">@media (prefers-color-scheme: dark){.acr-dark-img{display:block!important;}.acr-light-img{display:none!important;}}</style><title>HI</title></head><body style="margin:0;padding:0;background:#ffffff;font-family:'arial';" class="is-html-mode" data-contenteditable="true"><table width="100%" border="0" cellspacing="0" cellpadding="0" bgcolor="#efefef" style="background-color:#efefef;"><tbody><tr><td align="center" data-source-chatid="d189cff8-a038-42c6-9876-8def8d99cdc4"><table width="800" border="0" cellspacing="0" cellpadding="0" style="max-width:800px;background-color:#ffffff;padding:30px;" data-source-chatid="79392619-5865-425e-bdb1-e49e5bc757e2"><tbody><tr><td align="center" bgcolor="#012d52" style="padding:40px;border-radius:30px 30px 0 0;" data-source-chatid="2db07a66-7a27-411e-871e-02587ee11627"><img src="http://images/logo-white.png" data-img-inline="true" data-medialibrary-id="10533">
                           <a href="#"></a>
                        </td></tr><tr><td>
                            <img src="http://images/secondemaillayoutbanner.png" width="100%" style="display:block;">
                        </td></tr><tr><td align="center" bgcolor="#012d52" style="padding:40px;font-family:'arial';border-radius:0 0 30px 30px;">
                            <h2 style="text-transform:uppercase;color:white;font-weight:bold;font-size:70px;margin:20px 0;">National <br> Open Day</h2>
                            <button style="text-align:center;color:white;padding:16px;background:transparent;font-size:15px;border:2px solid #0076cd;font-weight:700;width:60%;font-family:'arial';font-weight:200;border-radius:15px;text-transform:uppercase;font-weight:bold;display:inline-block;">
                                {{system.date}}</button>
                        </td></tr><tr><td align="center" style="padding:40px 20px;font-size:22px;color:#000;" data-source-chatid="af8e56d3-f972-4e2a-8162-746486f8900e"><p style="margin:0;text-align:left;font-family:'arial';color:#012d52;font-weight:bold;">Hi {{lead.First Name}},</p><br><p style="margin:0;text-align:left;font-family:'arial';font-weight:200;line-height:1.4;" data-source-chatid="dcd5d998-3891-41ed-8bc0-bf78358aa4ae">
                                Do you know someone who could benefit from?
                                Invite your friends and family to come and experience
                                at our first-ever National Open Day.</p><p style="text-align:left;font-family:'arial';font-weight:200;line-height:1.4;" data-source-chatid="2d96403b-ac33-46f2-9666-3684a69ba341">
                                It’s the ideal opportunity to discover
                                how strength training
                                can support people of all ages and conditions.</p><p style="color:#012d52;text-align:left;font-weight:700;margin:0 0 10px;font-family:'DejaVu Sans';" data-source-chatid="d6062177-5648-4302-a2e6-ee1cfed38dba">
                                Our Open
                                Day is their chance
                                to:</p><ul style="text-align:left;margin:0 0 0;font-family:'arial';font-weight:200;padding-left:40px;"><li style="font-family:'arial';line-height:1.4;" data-source-chatid="150ef39d-048e-49d3-98d2-a1621a64e9a8">trial our Swiss‑engineered
                                    strength machines</li><li style="font-family:'arial';line-height:1.4;">connect with our
                                        university‑qualified health
                                        professionals</li><li style="font-family:'arial';line-height:1.4;" data-source-chatid="ce59e4e4-8561-4371-aed6-7e307e895b12">learn how strength training
                                        can help manage
                                        pain, prevent injury and support
                                        lifelong health</li><li style="font-family:'arial';line-height:1.4;">attend free presentations
                                        by our
                                        physiotherapists, exercise physiologists &
                                        exercise scientists.</li></ul></td></tr><tr><td bgcolor="#f9f9f9" style="padding:00px;"><table width="100%" border="0" cellspacing="0" cellpadding="0"><tbody><tr><td valign="top" style="padding:30px;"><table width="100%" cellpadding="6"><tbody><tr><td width="40">
                                                <img src="http://images/location.png" alt width="30">

                                            </td><td style="color:#012d52;font-size:20px;font-weight:bold;font-family:'DejaVu Sans';">{{system.date}}</td></tr><tr><td width="40">
                                                <img src="http://images/clock.png" alt width="30">
                                            </td><td style="color:#012d52;font-size:20px;font-weight:bold;font-family:'DejaVu Sans';">{{system.time}}</td></tr><tr><td width="40">
                                                <img src="http://images/calender.png" alt width="30">

                                            </td><td style="color:#012d52;font-size:20px;font-weight:bold;font-family:'DejaVu Sans';">{{lead.City}}</td></tr></tbody></table></td></tr></tbody></table></td></tr><tr><td bgcolor="#0076cd" style="color:#fff;padding:30px;border-radius:0 0 20px 20px;margin-bottom:20px;font-family:'arial';" data-source-chatid="b47b81a7-bdf7-4303-a038-0a6594215d9d">
                            <h3 style="color:#fff;font-size:40px;font-weight:bold;margin:0 0 20px;">
                                Be the reason someone
                                takes their first step
                                toward better health</h3><table width="100%" cellpadding="0" cellspacing="0"><tbody><tr><td align="center">
                                            <a href="#" style="display:inline-block;width:100%;text-align:left;padding:15px 20px;font-family:'arial';color:#fff;border:2px solid #fff;text-decoration:none;font-size:16px;border-radius:10px;box-sizing:border-box;" data-source-chatid="2737eb94-3396-4c9c-884d-343c50c0de8c">
                                                <span data-source-chatid="91c1fea7-c7df-4efd-8b0c-9c21b0b7a9ff" class style="font-size:16px;line-height:18px;font-family:arial;color:rgb(255, 255, 255);text-align:center;font-weight:normal;font-style:normal;">CLICK HERE TO STAY UPDATED WITH CLINIC NEWS</span>
                                                <img src="http://images/chevron-right.png" width="18" height="18" style="float:right;" data-source-chatid="4fe88ffa-85d3-404c-a5f1-d84a77300f45">
                                            </a>
                                        </td></tr></tbody></table></td></tr><tr><td><table width="100%" style="border-top:2px solid #0076cd;border-bottom:2px solid #0076cd;margin-top:25px;"><tbody><tr style="margin-top:20px;"><td align="left" style="font-weight:bold;font-size:16px;font-family:'arial';color:#012d52;" data-source-chatid="33f8e49d-ca35-4284-b5fa-06dc59339bab">
                                       <a href="http://www." style="text-decoration:none;color:#012d52;" data-source-chatid="2a9439a8-9234-49c0-95b4-08041670275d" data-nl-type="externalLink"> WEBSITE</a>    <a href="http://www./location" style="text-decoration:none;color:#012d52;" data-source-chatid="53b737ad-49a0-4231-be66-bc2fdcf27abc" data-nl-type="externalLink"> LOCATION</a>    <a href="http://www./contact" style="text-decoration:none;color:#012d52;" class data-source-chatid="1866c4ff-35bb-47ce-947d-0cd327a9b144" data-nl-type="externalLink"> CONTACT</a>
                                    </td><td align="right">
                                        <a href="#" style="text-decoration:none;"><img src="http://images/facebook.png"></a>
                                        <a href="#" style="text-decoration:none;"><img src="http://images/instagram.png"></a>
                                        <a href="#" style="text-decoration:none;"><img src="http://images/twitter.png"></a>
                                        <a href="#" style="text-decoration:none;"><img src="http://images/youtube.png"></a>
                                    </td></tr></tbody></table></td></tr></tbody></table></td></tr><tr><td align="center" style="padding:20px;font-size:16px;color:#000;"><p style="margin:0;font-family:'arial';font-weight:200;font-size:18px;"><a href="#" style="color:#000;" data-source-chatid="24765882-8dd3-4e8f-8fe3-856e4f375282">Unsubscribe</a>
                                  |   <a href="#" style="color:#000;">Manage
                                Preference</a>   |   <a href="#" style="color:#000;">View Online</a></p><p style="font-size:18px;color:#000;font-family:'arial';font-weight:200;">Was This Email Forwarded
                                To You? <a href="#" style="text-decoration:underline;font-family:'arial';color:black;">Sign
                                    Up Here</a></p></td></tr></tbody></table></body></html>

Hi @SanfordWhiteman ,

Here is the HTML code.

I have remover identification marks (image urls).

Jasbirka

Level 5

Could you please explain how you created this button? Based on the code, it looks like all the styling is applied directly to the button tag, which Outlook does not support. This is likely why the button appears distorted in Outlook. Also, which specific version of Outlook are you experiencing this issue with?

Jasbirka

Level 5

Hi @uditmathur - Could you please explain how you created this button? Based on the code, it looks like all the styling is applied directly to the button tag, which Outlook does not support. This is likely why the button appears distorted in Outlook. Also, which specific version of Outlook are you experiencing this issue with?

uditmathur

Author

Community Advisor

Hi @Jasbirka ,

I may not know how the button is created, i am not a developer my self.

I am checking this on Outlook 365 MSO (Version 2511)!--endfragment>

JasbirkaAccepted solution

Level 5

Hi @uditmathur - The code you shared has all the styles directly added to the button tag, which isn't supported by Outlook clients. The button below is still working better, so you can follow that same approach.

CLICK HERE TO STAY UPDATED WITH CLINIC NEWS

Jasbirka

Level 5

Could you please explain how you created this button? Based on the code, it looks like all the styling is applied directly to the button tag, which Outlook does not support. This is likely why the button appears distorted in Outlook. Also, which specific version of Outlook are you experiencing this issue with?

S

ss2026

Level 2

Hi @udithmathur,

This is a classic Outlook rendering limitation, not an issue with Marketo’s new editor or your HTML itself.

Outlook (especially desktop versions) uses the Microsoft Word rendering engine, which:

Does not fully support modern CSS (flexbox, background images on divs, border-radius, padding on divs, etc.)
Often ignores or reshapes container-level styles that work perfectly in Gmail and web clients

Recommended fixes:

Use table-based layouts only (no div-based structure for core layout)
Apply styles inline (avoid embedded or external CSS)
Avoid background-image on divs; use table cells with fallback colors
Keep fixed widths (600px max) and avoid CSS shorthand
Test using Litmus or Email on Acid before final sends

Hope this helps.

saurabh from miinfotech.com

uditmathur

Author

Community Advisor

Hi @ss2026 ,

Thanks for the suggestions.

I will ask me dev to implement & check.

michellechopin

Community Advisor

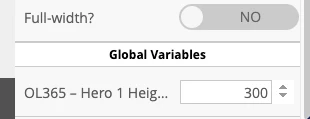

I’m not currently using the new email editor but, in the classic editor and related templates, we have a module setting that allows us to adjust the header image for Outlook specifically (because the platform makes a mess of emails as a whole but definitely likes to do strange things to header images). Here’s what our setting looks like:

Additionally, we have a header block in an event email last year that got impacted by Outlook so we used the following HTML to open the table-based block (in case this helps identify how to adjust your padding/content):

<div><strong></strong></div>

Interested to see how this gets fixed because I feel like we all need an arsenal of solutions for managing Outlook oddities 😝

Jo_Pitts1

Community Advisor

It won’t be ‘fixed’ by Adobe, because it can’t be. The need to specify an image height for background images particularly is one of Outlook classic for Windows many quirks. The best Adobe could do to mitigate the problem is introduce variables to the new email editor to allow for background images of varying heights to be supported the same way that the v2 editor does.
