Personnalisation based on AEP edge segmentation

  • August 23, 2022
  • 2 replies
  • 3371 views

Hello,



I'm implementing the following use case and I'm stuck with the AEP Edge segmentation.



The use case :

As a web visitor, browsing three different products pages should trigger a banner on any page of this web site.

The banner disappears as soon as the visitor clicks on it or buy a product, otherwise the banner is visible for 30 days.

The ecosystem I work with includes: AEP and Adobe Target Premium.

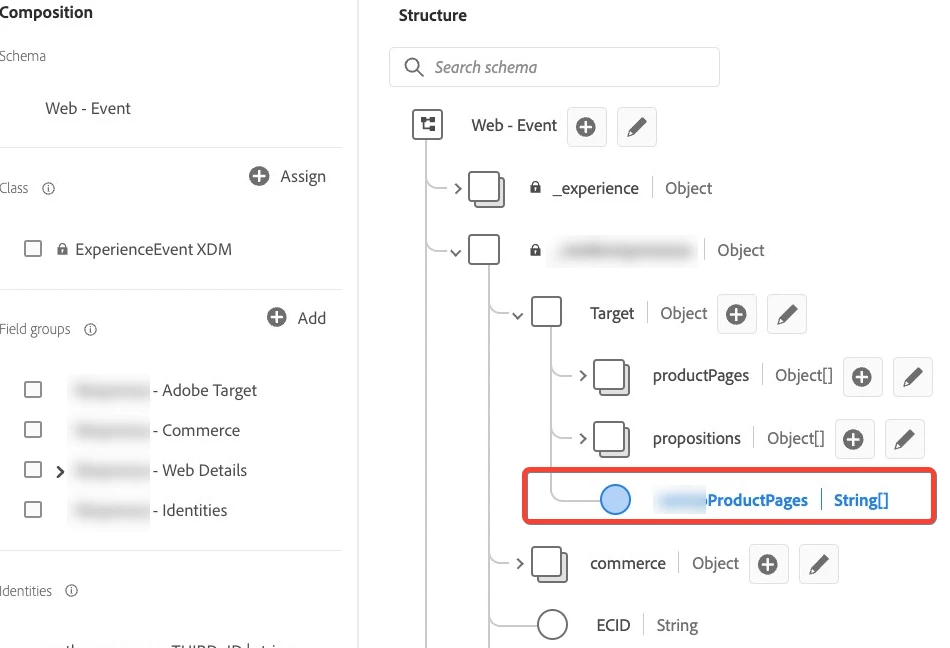

My approach is to detect distinct product pages browsed by the visitor, and provide them toward the XDM Experience Event based schema inside a property (string array type based) created for this purpose:



This array is filled with an alloy("sendEvent") call from a script included inside the <head> section by Target.

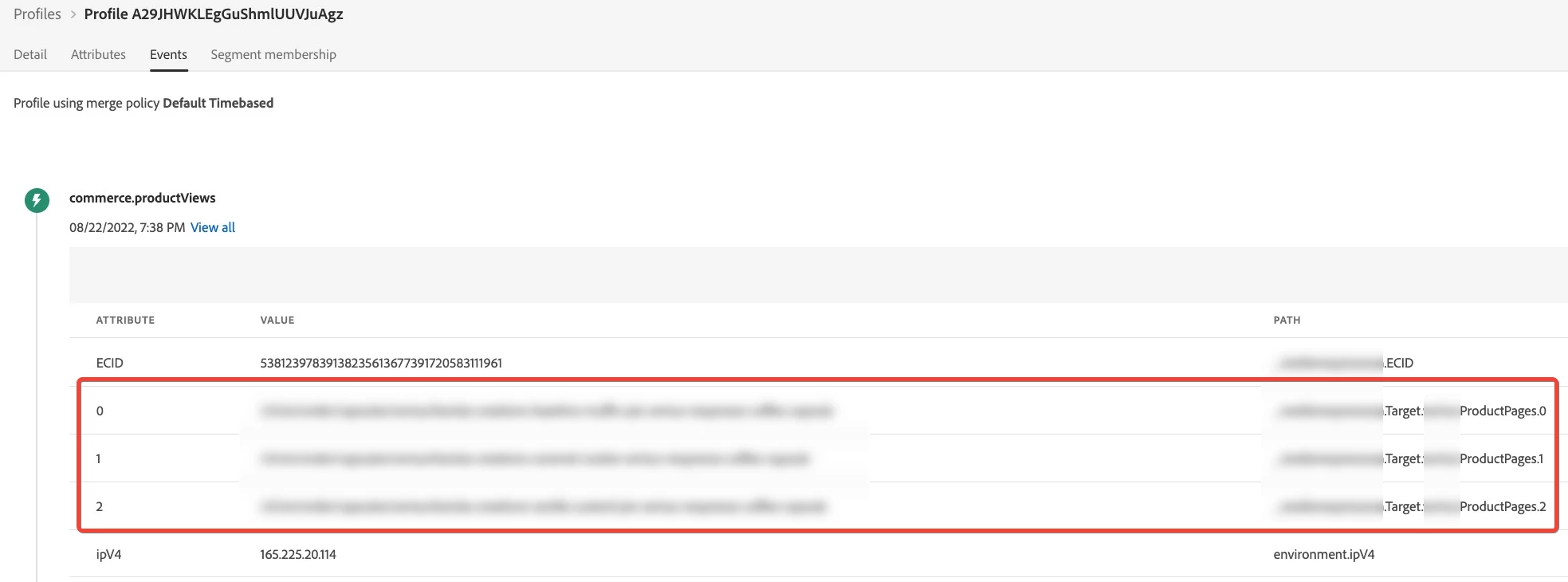

Checking some profile confirm the array is filled with up to three product page URL successfully:

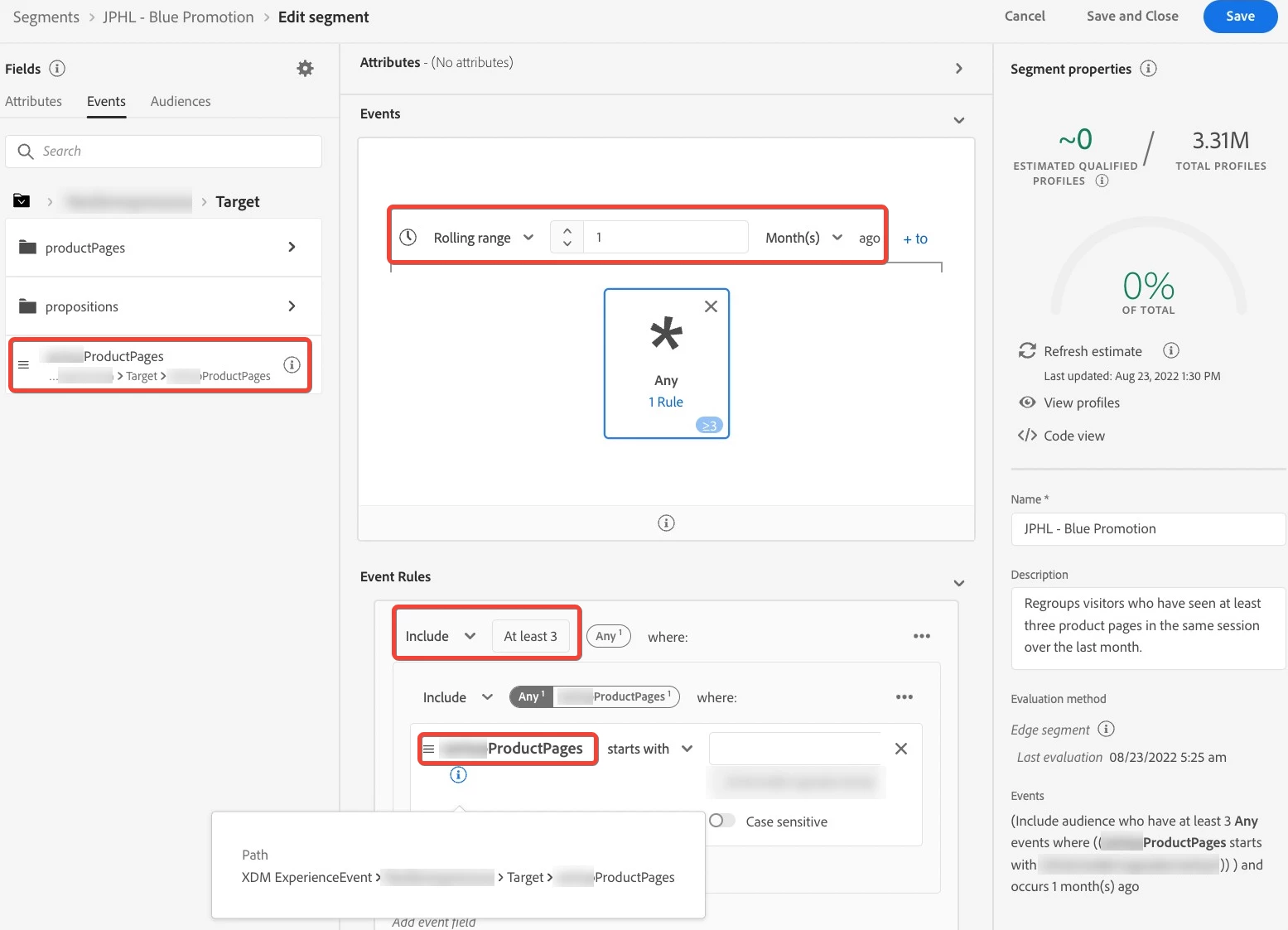

Then I would like to create a realtime segmentation which detects when the XDM Event schema string array contains at least 3 entities in realtime. The idea being to reuse this segmentation on Adobe Target side as an audience to trigger the banner display.



However, on AEP, I cannot find any matching profile nor I can save my Edge based segment. Is this the right approach or am I missing something here?



Thank you to shed some light on this.



Kind regards,

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by Danny-Miller

    Gorgerous! Thank you for your tenacity. By doing so the segment is still an Edge one and it can be saved.

    I've checked the merge policy and confirm it is Edge enabled (and this is the one used by this segment of course).

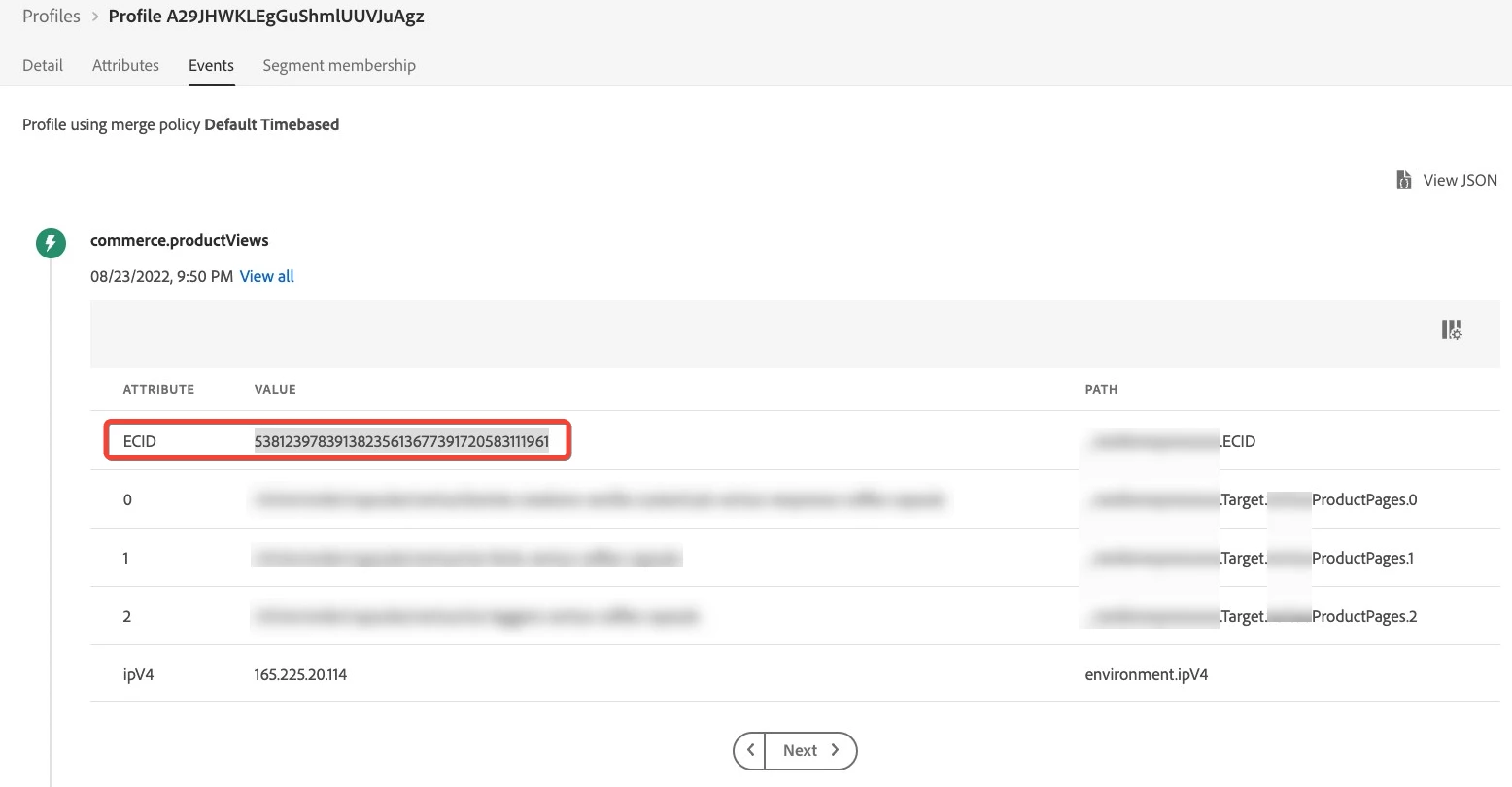

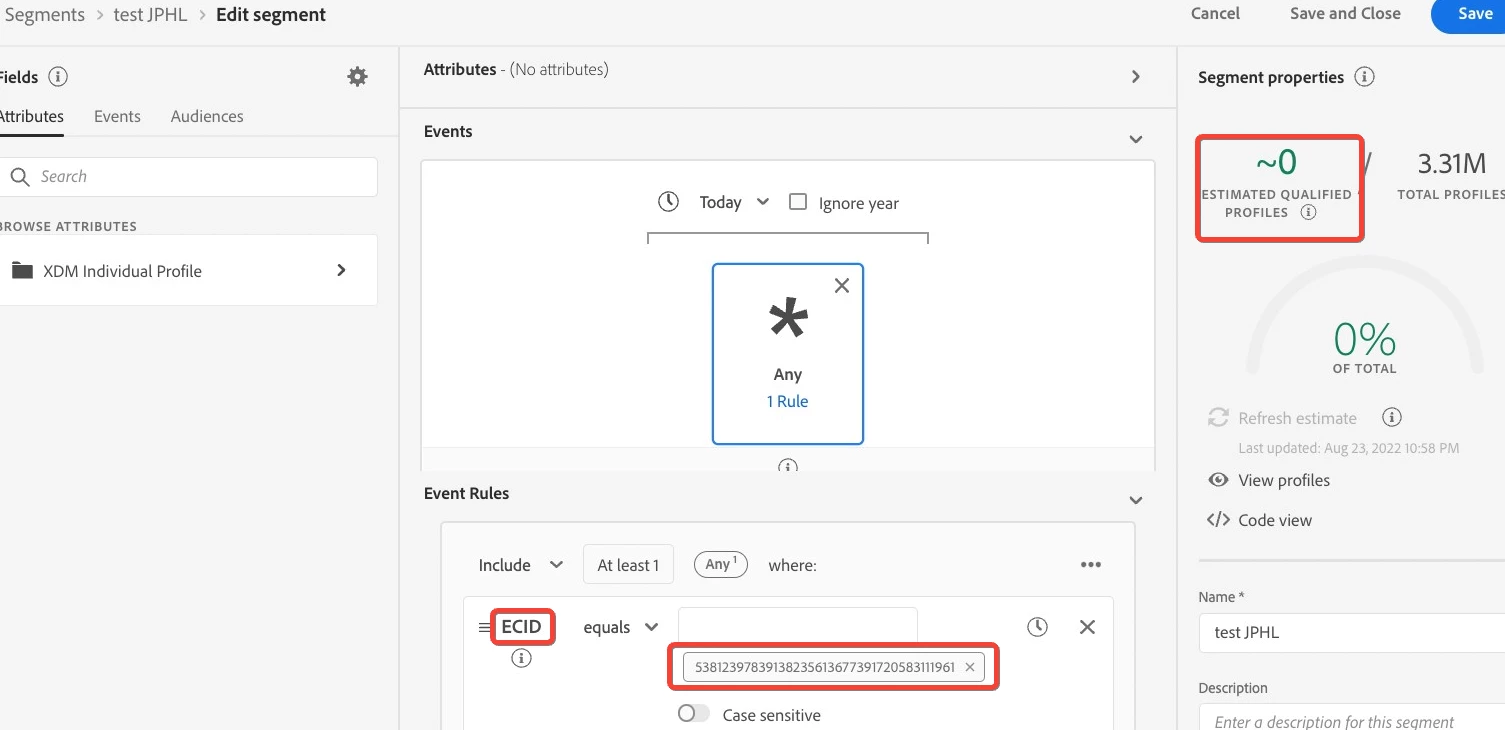

    However, the segment is still empty 😕😕 So I counter validated by creating another segment based on the Event related ECID matching both the alloy("getIdentity") feedback in the browser as well as the one being displayed in AEP in the profile section



    ... still an empty audience.



    I must be missing something here but can not find out what ?!?

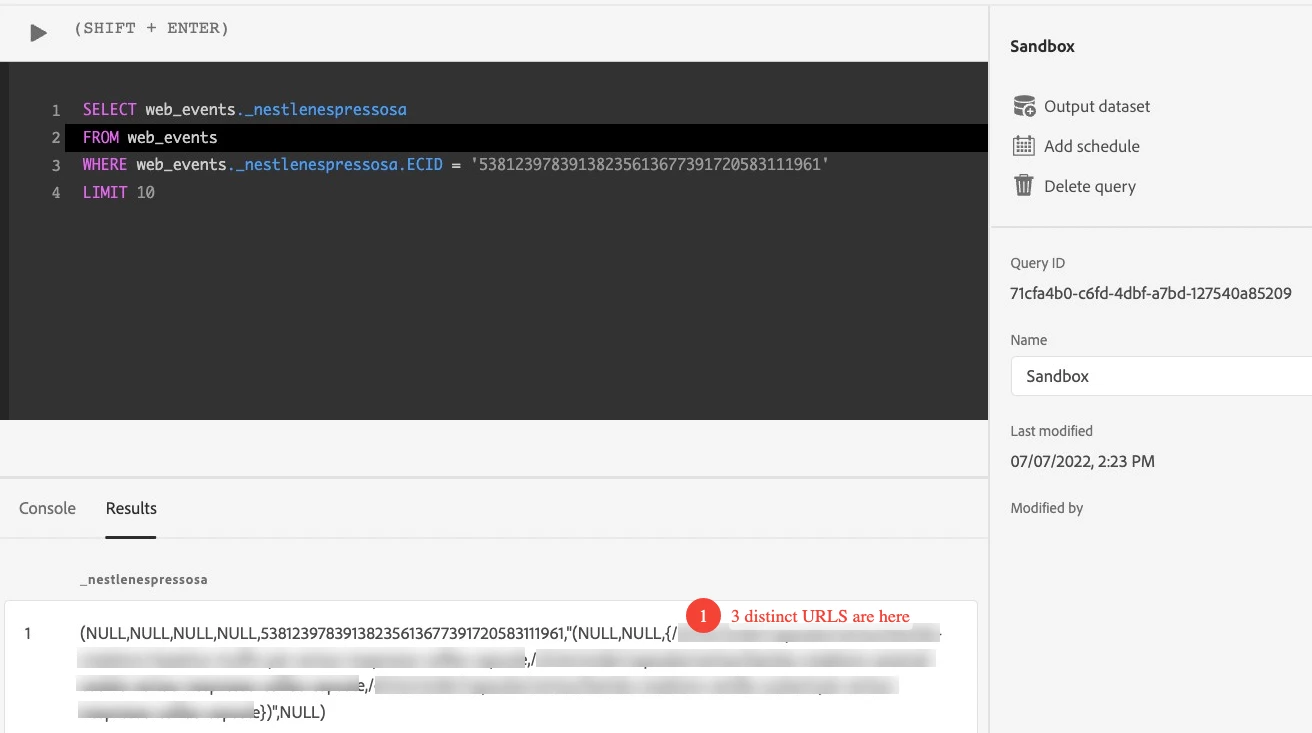

    I event requested the profile event directly from AEP and found it so I don't see why the segment is still empty, even if I provide the correct ECID ???

    Would you have any advices to find out what's going on here ?

    Thank you for your time




    Since you keep modifying the Segment you may need to wait for the baseline to run.



    "Once streaming evaluation has been enabled, a baseline must be created (after which the segment will always be up-to-date)."

    https://experienceleague.adobe.com/docs/experience-platform/segmentation/api/streaming-segmentation.html?lang=en#enable-scheduled-segmentation



    You might try sending in new events to see if they qualify.

    2 replies

    kchaitanya
    kchaitanya
    Level 3
    August 23, 2022

    Hi @jean-philippe_8 ,

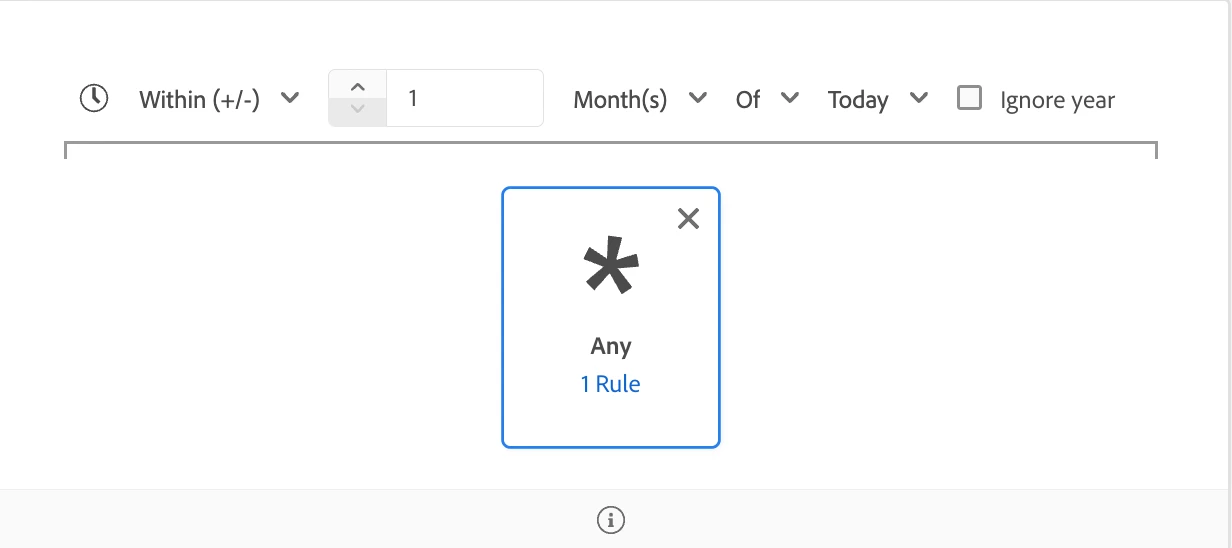

    The logic sounds fine. One thing you could check is the time range you have provided. If you wanted to check for within the last 30 days you might want to change time frame condition to something like below:

    The time frame you selected might be checking for beyond one month. Depending on your implementation state it might not qualify any users to the segment.

    Let us know if changing the time rule works for you.

    Danny-Miller
    Adobe Employee
    Danny-MillerAdobe Employee
    Adobe Employee
    August 23, 2022

    @jean-philippe_8 Your problem is two-fold:

    1. Your timeframe is too long if you want to do this on the Edge.
      1. You can only do a "Single event within a 24-hour time window
      2. "See https://experienceleague.adobe.com/docs/experience-platform/segmentation/ui/edge-segmentation.html?lang=en
    2. Any Aggregation "At least 3" I believe also makes this not Edge.

    Let me kick around some options.



    Danny-Miller
    Adobe Employee
    Danny-MillerAdobe Employee
    Adobe Employee
    August 23, 2022

    I checked a few things:

    1. While the 24-hour is documented as non-Edge, I was able to build a longer lookback, so maybe not an issue?
    2. The Aggregation is still a problem. But, if you are open to exploring PQL and seeing if you can make a count() work and still be Edge, check this out:
      1. person.orders.storeId.distinct().count() > 1
      2. Yours would be more of a productpages.distinct().count() > 3
      3. https://experienceleague.adobe.com/docs/experience-platform/segmentation/pql/array-functions.html?lang=en#distinct
      4. Not sure if it will qualify as Edge, but since it is still one Event (vs your original is checking for multiple events)... maybe?
