lukasz-m
lukasz-mAccepted solution
Community Advisor
September 30, 2022

@akshaybhujbale If you will look into stack trace you will see that it fails during java.net.URI object creation. Looking into documentation of URI, you can see following information:

URISyntaxException - If the given string violates RFC 2396, as augmented by the above deviations

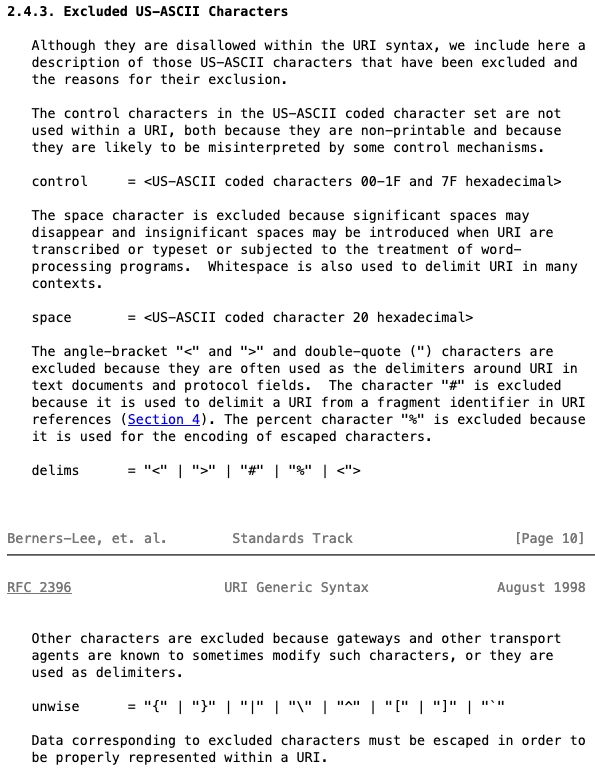

Going into RFC 2396 - https://www.rfc-editor.org/rfc/rfc2396, section 2.4.3 is what you probably looking for, as it clearly list disallowed characters with proper reasoning. So this is potentially list of character that could be problematic from Query Builder Debugger tool perspective.

In case this is not enough, you can always create simple piece of code that will create URI object and at the same time examine if creation of URI object will fail or not.

View in thread

3 replies

lukasz-m
Community Advisor
lukasz-mCommunity Advisor
Community Advisor
September 30, 2022

Hi @akshaybhujbale,

The root cause of behavior you have described, is a fact that in name of one of the asset - @^test.docx - you are using invalid character from URI perspective. Most likely you can see below error in the log:

org.apache.sling.xss.impl.XSSAPIImpl Invalid URI.
java.net.URISyntaxException: Illegal character in path at index 25: /content/dam/aem_folder/@^test.docx

In other words Query Builder Debugger tool is not able to generate proper link to @^test.docx resource.

In general character that cause the issue is ^ - please have a look into RFC 2396 - https://www.rfc-editor.org/rfc/rfc2396 - which describe URI specification including allowed and restricted characters.

Translate
    akshaybhujbaleAuthor
    Level 6
    September 30, 2022

    Hi @lukasz-m  Thank you so much

    Please let me know what are the invalid characters for which Query Builder Debugger tool is not able to generate proper link.

    Translate
      lukasz-m
      Community Advisor
      lukasz-mCommunity AdvisorAccepted solution
      Community Advisor
      September 30, 2022

      @akshaybhujbale If you will look into stack trace you will see that it fails during java.net.URI object creation. Looking into documentation of URI, you can see following information:

      URISyntaxException - If the given string violates RFC 2396, as augmented by the above deviations

      Going into RFC 2396 - https://www.rfc-editor.org/rfc/rfc2396, section 2.4.3 is what you probably looking for, as it clearly list disallowed characters with proper reasoning. So this is potentially list of character that could be problematic from Query Builder Debugger tool perspective.

      In case this is not enough, you can always create simple piece of code that will create URI object and at the same time examine if creation of URI object will fail or not.
