Multifield using Sling Model

  • April 23, 2022
  • 2 replies
  • 7514 views

I have this following multifield component with field type text field and name property is ./text and multifield is composite.



So, what will be the sling model for that to show the values on HTL?





<?xml version="1.0" encoding="UTF-8"?> <jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0" jcr:primaryType="nt:unstructured" jcr:title="multifield" sling:resourceType="cq/gui/components/authoring/dialog"> <content jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns"> <items jcr:primaryType="nt:unstructured"> <column jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/container"> <items jcr:primaryType="nt:unstructured"> <text jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/form/multifield" composite="{Boolean}true" fieldLabel="Products"> <field jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/container" name="./products"> <items jcr:primaryType="nt:unstructured"> <name jcr:primaryType="nt:unstructured" sling:resourceType="granite/ui/components/coral/foundation/form/textfield" emptyText="Name" name="./text"/> </items> </field> </text> </items> </column> </items> </content> </jcr:root>





This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by DEBAL_DAS

I have tried with below Sling model -

package com.aem.demo.core.models;

import java.util.List;

import javax.inject.Inject;

import org.apache.sling.api.resource.Resource;
import org.apache.sling.models.annotations.DefaultInjectionStrategy;
import org.apache.sling.models.annotations.Model;

@Model(
	    adaptables = {Resource.class},
	    defaultInjectionStrategy = DefaultInjectionStrategy.OPTIONAL)
public interface ProductsModel {

	@Inject
	  List<Product> getProducts(); // the name `getProducts` corresponds to the multifield name="./products"
	  /**
	   * Company model
	   * has a name and a list of departments
	   */
	  @Model(adaptables = Resource.class, defaultInjectionStrategy = DefaultInjectionStrategy.OPTIONAL)
	  interface Product {
	    @Inject
	    String getText(); // corresponds name="./text"

	  }

}

.content.xml of cq:dialog -

<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:primaryType="nt:unstructured"
    jcr:title="Multifield"
    sling:resourceType="cq/gui/components/authoring/dialog">
    <content
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
        <items jcr:primaryType="nt:unstructured">
            <column
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/coral/foundation/container">
                <items jcr:primaryType="nt:unstructured">
                    <text
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
                        composite="{Boolean}true"
                        fieldLabel="Products">
                        <field
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/coral/foundation/container"
                            name="./products">
                            <items jcr:primaryType="nt:unstructured">
                                <name
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                                    emptyText="Name"
                                    name="./text"/>
                            </items>
                        </field>
                    </text>
                </items>
            </column>
        </items>
    </content>
</jcr:root>

htl code -

<sly data-sly-use.productModel="com.aem.demo.core.models.ProductsModel"/>
<sly data-sly-test.empty="${!productModel.products}" />
<div data-sly-test="${wcmmode.edit && empty}" class="cq-placeholder" data-emptytext="${component.title}"></div>
<sly data-sly-test="${!empty}">
  <div>
      <ul data-sly-list.product="${productModel.products}">
        <li>${product.text}</li>
      </ul>
  </div>
</sly>

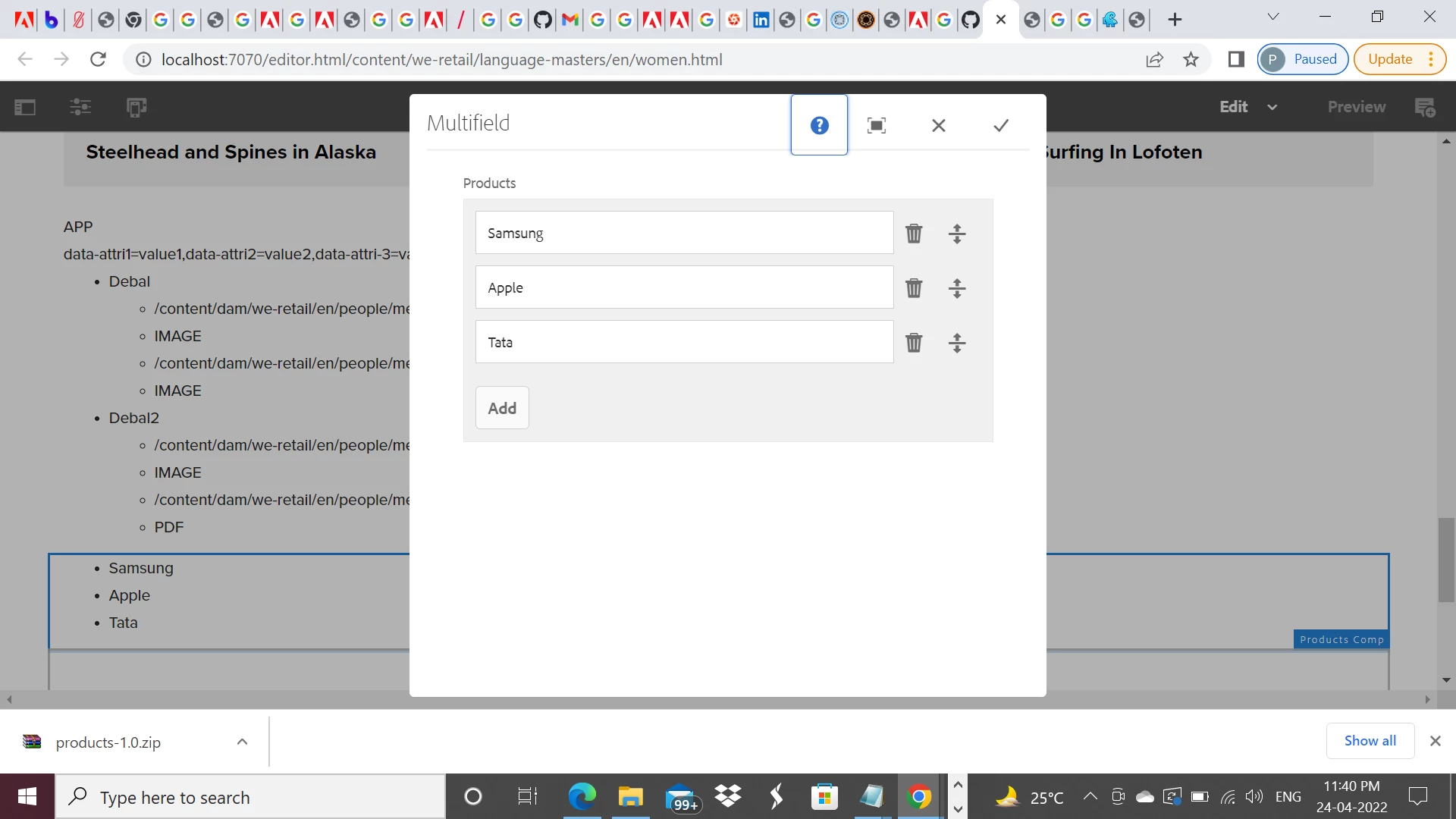

Author's entries -

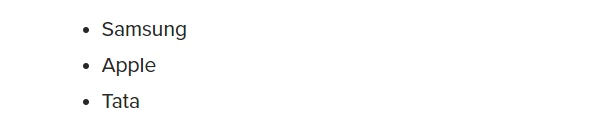

Rendered Output on page -

Please review and give a try.

























































2 replies

Kishore_Kumar_
Level 9
April 24, 2022
Jangra98Author
Level 2
April 24, 2022

@kishore_kumar_  tried this method but it is not working .

DEBAL_DAS
DEBAL_DASAccepted solution
New Member
April 24, 2022

I have tried with below Sling model -

package com.aem.demo.core.models;

import java.util.List;

import javax.inject.Inject;

import org.apache.sling.api.resource.Resource;
import org.apache.sling.models.annotations.DefaultInjectionStrategy;
import org.apache.sling.models.annotations.Model;

@Model(
	    adaptables = {Resource.class},
	    defaultInjectionStrategy = DefaultInjectionStrategy.OPTIONAL)
public interface ProductsModel {

	@Inject
	  List<Product> getProducts(); // the name `getProducts` corresponds to the multifield name="./products"
	  /**
	   * Company model
	   * has a name and a list of departments
	   */
	  @Model(adaptables = Resource.class, defaultInjectionStrategy = DefaultInjectionStrategy.OPTIONAL)
	  interface Product {
	    @Inject
	    String getText(); // corresponds name="./text"

	  }

}

.content.xml of cq:dialog -

<?xml version="1.0" encoding="UTF-8"?>
<jcr:root xmlns:sling="http://sling.apache.org/jcr/sling/1.0" xmlns:cq="http://www.day.com/jcr/cq/1.0" xmlns:jcr="http://www.jcp.org/jcr/1.0" xmlns:nt="http://www.jcp.org/jcr/nt/1.0"
    jcr:primaryType="nt:unstructured"
    jcr:title="Multifield"
    sling:resourceType="cq/gui/components/authoring/dialog">
    <content
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
        <items jcr:primaryType="nt:unstructured">
            <column
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/coral/foundation/container">
                <items jcr:primaryType="nt:unstructured">
                    <text
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/multifield"
                        composite="{Boolean}true"
                        fieldLabel="Products">
                        <field
                            jcr:primaryType="nt:unstructured"
                            sling:resourceType="granite/ui/components/coral/foundation/container"
                            name="./products">
                            <items jcr:primaryType="nt:unstructured">
                                <name
                                    jcr:primaryType="nt:unstructured"
                                    sling:resourceType="granite/ui/components/coral/foundation/form/textfield"
                                    emptyText="Name"
                                    name="./text"/>
                            </items>
                        </field>
                    </text>
                </items>
            </column>
        </items>
    </content>
</jcr:root>

htl code -

<sly data-sly-use.productModel="com.aem.demo.core.models.ProductsModel"/>
<sly data-sly-test.empty="${!productModel.products}" />
<div data-sly-test="${wcmmode.edit && empty}" class="cq-placeholder" data-emptytext="${component.title}"></div>
<sly data-sly-test="${!empty}">
  <div>
      <ul data-sly-list.product="${productModel.products}">
        <li>${product.text}</li>
      </ul>
  </div>
</sly>

Author's entries -

Rendered Output on page -

Please review and give a try.

























































Debal Das, Senior AEM Consultant
