Issues with Custom Title Component Based on Core Title v3

Forum|Forum|6 months ago
July 25, 2025
3 replies
402 views

Hi,

We created a new title component under my project folder with sling:resourceSuperType: core/wcm/components/title/v3/title. And for title component dialog we are having 2 fields one is jcr:title and the other is heroText. For heroText we used sling:orderbefore property to show only one sibling field i.e jcr:title. And we are having one more field on our custom component dialog i.e Type/Size(to select the header tag i.e h1,h2,etc). And this title component were used in multiple shelves and other components. But i am facing below two Issues by using the title(v3) component.

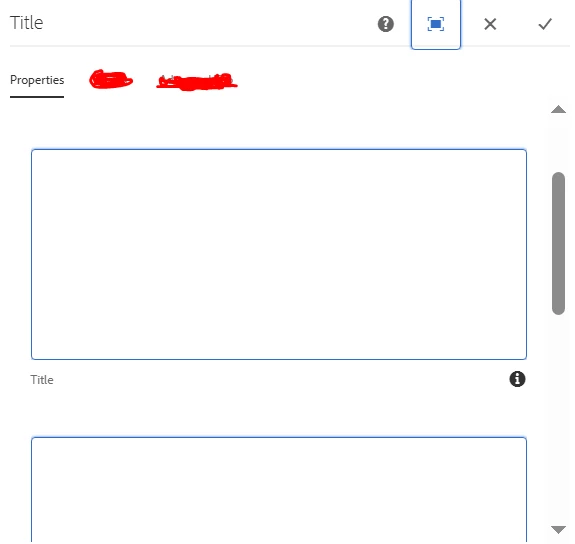

Issue1: Suppose i have one shelf i.e single article and in this single article shelf i included title(v3) component. When i add this shelf on the page if i open the singlearticleshelf dialog and i am closing it then i am opening the title(v3) dialog. Where i can see two textarea fields and two Type/Size dropdown fields one is from core and the other is from custom component even though i am using sling:orderbefore for text areaa fields but still showing two fields on the dialog.

Issue2: After refreshing the same page when i open the title component dialog first then its working as expected and its showing one textarea on dialog and one Type/size dropdown fields on dialog.

The behaviour of title component is same in all shelves wherever its included.

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

Best answer by SantoshSai

Hi @maturubhanu,

The property sling:orderBefore only controls order among sibling nodes, but it does not remove inherited fields. When you say it works after a page refresh, the dialog rendering might be correct because of caching or JS-driven initialization.

Could you try explicitly disabling the inherited fields you don’t need?

Example:

<?xml version="1.0" encoding="UTF-8"?>
<jcr:root
    xmlns:sling="http://sling.apache.org/jcr/sling/1.0"
    xmlns:jcr="http://www.jcp.org/jcr/1.0"
    jcr:primaryType="nt:unstructured"
    jcr:title="Title"
    sling:resourceType="cq/gui/components/authoring/dialog">

    <content
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
        <items jcr:primaryType="nt:unstructured">
            <column
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/coral/foundation/container">
                <items jcr:primaryType="nt:unstructured">

                    <!-- Disable inherited jcr:title field -->
                    <jcrTitle
                        sling:hideResource="true"
                        jcr:primaryType="nt:unstructured" />

                    <!-- Custom heroText -->
                    <heroText
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/textarea"
                        fieldLabel="Hero Text"
                        name="./heroText"
                        sling:orderBefore="type" />

                    <!-- Type/Size dropdown -->
                    <type
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/select"
                        fieldLabel="Type/Size"
                        name="./type">
                        <items jcr:primaryType="nt:unstructured">
                            <h1 jcr:primaryType="nt:unstructured" text="H1" value="h1"/>
                            <h2 jcr:primaryType="nt:unstructured" text="H2" value="h2"/>
                            <h3 jcr:primaryType="nt:unstructured" text="H3" value="h3"/>
                        </items>
                    </type>

                </items>
            </column>
        </items>
    </content>
</jcr:root>

Here, sling:hideResource="true" hides the inherited jcr:title field from Core Title.

Reference: https://experienceleague.adobe.com/en/docs/experience-manager-65/content/implementing/developing/platform/sling-resource-merger

narendragandhi

Community Advisor

Hi @maturubhanu

As I understand, the issue is that you want to hide the properties that gets inherited from core components and only show the custom properties that you created. You can try using sling:hideProperties for this purpose. Please refer this link for details - https://experienceleague.adobe.com/en/docs/experience-manager-65/content/implementing/developing/platform/sling-resource-merger

Hope this helps!

Thanks

Narendra

M

maturubhanuAuthor

Level 2

Hi Narendragandhi,

Thanks for replying.

But when I open a titlev3 component dialog first then it's showing only one fields no duplicate fields but when I open the shelf(in shelf title component included) dialog and then if I open titlev3 component dialog then it's showing duplicate fields one from core component

SantoshSai

Accepted solution

Community Advisor

Hi @maturubhanu,

The property sling:orderBefore only controls order among sibling nodes, but it does not remove inherited fields. When you say it works after a page refresh, the dialog rendering might be correct because of caching or JS-driven initialization.

Could you try explicitly disabling the inherited fields you don’t need?

Example:

<?xml version="1.0" encoding="UTF-8"?>
<jcr:root
    xmlns:sling="http://sling.apache.org/jcr/sling/1.0"
    xmlns:jcr="http://www.jcp.org/jcr/1.0"
    jcr:primaryType="nt:unstructured"
    jcr:title="Title"
    sling:resourceType="cq/gui/components/authoring/dialog">

    <content
        jcr:primaryType="nt:unstructured"
        sling:resourceType="granite/ui/components/coral/foundation/fixedcolumns">
        <items jcr:primaryType="nt:unstructured">
            <column
                jcr:primaryType="nt:unstructured"
                sling:resourceType="granite/ui/components/coral/foundation/container">
                <items jcr:primaryType="nt:unstructured">

                    <!-- Disable inherited jcr:title field -->
                    <jcrTitle
                        sling:hideResource="true"
                        jcr:primaryType="nt:unstructured" />

                    <!-- Custom heroText -->
                    <heroText
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/textarea"
                        fieldLabel="Hero Text"
                        name="./heroText"
                        sling:orderBefore="type" />

                    <!-- Type/Size dropdown -->
                    <type
                        jcr:primaryType="nt:unstructured"
                        sling:resourceType="granite/ui/components/coral/foundation/form/select"
                        fieldLabel="Type/Size"
                        name="./type">
                        <items jcr:primaryType="nt:unstructured">
                            <h1 jcr:primaryType="nt:unstructured" text="H1" value="h1"/>
                            <h2 jcr:primaryType="nt:unstructured" text="H2" value="h2"/>
                            <h3 jcr:primaryType="nt:unstructured" text="H3" value="h3"/>
                        </items>
                    </type>

                </items>
            </column>
        </items>
    </content>
</jcr:root>

Here, sling:hideResource="true" hides the inherited jcr:title field from Core Title.

Reference: https://experienceleague.adobe.com/en/docs/experience-manager-65/content/implementing/developing/platform/sling-resource-merger

Santosh Sai

kautuk_sahni

Community Manager

@maturubhanu Just checking in — were you able to resolve your issue? We’d love to hear how things worked out. If the suggestions above helped, marking a response as correct can guide others with similar questions. And if you found another solution, feel free to share it — your insights could really benefit the community. Thanks again for being part of the conversation!

Kautuk Sahni
