Issue with 32-bit Forms Designer, Preview PDF post 64-bit Office 365 Microsoft Access installation (previously 32-bit Office 2016)

  • November 2, 2022
  • 1 reply
  • 700 views

Hello all,

Prior to 64-bit Office 365 install, the ODBC Driver Manger showed 32-bit drivers and connections to 32-bit Access Database worked flawlessly when using Forms Designer to preview PDFs.  After the 64-bit Office was installed, the Administrative Tools for ODBC Data Source Administrator (32-bit), User DSN tab, User Data Sources only show Excel Files and MS Access Database (mdb and accdb) 64-bit Drivers, and the window displays, "The driver of this User DSN only has a 64-bit version available. It can only be removed or configured with the 64-bit ODBC Data Source Administrator".

We then installed the 32-bit version of 2016 Microsoft Access Database Engine Redistributable and the 32-bit drivers repopulated.  The issue we are having now is that when we attempt to use Designer and choose Preview PDF, we see the following error.

Title: Adobe Acrobat
connect operation failed. [Microsoft] [ODBC Microsoft Access Driver] Could not use '(unknown)'; file already in use.


When we monitor the folder where the database resides, we see it creates a lock file (.laccdb), which does not disappear until we close Designer.

Does anyone know how to fix this issue?

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

1 reply

J
jwduncanAuthor
November 2, 2022

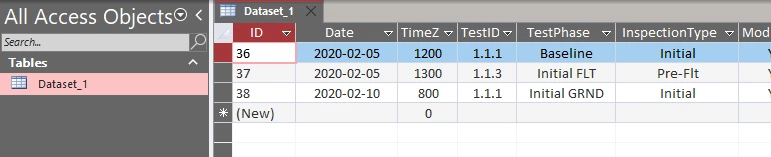

Forgot to mention, the PDF form links to an .accdb that only has tables.  The original .accdb file was created in Access (32-bit), however in Access, the only thing we see is Dataset_1.  Normally, i would have checked to make sure Ptr and LongPtr Declarations were replaced, but this is only a Table with no Declarations.



J
jwduncanAuthor
November 4, 2022

On second look the Access lock file appears when the Protected View warning pops up after opening the PDF Preview in Designer. Unfortunately, I do not have access to change the Trusted Locations and Protected View is a group policy so I cannot test this theory.  The files are on C: drive.  I even added the driver to System DSN to see if that would make a difference and it was same issue.
