HTTP ERROR 503 AuthenticationSupport service missing. Cannot authenticate request.

  • October 21, 2024
  • 3 replies
  • 1064 views
We are using Adobe Experience Manager 6.5.17.0 for our development. The team frequently facing an issue with error message



"20.10.2024 07:44:04.286 *ERROR* [qtp1932271856-175] org.apache.sling.engine.impl.SlingHttpContext handleSecurity: Possible reason is missing Repository service. Check AuthenticationSupport dependencies. 20.10.2024 07:44:04.288 *ERROR* [qtp1932271856-89] org.apache.sling.engine.impl.SlingHttpContext handleSecurity: AuthenticationSupport service missing. Cannot authenticate request. 20.10.2024 07:44:04.288 *ERROR* [qtp1932271856-89] org.apache.sling.engine.impl.SlingHttpContext handleSecurity: Possible reason is missing Repository service. Check AuthenticationSupport dependencies. "




To resolve this error we usually will follow the steps as below:



1.Stop the AEM instance. 2.Delete the following files: /publish/crx-quickstart/repository/segmentstore/repo.lock /publish/crx-quickstart/launchpad/felix/cache.lock /publish/crx-quickstart/repository/index /crx-quickstart/launchpad/config/org/apache/sling/jcr/repoinit Restart the AEM instance.

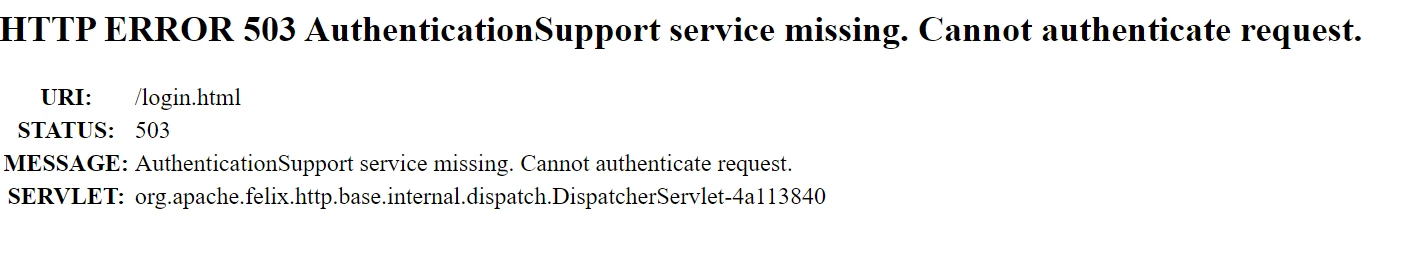

Even these steps not helping us to login the AEM system. We are getting the error message as below :



We could access the configuration Manager with admin credentials in browser. If we cross verified the Granite Authentication Handler, that bundle is active only.

We noticed the bundle "Adobe Experience Manager Graph QL for Content Fragment scq-dam-cfm-Graph QL" is in installed state and we couldn't change that to active state.

Is there any relationship between these error and this Graph QL bundle? can anyone suggest solution for this issue?

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

3 replies

MukeshYadav_
Community Advisor
MukeshYadav_Community Advisor
Community Advisor
October 21, 2024

Hi @gvijikala ,

Yes, it might be due to Adobe Experience Manager Graph QL for Content Fragment scq-dam-cfm-Graph QL

You can expand and check which dependency is not satisfied and add accordingly.

Thanks



    G
    GVijikalaAuthor
    October 21, 2024

    Hi Mukesh,

    I verified that as well, even in bundles i could not see the missing dependencies. Rather than, if i tried to activate the bundle i could see below error message in sling logs.

    21.10.2024 06:10:46.468 *ERROR* [FelixDispatchQueue] cq-dam-cfm-graphql FrameworkEvent ERROR (org.osgi.framework.BundleException: Unable to resolve cq-dam-cfm-graphql [618](R 618.2): missing requirement [cq-dam-cfm-graphql [618](R 618.2)] osgi.wiring.package; (&(osgi.wiring.package=com.adobe.cq.ui.wcm.commons)(version>=1.1.0)(!(version>=2.0.0))) Unresolved requirements: [[cq-dam-cfm-graphql [618](R 618.2)] osgi.wiring.package; (&(osgi.wiring.package=com.adobe.cq.ui.wcm.commons)(version>=1.1.0)(!(version>=2.0.0)))]) org.osgi.framework.BundleException: Unable to resolve cq-dam-cfm-graphql [618](R 618.2): missing requirement [cq-dam-cfm-graphql [618](R 618.2)] osgi.wiring.package; (&(osgi.wiring.package=com.adobe.cq.ui.wcm.commons)(version>=1.1.0)(!(version>=2.0.0))) Unresolved requirements: [[cq-dam-cfm-graphql [618](R 618.2)] osgi.wiring.package; (&(osgi.wiring.package=com.adobe.cq.ui.wcm.commons)(version>=1.1.0)(!(version>=2.0.0)))] at org.apache.felix.framework.Felix.resolveBundleRevision(Felix.java:4368) at org.apache.felix.framework.Felix.startBundle(Felix.java:2281) at org.apache.felix.framework.Felix.setActiveStartLevel(Felix.java:1539) at org.apache.felix.framework.FrameworkStartLevelImpl.run(FrameworkStartLevelImpl.java:308) at java.lang.Thread.run(Thread.java:750) 21.10.2024 06:10:46.468 *INFO* [FelixStartLevel] com.adobe.cq.remotedam.cq-remotedam-commons BundleEvent STARTING

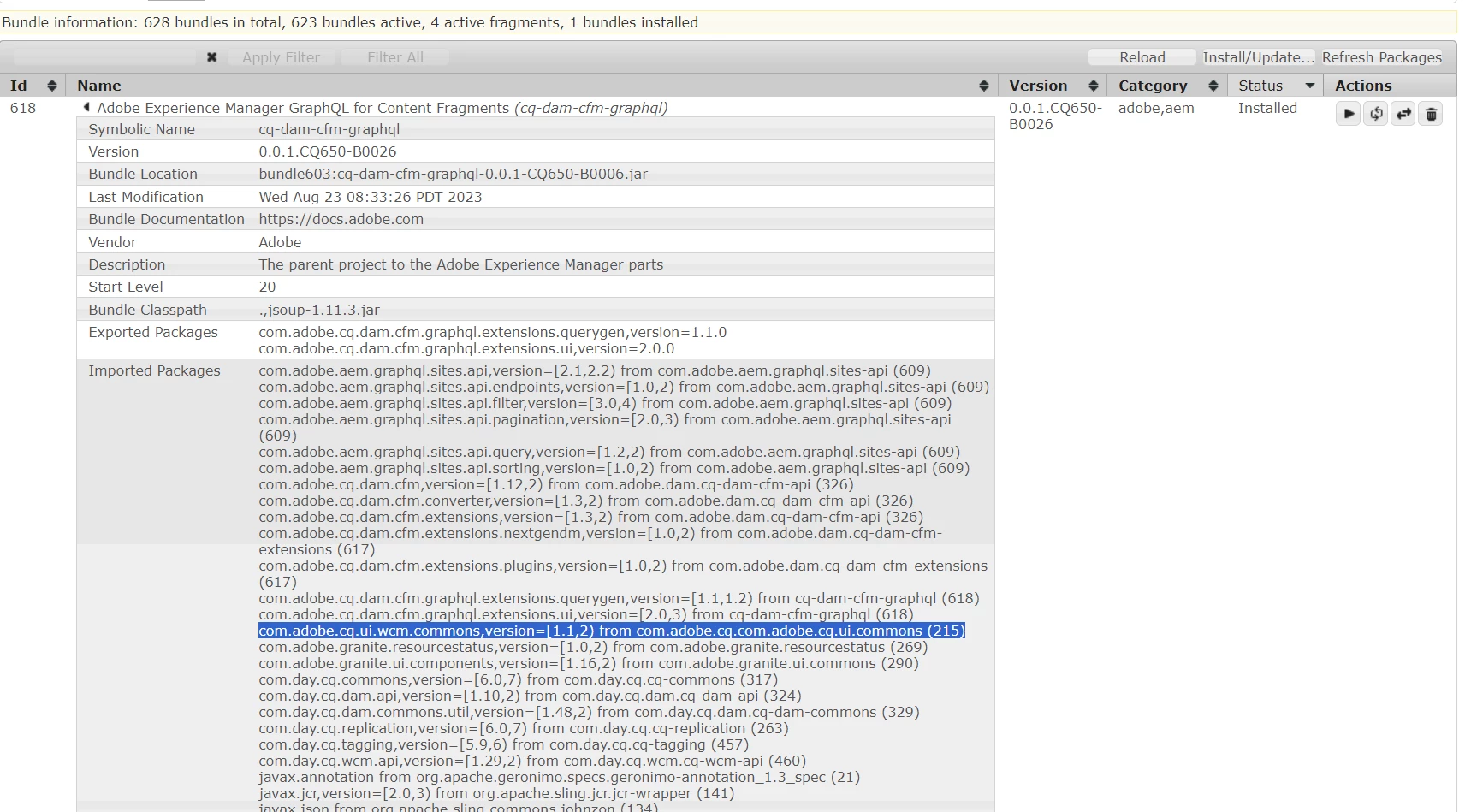

    In dependencies,

    I could see the package installed.

      MukeshYadav_
      Community Advisor
      MukeshYadav_Community Advisor
      Community Advisor
      October 22, 2024

      Hi @gvijikala ,

      Error suggest cannot resolve com.adobe.cq.ui.wcm.commons, could you please verify below

      • Verify Bundle Status:

        • Access the OSGi console (typically at /system/console/bundles).
        • Check if com.adobe.cq.ui.wcm.commons is installed and look at its version.

      • Check Required Version:

        • Ensure that the installed version of com.adobe.cq.ui.wcm.commons is:
          • Greater than or equal to 1.1.0
          • Less than 2.0.0

      Also you may restart or refresh the bundle as well as you may try in incognito as well https://experienceleaguecommunities.adobe.com/t5/adobe-experience-manager/aem-6-5-osgi-configuration-not-responding-when-click/m-p/550093

      Thanks

        Sady_Rifat
        Community Advisor
        Sady_RifatCommunity Advisor
        Community Advisor
        October 22, 2024

        Try to delete this folder, crx-quickstart/launchpad/config/org/apache/sling/jcr/repoinit
        After that also delete the org.apache.sling.jcr.repoinit.RepositoryInitializer~my-project.cfg.json OSGI config from your project.

          G
          GVijikalaAuthor
          October 22, 2024

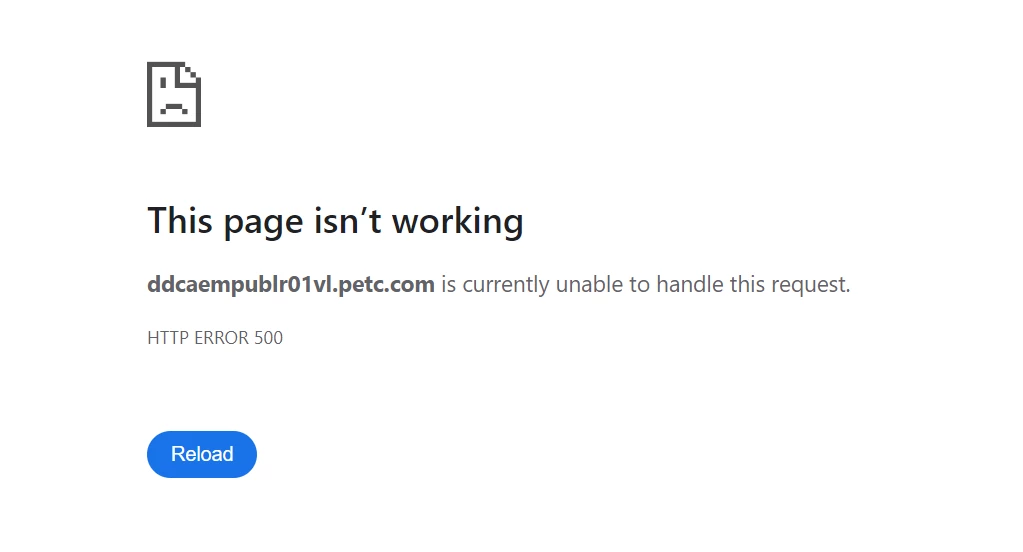

          I have deleted this folder. Then it is giving this error message.



            kautuk_sahni
            Community Manager
            kautuk_sahniCommunity Manager
            Community Manager
            November 5, 2024

            @gvijikala Did you find the suggestions helpful? Please let us know if you require more information. Otherwise, please mark the answer as correct for posterity. If you've discovered a solution yourself, we would appreciate it if you could share it with the community. Thank you!

            Kautuk Sahni
