How to create a custom API in AEM as a cloud service

​@Balasai_NikhilKa2 Can you explain bit more in detail ?

hi ​@Balasai_NikhilKa2,

To create a custom API on AEM that accepts external data and returns a processed response, you must develop a SlingAllMethodsServlet to handle POST requests and configure OAuth Server-to-Server authentication for secure access. The external system will first request an access token from Adobe IMS and then pass this token along with the data payload to your AEM endpoint.

Create the Custom Servlet

To handle incoming data, create a Java class that extends SlingAllMethodsServlet and register it as an OSGi component. You must override the doPost method to read the incoming data payload, execute your specific business processes, and write a JSON response back to the external system. While you can register the servlet using a specific path like /bin/customapi, binding it to a resource type using @SlingServletResourceTypes is considered the best practice.[1][3]

Configure OAuth Authentication

For external systems to authenticate securely with AEM as a Cloud Service, use the OAuth Server-to-Server credential flow. You must create an integration project in the Adobe Developer Console, add the required Experience Cloud API, and select the OAuth Server-to-Server authentication method. This configuration generates the client_id, client_secret, and scopes needed by the external system to request access tokens without user interaction.[4][6]

Handle CSRF Protection

AEM enforces security by requiring a valid CSRF token for all authenticated POST requests. For machine-to-machine integrations, you can configure the Adobe Granite CSRF Filter in AEM's OSGi settings to exclude your custom API path, allowing external systems to bypass the token check. If you do not exclude the path, the external system must first perform a GET request to /libs/granite/csrf/token.json and pass the returned token in the CSRF-Token header of the POST request.[2]

Send Data to AEM

Once the handshake is complete, the external system uses tools like cURL or Postman to send a POST request directly to your custom AEM servlet endpoint. The request must include the obtained access token in the Authorization: Bearer <access_token> header. AEM will authenticate the request, pass the payload to your servlet for business processing, and return your generated response.[5][4]

Example:-
 There is AEM servlet to collect some data from an external system.
How can that external system (Ex; postman, any other application) hit an AEM servlet, so that it sends some data and in return AEM sends some response.

Hi ​@Balasai_NikhilKa2

1. Create a custom servlet as your API Implement an OSGi Sling Servlet with a fixed path (for example /bin/myapp/external) and handle JSON input/output.

package com.myapp.core.servlets;

import com.google.gson.JsonObject;
import com.google.gson.JsonParser;
import com.google.gson.Gson;
import org.apache.sling.api.SlingHttpServletRequest;
import org.apache.sling.api.SlingHttpServletResponse;
import org.apache.sling.api.servlets.SlingAllMethodsServlet;
import org.osgi.service.component.annotations.Component;

import javax.servlet.Servlet;
import javax.servlet.ServletException;
import java.io.IOException;

@Component(
    service = Servlet.class,
    property = {
        "sling.servlet.methods=POST",                // or GET/PUT if needed
        "sling.servlet.paths=/bin/myapp/external",   // API endpoint
        "sling.servlet.extensions=json"
    }
)
public class ExternalApiServlet extends SlingAllMethodsServlet {

    @Override
    protected void doPost(SlingHttpServletRequest request,
                          SlingHttpServletResponse response)
            throws ServletException, IOException {

        JsonObject input = JsonParser
                .parseReader(request.getReader())
                .getAsJsonObject();

        // Your business logic
        String foo = input.get("foo").getAsString();

        JsonObject result = new JsonObject();
        result.addProperty("foo", foo);
        result.addProperty("processed", true);

        response.setContentType("application/json");
        new Gson().toJson(result, response.getWriter());
    }
}

Deploy this with your normal AEM as a Cloud Service pipeline.

2. Allow the servlet through Dispatcher (publish)

In dispatcher filter rules (publish tier), allow this path:

/0100 {
  /type "allow"
  /method "POST"
  /url "/bin/myapp/external"
}

Deploy dispatcher config via your web tier/config pipeline.

3. Use token‑based auth (OAuth / service credentials)

For Postman / backend systems, use token-based authentication, not SAML:

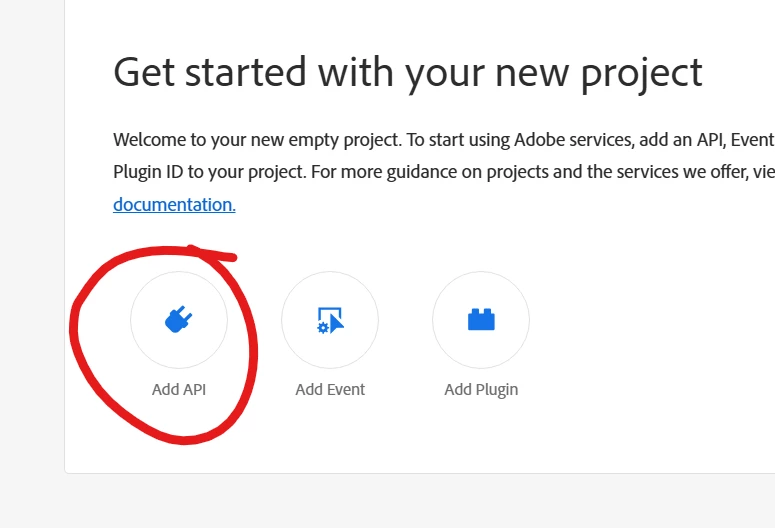

• In Adobe Developer Console:
  • Create a project.
  • Add the AEM as a Cloud Service API.
  • Configure OAuth Server‑to‑Server (or service credentials, depending on what you follow).
  • Download the credentials JSON.
• From that JSON, generate an access token via Adobe IMS (this is standard OAuth client_credentials or JWT > token flow).
• https://experienceleague.adobe.com/en/docs/experience-manager-learn/getting-started-with-aem-headless/authentication/overview
• https://experienceleague.adobe.com/en/docs/experience-manager-learn/getting-started-with-aem-headless/authentication/service-credentials
• https://experienceleague.adobe.com/en/docs/experience-manager-cloud-service/content/implementing/developing/generating-access-tokens-for-server-side-apis

In AEM, make sure the corresponding technical account user has permissions to access your servlet path.

4. Call the servlet from Postman / cURL

Postman:

• Method: POST
• URL:  https:///bin/myapp/external.json
• Headers:

  Authorization: Bearer <ACCESS_TOKEN>
  Content-Type: application/json


• Body (raw JSON):

  {
    "foo": "bar"
  }


• cURL:

  curl -X POST \
    https://<author-or-publish-domain>/bin/myapp/external.json \
    -H "Authorization: Bearer <ACCESS_TOKEN>" \
    -H "Content-Type: application/json" \
    -d '{"foo":"bar"}'


  Response (example):

  {
    "foo": "bar",
    "processed": true
  }


5. Why OAuth/token and not SAML?

• SAML/OIDC in AEMaaCS is for browser users (SSO).
• For system‑to‑system (Postman, other backend apps), AEM as a Cloud Service officially recommends token-based auth via access tokens (OAuth/service credentials) as shown in:https://experienceleague.adobe.com/en/docs/experience-manager-learn/cloud-service/authentication/authentication  https://experienceleague.adobe.com/en/docs/experience-manager-learn/getting-started-with-aem-headless/authentication/overview

Actually, you can build a servlet and deploy as an OSGI bundle. In order to do that, you should open the project code ( if using archetype, create a new java class inside Core folder).

Alternativelly you can leverage App Builder, create some serverless function and interact with AEM through it’s Rest API.
