GraphQL Sample Configuration cannot be installed.

  • February 18, 2023
  • 2 replies
  • 2097 views

Hello everyone!

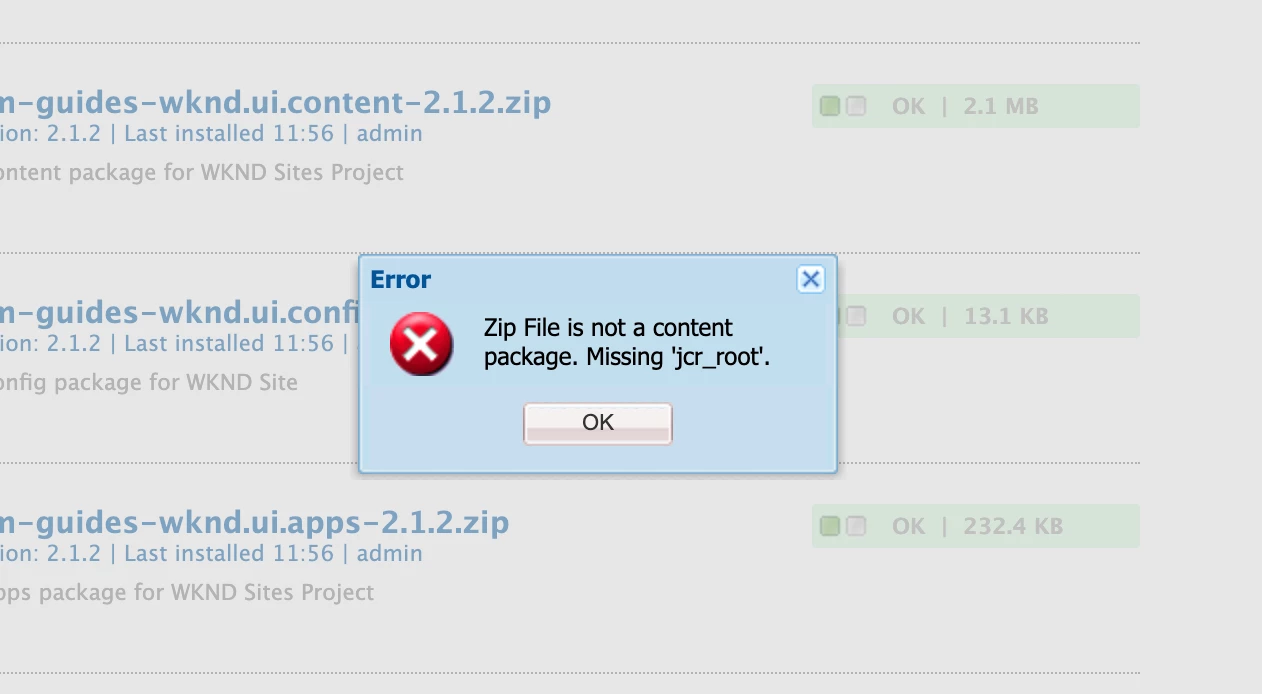

Any idea why GraphQL Sample Configuration cannot be installed on the author instance for PWA extensions? it says that the "jcr_root" file is missing. I was following the official docs and downloaded it from the site it suggested and was trying to install it on the author instance packages page that was referred from the docs.



This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

2 replies

B_Sravan
Community Advisor
B_SravanCommunity Advisor
Community Advisor
February 18, 2023

Hi @olegarg ,



this is because it is not a JCR content package.
you are supposed to install this through maven commands.

Read this for more info.

# GraphQL Sample This repository enables an AEM instance to be GraphQL ready. ## Project Structure The project has following sub-projects. ### all A resulting content package which includes all built artifacts. ### config The config sub-project contains OSGi configurations for: - [SlingSchemaServlet](config/src/main/content/jcr_root/apps/graphql-sample/config/com.adobe.aem.graphql.sites.adapters.SlingSchemaServlet-graphql.xml) - [GraphQLServlet](config/src/main/content/jcr_root/apps/graphql-sample/config/org.apache.sling.graphql.core.GraphQLServlet-graphql.xml) - [CSRF configuration](config/src/main/content/jcr_root/apps/graphql-sample/config/com.adobe.granite.csrf.impl.CSRFFilter.cfg.json) for the GraphQL endpoint - `/content/cq:graphql/global/endpoint` ### content The content package which includes a global GraphQL endpoint `/content/cq:graphql/global/endpoint` ### repository-structure Helper package to serve immutable content (config) ### dispatcher The dispatcher sub-project contains some additional configurations, in particular: - [aem-headless.vhost](dispatcher/src/conf.d/available_vhosts/aem-headless.vhost) - [rewrite.rules](dispatcher/src/conf.d/rewrites/rewrite.rules) - [aem-headless.farm](dispatcher/src/conf.dispatcher.d/available_farms/aem-headless.farm) - [filters.any](dispatcher/src/conf.dispatcher.d/filters/filters.any) - [rules.any](dispatcher/src/conf.dispatcher.d/cache/rules.any) - [clientheaders.any](dispatcher/src/conf.dispatcher.d/clientheaders/clientheaders.any) ## How to build/deploy for local AEM instance #### Before you start 1. When using SDK Quickstart from [AEM as a Cloud Service downloads](https://experience.adobe.com/#/downloads/content/software-distribution/en/aemcloud.html) use `AEM SDK v2021.1.4830.20210128T075814Z-210128` or more recent version. 2. Please reboot your SDK Quickstart instance once you installed it before installing this package. To build all the modules run in the project root directory the following command with Maven 3: mvn clean install If you have a running AEM instance you can build and package the whole project and deploy into AEM with: mvn clean install -PautoInstallPackage Depending on your maven configuration, you may find it helpful to force the resolution of the Adobe public repo with: mvn clean install -PautoInstallPackage -Padobe-public Or to deploy it to a publish instance, run: mvn clean install -PautoInstallPackagePublish Or alternatively: mvn clean install -PautoInstallPackage -Daem.port=4503 ## How to deploy on a AEM Skyline instance Use or integrate the sub-projects in git repository of your AEM Skyline program, and deploy through the program pipeline execution. ## Endpoint The AEM Headless endpoints exposed by this project : - Physical endpoint: `http(s):/host:port/content/_cq_graphql/global/endpoint.json` - Vanity URL: `http(s):/host:port/content/graphql/global/endpoint.json` - Note that the vanity URL does not include the JCR namespace.

 only "GraphiQL" content packages can be installed through package manager.

Thank you.

-Sravan

    O
    olegargAuthor
    Level 2
    February 19, 2023

    Hello @b_sravan. Thank you very much for the content provided. I explored it and tried to implement it for the GQL installation in the PWA Venia studio (react) for extensions (blog, etc). Unfortunately, I was not able to achieve any positive results.



    So if we follow the official docs below:



    https://github.com/adobe/aem-pwa-studio-extensions/tree/master/aem-cif-product-page-extension/aem

    Setting up the project

    1. Start an author and publish instance of AEMaaCS SDK. Make sure the local replication configuration works properly (via http://localhost:4502/etc/replication/agents.author.html). The author part is only required, if you want to change any of the CFM data or models.

    2. Download the GraphQL Sample Configuration package from Software Distribution, build it and install the all package on both instances.

    3. In the config project, update the following configurations to include the hostname of the PWA Studio app. This hostname is generated during step 2 of the PWA Studio setup.

      • src/main/content/jcr_root/apps/cif-extension/config/com.adobe.granite.cors.impl.CORSPolicyImpl~pwa.cfg.json

        Update the allowedorigin property to the full hostname of your local PWA installation.

        Example: https://pwa-studio-test-vflyn.local.pwadev:9366

      • src/main/content/jcr_root/apps/cif-extension/config/org.apache.sling.security.impl.ReferrerFilter.cfg.json

        Update the allow.hosts property to the hostname of your local PWA installation.

        Example: pwa-studio-test-vflyn.local.pwadev.

    4. Build and install  the packages using mvn clean install -PautoInstallSinglePackage for the author instance and mvn clean install -PautoInstallSinglePackagePublish for the publish instance

    From the list, I did stage 1. Stage 2 was completed partially as I only was able to download  GraphQl Sample Configuration. As you mentioned the last one is supposed to be installed through the MVN. Stage 3 was completed ok in the extensions folder.  Stage 4 I did not complete as it is not clear where the install supposed to happen. I tried to install the last in the root of the PWA studio but got an error that points to the missing file POM.xml and other missing info related to maven as I understand. I got an extension installed in VS code Maven for Java but it seems like it does not help in this case as PWA studio is not a maven project. From the official docs, we can see how to generate react app as a maven project. I got maven installed globally, latest v.  So, I am lost at the moment on how I can implement stage 2 and stage 4 from the list above. Thanks.













      bilal_ahmad
      bilal_ahmad
      Level 5
      February 19, 2023

      Hi, you can try using postman to upload the package. Import the JSON to your postman collection and then go to 'body' tab, attach the package and hit send.
      Postman Collection

        O
        olegargAuthor
        Level 2
        February 20, 2023

        Hi, @bilal_ahmad Thank you for your reply. I did not get what kind of JSON  I should import. I got a GraphQL package that needs to be installed for author and publish instances. It should be done through MVN as docs say and through the project root. I cannot find yet how I can do it for  PWA studio as it is not an MVN-type project. Somehow it is possible as on the official video they show how they do changes to PWA studio content through AEM but they DO NOT show how they connect PWA studio to AEM and do deploy changes.



          O
          olegargAuthor
          Level 2
          February 21, 2023

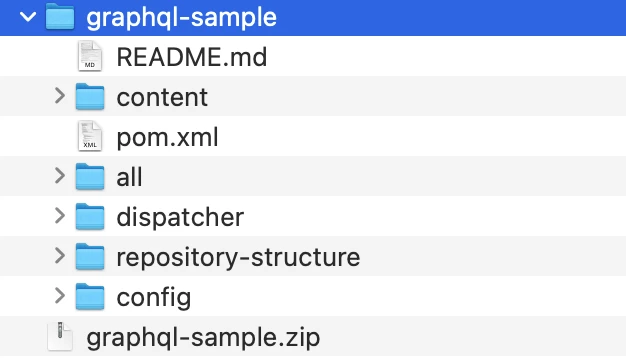

          I found out the right step for stage 2. After we download the "GraphQL Sample Configuration" file, we need to unpack it and inside of it run :

          mvn clean install

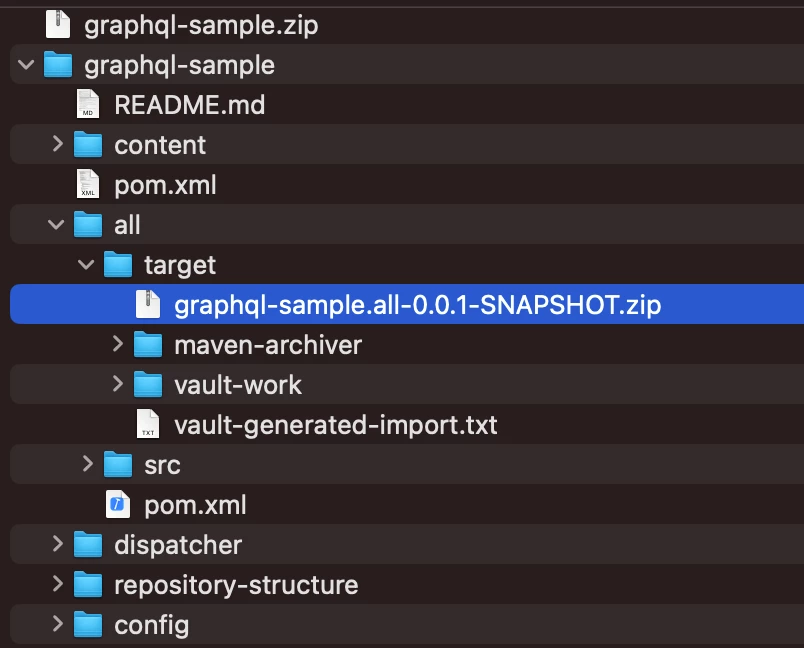

          It will create a "target" folder inside the "all" folder. Inside the "target" folder we need to use "graphql-sample.all-0.0.1-SNAPSHOT.zip" to upload it, build and install it on the author and publish instances.
