Error when enabling Encapsulated Token support for dual publish environment
Good evening AEM Team!
We have integrated Okta as the IDM for our AEM 6.2 website. We have done so using a fairly standard SAML configuration which has worked well. In our live/production environment we have two publish instances so we have been testing the integration across two publish environments.
We have configured:
- Apache Sling Distribution Agents - Sync Agents Factory
- Adobe Granite Distribution - Encrypted Password Transport Secret Provider
- Apache Sling Distribution Trigger - Scheduled Triggers Factory
- Apache Sling Distribution Agent – Queue Agents Factory (on each Publish Instance)
- Adobe Granite Distribution – Diff Observer Factory (on each Publish Instance)
- AEM Communities User Sync Listener (on each Publish Instance)
We have also enabled Encapsulated Token Support:
- Day CRX Token Authentication Handler
(As described in your tech note here: https://helpx.adobe.com/uk/experience-manager/6-2/sites/administering/using/encapsulated-token.html (1))
We have had good results with user replication and we have been able to observe that the login-token is being shared across both instances (by viewing the login status of CRXDE on each instance).

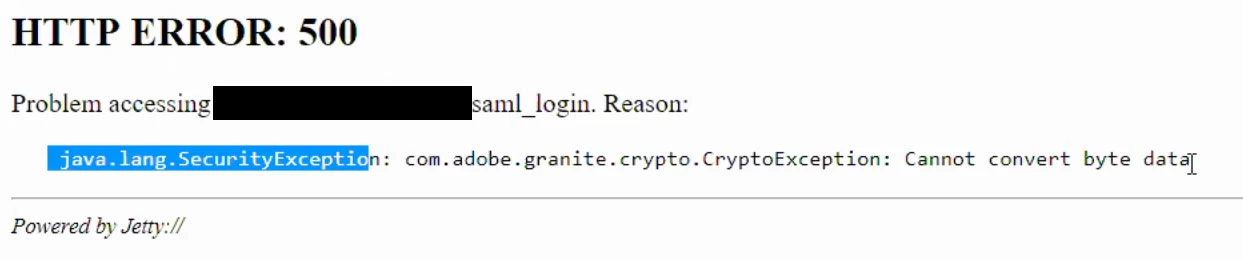

However, we have encountered a critical error when attempting to login via the SAML Authentication Handler. After following the instructions (1) above, we SAML authenticate via Okta and we are met with the following error:
A fuller extract from the logs is as follows:
15.05.2019 22:59:45.428 ERROR [qtp192509136-4428] org.apache.felix.http.jetty Exception while processing request to /XXXXXXXXXXXXXX/saml_login (java.lang.SecurityException: com.adobe.granite.crypto.CryptoException: Cannot convert byte data)
java.lang.SecurityException: com.adobe.granite.crypto.CryptoException: Cannot convert byte data
at com.adobe.granite.keystore.internal.KeyStoreServiceImpl.extractStorePassword(KeyStoreServiceImpl.java:609)
at com.adobe.granite.keystore.internal.KeyStoreServiceImpl.internalGetTrustStore(KeyStoreServiceImpl.java:462)
at com.adobe.granite.keystore.internal.KeyStoreServiceImpl.getTrustStore(KeyStoreServiceImpl.java:154)
at com.adobe.granite.auth.saml.SamlAuthenticationHandler.handleLogin(SamlAuthenticationHandler.java:737)
at com.adobe.granite.auth.saml.SamlAuthenticationHandler.extractCredentials(SamlAuthenticationHandler.java:433)
at org.apache.sling.auth.core.impl.AuthenticationHandlerHolder.doExtractCredentials(AuthenticationHandlerHolder.java:75)
at org.apache.sling.auth.core.impl.AbstractAuthenticationHandlerHolder.extractCredentials(AbstractAuthenticationHandlerHolder.java:60)
at org.apache.sling.auth.core.impl.SlingAuthenticator.getAuthenticationInfo(SlingAuthenticator.java:718)
at org.apache.sling.auth.core.impl.SlingAuthenticator.doHandleSecurity(SlingAuthenticator.java:466)
at org.apache.sling.auth.core.impl.SlingAuthenticator.handleSecurity(SlingAuthenticator.java:451)
at org.apache.sling.engine.impl.SlingHttpContext.handleSecurity(SlingHttpContext.java:121)
at org.apache.felix.http.base.internal.service.ServletContextImpl.handleSecurity(ServletContextImpl.java:421)
at org.apache.felix.http.base.internal.dispatch.InvocationChain.doFilter(InvocationChain.java:57)
at org.apache.felix.http.base.internal.dispatch.Dispatcher.dispatch(Dispatcher.java:124)
at org.apache.felix.http.base.internal.DispatcherServlet.service(DispatcherServlet.java:61)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:725)
at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:812)
at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:587)
at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:221)
at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1127)
at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:515)
at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:185)
at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1061)
at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:141)
at org.eclipse.jetty.server.handler.ContextHandlerCollection.handle(ContextHandlerCollection.java:215)
at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:97)
at org.eclipse.jetty.server.Server.handle(Server.java:499)
at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:311)
at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:257)
at org.eclipse.jetty.io.AbstractConnection$2.run(AbstractConnection.java:544)
at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:635)
at org.eclipse.jetty.util.thread.QueuedThreadPool$3.run(QueuedThreadPool.java:555)
at java.lang.Thread.run(Unknown Source)
Caused by: com.adobe.granite.crypto.CryptoException: Cannot convert byte data
at com.adobe.granite.crypto.internal.CryptoSupportImpl.unprotect(CryptoSupportImpl.java:160)
at com.adobe.granite.keystore.internal.KeyStoreServiceImpl.extractStorePassword(KeyStoreServiceImpl.java:601)
... 32 common frames omitted
Caused by: com.adobe.granite.crypto.CryptoException: Failed decrypting cipher text
at com.adobe.granite.crypto.internal.CryptoSupportImpl.decrypt(CryptoSupportImpl.java:96)
at com.adobe.granite.crypto.internal.CryptoSupportImpl.unprotect(CryptoSupportImpl.java:157)
... 33 common frames omitted
Caused by: com.rsa.jsafe.JSAFE_PaddingException: Invalid padding.
at com.rsa.jsafe.JSAFE_SymmetricCipher.decryptFinal(Unknown Source)
at com.adobe.granite.crypto.internal.jsafe.JSafeCryptoSupport.getPlainText(JSafeCryptoSupport.java:325)
at com.adobe.granite.crypto.internal.jsafe.JSafeCryptoSupport.getPlainText(JSafeCryptoSupport.java:307)
at com.adobe.granite.crypto.internal.CryptoSupportImpl.decrypt(CryptoSupportImpl.java:94)
... 34 common frames omitted
One point to note, is that there is a key piece of detail missing from the instructions in (1), regarding where the /etc/key/ package should be built. Should it come from the common author instance or one of the publish instances? Either way, I know the problem goes deeper than that one concern but it should also be addressed.
All inputs gratefully received as ever.
